Bad fan clutch symptoms include overheating at idle, weaker A/C in traffic, unusual fan roar, fluid leakage and looseness around the fan. These are clues, not a diagnosis. First identify the clutch type, then check whether its response matches the operating conditions and the vehicle's service information.
A vehicle that cools better at road speed may have an airflow problem, but a restricted radiator, a faulty thermostat, low coolant or a drive problem can produce similar complaints.

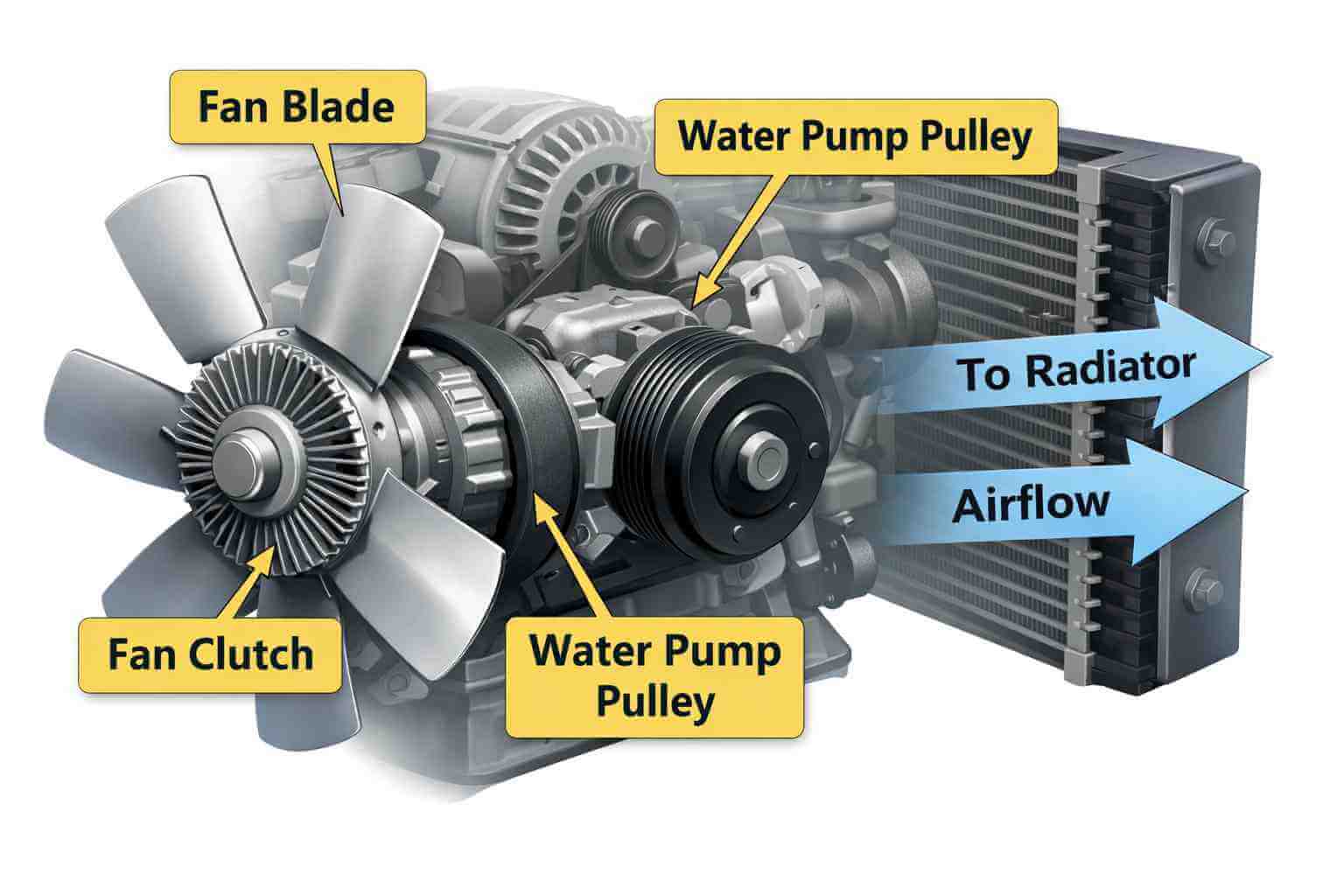

A fan clutch controls how much engine power reaches a mechanically driven cooling fan. It allows more fan airflow when the cooling system needs it and reduces unnecessary drag when demand falls. It is a different component from an electric radiator-fan motor or control module.
This guide concerns vehicles fitted with a mechanically driven fan clutch, including relevant truck, SUV and commercial applications. Check the actual cooling layout before applying these checks.
On a thermal viscous clutch, the sensing element responds to air passing through the radiator. Engine coolant temperature alone does not show what that element is sensing: radiator restrictions, missing shrouds or obstructed airflow can change the response. Hayden's thermal-clutch diagnosis guide explains this operating principle and the need to inspect the surrounding cooling package.
An electronically controlled viscous clutch also needs the correct control inputs and electrical circuit. Use the procedure for that vehicle to compare requested operation with actual fan response. A thermal-clutch hand check cannot replace those electrical checks.

Temperature that rises in traffic but improves with road speed makes low-speed airflow worth investigating. Record the conditions and fan response rather than replacing the clutch from that pattern alone. Check coolant level, radiator and condenser obstruction, shrouds, belt drive and the fan blades before assigning the fault to the clutch.
Where the engine fan also draws air through the condenser, inadequate airflow can reduce A/C performance at idle. The combination of warmer vent air and rising coolant temperature is useful context, but refrigerant charge, compressor control and other airflow faults still need checking. The guide to fan-clutch-related A/C complaints covers that distinction.
A lack of increased fan response can support weak engagement only when the system is actually requesting, or exposing a thermal clutch to, the conditions for engagement. On a thermal unit, inspect airflow through the radiator and across the sensing area. On an electronic unit, compare command, feedback and relevant inputs using the vehicle's diagnostic procedure. Sound alone does not prove that the clutch failed.
Persistent roar after demand should have fallen may indicate excessive engagement, but initial startup engagement can be normal. Hayden's electronic-clutch troubleshooting guidance specifically cautions against replacing an electronic viscous clutch for noise alone. Check operating demand, electrical faults and the applicable response time before calling it mechanically locked. There is no universal startup-noise duration for every clutch.
Unnecessary fan engagement adds engine load. Reduced response occurring together with persistent fan roar therefore deserves investigation, but sluggish acceleration by itself is not a clutch test. Confirm whether the fan remains engaged when the applicable control or thermal conditions call for reduced engagement, then consider other engine or driveline causes if it does not.
Extra fan drag can contribute to fuel use, but a change in fuel economy has many possible explanations. Compare similar load, route and ambient conditions, and look for confirmed excessive fan operation. Do not use a fuel-consumption complaint to order a clutch without supporting fan evidence or promise a particular fuel saving after replacement.
A change in hand resistance may be a preliminary clue on a suitable viscous design. It is not a universal pass/fail test: clutch construction, temperature and recent operation matter. Only inspect with the engine off, the fan fully stopped and unintended starting prevented under the service procedure. Do not apply a fixed number of hand turns to every clutch or try to stop a running fan.

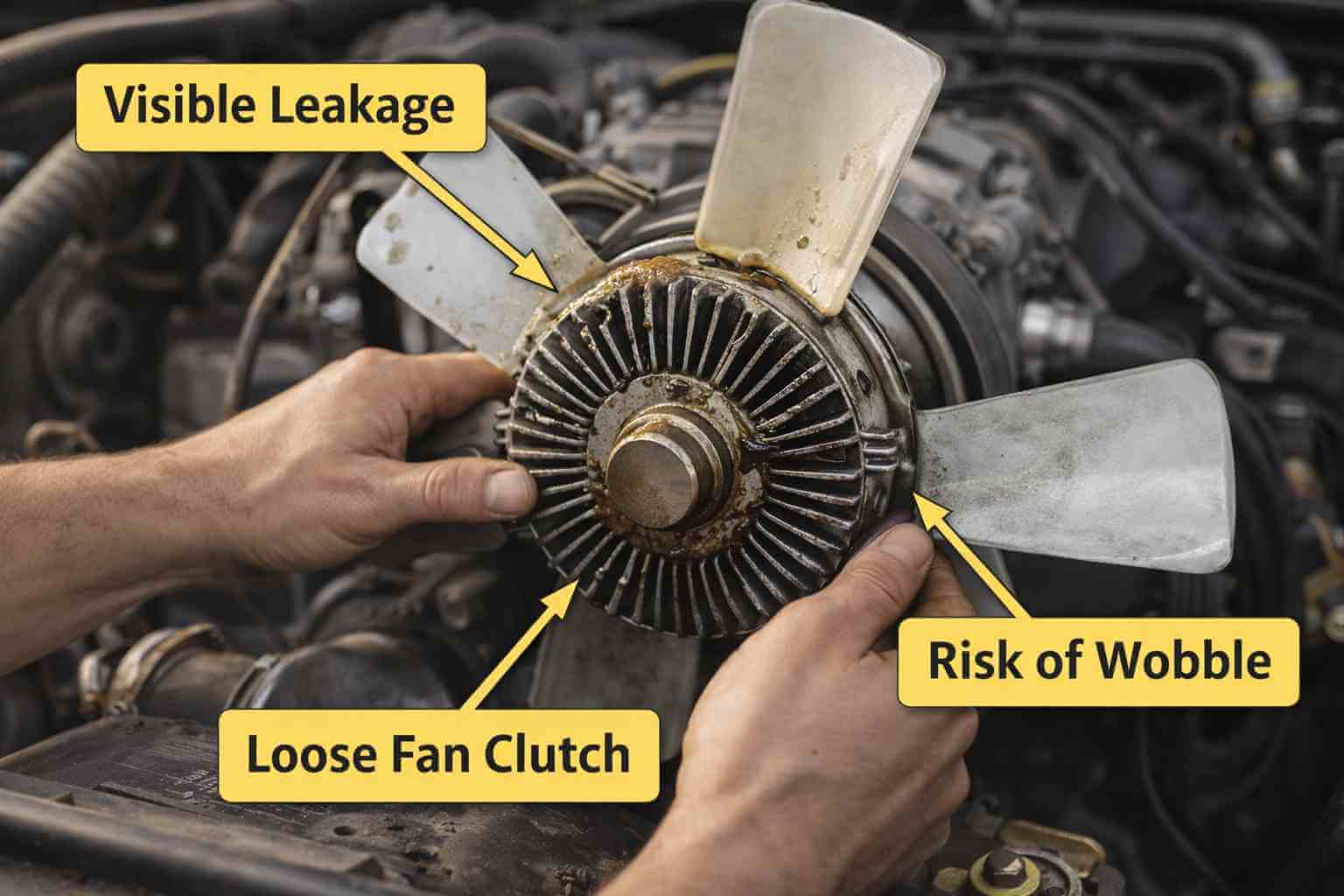

Trace residue to its source. A fresh leak from a viscous clutch housing carries different information from coolant, engine oil or an old spill on nearby components. Record the location and condition before cleaning. Confirm the clutch type and the relevant inspection criteria before deciding whether the leak belongs to the clutch or another component.
Looseness requires inspection of the whole support path: fan blades, clutch mounting, fasteners and the bearing or hub carrying the assembly. Movement at the fan does not identify which interface is worn. With everything stopped, locate where movement begins and compare it with the limits for that assembly. Do not continue a running test with a damaged blade or insecure mounting.
On an electronic clutch system, read the exact code and follow its diagnostic path. A code can direct attention to a circuit, control input, speed signal or response problem; it is not automatically a parts-replacement instruction. Check wiring, connectors, power and control as specified before condemning the clutch itself.

Visible cooling fins and central hubs on fan-clutch housings.
The fins and hub are visible comparison features. A photograph of a housing in a fixture does not demonstrate engagement, torque transfer or a completed performance test.
Use a recorded sequence rather than repeating symptom checks without a result. The following evidence helps a workshop or parts buyer distinguish a failed clutch from a normal response or a fault elsewhere.
| Check | Record | What it does not prove alone |
|---|---|---|
| Identify the assembly | Vehicle, engine, clutch reference and thermal or electronic control type. | A visually similar unit is not necessarily the correct replacement. |
| Reproduce the complaint | Cold start, warm idle, road speed, load, A/C request and observed temperature trend. | A short startup roar is not automatically a fault. |
| Inspect the cooling package | Shrouds, air dams, radiator/condenser obstruction, fan damage, belt and supports. | Low airflow does not identify the clutch as its cause. |
| Inspect while stopped | Leak source, damaged parts, mounting movement and model-specific inspection results. | Hand resistance or movement at a blade tip does not locate every fault. |
| Check electronic operation | DTC definitions, circuit checks, requested operation and actual response where supported. | Noise or a warning light alone does not establish a failed clutch. |
Some electronic viscous drives use a full-engagement fail-safe state during an electrical problem. Horton describes that behavior for its electronically controlled viscous designs. Verify the design fitted to the vehicle; do not assume every clutch has the same electrical logic.
For the test sequence, see how to test a fan clutch. Follow the vehicle procedure for operating tests, equipment placement and acceptable results rather than inventing a general engagement temperature, delay or number of rotations.

The central clutch housing is visible separately from the surrounding fan blades.
The visible blades, central housings and attachment areas help distinguish the fan assembly from the clutch alone. These reference units do not show a diagnosed fault or establish fitment.
A thermostat that does not open correctly can restrict coolant flow through the engine and radiator. The vehicle may then overheat beyond the low-speed conditions associated with inadequate fan airflow. Use the temperature and circulation checks for that engine; the driving pattern alone does not separate the faults.
Distinguish an internal coolant restriction from dirt or debris blocking airflow outside the radiator. Either can reduce heat rejection while the fan clutch is operating normally. If airflow is present but the system still runs hot under load, inspect the radiator and cooling package rather than assuming that more fan engagement will fix it.
Low coolant or trapped air can cause intermittent overheating, inconsistent heater performance or fluctuating temperature readings. Check the coolant level with the engine cool using the vehicle's procedure, and verify the prescribed fill and bleed process after cooling-system work. These findings need circulation checks before another fan clutch is ordered.
The water pump circulates coolant; the fan moves air through the heat exchangers. An engine can run hot with adequate fan airflow if coolant circulation is impaired. Investigate the pump and the relevant circuit using the vehicle's checks instead of treating overheating alone as proof that either part has failed.
A loose, worn or slipping belt, damaged fan blade, loose mounting or worn support can produce poor airflow, noise or vibration. Inspect the surrounding drive and support components and locate the actual defect. Correct an insecure or damaged assembly before another operating test; do not order a clutch solely because the original complaint remains.
Excessive engagement adds accessory load, but rough idle alone does not establish a fan-clutch fault. Record whether the complaint coincides with abnormal fan operation and follow the vehicle's engine diagnostic procedure. A rough-running complaint and a confirmed failure of the fan to respond are different findings.
The decision depends on the confirmed fault and the vehicle's condition. A weak clutch can leave the engine overheating at idle or under load; excessive engagement can add drag and noise. Do not keep operating an overheating vehicle or a damaged, insecure fan assembly to complete a test. Follow the vehicle's warning and service instructions and arrange assessment. Normal startup roar alone does not establish a failed clutch.
Identify the fluid source or worn interface first. Confirmed damage to the clutch may require replacement, while a leaking pump, loose support or damaged fan needs a different repair. Avoid operating an insecure or damaged rotating assembly while trying to complete diagnosis.
Keep the vehicle and engine details, clutch reference, control type, mounting and connector photographs, fan configuration and the confirmed failure evidence together. Confirm the application and any required supporting parts before approving a replacement; a similar shape or the same symptom is not fitment evidence.
