R-1234yf Refrigerant Leak Claims: What Evidence Distributors Should Collect

An R-1234yf refrigerant leak claim is rarely decided by one photograph or a statement that the A/C stopped cooling. A distributor, workshop, and fleet customer all need the same thing: a disciplined record that shows what vehicle was involved, where the loss was observed, what condition the system was in, what parts were supplied, and what happened after the repair. Without that chain, a legitimate defect can take too long to resolve and an installation-related failure can be mistaken for a product issue.

This is a practical evidence guide for automotive parts distributors. It does not replace the vehicle manufacturer’s repair procedure or qualified service work. It shows what information should accompany a claim involving an R-1234yf A/C component so the distributor can assess it quickly and source a proper follow-on repair. If the claim includes a compressor, first verify the exact unit and application through the wholesale A/C compressor range; a refrigerant label alone is never enough to establish fitment.

Start with the distinction every claim needs

A leak claim and a component-failure claim can overlap, but they are not the same question. A leak claim asks where refrigerant escaped and why that location failed. A component-failure claim asks whether a supplied part was defective, damaged in transit, fitted incorrectly, or exposed to a system condition outside its intended operation. If the case is not separated at the beginning, the evidence becomes vague and the remedy may be wrong.

That table should guide the claim form. It prevents the unhelpful category of “A/C not cold” from becoming the only description of a complex repair. A good claim begins with an observed fact, not a presumed conclusion.

Collect evidence before cleaning, dismantling, or shipping the part back

Technicians often clean an area to diagnose it, and that is understandable. But the evidence package should be captured first whenever practical. A light oil stain around a hose fitting, a rubbed-through aluminum line, or a crushed section of condenser may be the clearest clue to the original loss. Once the location has been washed, separated, or moved across the workshop, the record becomes less reliable.

Ask for three views of the suspected fault. The first is a wide image that establishes where the part sits in the vehicle. The second is a medium view showing the surrounding mounting, hose routing, grille area, or bracket. The third is a close view of the suspected defect. If the photograph has no scale, include a safe reference such as a ruler where suitable. If a part number or label is readable, capture that separately rather than relying on a blurred wide photo.

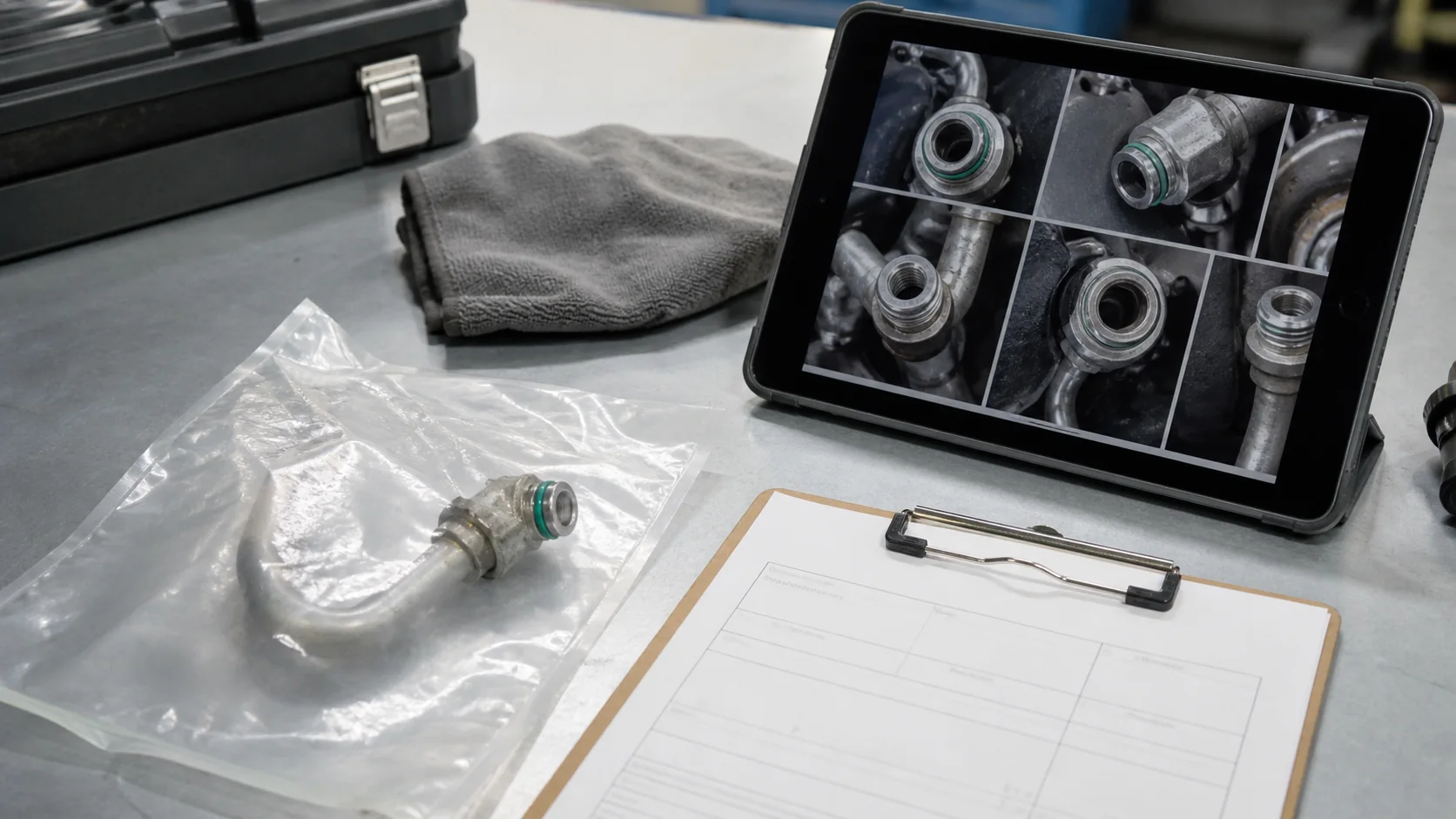

Minimum evidence set for every R-1234yf leak claim

• Customer name or job reference, invoice number, and claim date.

• Vehicle VIN or equivalent application identification, model year, and relevant powertrain details.

• Photo of the A/C information label and the original part identification where accessible.

• Part number supplied, purchase date, installation date, and installer details.

• Complaint description in the customer’s words, including when the cooling loss was first noticed.

• Photos of the suspected leak area before cleaning or removal: wide, medium, and close.

• Leak-detection method used and the factual result; attach a reading or image if the procedure provides one.

• Recovered-charge amount and any abnormal service-machine observation, when available.

• List of related parts replaced, retained, flushed, or found damaged.

• Post-repair commissioning record if the repair was completed before the claim was opened.

The target is usable evidence, not unnecessary administration. The record should tell a reviewer what happened without requiring a phone call to decode every picture. The better the first submission, the faster a supplier can decide whether it needs more images, a returned sample, or a replacement authorization.

Identify the physical failure mode, not just the refrigerant type

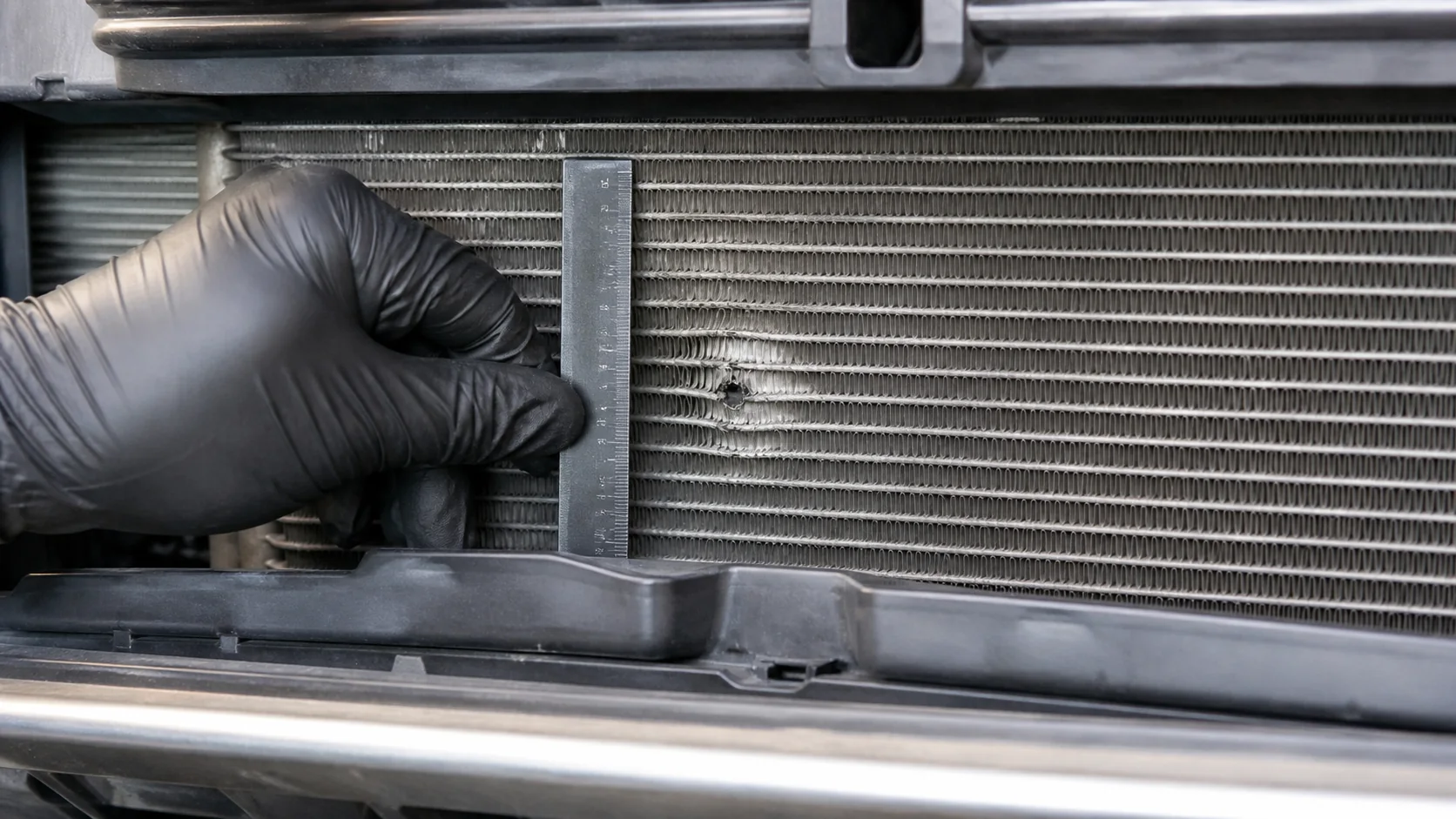

Visible damage needs a scale, orientation, and vehicle context before a claim decision.

R-1234yf matters because the vehicle and service workflow must be identified correctly. It does not magically change the physical causes of external damage. Condensers can be punctured by road debris. Lines can rub against brackets. O-rings can be cut, twisted, omitted, or fitted to a damaged mating surface. Corrosion can develop at exposed joints. Compressor housings and ports can be damaged by handling or an incorrect installation angle.

For an aftermarket distributor, the strongest claim language describes the visible condition. Instead of writing “condenser leaked,” record “front lower tube visibly flattened with a localized perforation behind grille impact damage,” if that is what the evidence shows. Instead of “compressor faulty,” record “oil trace visible at suction connection; seal removed for inspection; line flange shows scoring,” where applicable. The claim reviewer can then distinguish a potential supplied-part fault from external damage, a sealing issue, or incomplete repair scope.

When the claim concerns the heat exchanger, verify the application against the relevant A/C condenser listing before any replacement is approved. A similar-looking condenser can differ in fitting position, core thickness, integrated drier design, pressure-port position, and mounting. A poorly matched replacement can create a new leak path that has nothing to do with the original component.

Make the refrigerant-service record useful without overclaiming

The recovered amount, equipment result, and service observations are valuable supporting facts. They should not be used as a shortcut to announce a root cause. A low recovered charge can be consistent with a leak, but it does not identify the location. A poor cooling result may accompany a low charge, airflow problem, control fault, or internal restriction. A machine alert may require a controlled next step; it does not automatically identify the supplied component as defective.

Use factual language: “The system was recovered before opening; quantity recorded as X by the workshop; a leak was then indicated at the photographed connection.” Avoid language that skips the evidence: “The compressor caused the refrigerant to escape.” The second statement may be true in a proven case, but it should follow inspection rather than lead it.

For cross-contamination concerns, record the equipment and process boundary where the workshop can provide it. Confirm the vehicle label, note that the service machine and fittings were appropriate to the refrigerant procedure, and preserve any relevant machine result. The distributor should not advise bypassing dedicated interfaces or changing the refrigerant system from an order note. Its role is to make sure the technical case is documented and routed to the right reviewer.

Evidence for compressor-related claims

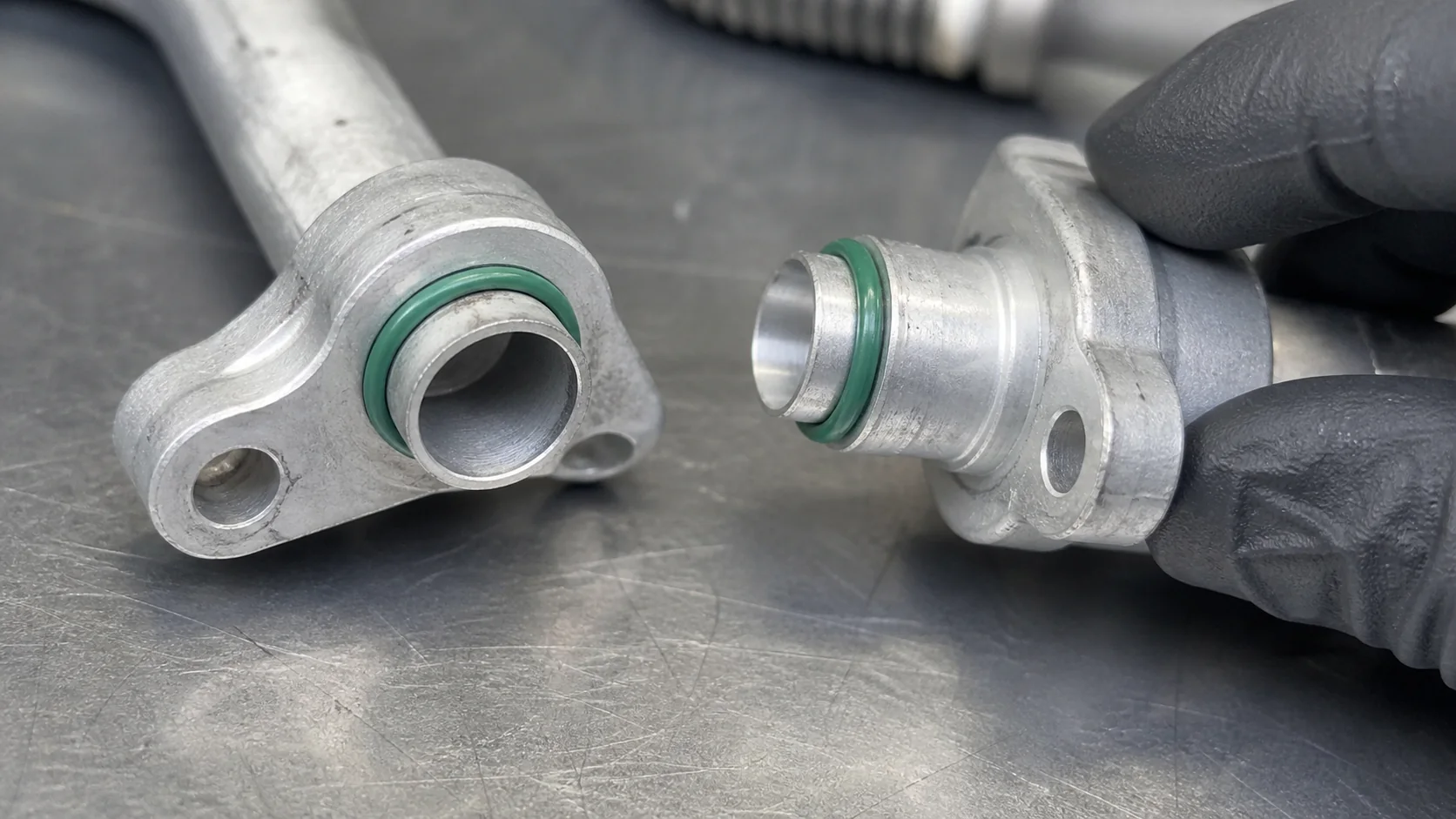

Seal, fitting, and connection evidence helps separate installation issues from part-condition questions.

Compressor claims demand a wider system picture because the compressor is affected by charge, oil, electrical or drive conditions, debris, restrictions, heat rejection, and installation quality. A returned unit may show a damaged connector, seized shaft, contaminated oil, visible impact, or no obvious external defect. Each outcome needs different evidence.

Before the compressor is removed

Photograph the compressor in position, its electrical connector or drive arrangement, hose routing, mounting bolts, and any visible oil trace. Record the part number and the vehicle identity. If an electric or hybrid application is involved, do not assume that the evidence requirements match those of a belt-driven unit; the system architecture and approved service procedure matter. Note any workshop-reported warning, abnormal noise, or loss of cooling, but keep the original wording distinct from a confirmed diagnosis.

When the circuit is opened

Record the condition of the removed seals, mating surfaces, and recovered oil or debris if observed under the specified procedure. Photograph contamination only when it is visible and safe to document. Do not encourage a customer to dismantle a unit beyond the supplier’s return requirements simply to obtain better images. An intact returned part with clear installation evidence is more useful than a heavily disassembled part that cannot be evaluated.

After the replacement is installed

Where the repair has proceeded, retain the commissioning record and photos of the completed installation. Include the related parts installed, especially any condenser, drier strategy, seals, lines, or control components that were part of the repair. A correctly matched A/C pressure switch may be relevant to the order, but photos and fitment confirmation do not prove a pressure-control diagnosis. Keep the evidence tied to the physical claim.

Use a claim timeline that a reviewer can follow

A short chronology connects the part, the repair, the test method, and the reported symptom.

A timeline is particularly important for repeat repairs. If the same vehicle returns with low cooling, the reviewer needs to know whether the first leak was repaired, whether a new location is now indicated, whether the original component was replaced, and whether the system was commissioned correctly. Treating every repeat complaint as the same leak often produces an incorrect remedy.

What distributors should do when evidence is incomplete

Do not automatically reject an incomplete claim, and do not automatically approve it as a defect. Respond with a short, precise request: “Please send the vehicle reference, invoice, part label, fault photos, and the leak-test result.” If the part is already off the vehicle, ask whether the original installed-position photographs exist. If the installation has not been completed, request the service record before the claim proceeds.

The tone matters. “We need a photo of the connection face and the vehicle label to assess the claim correctly” is more useful than “insufficient evidence.” It tells the workshop what will unblock the case. A good distributor claim process is a technical support function, not a paperwork trap.

Record the test method in plain language

Claim files become unreliable when a test is described only as “checked OK” or “leak tested.” The reviewer needs to know what was actually done, without turning the claim form into a workshop manual. A concise entry may say that the system was visually inspected, that an electronic detector approved or suitable for the vehicle’s R-1234yf procedure indicated a response at a photographed connection, or that an approved pressure or vacuum procedure was completed and the resulting observation was recorded. Attach any output the equipment normally provides, but do not manufacture a numerical result that was never taken.

It is equally useful to record negative observations. For example: “No external impact visible at the condenser; leak indication found at the lower line connection,” or “No oil trace seen at the compressor body; vehicle returned with a rubbing hose at the photographed bracket.” Negative information narrows the possibilities and shows that the technician looked beyond the part named on the invoice.

Where local regulations, vehicle procedures, or workshop policy restrict a particular method, the claim should simply state the approved method that was used. A distributor should not ask a customer to perform an unapproved test merely to satisfy a form. Evidence has value only when it is gathered safely and in a way that preserves the integrity of the repair.

Preserve the returned part and its context

If a physical return is required, label the package with the claim number, order reference, part number, vehicle/application reference, and removal date. Keep separate loose seals, fittings, or fragments only when the supplier requests them or when they are necessary to explain the visible condition. Do not mix unrelated hardware from several repairs into one return box. The result is a chain-of-custody problem: nobody can be certain which seal, bolt, or fragment came from the claimed installation.

Protect connections and exposed ports for shipment in a way that does not hide the evidence. The aim is to prevent transit damage and loss of attached fittings, not to clean the component into a new condition. A quick photograph of the packed return can be valuable when there is a dispute about transit damage or missing parts. If the part is being retained by the workshop pending review, record its storage location so that an inspection request does not become impossible two weeks later.

Use evidence to improve future orders

The most valuable claim process feeds lessons back to the counter and purchasing team. If several claims involve a particular routing issue, ask whether the quotation needs a line clip, bracket, seal, or clearer fitment note. If repeat claims show front-end impact to a condenser, consider whether fleet customers need a preventive inspection prompt. If a high number of cases arrive with no vehicle label image, add that field to the standard order workflow for refrigerant-related components.

This feedback loop is not about blaming installers. It is about finding the small pieces of information that prevent a repeat repair. Over time, a distributor can identify whether a category generates fitment questions, installation questions, or genuine quality concerns, and can improve its support materials accordingly. It creates fewer avoidable returns and clearer technical conversations. When patterns are shared responsibly, the next customer receives a more complete quotation and a better explanation of the evidence required.

FAQ

Does refrigerant type prove which part leaked?

No. It identifies the system and service boundary. The leak location and failure mode still need evidence.

Can a workshop submit a claim after cleaning the suspected leak?

Yes, but pre-cleaning photos are much stronger. If they are unavailable, provide the best remaining context, the test method used, and clear images of the part and location.

Should the distributor ask for a pressure reading?

It can be supporting information when obtained under the correct procedure, but it should not replace images, vehicle identification, leak evidence, and commissioning records.

What is the fastest way to avoid a delay?

Attach all identity, installation, and visual evidence to the first submission, and describe the physical observation rather than simply naming the part that was replaced.

Better evidence protects good customers and good parts

An R-1234yf leak claim becomes manageable when the evidence follows the component from vehicle to service bay to claim file. Record the vehicle, capture the physical condition, keep recovery and repair observations factual, and document the completed work. That discipline helps distributors approve genuine issues faster, identify installation or system risks fairly, and recommend a repair package that actually addresses the reason the A/C lost charge.
