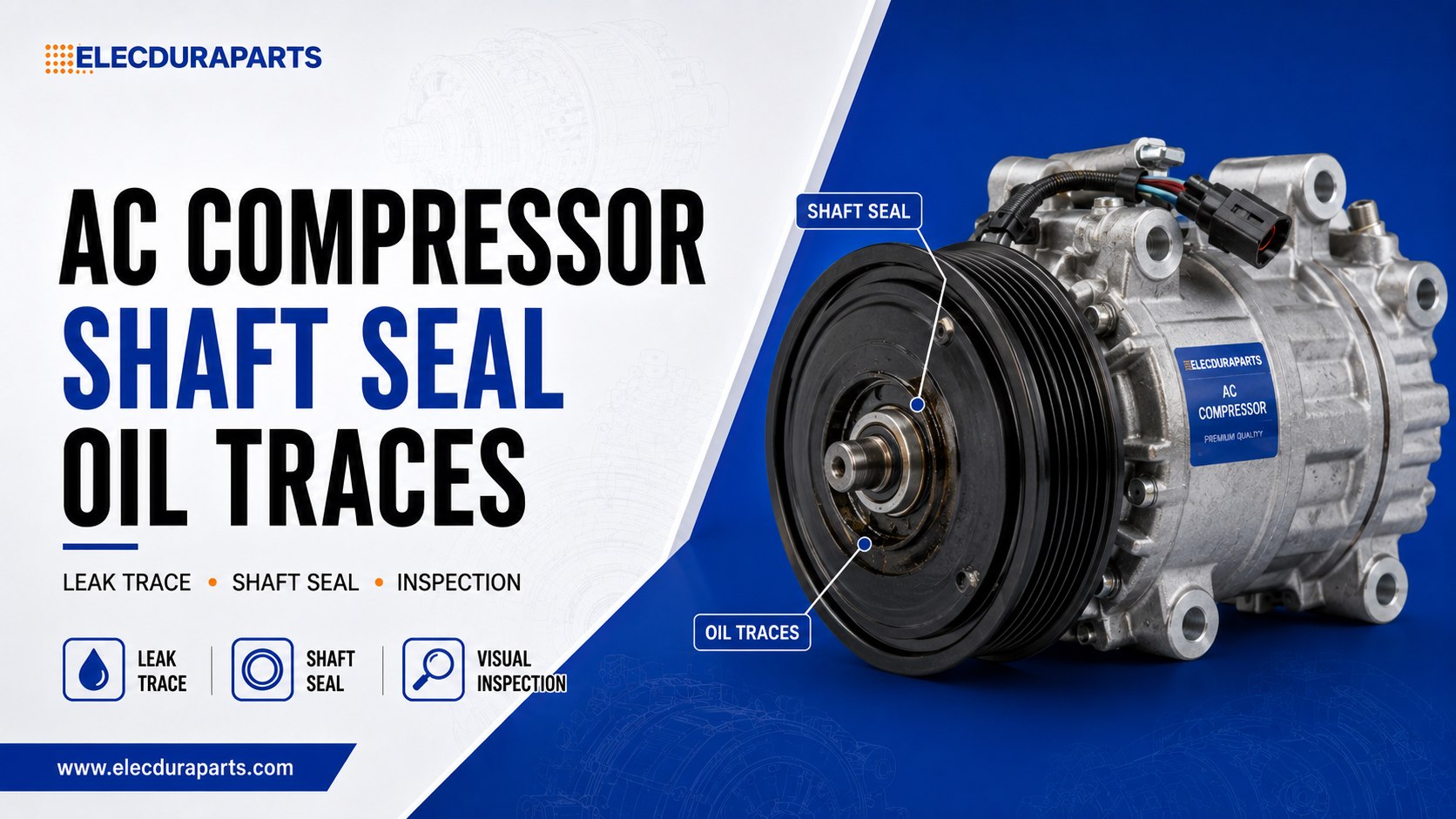

Oil near an air-conditioning compressor shaft seal often triggers an immediate replacement recommendation. Yet a thin historical film, assembly residue, oil migrating from another fitting or dye spread by the pulley can look dramatic without proving an active refrigerant leak. The pattern must be preserved and tested before cleaning or part removal destroys the evidence.
A defensible AC compressor shaft seal leak diagnosis combines oil-pattern mapping, controlled cleaning, repeat operation and a refrigerant-sensitive leak method. The AC compressor should be replaced only when the seal area is isolated as an active source or when other confirmed compressor faults justify the repair.
This guide focuses on normal film versus active leakage, centrifugal and airflow migration, dye interpretation and leak-rate evidence. It does not repeat a generic leak checklist.
No. Oil staining proves only that oil reached the visible area. An active shaft-seal leak is supported when the compressor nose is cleaned, surrounding sources are excluded, the system is operated under controlled pressure and shaft speed, and fresh refrigerant-sensitive evidence reappears from the shaft-seal boundary. Refrigerant loss over time or a repeatable instrument response strengthens the conclusion.
Evidence | Meaning | Limitation |
|---|---|---|
Dry dust on thin oil film | Old or low-rate residue possible | Does not date the event |
Fresh radial spray from hub | Rotating source strongly suspected | Could originate at clutch/pulley contamination |
UV dye only | Dye reached the location | Migration may obscure source |
Electronic detector at seal after cleaning | Active refrigerant evidence | Airflow and cross-contamination matter |
Measured refrigerant mass loss | System leak confirmed | Does not locate source alone |
A dynamic shaft seal operates between a rotating shaft and stationary housing. Refrigerant oil lubricates its interface, and some designs may develop a light film over time without a leak rate that affects system performance. Manufacturing, assembly or prior service can also leave residue near the compressor nose.
Visual judgment must account for compressor design, service history and the pattern's freshness. A thick wet deposit or repeated fresh spray is more concerning than a dry dust-coated stain, but neither should be interpreted without leak-sensitive evidence.
An active refrigerant leak can carry oil mist through the seal. After refrigerant evaporates, oil and dye remain as a visible trace.
Residue may remain for months after a previous repair or spill. Cleaning and a controlled recheck establish whether it is current.
A large old stain can be inactive, while a small fresh leak can lose meaningful refrigerant over time.
Photograph the compressor from several angles before using cleaner, UV light or compressed air. Include the shaft hub, clutch face where fitted, pulley, nose, case joints, service ports, manifold connections, hoses and surfaces above the compressor.
Oil can run downward from a fitting or be carried rearward by cooling airflow. Note vehicle orientation and the direction of fan and road air.
A rotating hub can create radial lines or a circular distribution. Trace the pattern back toward its smallest-radius origin instead of assuming the outermost wet area is the source.
Dust embedded in residue suggests age, while a clean wet track across dusty material suggests recent movement. Temperature and road exposure still affect this clue.
Engine oil, power-steering fluid where applicable, coolant residue, belt dressing, assembly grease and refrigerant oil from a hose or manifold can reach the compressor nose. Identify fluid character and trace the highest wet point.
Review the broader air-conditioning parts boundary, including hose crimps, service ports, pressure sensors and compressor manifold seals.
A leaking O-ring or service valve can release oil that airflow carries toward the pulley. Use refrigerant-sensitive testing at each candidate boundary.
Oil from a case seam can migrate forward along casting ribs. Follow the wettest continuous path rather than the most visible surface.
Ask whether dye, oil, cleaner or belt products were added. An undocumented spill can mimic a seal leak.
UV dye is carried by refrigerant oil and remains after refrigerant escapes. It can also migrate with oil, transfer on tools or accumulate from repeated dye additions. The brightest deposit may be a collection point rather than the original leak.
Dye pattern | Possible interpretation | Required confirmation |
|---|---|---|
Fresh ring at shaft boundary | Shaft seal source | Clean-and-recheck plus leak detector |
Radial streaks on clutch face | Rotating oil migration | Trace center origin |
Dye above compressor nose | External source | Inspect hose, port or manifold |
Broad fluorescent film | Previous spill or over-dye | Clean baseline and controlled run |
No visible dye | Dye absent, weak or leak elsewhere | Use approved electronic or pressure method |
Use only approved dye and quantity. Excess dye changes visibility and can contaminate service equipment.
Control ambient light, lamp wavelength and eye protection. Photograph the same area under visible and UV light.
After documenting all evidence, clean the suspected area with a product and method approved for the compressor, belt and electrical components. Remove residue from adjacent sources too. Allow the area to dry completely before testing.
High-pressure spray can contaminate or damage the seal and create a new path. Clean external surfaces only.
Photograph the clean state and note the exact seal, manifold and case-joint locations that will be rechecked.
Record ambient temperature, refrigerant pressures, compressor command, shaft or engine speed, fan state and run duration. A seal may behave differently at low suction pressure, high discharge pressure or after heat soak.
Use the service procedure and verify condenser airflow. A weak condenser fan can raise pressure and exaggerate leakage.
Check for fresh traces after operation and again after shutdown, when pressure and temperature change across the seal.
Low charge may reduce oil return and cooling. Use safe diagnostic limits and avoid extending operation merely to produce visible leakage.
A vehicle or replacement compressor stored for an extended period may show different initial shaft-seal behavior from a regularly operated system. Lubricant distribution, seal contact and surface condition can change while stationary. This does not authorize continued operation of a confirmed leak, but it does affect how a small first-run trace should be interpreted.
Ask how long the vehicle sat, whether the compressor was shipped with protective caps and whether the shaft was rotated or the system charged before the observation. Compare the first run with a defined follow-up only when the service procedure permits.
A new unit may carry controlled assembly lubricant near the seal or clutch area. Supplier packaging and inspection standards should define acceptable residue so it is not mistaken for field leakage.
If fresh oil and refrigerant-sensitive evidence return after cleaning and controlled operation, storage history no longer explains the active source.
No single method is ideal for every leak rate and operating state. Electronic detection is sensitive to refrigerant gas, UV dye shows oil migration, bubble methods visualize accessible static leakage, and recovered-mass history quantifies system loss. Build a conclusion when independent methods agree at the same boundary.
Photograph first, then perform noncontact detection before adding solution or cleaner. Testing in the wrong order can dilute gas, move dye or contaminate the detector.
A cold static seal may not leak like a hot rotating seal. A negative result is meaningful only for the pressure, temperature and motion state actually tested.
Record detector verification and the method's practical threshold instead of reporting “no leak” as an unlimited claim.
Check the nose, shaft area, ports, manifold surface, clutch or pulley and shipping caps before fitting a replacement from the air-conditioning compressor range. Photograph any oil residue and confirm whether it matches the supplier's acceptable shipping condition.
Do not lift the unit by the clutch, strike the shaft or leave ports uncapped. Dirt and moisture introduced before installation can create a later leak or performance failure.
Confirm whether the compressor contains shipping oil, compressor-only quantity or the specified service fill. Incorrect draining or overfilling can create oil discharge that complicates later seal inspection.
An electronic detector can identify active refrigerant near the shaft-seal area when sensitivity, airflow and probe technique are controlled. Verify the detector with its reference source, follow warm-up and purge requirements, and move the probe slowly without touching oil.
Strong airflow can dilute or move refrigerant away from the source. Follow the service method and maintain safe ventilation; do not create an unsafe refrigerant concentration.
Test the shaft seal, manifold, case joints, service ports and hoses in a planned order. A response at several areas may reflect migration from one upstream leak.
Oil or dye on the probe can cause slow recovery and false responses. Keep the tip clean and verify background between locations.
Bubble solution can reveal leakage at accessible static joints, but rotating shaft seals may leak differently during operation. Do not apply unapproved solution where it can enter bearings, clutch surfaces or electrical components.
If the manufacturer permits pressure testing, use the specified gas, pressure, regulator and recovery procedure. Never use oxygen or compressed shop air in a refrigerant system.
A seal may pass a static pressure check and leak during rotation, or show a small static seep that changes after lubrication. Combine methods rather than forcing one test to answer every condition.
Recovering and weighing refrigerant under an approved service procedure can confirm that the system lost charge, but measurement uncertainty, previous service and unrecorded additions must be considered. A mass deficit proves a system leak, not automatically the shaft seal.
After repairing all confirmed leaks, evacuate, leak-check and charge the exact specified mass. Record equipment accuracy and ambient condition.
If charge loss recurs, inspect the clean shaft-seal boundary and all other components again. The combination of fresh seal evidence and measured loss supports replacement more strongly than either alone.
Adding refrigerant hides the loss history and can create an incorrect charge. Record recovered and added mass on every visit.
An active leak can cause low charge and poor cooling, but inadequate cooling also occurs with a restricted AC condenser, inaccurate AC pressure switch or sensor, metering fault or internal compressor wear.
Record suction, discharge, ambient, line and vent temperatures under stable conditions. Pressure alone cannot identify the leak location.
A compressor may leak yet still pump normally, or have internal performance failure without visible leakage. Keep replacement reasons separate in the report.
Evidence set | Decision |
|---|---|
Dry historical film, no active refrigerant response | Monitor after clean baseline |
Fresh radial oil and detector response at seal | Active seal leak strongly supported |
Dye at seal but source above remains wet | Repair upstream leak and recheck |
System loses mass, seal remains clean | Continue leak search elsewhere |
Seal leak plus compressor performance failure | Replace exact compressor and service system |
Test equipment background unstable | Invalidate result and correct method |
Some shaft seals are serviceable with dedicated procedures and tools; others require compressor replacement. Follow the exact component instruction and warranty policy.
When replacing the compressor, use the correct oil, quantity, seals, refrigerant and contamination procedure. The wholesale AC compressor program supports exact-reference sourcing.
After the approved seal or compressor repair, evacuate, leak-test and charge the exact refrigerant mass. Operate the system under the conditions that produced the evidence, then inspect the clean shaft area with visible light, UV and the approved detector.
Inspect after shutdown and after a defined soak because pressure and seal temperature change. Record whether any fresh oil or detector response returns.
Verify compressor command, pressure response, condenser airflow and vent temperature. A leak repair is incomplete if another system fault remains.
Compressor suppliers should control shaft finish, seal material, seal installation, runout, lubrication, nose cleanliness, pressure or helium leak testing and traceability. Require the test condition and actual leak-rate result where specified, not a generic “leak tested” statement.
Assembly oil on the nose can create false warranty claims. Packaging and final cleaning should leave a defined condition, with protective caps that do not transfer contamination.
Changes to shaft coating, seal supplier, lubricant, assembly tooling or leak-test method can affect field behavior and require validation.
The Elecduraparts compressor product category, aftermarket supply route and company profile provide sourcing context for documented quality controls.
Checkpoint | Pass evidence | Stop condition |
|---|---|---|
As-found record | Complete visible and UV photographs | Area cleaned before documentation |
Source map | Manifold, ports, seams and shaft compared | Only brightest stain inspected |
Clean baseline | Dry documented surfaces | Residual dye obscures source |
Active test | Controlled pressure, speed and detector | Unstable background or airflow |
Leak rate | Repeat refrigerant-sensitive evidence | Oil appearance alone |
Repair | Exact serviceability and oil procedure | Universal seal or flush assumption |
For importers and wholesalers, compressor specifications should define shaft-seal validation, oil condition, shipping cleanliness and traceability.
Record compressor and vehicle identity, service history, refrigerant and oil, recovered mass, pressures, temperatures, shaft speed, fan state, detector model, calibration check, UV dye history, photographs and clean-baseline result.
Approved methods and product records can be managed through the download center. Keep original photographs and detector readings with the repair report.
Submit evidence maps, leak-rate results, oil history and exact references through the contact page.
Photograph visible and UV patterns before cleaning.
Trace gravity, airflow and centrifugal migration.
Inspect manifold, ports, case joints and sources above.
Record dye and service history.
Create a clean dry diagnostic baseline.
Verify detector condition and background.
Operate under controlled pressure, speed and airflow.
Inspect during operation and after heat soak.
Confirm active refrigerant evidence at the seal.
Use refrigerant mass trend as system-level support.
Apply exact seal serviceability or replacement rules.
Repeat leak and performance checks after repair.
Oil near the compressor shaft is a clue, not a verdict. Pattern chronology, fresh-source isolation and refrigerant-sensitive evidence distinguish normal residue from an active leak and prevent unnecessary compressor replacement. Continue the diagnosis with the Elecduraparts industry insights library and its conventional compressor resources.
