Oil around a filter housing and cooler adapter can travel from above, emerge only when hot, or spread across several joints before it drips. Replacing the visible gasket may stop the leak briefly, but a warped flange, misaligned adapter, damaged groove or uneven fastener load can make the new seal fail again.

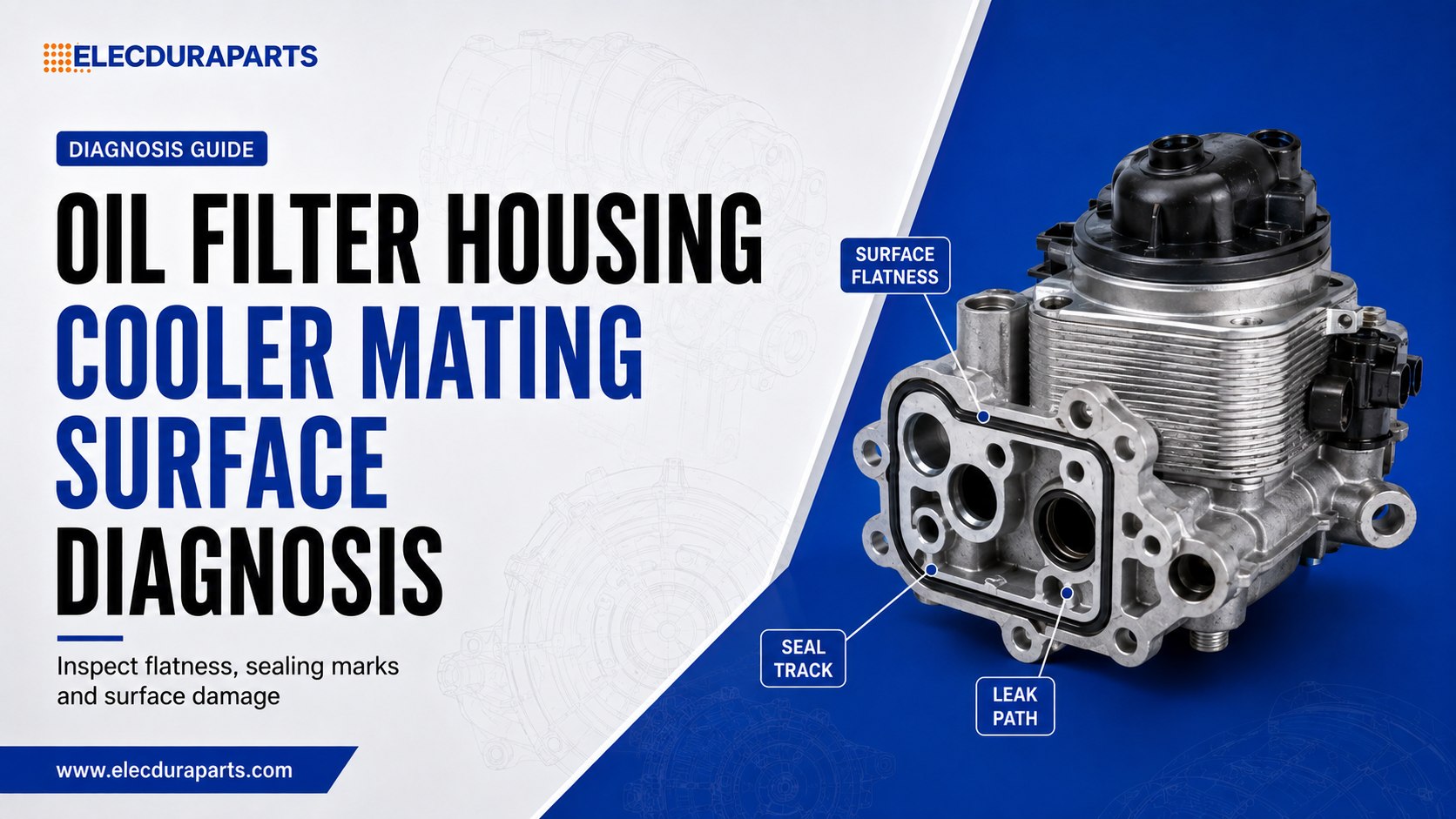

A disciplined oil filter housing oil cooler leak diagnosis separates the pressure boundary into surfaces, seals, fasteners and connected passages. The Elecduraparts oil cooler product range includes housing and adapter-related architectures, but exact geometry, seal material and torque procedure must follow the application.
This guide focuses on mating-surface flatness, alignment, gasket compression and clamp load. It is distinct from a general symptom comparison between housing and cooler leaks because it explains how to prove why a specific joint cannot seal.
Use the oil filter housing assembly category to understand available architectures, then compare the observed source with the dedicated housing leak versus oil cooler leak guide. Neither resource replaces physical localization and measurement on the exact application.
A mating-surface fault is supported when the actual leak is localized to the housing-cooler joint, the seal is correct and undamaged by installation, but measured flatness, surface damage, alignment, groove geometry or fastener load falls outside specification. Uneven compression marks and a repeatable low-pressure path can strengthen the conclusion. Oil staining alone cannot.
Evidence | Likely cause | Next action |
|---|---|---|
Leak starts at one joint edge | Local flatness or clamp-load loss | Clean, localize and measure |
Seal pinched or extruded | Wrong seal, groove or assembly alignment | Verify part and groove dimensions |
Compression heavy near bolts, light between | Flange bending or bolt sequence issue | Check flatness and torque process |
New gasket leaks only when hot | Thermal distortion or pressure increase | Hot test and inspect mating parts |
Joint dry after cleaning, oil returns from above | Upstream leak | Trace source before disassembly |
The cooler interfaces with the broader engine oil cooler system. Confirm crankcase pressure, oil pressure and nearby leak sources before condemning the joint.
Housing assemblies may connect pressurized oil, return oil and engine coolant in a compact area. Additional joints can include filter cap, pressure sensor, thermostat, bypass valve, threaded plugs, coolant hoses, block flange and cooler-to-housing seal.
Oil, coolant and mixed residue can look similar after road dirt accumulates. Check color, odor, feel and system-level changes. Use compatible ultraviolet dye only when the procedure permits.
Oil usually moves downward when parked but can be blown rearward during driving. A valve-cover, vacuum-pump or pressure-switch leak may coat the cooler adapter.
An internal cooler breach can mix oil and coolant without an external joint leak. External mating-surface diagnosis should not replace pressure testing between circuits when contamination is present.
Cleaning, dye localization and photographs preserve evidence. Once the assembly is removed, the original path and fastener condition may be lost.
Degrease the area with material-compatible cleaner, rinse or wipe residue and dry completely. Protect electrical connectors and belts. Run the engine or pressure system under a controlled condition while observing with adequate light or a borescope.
Observe cold idle before oil spreads. Then increase speed and temperature only as needed. Define a stop point for oil loss, low pressure or coolant leakage.
Add only the approved type and amount. Excess dye can stain the whole area. Look for the first fluorescent point, not the brightest downstream puddle.
Thermal expansion and retained oil pressure can create a leak after shutdown. Inspect during warm-up, hot idle, shutdown and restart.
Oil trapped in ribs or wiring sleeves may drain after cleaning. Repeat the observation until the first active source is clear.
Before measuring surfaces, confirm that every part belongs to the application. Similar housings can use different seal cross-sections, groove depths, port arrangements and fastener lengths.
Record casting marks, cooler plate numbers, gasket kit identity and supersession. Exact fitment within an aftermarket application range must be verified rather than inferred from appearance.
Check cross-section, molded shape, locating tabs and material. A swollen old seal may appear larger; compare specifications rather than copying deformation.
A bolt can reach the torque value while bottoming in a hole and provide little clamp load. Mixed fastener lengths or missing spacers change flange loading.
The removed seal records what happened during assembly. Preserve orientation and photograph both sides before cleaning.
Uniform flattening or contact transfer suggests even loading. A section with no contact points to insufficient compression, flange separation or a wrong groove.
A seal caught on an edge may shear or roll. Extrusion can result from excessive clearance, wrong hardness, pressure, overcompression or a missing support feature.
Swelling, hardening, cracking or softening may indicate incompatible fluid, cleaner, temperature or seal material. Replacing the same material without correcting exposure will repeat the failure.
Sealant can change compression, block passages and contaminate the oil circuit. Follow the application procedure exactly.
Clean the flange without removing base material. Use a verified straightedge and feeler gauges for service checks, or a surface plate, height gauge or coordinate method for component evaluation.
Check length, width, diagonals and regions between fasteners. A flange can be flat along one axis but twisted across the corners.
A plastic or thin casting can flex under its own weight or clamp. Use the defined datum support and measurement force. Record temperature because polymers and aluminum expand differently.
A small nick across the seal track may leak even when total flange flatness is acceptable. Inspect the complete contact band under magnification.
The housing, cooler adapter and engine block or cover all contribute. Replacing one part cannot correct the mating partner.
Gaskets need a surface texture compatible with their sealing mechanism. Deep scratches, corrosion pits, raised burrs and embedded old gasket can create paths.
A scratch running from the pressure side to atmosphere is more critical than a mark parallel to the seal. Use good lighting and magnification.
Plastic scrapers and approved solvents reduce damage risk. Abrasive discs can round edges, dish soft aluminum and leave particles in oil passages.
Minor staining may be acceptable, while a pit crossing the seal land can leak. Use the service limit; do not fill pressure-boundary damage with unapproved sealant.
Cleaning particles can damage bearings and control valves. Plug passages, vacuum debris and perform the required final cleanliness check.
For O-rings and molded gaskets, groove width, depth, corner radius and surface condition determine compression and room for thermal expansion.
Warp, molding variation or debris can change effective compression. Compare measured depth and seal cross-section with the specified squeeze range.
The seal needs space to expand. Excessive gland fill can cause extrusion or assembly damage, especially when oil or temperature swells the material.
Tabs, pins and molded corners keep the seal from shifting. Broken locators or a reversed gasket can block passages and leave a section unsupported.
Misaligned oil or coolant ports can expose the gasket edge to flow, increase pressure drop or create a direct leak path. Compare the assembled overlap before final tightening.
The cooler may be clamped between a housing, adapter, block and filter module. Tolerance stack-up can tilt one component or preload the joint.
Missing, damaged or incorrect locators allow sideways movement. A sleeve that is too long can hold flanges apart even when bolts are tight.
Rigid lines should align without forcing the cooler. Hose tension or bracket error can twist the housing after the joint is sealed.
Where the procedure allows, engage all fasteners and connected brackets before tightening in sequence. This reduces one-sided preload.
External assemblies such as a hydraulic oil cooler range have different mounting risks, but the same alignment principle applies.
Torque is an indirect estimate of clamp load. Thread condition, lubricant, reused torque-to-yield bolts, washer friction and bottoming can produce the correct wrench reading with the wrong joint force.
Clean holes to the specified method and check for pulled threads, corrosion and fluid trapped in blind holes. Hydraulic lock in a blind hole can crack a casting.
Replace one-time-use fasteners. Confirm grade, length, head and washer. Do not substitute a visually similar bolt.
Staged tightening distributes load and reduces flange bending. Mark angle-tightened fasteners and use calibrated tools.
Compare bolt grip length, hole depth and compressed stack. A witness mark at the bolt tip can reveal bottoming.
Bench testing can confirm the repaired joint before full installation when an approved fixture is available. Protect low-pressure circuits and use rated equipment.
Pressurize the oil circuit with compatible liquid or gas according to the procedure. Observe the housing-cooler joint separately from test adapters.
Monitor the nonpressurized circuit while the other is loaded. Equal pressure on both sides can hide an internal breach.
A cold bench test may not reproduce hot distortion. Use thermal soak or a vehicle hot test where the service process defines it.
Blank checks, known leak challenges and clean adapters separate fixture leakage from product leakage. A broad wholesale oil cooler program may need several dedicated fixtures rather than one universal clamp.
Repeat-failure pattern | Likely mechanism | Evidence to collect |
|---|---|---|
Same edge leaks each time | Local warp, scratch or weak clamp | Flatness map and compression marks |
Seal extrudes near oil port | Groove, material or pressure problem | Gland dimensions and oil pressure |
Leak begins after heat cycle | Thermal distortion or line preload | Hot localization and alignment |
Leak follows replacement housing | Wrong revision or interface mismatch | OE identity and dimensional comparison |
Several ports leak | Excess crankcase or oil pressure | System pressure and ventilation test |
Joint remains dry but oil returns | Upstream source | Fresh dye path from highest point |
Do not machine a service housing or stack gaskets unless an approved repair procedure specifies it. Material removal changes groove depth, port alignment and fastener stack-up.
After assembly, fill and bleed all affected systems, confirm oil and coolant levels, then inspect at cold idle before increasing load. Monitor oil pressure, coolant temperature and warning status.
Watch the cleaned joint as viscosity falls and components expand. Use mirror, borescope or dye light without approaching moving parts.
Raise engine speed or operate the machine according to a safe procedure so oil pressure and temperature reflect the complaint. Recheck after shutdown and hot soak.
Check coolant reservoir, oil condition and system pressure over the defined verification period. Residual contamination from the previous failure may require documented flushing.
Save part numbers, seal identity, surface measurements, torque method, dye or pressure results and photographs. This evidence supports later supplier or warranty review.
Housing and cooler suppliers should control the complete sealing interface, not only core leakage. Drawings must define datums, flatness, surface finish, grooves, port alignment and fastener features.
Incoming inspection should include flange flatness, groove depth, thread identity, port position and locator height. A go/no-go fixture can support fit checks, but variable data detects drift.
Review cavity or die identity, machining fixture, tool wear, porosity control and capability. Distinguish casting distortion from machining error.
Trace compound, hardness, dimensions, cure date and storage. Packaging should prevent permanent deformation and mixing of similar seals.
For assembled modules, request torque or press data, pressure-test parameters and lot traceability. Product examples such as a Cummins oil cooler group or John Deere oil cooler group still require exact revision control.
Finding | Repair direction | Reason |
|---|---|---|
Correct parts, surfaces within limit, seal damaged during installation | Replace seal and correct assembly | Hard parts remain serviceable |
Housing flange warped beyond limit | Replace housing | New seal cannot restore clamp geometry |
Cooler plate scratched across seal land | Replace cooler or approved repair | Direct pressure path exists |
Adapter misaligned by wrong locator | Correct locator and verify components | Stack-up prevents compression |
Internal oil-coolant leak | Replace failed pressure-boundary component | External gasket is not the cause |
Oil source is above assembly | Repair upstream source | Housing joint is not leaking |
For importers and wholesalers, returns should include measurements and the confirmed first leak point rather than a general statement that the housing area was wet.
Record application, OE numbers, mileage or hours, fluid type, operating temperature, oil pressure, repair history and whether the leak was external or between circuits.
Bag the gasket separately without cleaning away compression marks. Mark top, bottom and leak-side orientation on the housing and cooler.
Provide flatness map, groove depth, surface defect size, bolt length, torque process and dye or pressure-test images. General technical files may be organized through the download center.
Trace casting, cooler, seal and assembly lots. Submit case-specific information through the contact page and require a physical root-cause response.
Clean the assembly and localize the first active leak point.
Identify the fluid and distinguish external from inter-circuit leakage.
Record exact housing, cooler, seal and fastener identities.
Preserve and inspect the removed seal in its installed orientation.
Measure both mating surfaces for total and local flatness.
Inspect the seal track, groove, ports, locators and surface finish.
Check adapter alignment, hose preload and assembly stack-up.
Verify fastener length, thread condition, sequence and torque method.
Pressure-test external and internal circuits where required.
Replace only the component proven unable to seal.
Verify through warm-up, load, shutdown and hot soak.
Save measurements and evidence for future quality review.
A recurring oil filter housing oil cooler leak usually has a measurable cause: wrong components, inadequate compression, damaged seal land, warped flange, misalignment or uneven clamp load. Proving that cause prevents another gasket-only repair. For related diagnostic and sourcing content, review the Elecduraparts oil cooler category, industry insights library and company background.
