3059855 Chevrolet C1500 1988-1990 A/C Condenser Assembly 18mm Core

Designed for aftermarket A/C supply programs, this condenser supports refrigerant heat rejection, cabin cooling restoration, and replacement inventory planning.

Lead Time:
60 days
Minimum Order:
100
Warranty:
12 Months

Availability:



Inquiry Catalog Download

Product Description

3059855 Chevrolet C1500 1988-1990 A/C Condenser Assembly 18mm Core OEM and Cross Reference

OEM / Cross Reference
3059855

3059855 Chevrolet C1500 1988-1990 A/C Condenser Assembly 18mm Core Application

Brand	Model	Year	Position
Chevrolet	C1500	1988-1990	Front
Chevrolet	C2500	1988-1990	Front
Chevrolet	C3500	1988-1990	Front
Chevrolet	K1500	1988-1990	Front
Chevrolet	K2500	1988-1990	Front
Chevrolet	K3500	1988-1990	Front
GMC	C1500	1988-1990	Front
GMC	C2500	1988-1990	Front
GMC	C3500	1988-1990	Front
GMC	K1500	1988-1990	Front
GMC	K2500	1988-1990	Front
GMC	K3500	1988-1990	Front

3059855 Chevrolet C1500 1988-1990 A/C Condenser Assembly 18mm Core Specifications

Parameter	Value
Product Type	A/C Condenser

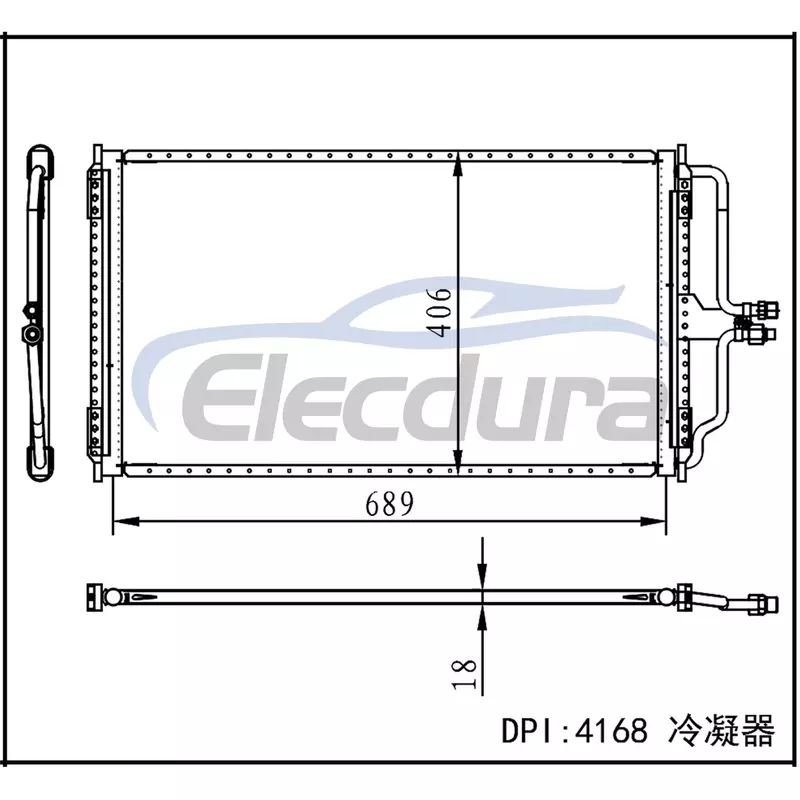

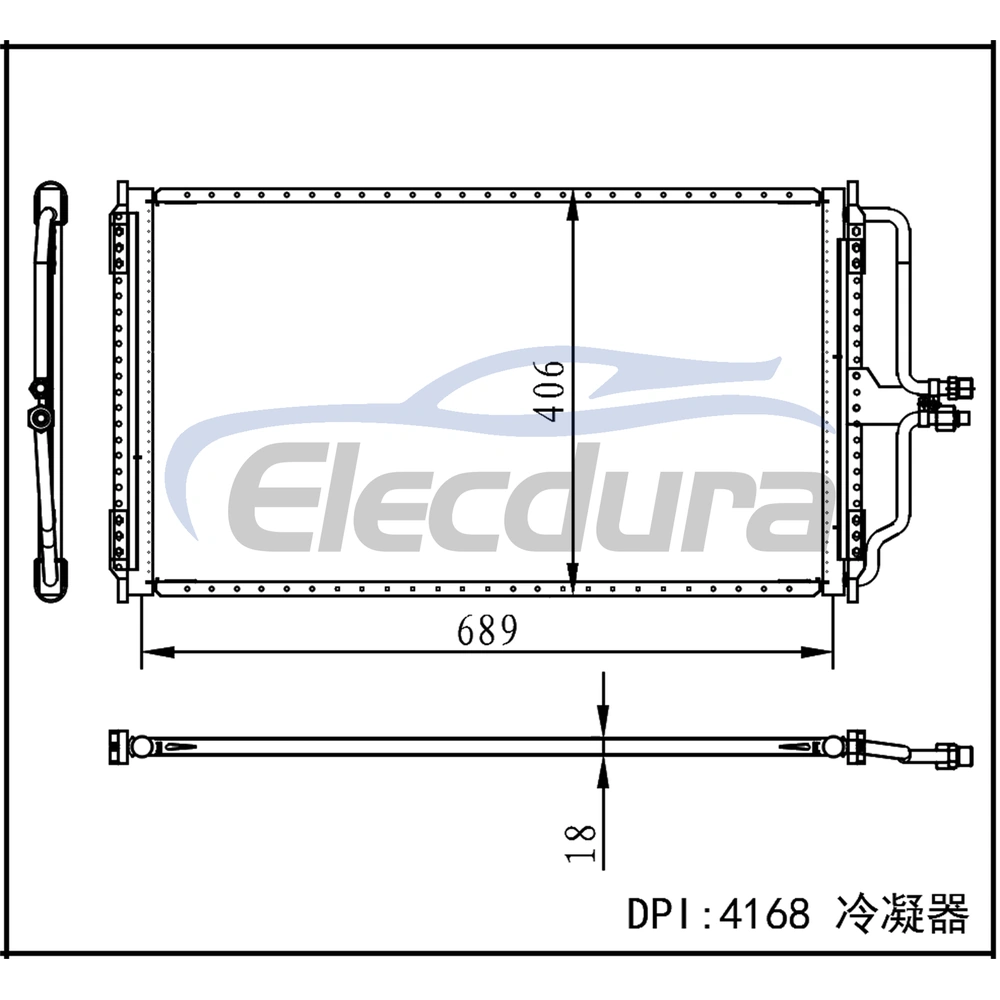

Core Size	27 1/2 x 15 9/16 x 1 Construction: 6 Millimeter design
Core Thickness	18mm
Fin Height	8mm

3059855 Chevrolet C1500 1988-1990 A/C Condenser Assembly 18mm Core Aftermarket Supply from Elecdura

Elecdura supplies vehicle-specific A/C condensers for distributors, repair-parts programs, and private label projects. Share the OEM reference, target application, technical requirements, and order quantity for quotation and fitment review.

3059855 Chevrolet C1500 1988-1990 A/C Condenser Assembly 18mm Core FAQ

Does this A/C condenser replace OEM 3059855?

OEM 3059855 is the primary verified reference for this condenser. Compare the number on the original part together with the ports, mounting layout, and vehicle application before installation.

Which vehicle applications are listed for this condenser?

The verified application list includes Chevrolet C1500 1988-1990, Chevrolet C2500 1988-1990, Chevrolet C3500 1988-1990, plus the additional applications shown in the table. Confirm the OEM number and physical connections for the exact vehicle configuration.

What symptoms can indicate that this A/C condenser needs inspection?

Inspect the condenser when the vehicle shows visible impact or fin damage, or restricted airflow or irregular compressor cycling. Confirm the leak or restriction before replacement and service the refrigerant circuit using the vehicle manufacturer's procedure.

What should be confirmed before ordering this condenser?

Match OEM 3059855, including core size 27 1/2 x 15 9/16 x 1 Construction: 6 Millimeter design, core thickness 18mm. Also compare port orientation, mounting points, and receiver/drier arrangement with the original part before ordering.

What is the minimum order, and can I request a sample?

The standard minimum order is 100 pcs per model. Sample support is available for OEM, dimensional, connection, and installation evaluation before bulk purchasing.
