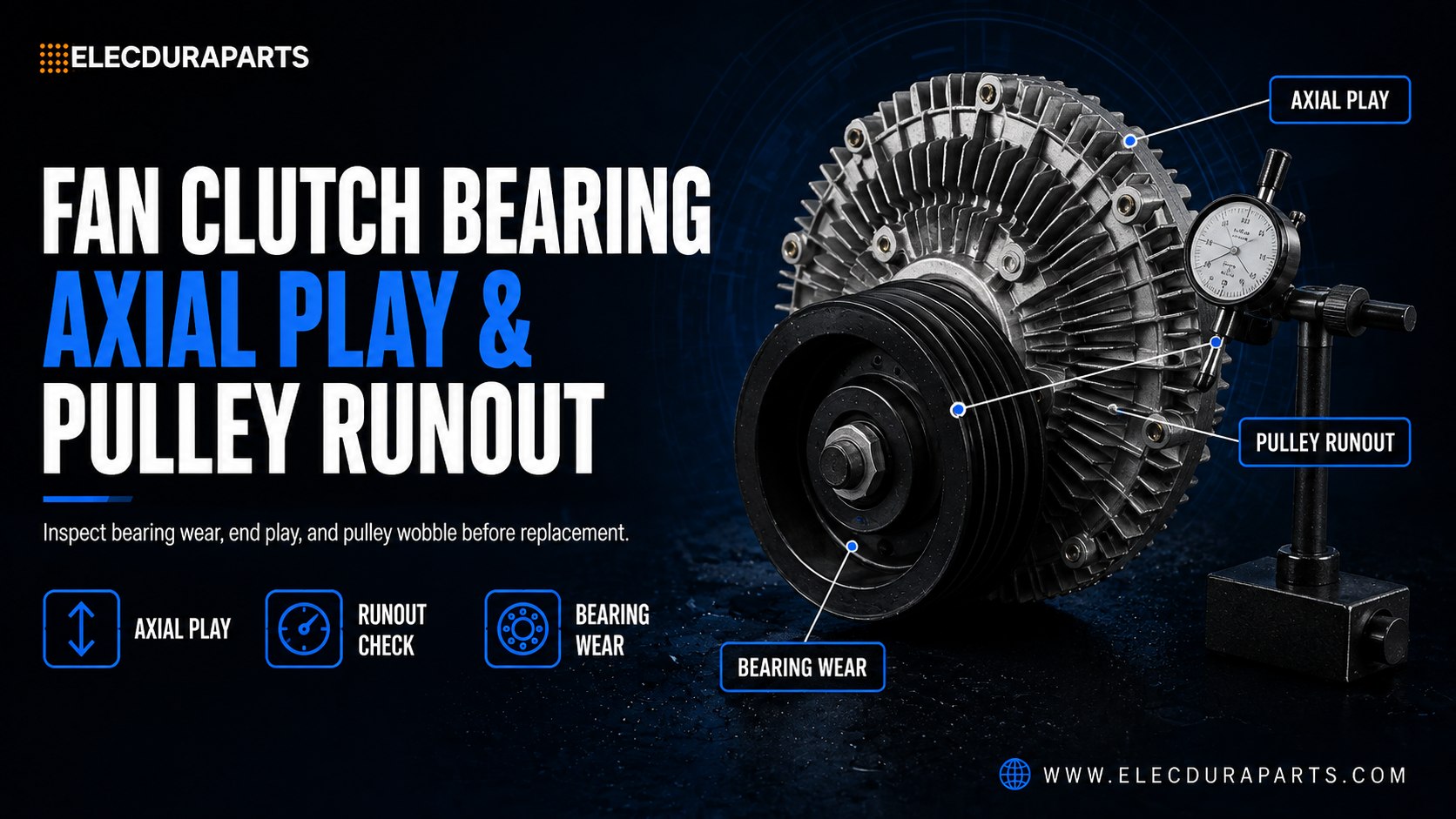

Fan Clutch Bearing Axial Play and Pulley Runout Diagnosis

A fan that visibly wobbles can point toward a worn fan clutch bearing, but the movement may also come from a distorted blade hub, bent pulley, loose mounting flange, bracket damage or an off-center water-pump shaft. Replacing the clutch without locating the reference surface can leave the wobble unchanged and expose the new part to the same damaging load.

A reliable fan clutch bearing play diagnosis separates axial movement, radial movement and rotational runout. Elecduraparts supplies fan clutch replacements for aftermarket applications, but the correct replacement decision should combine measured geometry, bearing condition, drive alignment, blade balance and temperature-dependent engagement.

This guide describes safe inspection and dial-indicator procedures, shows how to identify the moving interface, and explains how a mechanical fault can be distinguished from normal clutch slip or an airflow complaint.

Quick Answer: What Proves a Fan Clutch Bearing or Runout Fault?

A bearing fault is supported when measurable radial or axial movement occurs at the clutch bearing interface, repeats at different shaft positions and exceeds the verified specification. A runout fault is supported when a chosen rotating surface moves relative to a fixed reference during one revolution. The location and phase of the movement identify whether the clutch flange, pulley, shaft or attached blade is responsible.

A fan clutch is part of the mechanical engine cooling system. Do not apply electric-fan current or command tests to this drive arrangement.

Distinguish Bearing Play from Rotational Runout

Play is relative movement produced by an applied force. Runout is displacement measured while a surface rotates. A component can have little detectable play but excessive runout because a flange is bent. It can also have bearing clearance while a no-load rotational reading appears acceptable.

Axial play

Axial movement occurs along the shaft centerline. Position a dial indicator so its plunger is parallel to the axis and contacts a stable face. Apply controlled push-pull force without flexing the bracket or blade. Record total movement and repeat at several rotational positions.

Radial play

Radial movement is perpendicular to the shaft. Place the indicator against a cylindrical or flange surface with the plunger aligned to the applied force. Lift and lower the hub gently. Excess force can bend the mounting system and inflate the reading.

Face and rim runout

Face runout measures axial variation of a rotating face; rim runout measures radial variation of a diameter. Both need a clean, undamaged reference. Mark the high point and compare its angular position across the clutch, pulley and shaft.

Do not call every visible blade movement bearing play

Long fan blades magnify small flange errors. Molded blade tracking, loose blade bolts and adapter distortion can create visible motion with a sound bearing. Measure close to the suspected interface before judging the whole assembly.

Make the Inspection Safe Before Touching the Fan

Perform manual inspection with the engine off, ignition secured and any automatic-start or hybrid function disabled according to service information. Allow hot components to cool. Never reach into the fan path while the engine can start or while stored energy remains.

Inspect before cleaning

Look for dust tracks, polished contact marks, grease leakage, rust, cracked blades, missing balance weights, loose fasteners and damaged shrouds. Photograph evidence before disturbing it. A contact mark can show the direction and location of movement.

The fan operates near the radiator and sometimes the AC condenser. Inspect both heat exchangers and the shroud for impact or rubbing that could have loaded the hub.

Check mounting torque and interfaces

Confirm the clutch-to-pulley, blade-to-clutch and support fasteners using the correct procedure. A loose joint can imitate bearing play and damage mating faces. Do not tighten beyond specification to hide movement; inspect for elongated holes, damaged threads or embedded debris.

Support the assembly when removing heavy blades

A large fan can apply leverage to the water-pump shaft during removal. Support its weight and avoid prying against the pulley. Protect the radiator core from dropped tools and blade edges.

Build a Repeatable Dial-Indicator Setup

Mount the magnetic base or fixture to a rigid, nonmoving engine surface. The indicator stand must not share the movement being measured. Check that the plunger has adequate travel and is nearly aligned with the direction of measurement.

Clean the reference surface

Rust, paint flakes, casting texture and stamped marks can create false runout. Choose a machined surface when available and clean it without removing material. If the surface is rough, use a suitable smooth target attached without changing geometry and document the method.

Check setup repeatability

Rotate the assembly slowly through at least two revolutions, return to the starting mark and confirm the reading returns to zero. Reposition the indicator and repeat. If the high point moves randomly, the fixture, contact angle or applied force may be unstable.

Technical drawings and application references can be retained through the Elecduraparts download center. Use the exact revision that defines the inspected surface and any allowable movement.

Record force as well as displacement

A play measurement depends on applied force. Use a controlled hand force or spring scale where the procedure requires it. Without comparable force, two displacement readings cannot be compared fairly.

Measure from the Shaft Outward to Locate the Fault

Start at the most upstream rotating reference and move outward. This prevents a downstream wobble from being blamed automatically on the clutch. Depending on design, the sequence may include water-pump shaft, pulley rim, pulley face, clutch mounting face, clutch pilot, blade adapter and blade tips.

Measure the support shaft or pump first

If the water-pump or support bearing has play, every attached component can move. Check for coolant leakage, bearing noise and shaft movement. A new clutch mounted on a worn support will not correct the system and may accelerate failure.

Measure pulley face and rim

A bent pulley creates belt misalignment and moves the clutch mounting plane. Compare rim and face runout. Inspect the pilot bore and mating face for corrosion, burrs or trapped debris. Tightening a flange over debris can introduce angular runout.

Measure clutch flange without the blade when possible

Removing the blade isolates the clutch mounting surface and reduces inertia. Mark the high point. If clutch runout is high while pulley and shaft references are true, the clutch flange, pilot or mounting interface becomes the primary suspect.

Electric radiator fan motor assemblies use different bearings and mounting references. Do not transfer a mechanical clutch runout limit to an electric motor.

Use Phase Relationships to Separate Components

The angular position of the high reading is valuable. Mark the pulley, clutch and blade. Rotate one removable component relative to another where the design and procedure permit, then remeasure. If the high point moves with the component, that component carries the error; if it stays with the shaft position, the upstream reference is implicated.

Index the clutch on the mounting face

When bolt pattern and service procedure allow more than one indexed position, rotate the clutch relative to the pulley. A high point that follows the clutch supports clutch or pilot runout. A high point that remains at the pulley position supports the pulley or shaft.

Index the blade separately

If blade wobble moves when the blade is reindexed but clutch runout does not, inspect blade hub flatness, bolt seating and molded geometry. Never reindex a keyed or uniquely balanced assembly against its design.

For procurement, related Elecduraparts resources for importers and wholesalers can support application discussion, while geometry acceptance must still use controlled samples and documented datums.

Do not cancel errors by selective assembly

Two components with opposite runout can appear acceptable in one indexed position. That is not a robust repair unless the manufacturer explicitly specifies match-marked assembly. Each critical component should meet its own requirement.

Relate Wobble to Vibration, Noise and Belt Behavior

Geometric movement matters because it produces dynamic force. Observe belt tracking, tensioner motion and engine-speed dependence from a safe location. Use vibration measurement if available. A once-per-revolution component often follows imbalance or eccentricity; bearing roughness may add broader-frequency content.

Separate engagement roar from bearing noise

A thermally engaged fan clutch can create a strong, normal airflow roar. Bearing noise is more likely grinding, rumbling or roughness tied to shaft speed and present regardless of expected thermal engagement. Compare cold, warm and commanded conditions where applicable.

Inspect belt and pulley alignment

Angular or parallel misalignment loads support bearings and can cause belt-edge wear. Use a straightedge or alignment tool at defined pulley surfaces. Check bracket cracks, missing spacers and incorrect pulley offset rather than assuming the clutch caused belt motion.

Vehicle thermal load can include the AC condenser. Increased clutch engagement with AC operation may make an existing geometric fault more noticeable because fan speed and aerodynamic load rise.

Do not run a visibly cracked or contacting fan

A blade failure can cause severe injury and component damage. If cracks, major runout or shroud contact are present, stop dynamic testing and repair the mechanical defect before running the engine.

Check Thermal Engagement Separately from Bearing Geometry

A viscous fan clutch changes transmitted torque according to design and temperature. Free rotation when cold or increased resistance when warm does not directly measure bearing play. Geometry should be checked with the engine off; engagement should be evaluated under the specified thermal condition.

Observe the temperature source

Many thermal clutches respond to air leaving the radiator, not directly to coolant temperature. Blocked fins, missing seals or altered shroud position can change inlet air at the clutch. A properly functioning clutch may remain disengaged if hot air does not reach its sensing element.

Compare engagement, fan speed and cooling demand

Where safe and supported, measure engine speed and fan speed to evaluate slip under defined conditions. Do not use one universal slip percentage. Design, temperature and demand differ. Record coolant temperature, outlet-air temperature, vehicle speed and AC state.

A separate electric condenser fan can affect air temperature through the stack and therefore change clutch behavior. Verify the whole airflow sequence.

Recognize Damage Caused by Misalignment and Imbalance

Excessive runout and imbalance repeatedly load the clutch bearing, pump bearing, bracket and fasteners. Damage may include fretting at mounting faces, elongated holes, bearing looseness, seal leakage and fatigue cracks. A replacement part can fail early if the upstream cause remains.

Inspect mating faces for fretting

Dark debris, polished arcs and red oxide around a joint indicate micro-movement. Check fastener preload, pilot fit and face damage. Cleaning alone does not restore an elongated hole or distorted flange.

Inspect blade balance and repairs

Missing clips, chipped blades and previous drilling or adhesive repairs change balance. Replace unsafe blades rather than adding unverified weights. Confirm that the replacement blade matches diameter, pitch, offset and rotation.

Elecduraparts' broader aftermarket parts scope covers varied applications, so a visually similar clutch or blade must still be matched by OE reference and verified dimensions.

Check shroud and engine-mount movement

A true-running fan can contact a shroud if engine mounts allow excessive powertrain movement or if the shroud is mispositioned. Static clearance alone may not reproduce torque reaction. Inspect witness marks and mount condition.

Avoid Mixing Mechanical and Electric Fan Evidence

A mechanical clutch and an electric radiator cooling fan assembly can create similar complaints—noise, weak airflow, vibration or contact—but their load paths differ. The clutch is driven through the engine belt and support shaft. An electric assembly carries motor reaction through its shroud and mounts. A dial-indicator result on one architecture cannot validate the other.

Separate airflow demand from the drive fault

High air-conditioning load can increase cooling demand through the broader vehicle air-conditioning system, making clutch engagement and existing wobble more noticeable. That timing does not prove the AC system caused bearing play. Record temperature, fan speed and geometry as separate evidence channels.

Do not substitute an electronic control diagnosis

A fan control module can create electric-fan speed faults, but it has no role in the bearing clearance of a conventional viscous clutch. Confirm whether the vehicle uses mechanical, electric or combined airflow devices before ordering parts. Mixed systems may require both devices to operate correctly at low vehicle speed.

When a vehicle has both a mechanical engine fan and an auxiliary electric fan, isolate their contributions safely. A strong auxiliary fan can temporarily mask weak clutch engagement, while a fully engaged clutch can hide a nonworking electric fan. Geometry inspection and functional airflow diagnosis should remain separate.

Replacement and Supplier-Quality Decision Matrix

Match the replacement by more than thread or bolt pattern

Verify OE reference, pilot diameter, flange offset, rotation, mounting, thermal calibration and fan compatibility. An incorrect offset can create belt or shroud interference even when fasteners fit. Review Elecduraparts' supply background, then confirm the application-specific part.

Document a field return before disassembly

• Part and lot identity, vehicle and installation history.

• Axial and radial play with applied-force method.

• Face and rim runout at each reference surface.

• High-point marks and indexed-component results.

• Blade, shroud, pulley, belt and pump condition.

Use the Elecduraparts contact page for a verified fan clutch replacement or B2B sourcing inquiry. Measurements and photographs reduce the risk of repeating an upstream alignment fault.

Final Measurement Sequence

1. Secure the engine and inspect the undisturbed assembly.

2. Check fasteners, blade, shroud, pulley, belt and support.

3. Measure support-shaft axial and radial movement.

4. Measure pulley face and rim runout.

5. Measure clutch pilot and flange runout.

6. Remove or index the blade when the procedure permits.

7. Compare high-point phase to locate the component.

8. Evaluate engagement and noise separately under safe conditions.

9. Replace only the part proven out of specification and verify again.

Visible wobble is the start of diagnosis, not the final conclusion. A defensible decision identifies where movement begins, whether it is play or runout, how it changes after components are isolated, and whether thermal engagement is a separate concern. That sequence protects the new clutch, water pump, belt drive and cooling stack from repeat damage.

Archive the indicator setup and measurement direction with the final reading.
