Thermostat Housing Leak Repair Cost: Plastic Housing, Gasket, Coolant, and Labor

Quick answer: thermostat housing leak repair cost depends on whether the leak is only a gasket or O-ring, whether the plastic or aluminum housing is cracked or warped, how much labor is needed to reach the housing, how much coolant must be drained and refilled, and whether nearby coolant temperature sensors, hose ports, or brittle connectors are disturbed during repair. A simple gasket leak can be a smaller service job. A cracked plastic housing with integrated thermostat, sensors, and hose outlets usually requires a complete housing assembly.

For B2B buyers, the repair cost is not only the part price. The real cost includes fitment accuracy, coolant loss, labor time, repeat leak risk, and cross-border return cost if the housing has the wrong sensor port, outlet angle, bolt pattern, or gasket style. A thermostat housing may look simple, but many returns come from small design differences that are not obvious in a title or catalog line.

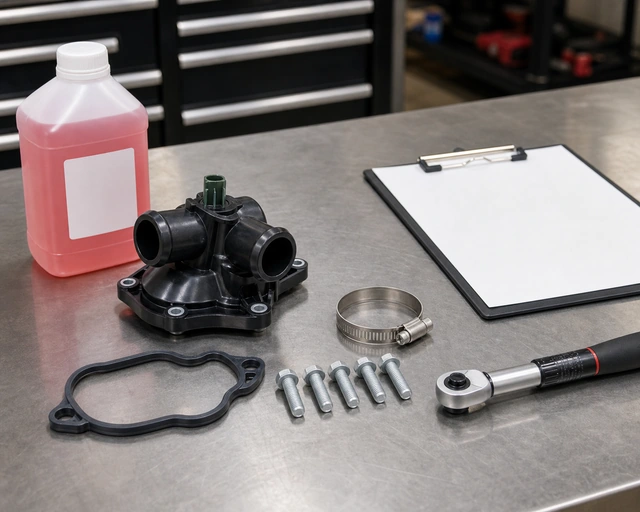

A realistic repair quote should include the housing or gasket, fasteners, coolant refill, bleeding time, and access labor rather than only the part price.

Cost Components for Thermostat Housing Leak Repair

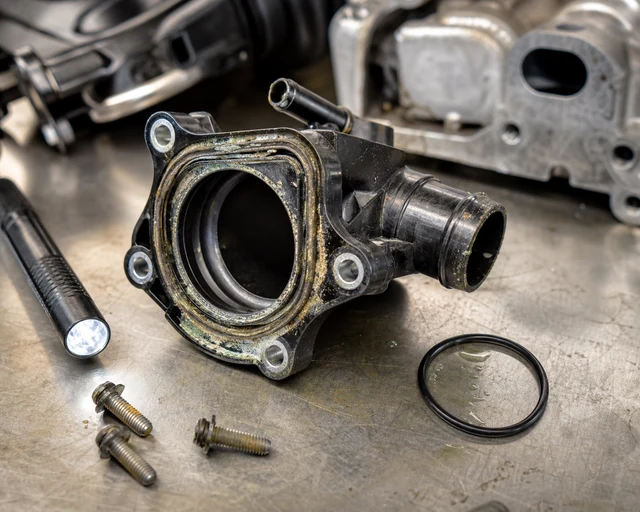

Leak residue around the gasket channel helps separate a seal problem from a cracked outlet, warped housing, or hose connection issue.

Gasket Leak or Cracked Housing?

The first cost decision is whether the leak comes from the gasket sealing surface or from the housing body. A flattened gasket, aged O-ring, or minor seep at a clean sealing face may be repaired with a seal kit when the housing is straight and the mating surface is not pitted. A cracked plastic neck, warped flange, broken bolt boss, or distorted thermostat seat usually requires a complete housing replacement. Installing a new gasket on a warped housing often creates another leak after heat cycling.

Buyers should ask for close photos before approving a gasket only solution. Photos should show the flange, bolt holes, hose outlets, sensor ports, and the first wet point. If the leak begins at a hose clamp, quick connector, or bypass pipe, the housing may not be the true fault. If coolant appears at the seam after pressure testing, the gasket or housing surface becomes more likely. Evidence prevents a distributor from sending the wrong part and paying freight twice.

Plastic Housing Versus Aluminum Housing

Plastic thermostat housings are common because they reduce weight and allow multiple ports, sensors, and hose outlets to be molded into one assembly. The weakness is heat aging. After repeated thermal cycles, plastic can become brittle, warp at the flange, crack near a bolt boss, or break at a hose barb. In those cases, repair cost rises because the entire housing assembly is usually the safer replacement.

Aluminum housings fail differently. They may corrode at the coolant path, pit around the gasket surface, or leak if the mating face is scratched during service. An aluminum housing may be reusable if the sealing surface is clean and flat. It may need replacement if corrosion has removed material where the gasket must seal. For importers, material type should be part of the product description because customer expectations differ between plastic assemblies and aluminum outlets.

Labor Differences by Engine Layout

Labor is often the largest variable. Some thermostat housings are located at the end of the cylinder head or near the upper hose and can be reached quickly. Others are hidden under intake tubing, battery trays, wiring brackets, fuel components, engine covers, or tight transverse engine packaging. A part that is inexpensive can still create high repair cost if access is difficult.

For fleet buyers, labor access affects downtime. A van, taxi, delivery vehicle, or service truck can lose work time while the cooling system is opened, refilled, bled, and retested. For distributors, hard access increases customer frustration when the wrong housing is shipped. A small difference in outlet angle or sensor port count can force the repair to stop after the vehicle is already disassembled.

Coolant Type, Refill, and Bleeding

Thermostat housing repair normally opens the cooling system. The repair may require draining coolant, replacing lost coolant, using the correct coolant specification, and bleeding air from the system. Air pockets can cause temperature swings, poor heater output, or false overheating complaints. If a customer reports overheating after housing replacement, the part may be blamed even when the real issue is trapped air.

Buyers should treat coolant service notes as warranty protection. The repair record should state coolant type, refill amount if known, air bleeding method, heater output check, and final operating temperature. A housing that seals correctly can still be involved in a complaint if the system was not filled and bled properly. For B2B supply, clear installation notes reduce avoidable claims.

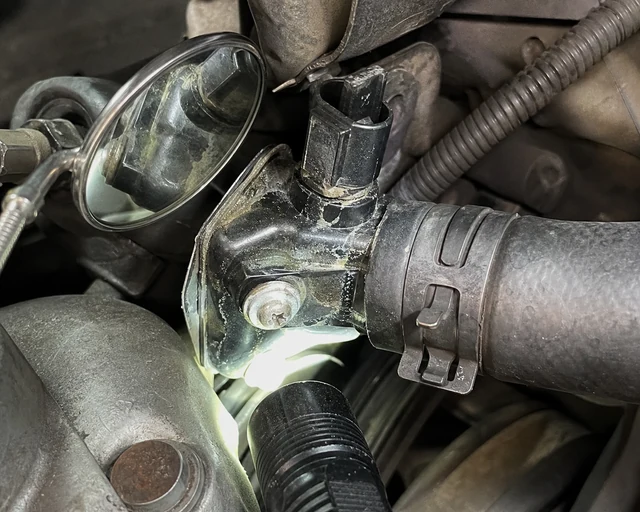

In-vehicle inspection should confirm hose angle, sensor port position, connector clearance, and dried coolant tracks before ordering a replacement housing.

Sensor and Hose Connections Around the Housing

Many thermostat housings include one or more coolant temperature sensor ports, bleeder screws, bypass outlets, heater hose connections, or quick connector interfaces. These details are a common source of wrong orders. Two housings may look similar in a front photo but differ by one sensor boss, one plugged port, one hose angle, or one O-ring groove.

Before quoting, request photos from several angles. The best photo set shows the old housing installed, the removed housing, the sensor side, the hose outlet side, the gasket face, and any stamped or molded numbers. If the housing includes the thermostat, confirm opening temperature, control type, and whether the thermostat is serviceable separately. A buyer should not assume that all housings for the same model year are identical.

When a Complete Housing Assembly Makes Sense

A complete housing assembly makes sense when the old unit is plastic and heat aged, when the leak is at the housing body, when the thermostat is integrated, when sensor ports are molded into the housing, or when the market expects a ready to install assembly. It can reduce repair uncertainty because the new unit includes the main sealing structure and often the thermostat and gasket.

The downside is higher part cost, larger packaging, and more fitment fields. A complete assembly can still be wrong if the port count, outlet angle, temperature rating, or sensor provision differs from the old part. For distributors, complete assemblies should be validated by OE number and photos before bulk purchase. They are convenient only when the application data is accurate.

When a Gasket or Seal Kit May Be Enough

A gasket or seal kit may be enough when the housing is metal or otherwise structurally sound, the leak is limited to the sealing face, the flange is flat, and the thermostat function is normal. This approach reduces part cost and packaging size. It may be practical for professional repair networks that can inspect the housing and clean the mating surface properly.

The risk is repeat leakage. If the housing is warped, pitted, cracked, or brittle, a new gasket will not correct the underlying problem. If the customer cannot prove the housing condition, a distributor may prefer a complete housing to reduce return risk. The choice should be based on evidence, not only on price.

Buyer Checklist for Thermostat Housing Orders

How Distributors Reduce Fitment Disputes

Thermostat housing disputes often start with incomplete photos. A buyer orders from a vehicle name, but the old housing has an extra sensor port or different hose angle. The part arrives, the repair is already underway, and the customer wants an urgent replacement. This creates freight cost, lost time, and pressure on the supplier.

Distributors can reduce disputes by requiring a standard inquiry format. Ask for OE number, engine code, old part photos, sensor count, hose outlet count, gasket face photo, and whether the thermostat is integrated. For repeated references, save the validated photo set in the catalog record. The next quote becomes faster and more accurate.

Fleet Downtime and Repeat Leak Cost

Fleet buyers should treat thermostat housing leaks as downtime risk, not only coolant loss. A slow seep can become an overheating event if the vehicle continues working under load. A van, taxi, delivery vehicle, or service truck may lose revenue while the cooling system is opened, repaired, refilled, bled, and retested. If the first repair uses only a gasket when the housing is warped, the vehicle can return with the same leak and the total cost doubles.

For fleet maintenance programs, the useful decision rule is evidence based. If the housing is plastic and already shows heat aging, brittle ports, or a distorted flange, a complete housing may reduce repeat labor. If the housing is clean aluminum and the leak is clearly at the gasket, a seal repair may be practical. The buyer should also record vehicle mileage, leak location, and coolant condition because repeated housing failures on the same application can justify stocking complete assemblies instead of only seals.

Packaging and Shipping Risks for Thermostat Housings

Thermostat housings are often lighter than many cooling parts, but they can still be damaged in transit. Plastic necks, sensor bosses, bleeder screws, and thin hose outlets can crack if the carton has no inner support. A housing that arrives with a small crack may leak only after installation and heat cycling, which creates a difficult warranty discussion. For distributors, packaging should be checked during sample approval.

Bulk buyers should request photos of the carton, inner bag, gasket protection, sensor port caps if used, and label format. If the product includes a thermostat and gasket, the package should protect the sealing face from scratches and compression. For private label programs, the label should state the application reference clearly enough for warehouse staff to separate similar housings with different ports. Good packaging reduces hidden damage and wrong picks.

Claim Evidence After Installation

When a customer reports a thermostat housing leak after installation, the supplier needs evidence before deciding whether the part failed. Useful claim evidence includes pre installation photos, gasket placement photo if available, first wet point after pressure testing, torque procedure if recorded, coolant type, air bleeding confirmation, and whether the hose connections were disturbed. A housing can leak because the flange cracked, but it can also leak because an O-ring was pinched, a hose connector was brittle, or the mating surface was not cleaned.

This claim discipline is important for importers because cross border returns are expensive. A complete claim file helps separate product defect, installation error, shipping damage, and wrong application. It also helps the buyer improve future purchasing. If several claims involve the same broken port, packaging may need improvement. If several involve the same missing sensor provision, catalog mapping needs correction. If several involve the same gasket surface, the supplier should review molding or machining quality.

Common Fitment Differences That Cause Returns

The most common thermostat housing differences are easy to miss in a short product title. One version may have one coolant temperature sensor port while another has two. One may include a bleeder screw while another uses a plain outlet. One may have the same bolt pattern but a different hose angle. One may include the thermostat while another is only a water outlet. One may use a flat gasket while another uses a molded O-ring.

These differences matter because the housing sits in a hot, pressurized coolant path. A hose kink, plugged sensor port, wrong gasket, or misaligned outlet can create leaks, poor warmup behavior, or customer complaints. Buyers should avoid approving a housing from a single front photo. A complete approval set should show every port, the gasket face, the included parts, and the old housing comparison.

What a Good Thermostat Housing Quote Should Include

A professional quotation should show more than the unit price. It should state the OE cross numbers, vehicle applications, engine code range, housing material, thermostat included or not included, opening temperature if included, gasket or O-ring package, sensor port count, hose outlet layout, packaging method, MOQ, sample availability, and repeat supply expectation. If the housing is plastic, the quote should also make clear how the ports and sealing face are protected during shipping.

This level of detail helps buyers compare suppliers fairly. One supplier may quote a complete assembly with thermostat and gasket, while another quotes only the housing body. One may include a sensor seal while another does not. Without a detailed quote, the cheaper line may not actually be cheaper after missing parts, wrong fitment, and customer claims are included.

For repeated orders, save the approved quote with the photo set and claim notes. That record becomes the buying standard for the next shipment and prevents the same housing from being rechecked from zero every time.

How Elecdura Supports Thermostat Housing Buyers

Elecdura can support aftermarket buyers that need thermostat and thermostat housing sourcing with application confirmation. Send the OE number, vehicle application, engine code, old housing photos, sensor port photos, hose outlet photos, gasket face image, target quantity, and packaging requirements. If the leak source is known, include the pressure test result or first wet point photo.

For bulk programs, buyers should separate gasket only references from complete housing assemblies. Complete housings need stronger photo validation and packaging checks because ports and plastic necks can be damaged in transit. A reliable thermostat housing program is built from fitment evidence, not only from part names.

FAQ About Thermostat Housing Leak Cost

Why does a thermostat housing leak repair cost vary so much?

Cost changes because the repair may be a simple gasket replacement or a complete housing assembly. Labor access, coolant refill, air bleeding, sensor ports, hose connectors, and housing material all affect the total repair.

When should buyers choose a complete thermostat housing instead of a gasket?

Choose a complete housing when the plastic body is cracked or warped, the thermostat is integrated, the flange is distorted, or sensor and hose ports are part of the molded assembly. A gasket is only reasonable when the housing is structurally sound.

What information should be sent before asking Elecdura for a thermostat housing quote?

Send OE number, engine code, old housing photos, sensor port count, hose outlet layout, gasket face photo, thermostat inclusion, target quantity, and packaging requirements.
