Universal A/C Condenser 575 × 373 × 20 mm

Designed for universal aftermarket A/C programs, this condenser supports refrigerant heat rejection, custom-fit installation, and size-based replacement inventory planning.

Lead Time:
60 days
Minimum Order:
100
Warranty:
12 Months

Availability:



Inquiry

Product Description

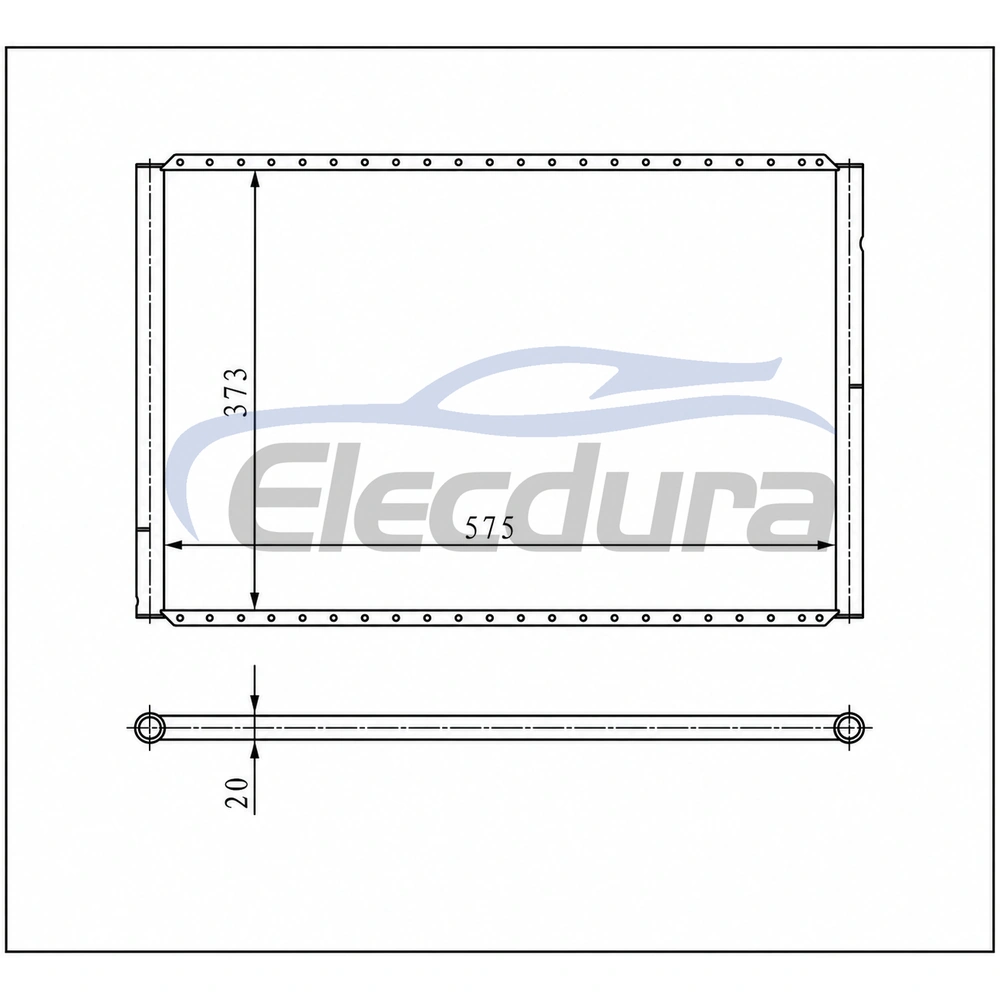

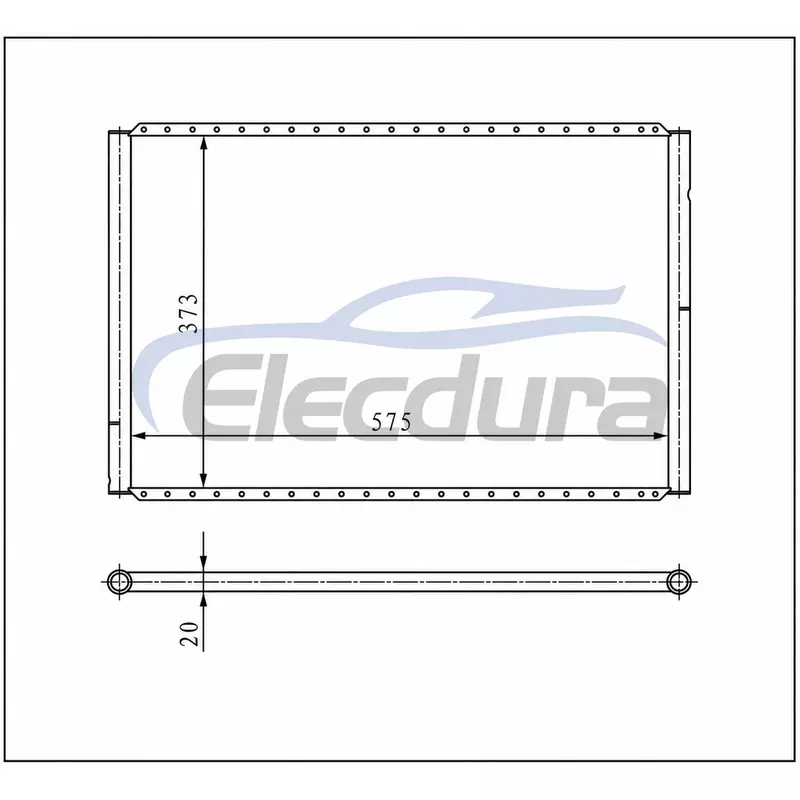

Universal A/C Condenser 575 × 373 × 20 mm Specifications

Parameter	Value
Product Type	Universal A/C Condenser
Core Dimensions	575 × 373 mm
Core Thickness	20 mm
Fin Height	8 mm

Universal A/C Condenser 575 × 373 × 20 mm Fitment and Selection Guide

Selection Item	Requirement
Fitment Type	Universal / custom-fit installation
Selection Basis	Core dimensions, thickness, port layout, mounting points, and available airflow space
Vehicle Coverage	Not vehicle-specific; installation compatibility must be checked by measurement
Pre-Order Check	Compare the original condenser, installation envelope, hose routing, and bracket locations

Universal A/C Condenser 575 × 373 × 20 mm Aftermarket Supply from Elecdura

Elecdura supplies universal A/C condenser cores for distributors, A/C system builders, retrofit projects, and replacement programs that select condensers by physical size. Share the required core dimensions, connection layout, mounting space, and order quantity for quotation and fitment review.

Universal A/C Condenser 575 × 373 × 20 mm FAQ

How do I select the correct 575 × 373 × 20 mm universal A/C condenser?

Use the 575 × 373 mm core size and 20 mm thickness as the first check. Then compare port locations, hose connections, brackets, and airflow clearance with the installation.

Is this universal A/C condenser made for a specific vehicle model?

No. This is a universal, dimension-based A/C condenser rather than a vehicle-specific OE replacement. Installation may require compatible hoses, fittings, or custom brackets.

What should be measured before ordering this universal A/C condenser?

Measure the available width, height, depth, mounting points, port orientation, hose clearance, and airflow area. Do not select only by the nominal size.

Why are two universal condensers with similar dimensions different products?

Products with similar core dimensions may still differ in mounting layout, port position, or external construction. Compare the technical drawing or sample details before ordering.
