Parameter | Value |
|---|---|
Product Type | Universal A/C Condenser |

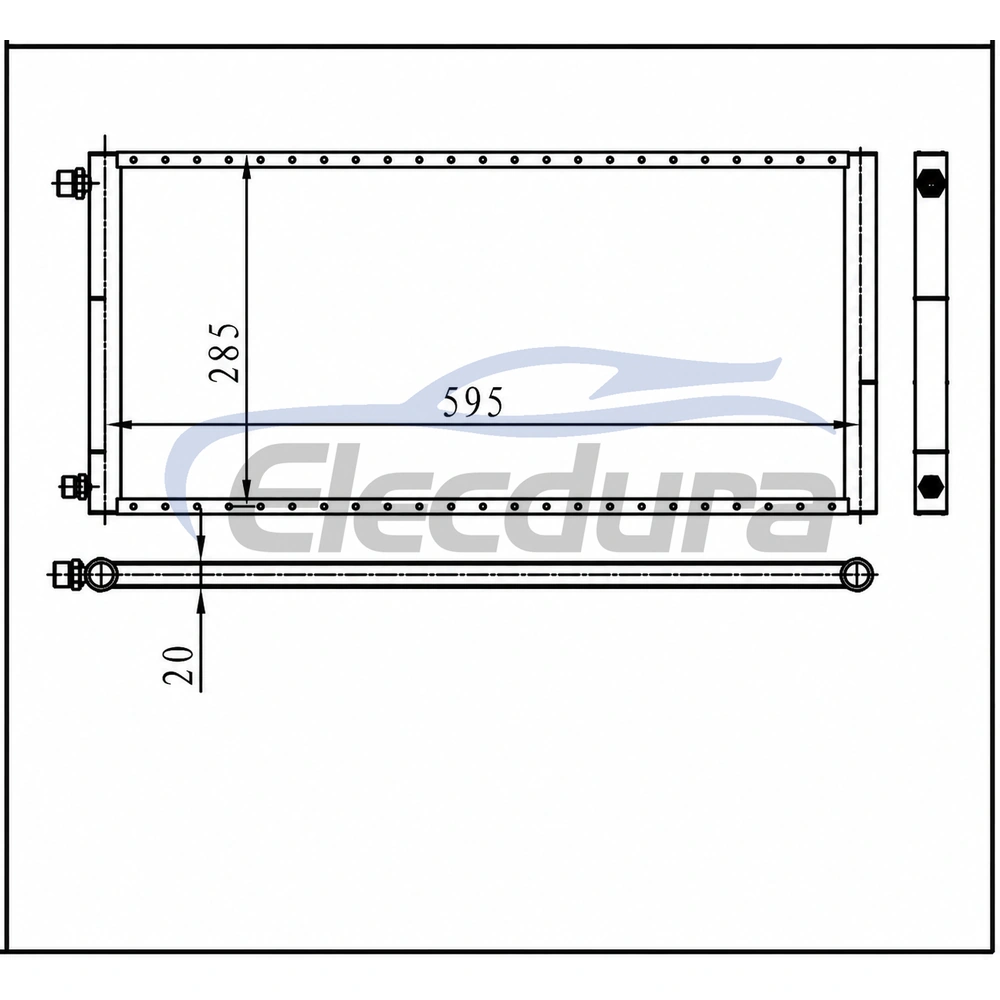

Core Dimensions | 595 × 285 mm |
Core Thickness | 20 mm |
Fin Height | 8 mm |
Selection Item | Requirement |
|---|---|
Fitment Type | Universal / custom-fit installation |
Selection Basis | Core dimensions, thickness, port layout, mounting points, and available airflow space |
Vehicle Coverage | Not vehicle-specific; installation compatibility must be checked by measurement |
Pre-Order Check | Compare the original condenser, installation envelope, hose routing, and bracket locations |
Elecdura supplies universal A/C condenser cores for distributors, A/C system builders, retrofit projects, and replacement programs that select condensers by physical size. Share the required core dimensions, connection layout, mounting space, and order quantity for quotation and fitment review.
Use the 595 × 285 mm core size and 20 mm thickness as the first check. Then compare port locations, hose connections, brackets, and airflow clearance with the installation.
No. This is a universal, dimension-based A/C condenser rather than a vehicle-specific OE replacement. Installation may require compatible hoses, fittings, or custom brackets.
Measure the available width, height, depth, mounting points, port orientation, hose clearance, and airflow area. Do not select only by the nominal size.
Products with similar core dimensions may still differ in mounting layout, port position, or external construction. Compare the technical drawing or sample details before ordering.
The standard minimum order is 100 pcs per model. Sample support is available for dimensional and installation evaluation before bulk purchasing.
Yes. Private label and custom packaging are supported for qualified wholesale orders, with a standard lead time of 60 days.
