| OEM / Reference |
|---|
| 14X-03-35111 |
| Brand | Model |
|---|---|
| KOMATSU | D65 D65-15EO |
| Item | Details |
|---|---|
| Core Size | 525 × 925 mm |
| Lower Port Diameter | 60 mm |
| Overall Width | 540 mm |
| Upper Port Diameter | 60 mm |
Elecdura supplies this aftermarket radiator for wholesalers, distributors, and dealer inventory programs. Reference numbers are used for product identification only. This product is not supplied as a genuine OEM part.
| Item | Details |
|---|---|
| Minimum Order | 100 pcs per model |
| Lead Time | 60 days |
| Warranty | 12 months |
The connection details for reference 14X-03-35111 are Lower Port Diameter: 60 mm; Upper Port Diameter: 60 mm. Compare both the connection sizes and their physical positions with the existing radiator before ordering for KOMATSU D65 D65-15EO.
Reference 14X-03-35111 is used for an aftermarket radiator on KOMATSU D65 D65-15EO. Do not extend this application to other machines solely because they share the same brand or series name. Compare the hose positions and mounting points with the existing radiator before ordering.

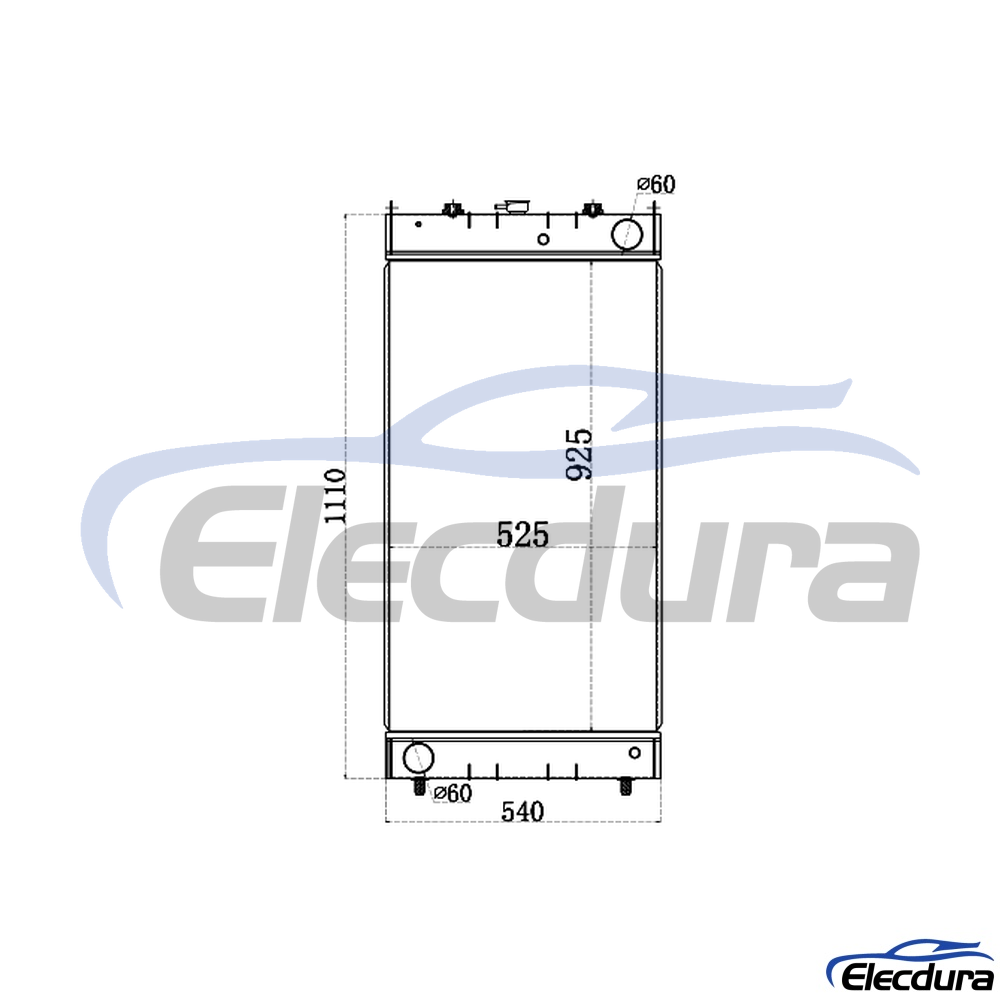

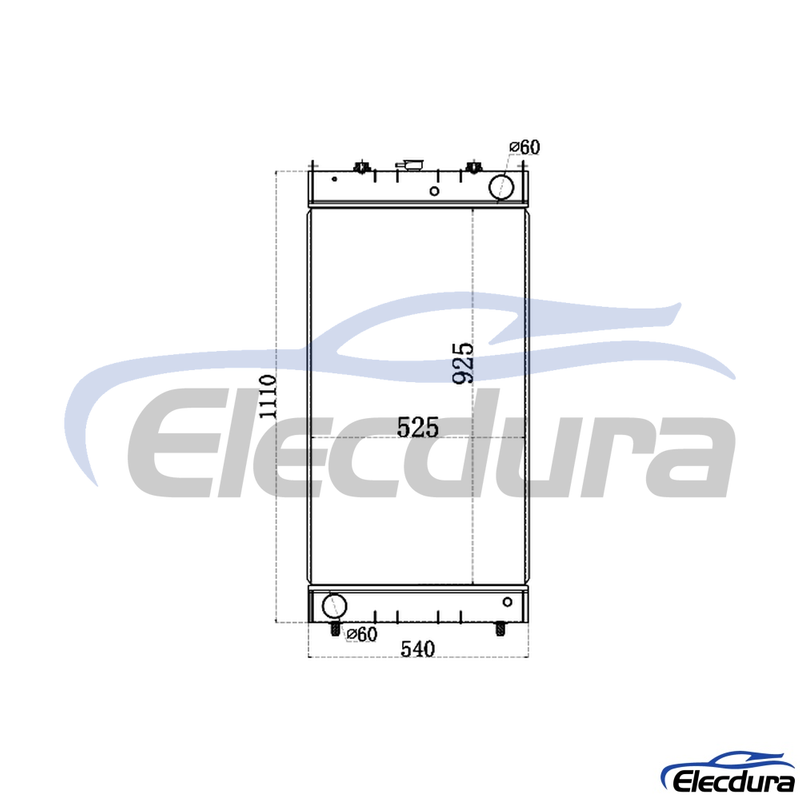

For the 14X-03-35111 radiator, the dimensional information is Core Size: 525 × 925 mm; Overall Width: 540 mm. Compare these measurements with the existing radiator and include them in the inquiry when several units for KOMATSU D65 D65-15EO look similar.
Cooling performance that becomes less stable as workload increases, slow coolant loss at the lower port and upper port, and external debris packed between the fin rows are common warning signs. These conditions can reduce heat rejection and increase unplanned downtime if they continue.
For a bulk quotation, provide 14X-03-35111, KOMATSU D65 D65-15EO, quantity per model, and clear photos showing the upper and lower hose connections. Include Lower Port Diameter: 60 mm. Early notice of branding, packing, and documentation needs helps align the quotation with the intended distribution program.
The standard minimum order is 100 pcs per model, the normal lead time is 60 days, and the warranty period is 12 months for the 14X-03-35111 radiator used on KOMATSU D65 D65-15EO. Include the required delivery schedule and any private-label packing needs with the purchase plan.
