| OEM / Reference |
|---|
| 203-03-12221 |
| Brand | Model |
|---|---|
| KOMATSU | PC120-8/130-8 |
| Item | Details |
|---|---|
| Core Size | 227.5 × 923 mm |
| Overall Dimensions | 253 × 1107 mm |
| Lower Port Diameter | 50 mm |
| Upper Port Diameter | 50 mm |
Elecdura supplies this aftermarket radiator for wholesalers, distributors, and dealer inventory programs. Reference numbers are used for product identification only. This product is not supplied as a genuine OEM part.
| Item | Details |
|---|---|
| Minimum Order | 100 pcs per model |
| Lead Time | 60 days |
| Warranty | 12 months |

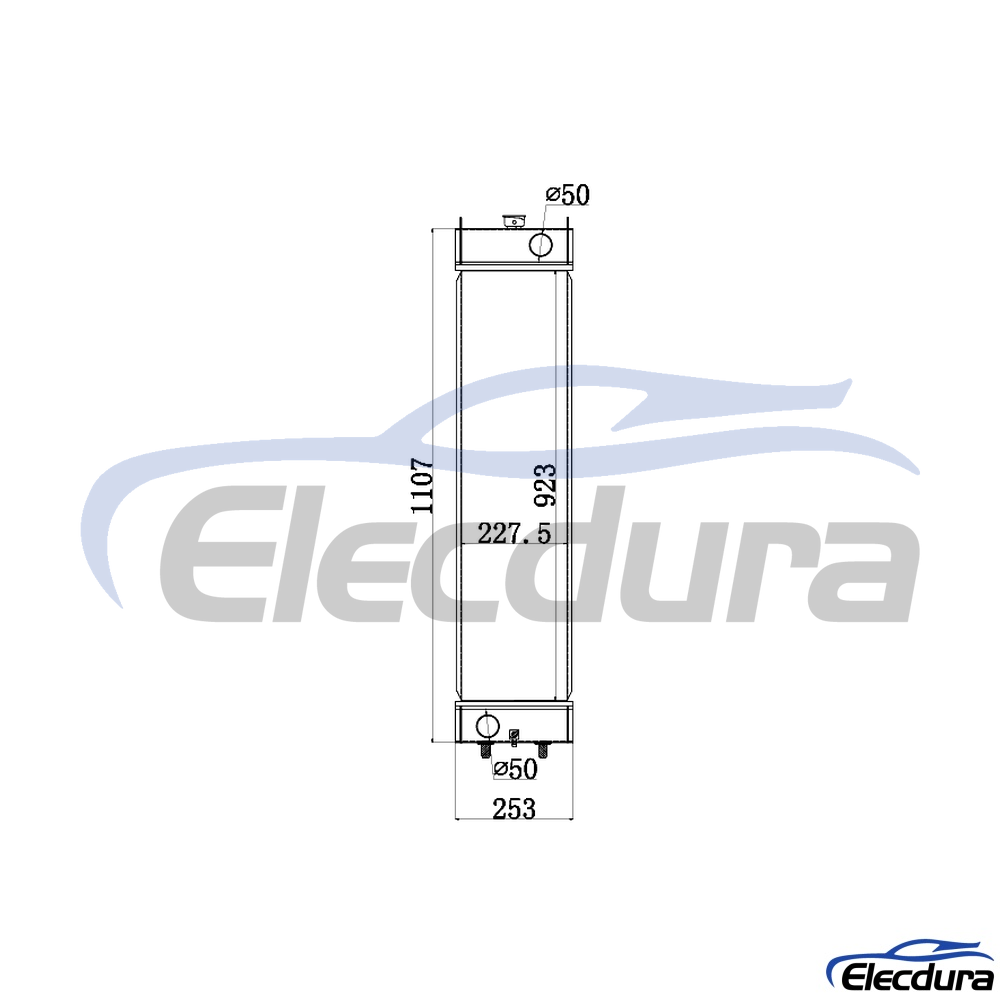

For the 203-03-12221 radiator, the dimensional information is Core Size: 227.5 × 923 mm; Overall Dimensions: 253 × 1107 mm. Compare these measurements with the existing radiator and include them in the inquiry when several units for KOMATSU PC120-8/130-8 look similar.
The 203-03-12221 radiator applies to KOMATSU PC120-8/130-8. For wholesale ordering, use the full machine designation and any available engine, chassis, or year detail rather than the model family alone. The physical connection layout should also agree with the existing radiator.
For the 203-03-12221 radiator, use Lower Port Diameter: 50 mm; Upper Port Diameter: 50 mm. A hose diameter can match while the outlet position differs, so distributors should compare the complete tank and connection layout.
A machine that runs normally at idle but overheats under working load, damp hose joints around the lower port and upper port, and bent fins that reduce the open area available for airflow are common warning signs. If the damage cannot be cleaned or corrected, cooling capacity may remain below the machine's working demand.
Send reference 203-03-12221, the machine application KOMATSU PC120-8/130-8, the required quantity, and clear photos showing the upper and lower hose connections. Include Lower Port Diameter: 50 mm. Add any private-label, carton-mark, or market-specific documentation requirements before the quotation is prepared.
The standard minimum order is 100 pcs per model, the normal lead time is 60 days, and the warranty period is 12 months for the 203-03-12221 radiator used on KOMATSU PC120-8/130-8. Distributors should finalize the model quantity and packing instructions before placing the order.
