| OEM / Reference |
|---|
| 245-9359 |
| Brand | Model |
|---|---|
| CAT | E330D/336D |
| Item | Details |
|---|---|
| Overall Height | 1270 mm |
| Overall Width | 552.5 mm |
| Core Height | 1114 mm |
| Core Width | 518 mm |
| Overall Depth | 84 mm |
| Upper Port Diameter | 50 mm |
| Lower Port Diameter | 50 mm |
Elecdura supplies this aftermarket radiator for wholesalers, distributors, and dealer inventory programs. Reference numbers are used for product identification only. This product is not supplied as a genuine OEM part.
| Item | Details |
|---|---|
| Minimum Order | 100 pcs per model |
| Lead Time | 60 days |
| Warranty | 12 months |

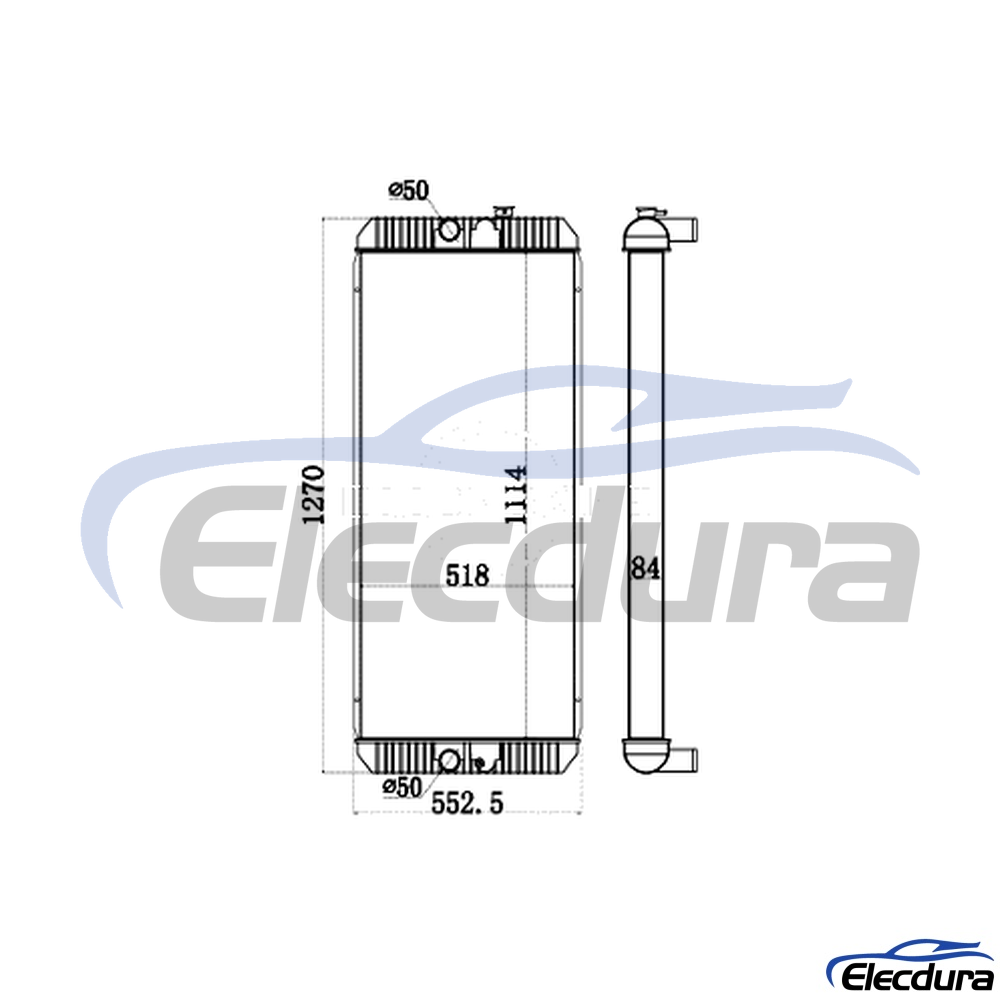

The main dimensions for reference 245-9359 are Overall Height: 1270 mm; Overall Width: 552.5 mm; Core Height: 1114 mm; Core Width: 518 mm. Use all available measurements together when comparing this radiator for CAT E330D/336D; a matching height or width alone does not account for tank shape, brackets, or hose positions.
For the 245-9359 radiator, use Upper Port Diameter: 50 mm; Lower Port Diameter: 50 mm. A hose diameter can match while the outlet position differs, so distributors should compare the complete tank and connection layout.
Reference 245-9359 identifies an aftermarket radiator for CAT E330D/336D. The equipment details should remain together on the inquiry to reduce fitment errors between closely related models. Add clear radiator photos when the model designation alone cannot separate two configurations.
Repeated overheating during long work cycles, slow coolant loss at the upper port and lower port, and external debris packed between the fin rows are common warning signs. These symptoms can progress from minor coolant loss to recurring overheating during normal duty cycles.
Send reference 245-9359, the machine application CAT E330D/336D, the required quantity, and clear photos showing the upper and lower hose connections. Include Upper Port Diameter: 50 mm. Add any private-label, carton-mark, or market-specific documentation requirements before the quotation is prepared.
The standard minimum order is 100 pcs per model, the normal lead time is 60 days, and the warranty period is 12 months for the 245-9359 radiator used on CAT E330D/336D. For mixed-model purchasing, state the quantity required for each reference before quotation approval.
