| OEM / Reference |
|---|
| 383-6407 |
| Brand | Model |
|---|---|
| CAT | E345C/345D |
| Item | Details |
|---|---|
| Overall Height | 1344 mm |
| Overall Width | 455 mm |
| Core Height | 1125 mm |
| Core Width | 414.5 mm |
| Overall Depth | 84 mm |
| Upper Port Diameter | 65 mm |
| Lower Port Diameter | 65 mm |
Elecdura supplies this aftermarket radiator for wholesalers, distributors, and dealer inventory programs. Reference numbers are used for product identification only. This product is not supplied as a genuine OEM part.
| Item | Details |
|---|---|
| Minimum Order | 100 pcs per model |
| Lead Time | 60 days |
| Warranty | 12 months |
For the 383-6407 radiator, use Upper Port Diameter: 65 mm; Lower Port Diameter: 65 mm. A hose diameter can match while the outlet position differs, so distributors should compare the complete tank and connection layout.

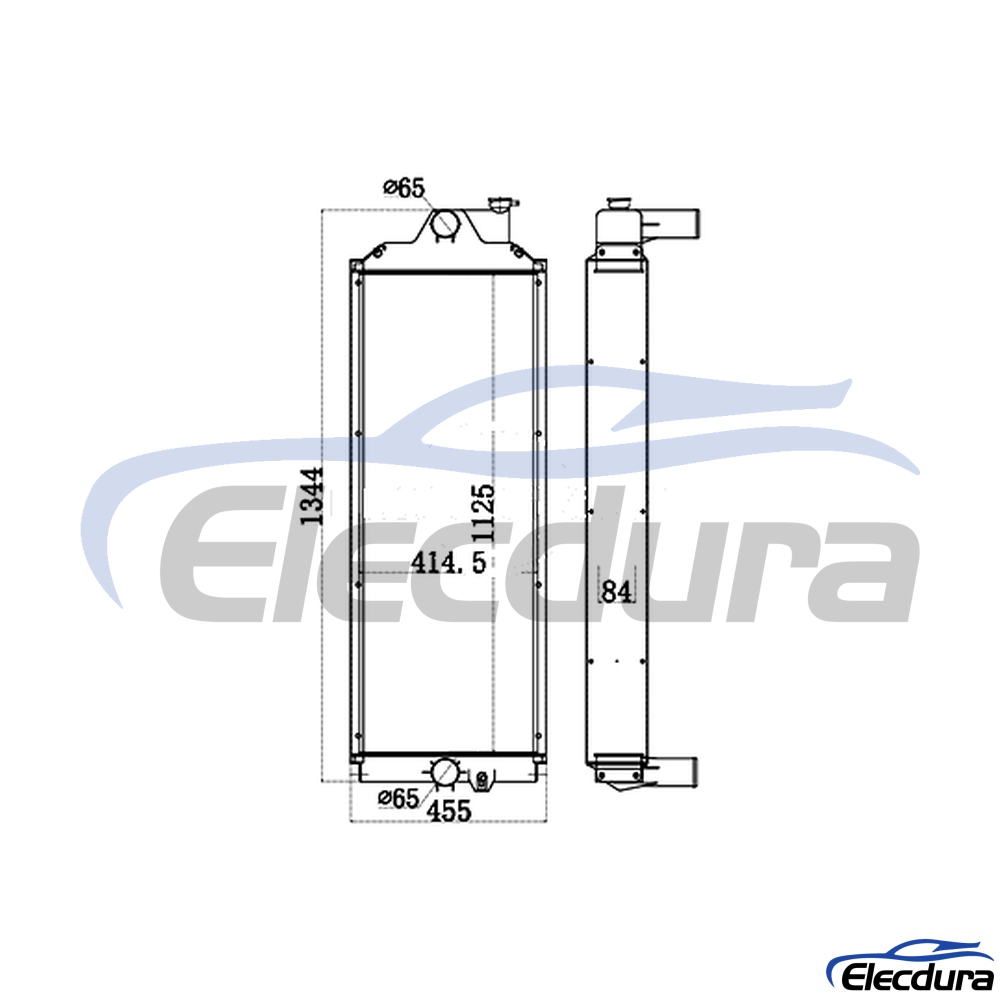

For the 383-6407 radiator, the dimensional information is Overall Height: 1344 mm; Overall Width: 455 mm; Core Height: 1125 mm; Core Width: 414.5 mm. Compare these measurements with the existing radiator and include them in the inquiry when several units for CAT E345C/345D look similar.
Reference 383-6407 identifies an aftermarket radiator for CAT E345C/345D. The equipment details should remain together on the inquiry to reduce fitment errors between closely related models. Add clear radiator photos when the model designation alone cannot separate two configurations.
A machine that runs normally at idle but overheats under working load, seepage or dried coolant around the upper port and lower port, and blocked, flattened, or oil-contaminated fins are common warning signs. When leakage and restricted airflow occur together, the radiator may no longer control coolant temperature consistently.
A complete inquiry should include reference 383-6407, the application CAT E345C/345D, order quantity, and clear photos showing the upper and lower hose connections. Include Upper Port Diameter: 65 mm. If the order needs custom labeling or packing, state those details at the same time.
The standard minimum order is 100 pcs per model, the normal lead time is 60 days, and the warranty period is 12 months for the 383-6407 radiator used on CAT E345C/345D. Distributors should finalize the model quantity and packing instructions before placing the order.
