A battery chiller, an A/C condenser, and a radiator can all remove heat from an electric vehicle, but they do not carry the same medium or operate at the same pressure. In a typical EV architecture, the battery chiller transfers heat between a coolant loop and a refrigerant circuit, the A/C condenser transfers heat from high-pressure refrigerant to ambient air, and the radiator transfers heat from coolant to ambient air. That distinction controls the ports, seals, pressure rating, internal construction, testing method, contamination risk, and replacement evidence.
The words “typical” and “architecture” matter. EV manufacturers combine and route thermal loops in different ways. Some vehicles use a dedicated battery radiator plus a refrigerant chiller. Some share front-end exchangers with drive-unit or power-electronics cooling. Some use refrigerant-to-coolant condensers, heat-pump valve networks, or integrated thermal modules. A distributor should never identify a part only by its shape or by a generic catalogue description such as “EV cooler.” The original part number, application, medium, installed location, port types, sensors, dimensions, and surrounding hoses must agree.

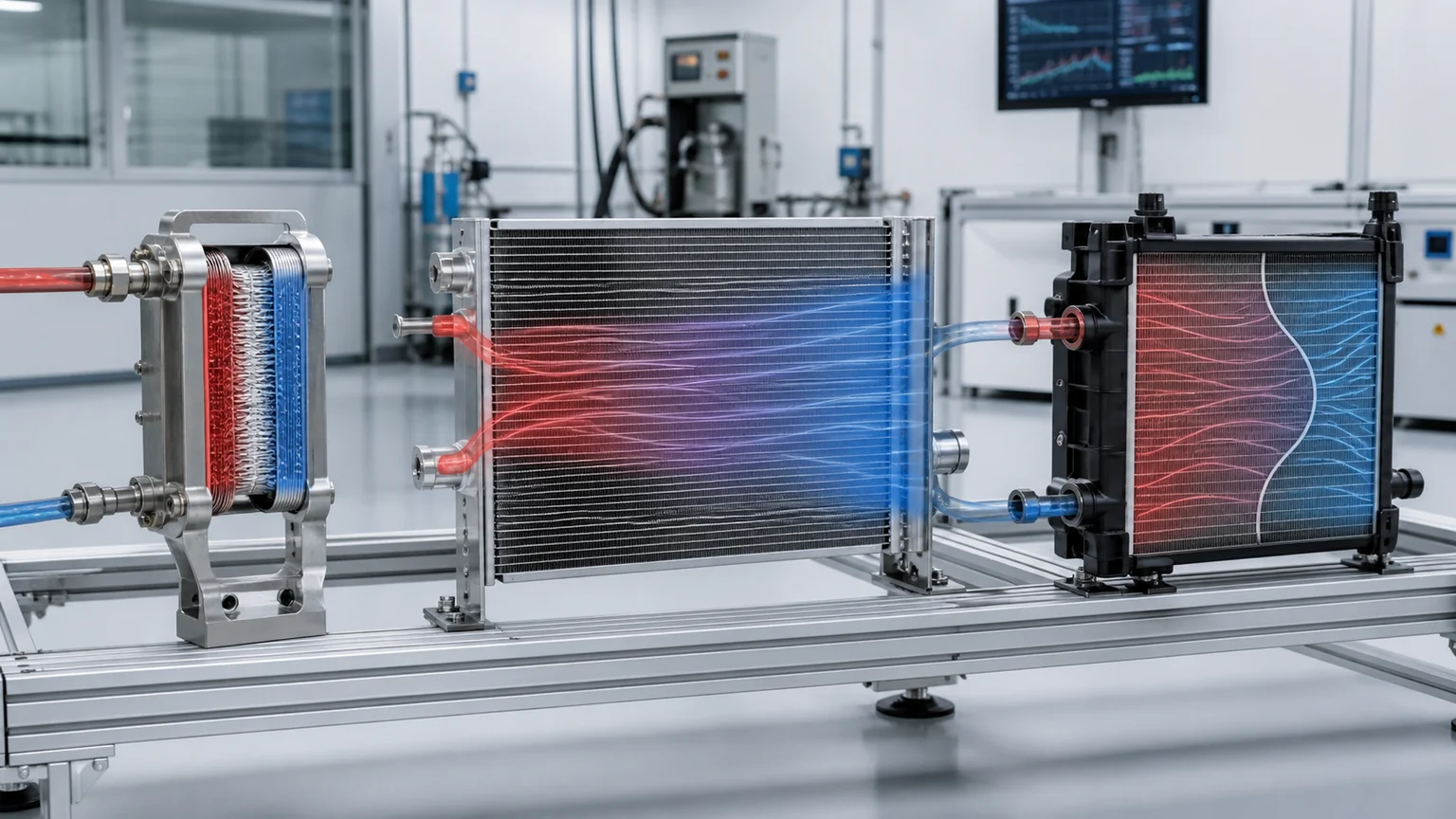

A chiller, condenser and radiator reject heat across different fluid boundaries.
Component | Common heat-transfer boundary | Typical vehicle role | Critical matching fields |
|---|---|---|---|
Battery chiller | Refrigerant-to-coolant | Uses the A/C circuit to cool battery-loop coolant below what ambient-air cooling alone can provide. | Refrigerant and coolant ports, expansion device, pressure rating, plate/manifold design, sensors, brackets and flow direction. |
A/C condenser | Refrigerant-to-air | Rejects heat from high-pressure refrigerant into front-end airflow. | Core size, manifolds, inlet/outlet fittings, receiver-drier integration, pressure sensor ports, mounts and fan-stack relationship. |
Radiator | Coolant-to-air | Rejects heat from battery, drive-unit, inverter, charger, or combined coolant loops to ambient air. | Coolant connections, tanks/manifolds, pressure cap or reservoir relationship, core duty, fan/shroud fit and mounting. |
The comparison is a starting point, not a universal schematic. A heat-pump system may include a coolant-cooled condenser or an integrated chiller/condenser assembly. A battery loop may bypass the radiator, use the radiator for passive cooling, or use the chiller for active cooling. The application record must identify what each port carries and what operating mode the part supports.
A battery chiller is commonly a compact plate-type or integrated heat exchanger with two fluid sides. Refrigerant passes through one side, while battery-loop coolant passes through the other. When battery temperature or charging load requires active cooling, the A/C compressor circulates refrigerant and the system's expansion or control arrangement reduces refrigerant pressure and temperature before or within the chiller circuit. Heat moves out of the coolant and into the refrigerant, which then carries that heat toward the condenser or another heat-rejection path.
This function makes a chiller fundamentally different from a front radiator. The chiller does not need direct ambient airflow to perform its primary job. It depends on refrigerant-side capacity, coolant flow, valve position, sensor inputs, and controller requests. A chiller complaint can therefore be caused by low refrigerant charge, an incorrect service procedure, a restricted expansion device, weak compressor output, a coolant pump fault, air in the coolant loop, a stuck valve, a blocked plate passage, or inaccurate temperature/pressure data. Replacing the chiller without separating those causes can create a repeat failure or an unjustified warranty return.
Look for evidence of two different media. Refrigerant connections are usually designed around automotive A/C sealing and pressure requirements; coolant connections may use hose barbs, quick-connects, O-rings, or formed pipes. The assembly can include an expansion valve, temperature sensor, pressure port, mounting bracket, or multi-port manifold. The part label and OE reference remain stronger evidence than appearance. A compact stacked-plate oil cooler can look similar in a photo but is not a battery chiller.
For sourcing, request clear views of every port and connector. Record the number of refrigerant and coolant connections, port thread or sealing style where applicable, inlet/outlet marking, bracket orientation, overall dimensions, plate count or core thickness when meaningful, expansion-device configuration, and sensor locations. Confirm the refrigerant used by the vehicle and whether the chiller is supplied dry, capped, or with any attached valve. Do not expose a new chiller to moisture merely to inspect its internal passage.
External leakage may leave coolant residue, UV dye, refrigerant oil evidence, or pressure-test results, but a wet surface alone does not prove which circuit leaked. Internal cross-leakage is more serious because coolant and refrigerant must remain separated. Evidence may include unexplained coolant loss, abnormal refrigerant recovery, contamination, pressure behavior, or laboratory analysis. The diagnostic process should preserve the removed part, collected fluid samples when safely possible, service-machine records, and the sequence of pressure and temperature measurements. Do not claim an internal breach only because both systems performed poorly.
The A/C condenser normally sits in the front cooling stack, where vehicle motion and electric fans push ambient air through the fins. In cooling mode, high-pressure refrigerant from the compressor rejects heat as it passes through the condenser. Depending on the system and operating mode, the component may desuperheat refrigerant vapor, condense it, and provide subcooling before the refrigerant reaches the expansion device. In a reversible heat-pump architecture, the duty of the front refrigerant-to-air heat exchanger can change with operating mode, so catalogue naming alone does not define its function in every valve state.
EV operation changes the control context but not the need for accurate heat rejection. With no engine-driven fan or belt-driven compressor, the thermal controller may command an electric compressor and variable-speed fan according to cabin, battery, charger, and power-electronics loads. During charging, the vehicle can demand substantial cooling while stationary. A condenser with the wrong core capacity, fin density, port layout, receiver-drier arrangement, or fan-stack fit can cause elevated pressure, reduced chiller capacity, poor cabin cooling, or protected power reduction.
Core dimensions matter, but a reliable match also requires inlet and outlet locations, manifold geometry, fitting type, sensor or service-port provisions, integrated receiver-drier design, mounting tabs, isolation pads, fan and radiator clearance, and the relationship to shutters or ducting. A part that fits the body opening may still place a refrigerant line under stress or block a coolant connection behind the stack. Request installed-context photos before approving a close visual substitute.
Inspect shipping protection carefully. Thin condenser fins and manifolds can be damaged by compression, impact, or loose accessories inside the carton. Bent fins reduce local airflow, while a distorted mounting tab can preload the core after installation. Keep receiving photos of the carton, corner protection, port caps, fins, manifolds, drier area, and labels. If a return alleges a leak, record the leak location and distinguish a tube/manifold defect from road impact, installation stress, or shipping damage.
An EV radiator carries coolant rather than refrigerant. Depending on the vehicle architecture, it may serve a battery loop, an electric-drive and power-electronics loop, charging electronics, or a combined low-temperature circuit; some platforms also include separate driveline or transmission-fluid cooling. Because those components can have different preferred temperature ranges, one vehicle may use more than one coolant circuit or a valve network that changes the path. A low-temperature radiator for electronics is not automatically equivalent to an engine radiator even when the external form is familiar.
The radiator depends on coolant flow and airflow. A pump creates circulation through the loop; valves and thermostatic logic determine the route; the fan, grille shutters, ducting, and vehicle speed determine airflow. A restricted radiator can raise coolant temperature, but so can a weak pump, trapped air, incorrect coolant fill procedure, blocked duct, fan-control fault, or inaccurate sensor. The strongest diagnosis reads inlet and outlet temperature, coolant flow or pump command, fan command and current, ambient condition, and component load together.
Confirm core width, height, thickness, tube and fin design, coolant connection diameters and angles, tank or manifold construction, mounts, drain or bleed features, sensor bosses, reservoir relationship, pressure rating, and fan/shroud interface. Document whether the radiator is dedicated or part of an integrated front-end module. If a quotation includes only the core, explain which brackets, seals, shutters, fan assemblies, or hoses are not included.
A visually identical radiator can have a different internal flow arrangement or port position. That difference can affect pressure drop, bleeding, hose clearance, and cooling distribution. When the OE number is unavailable, collect dimensional evidence and installed photos, but treat them as supporting evidence rather than a substitute for application validation.

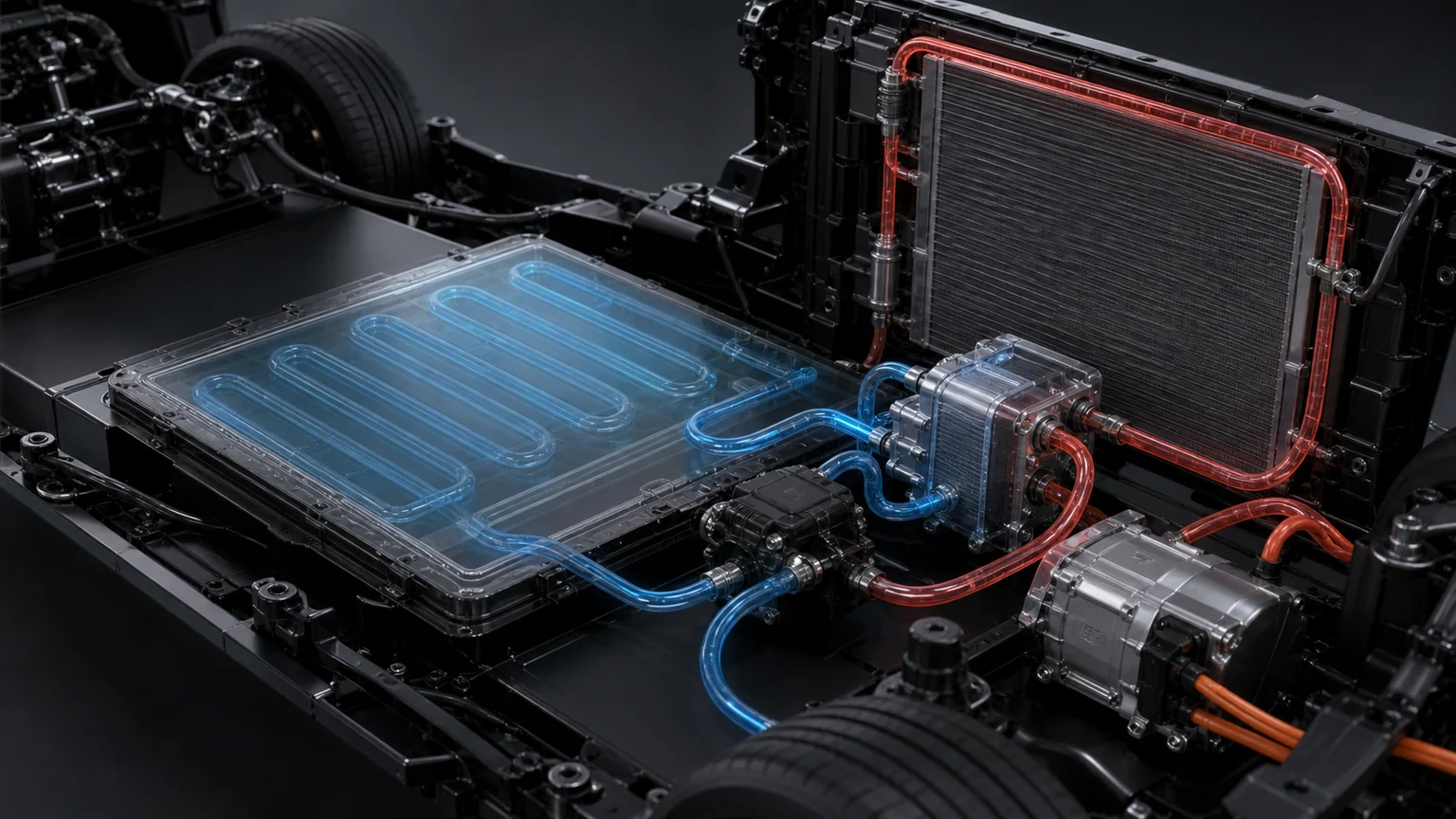

Shared controls can make one thermal complaint appear across multiple loops.
Consider an EV that reduces charging power on a hot day. The battery generates heat, the coolant pump carries it to the chiller, the refrigerant loop absorbs it, the electric compressor raises refrigerant pressure, and the condenser rejects the combined heat to ambient air. The radiator may provide passive battery cooling before the chiller is requested, or it may serve another loop sharing the same airflow. A blocked front stack or weak fan can therefore reduce condenser and radiator performance at the same time.
The correct response is not to replace every heat exchanger. It is to identify the operating mode and follow the heat path. Record ambient temperature, charging or propulsion load, battery inlet/outlet coolant temperatures, chiller coolant temperatures, refrigerant high- and low-side measurements where the service procedure permits, compressor command, fan command and current, pump command, valve state, and diagnostic codes. The data should show where expected temperature or pressure change failed to appear.
Confirm the complaint under defined conditions. Record ambient temperature, vehicle state of charge, charging or driving load, HVAC demand, and the point when derating or poor cooling begins.
Identify the active thermal mode. Determine whether the battery loop is using passive radiator cooling, active chiller cooling, bypass, heating, or a combined mode.
Check airflow first where both air-side exchangers are affected. Inspect external blockage, fan direction and speed, shroud sealing, grille shutters, and bent or contaminated fins.
Check coolant circulation. Confirm coolant level, correct fill/bleed procedure, pump operation, valve command, hose restriction, and temperature change through the relevant component.
Check refrigerant-side performance. Appropriately qualified personnel should follow the vehicle manufacturer's refrigerant and high-voltage service procedures, then compare pressure, temperature, compressor command, expansion behavior, and condenser heat rejection.
Localize the failed boundary. Decide whether evidence points to a refrigerant-to-coolant chiller problem, refrigerant-to-air condenser problem, coolant-to-air radiator problem, or a control/flow issue outside the heat exchanger.
Build the part order from verified interfaces. Use the OE reference, media, ports, sensors, dimensions, mounts, and installed photos—not the symptom alone.
Evidence field | Battery chiller | A/C condenser | Radiator |
|---|---|---|---|
Primary media | Refrigerant and coolant | Refrigerant and air | Coolant and air |
Essential photos | All refrigerant/coolant ports, valve, sensors, label and brackets | Manifolds, fittings, drier, sensor ports, fins, mounts and stack position | Coolant ports, tanks/manifolds, bleed/drain points, mounts, fan/shroud side |
Useful test evidence | Coolant temperature change, refrigerant pressures/temperatures, flow/valve state and leak localization | High-side pressure, inlet/outlet temperature, airflow/fan evidence, leak point | Coolant inlet/outlet temperature, flow or pump evidence, airflow and pressure integrity |
Common false claim | Poor battery cooling automatically proves an internally blocked chiller | High pressure automatically proves a restricted condenser | High coolant temperature automatically proves an inefficient radiator |
A warranty record should preserve the removed part label, vehicle application, installation date, mileage or operating hours, fault codes, measurement conditions, photos, fluids handled, and adjacent repairs. For refrigerant components, include recovery and charging records when available. For coolant components, include coolant type, fill/bleed procedure, contamination evidence, and pump or valve checks. This makes the claim useful to both the customer and supplier.
A customer reports that charging power still drops after a new chiller is installed. That result does not prove that the replacement chiller is defective. First compare the vehicle state, ambient temperature, starting battery temperature, charge level, charger power, and HVAC request with the conditions of the original complaint. Then check coolant pump command and actual temperature change, valve position, trapped air, refrigerant charge, compressor command, and condenser airflow. If the refrigerant circuit cannot reject heat at the front of the vehicle, the chiller cannot maintain a cold coolant outlet even when its internal passages are sound.
The supplier claim should include pre- and post-repair measurements under comparable conditions. A photograph of the installed chiller confirms routing and connectors; a temperature log across the coolant side shows whether heat transfer occurred; A/C service records show whether refrigerant quantity and procedure were controlled. Without that evidence, a second chiller may repeat the same result and create another unnecessary return.
A bent tab may look minor, but straightening it after installation can transmit stress into the manifold or core. Compare the receiving photograph, carton condition, protective packaging, and location of the distortion. If the damage occurred in transport, isolate the part before refrigerant lines are attached. If the tab is merely manufactured at a different angle, compare it with the OE part, line routing, and vehicle bracket before deciding that it can be corrected. Installing a stressed condenser and later finding a leak makes responsibility much harder to establish.
The correct decision may be to reject the shipment, replace the bracketed assembly, or obtain supplier confirmation—never to force the ports into alignment. A refrigerant line should meet its connection without being used as a lever. The receiving record protects the distributor and prevents a visible logistics issue from becoming an A/C warranty dispute.
Heat-exchanger efficiency cannot be judged from appearance alone, but neither can it be condemned from one high temperature. Check external blockage, fan and shutter operation, pump speed, coolant condition and mixture concentration, air removal, valve routing, and inlet-to-outlet temperature under a defined load. A small temperature drop can mean low heat transfer, but it can also mean very high flow or low heat input; a large drop can mean effective heat rejection or inadequate flow. Interpret the temperature pair with coolant flow, ambient condition, and component load.
If the radiator is replaced, preserve the old part and document any internal debris, contaminated coolant, crushed fins, distorted tanks, or cap/bleed issues. The replacement should not enter service until the cause of contamination or restricted flow is addressed. This is particularly important when one coolant loop serves several high-value electronic components.

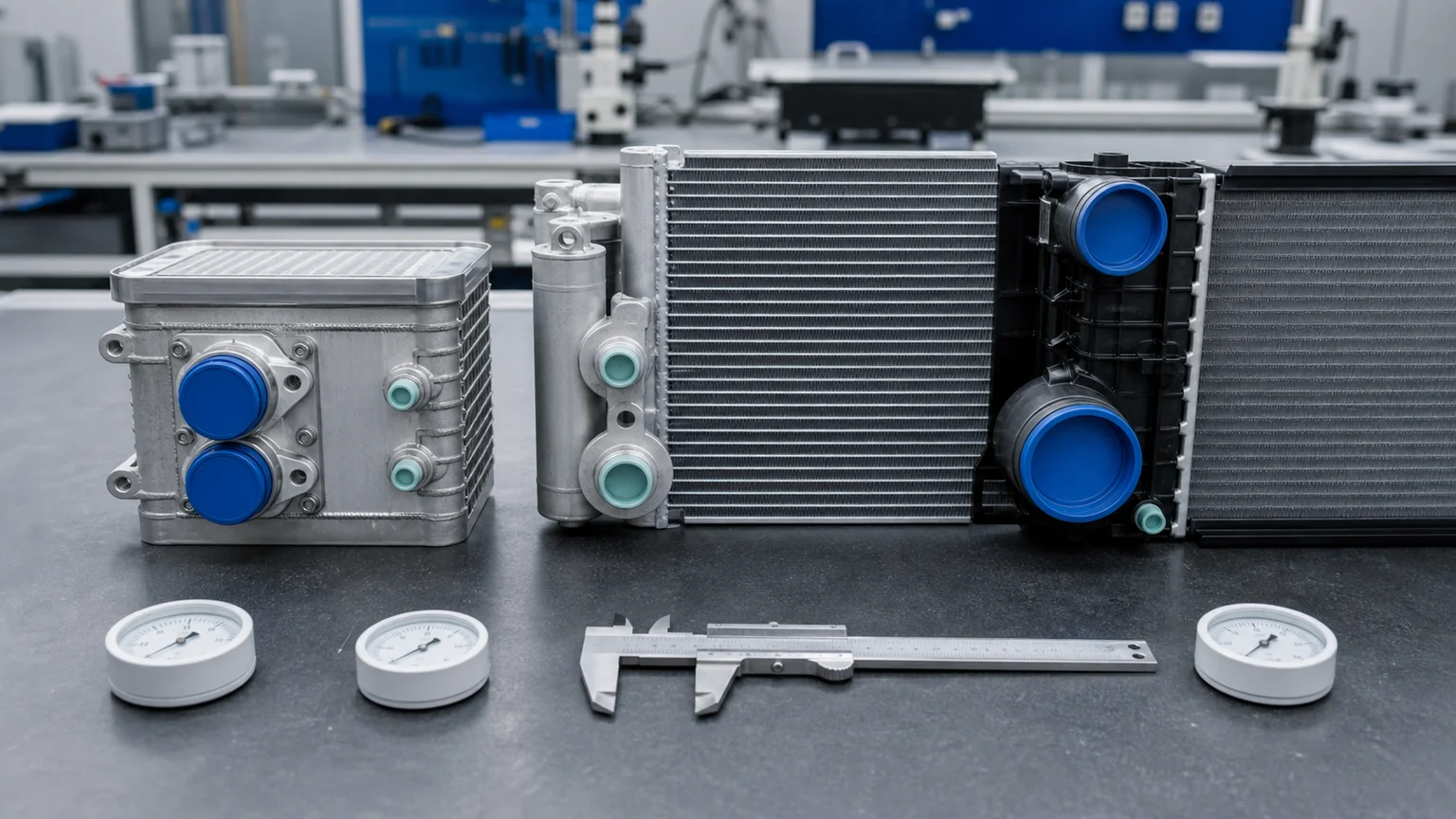

Port geometry, media compatibility and mounting details separate visually similar heat exchangers.
Keep refrigerant ports capped and dry. Keep coolant ports protected from debris. Do not stack finned heat exchangers in a way that loads the core or mounting tabs. Inspect plate chillers for impact at the port blocks, condensers for crushed fins and manifold distortion, and radiators for tank cracks, bent connections, or damaged mounting pins. Record each part number and batch before shelving, especially when several variants look alike.
Segregate products by function and application instead of placing every compact plate cooler in one bin. A battery chiller, oil cooler, coolant heater, and transmission heat exchanger can share a visual family while having different media compatibility and pressure boundaries. Clear product labels, capped ports, application records, and receiving photographs reduce selection errors before the part reaches a workshop.
The simplest reliable distinction is the heat-transfer boundary: refrigerant-to-coolant for a typical battery chiller, refrigerant-to-air for a typical A/C condenser, and coolant-to-air for a typical radiator. From there, verify the actual vehicle architecture, because integrated modules and heat-pump layouts can change the arrangement.
For an aftermarket match, send the OE number, vehicle and market application, full label, installed-location photos, every port and connector, overall dimensions, mounting details, sensor or valve information, and the evidence that localizes the failure. Elecdura can use that package to assess aftermarket chiller, condenser, radiator, compressor, and related thermal-component enquiries without treating physical similarity as proof of interchangeability.
