DB5Z19712C Ford Explorer Police 2013-2017 A/C Condenser Assembly 16mm Core

Designed for aftermarket A/C supply programs, this condenser supports refrigerant heat rejection, cabin cooling restoration, and replacement inventory planning.

Lead Time:
60 days
Minimum Order:
100
Warranty:
12 Months

Availability:



Inquiry Catalog Download

Product Description

DB5Z19712C Ford Explorer Police 2013-2017 A/C Condenser Assembly 16mm Core OEM and Cross Reference

OEM / Cross Reference
DB5Z19712C

DB5Z19712C Ford Explorer Police 2013-2017 A/C Condenser Assembly 16mm Core Application

Brand	Model	Year	Position
Ford	Explorer Police	2013-2017	Front
Ford	Explorer 4wd	2016-2017	Front

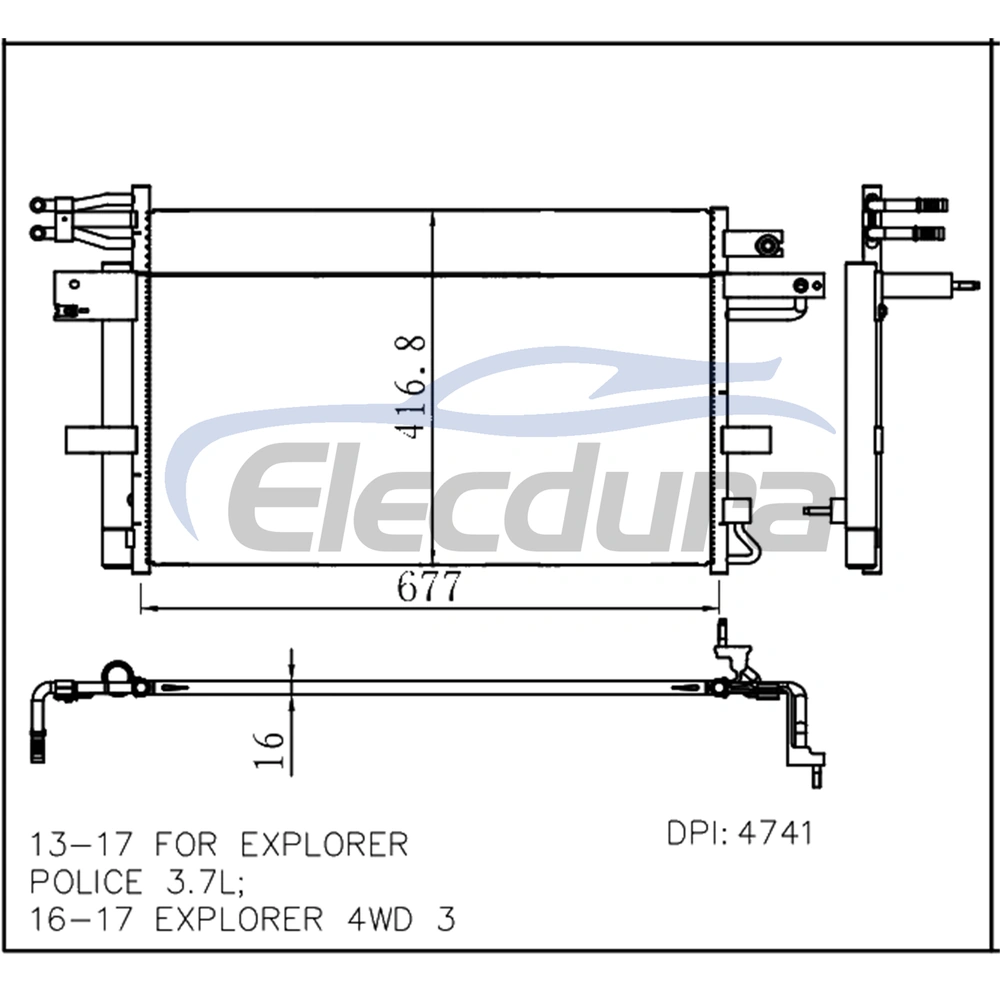

DB5Z19712C Ford Explorer Police 2013-2017 A/C Condenser Assembly 16mm Core Specifications

Parameter	Value
Product Type	A/C Condenser
Core Thickness	16mm
Fin Height	8mm
Receiver/Drier Included	Yes

DB5Z19712C Ford Explorer Police 2013-2017 A/C Condenser Assembly 16mm Core Aftermarket Supply from Elecdura

Elecdura supplies vehicle-specific A/C condensers for distributors, repair-parts programs, and private label projects. Share the OEM reference, target application, technical requirements, and order quantity for quotation and fitment review.

DB5Z19712C Ford Explorer Police 2013-2017 A/C Condenser Assembly 16mm Core FAQ

Does this A/C condenser replace OEM DB5Z19712C?

OEM DB5Z19712C is the primary verified reference for this condenser. Compare the number on the original part together with the ports, mounting layout, and vehicle application before installation.

Which vehicle applications are listed for this condenser?

The verified application list includes Ford Explorer Police 2013-2017, Ford Explorer 4wd 2016-2017. Confirm the OEM number and physical connections for the exact vehicle configuration.

What symptoms can indicate that this A/C condenser needs inspection?

Inspect the condenser when the vehicle shows refrigerant, oil, or or dye traces around the core. Confirm the leak or restriction before replacement and service the refrigerant circuit using the vehicle manufacturer's procedure.

What should be confirmed before ordering this condenser?

Match OEM DB5Z19712C, including core thickness 16mm, receiver/drier included Yes. Also compare port orientation, mounting points, and receiver/drier arrangement with the original part before ordering.

What is the minimum order, and can I request a sample?

The standard minimum order is 100 pcs per model. Sample support is available for OEM, dimensional, connection, and installation evaluation before bulk purchasing.
