Match a Hyundai excavator oil cooler by confirming the complete machine model and serial number, finding the applicable Hyundai OE number and any official supersession, and then validating the physical and hydraulic design against a controlled drawing or approved sample. Core size and port appearance are supporting checks, not substitutes for serial-range evidence. Buyers building a multi-model program can first review Elecdura's wholesale hydraulic oil cooler range, then submit the machine-specific evidence below for application review.
Hyundai Construction Equipment states that serial-number locations are shown in the machine Operation Manual and that an authorized dealer can assist when the number cannot be found. Hyundai's published parts material also directs users to the Dealer Portal catalogue to determine the applicable machine serial number. That is why a quotation based only on “Hyundai 220 excavator” remains provisional.
OE and serial-range evidence leads the match; measurements and port details confirm that the supplied cooler reproduces the controlled application.
Evidence | What to capture | Why it matters | Risk if missing |
|---|---|---|---|
Machine identity | Full model, suffix, configuration, market and serial number | Separates production changes within a model family | Wrong serial-range application |
OE reference | Hyundai number, label photo, catalogue page and supersession | Anchors the application to controlled parts data | Obsolete or unrelated cross-reference |
Dimensions | Active core, overall envelope, thickness, header and mount coordinates | Confirms package and airflow fit | Interference or reduced cooling area |
Ports | Thread, seat, size, clocking, center coordinates and flow direction | Prevents leaks, hose stress and restriction | Adapter improvisation or hose failure |
Construction | Core type, material, pressure basis, cleanliness and bypass arrangement | Confirms hydraulic and thermal suitability | Cold-start damage or poor heat rejection |
Validation | Sample, leak/pressure, restriction, cleanliness and fit report | Converts a paper match into approved supply | Batch-level warranty exposure |

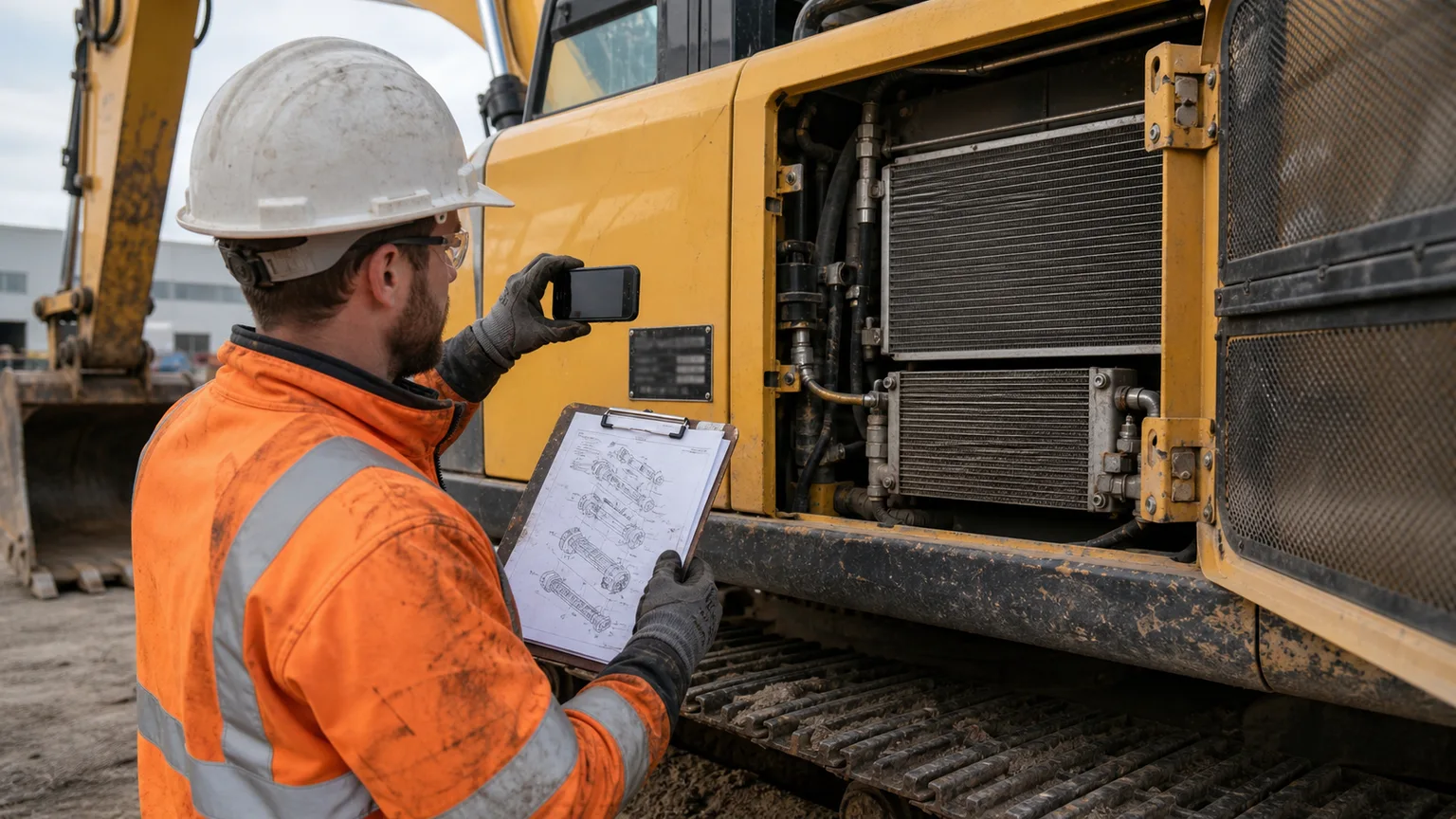

Record the exact model as it appears on the identification plate and documents, including letters, dashes, generation designations, wheeled or crawler configuration and any long-reach, demolition, forestry or regional suffix. Similar base model numbers can cover different engines, emissions packages, cooling modules and hose routing.
Add the machine serial number, market, approximate build date and engine identification where available. Photograph the complete plate in context so the record cannot be confused with a loose label. Do not publish or circulate a customer's full serial number beyond the teams that need it; a masked copy can support routine RFQ discussion while purchasing retains the original.
Manufacturers revise machines during production. A cooler may change because of a new engine, pump package, fan drive, emissions system, frame, hose supplier or cooling-stack update. The catalogue can therefore split a single model into before/after serial ranges even when the external machine decal did not change.
A serial range may also control the complete assembly rather than the bare core. One range might use separate radiator and hydraulic cooler elements; another might use a combined frame, different mounting ears or revised inlet orientation. Treat the serial number as a fitment key, not administrative decoration.
Search the machine-specific catalogue using the confirmed model and serial number, then record the exact Hyundai OE reference shown for the hydraulic oil cooler or cooling module. Preserve punctuation, leading zeros and suffixes in the source record. For internal searching, also store a normalized version with spaces and hyphens removed so formatting does not hide a match.
Keep the source type next to every number: current catalogue, older catalogue, dealer quotation, old-part label, supplier cross-reference or marketplace listing. These sources do not have equal authority. A number copied through several reseller databases can look widely confirmed while tracing back to one unverified entry. Elecdura's excavator oil cooler part-number guide explains how OE, part and cross-reference numbers play different roles in a buyer's evidence pack.
A superseding number is not simply a spelling correction. It may represent an interchangeable service replacement, a revised assembly that requires companion hardware, or a production update limited to later machines. Ask for the direction of supersession, effective serial range and any installation note.
Store the old and new numbers as a dated chain rather than deleting the previous reference. Buyers need the historical number to interpret warehouse stock and field samples. The current orderable number controls procurement only after the catalogue or authorized source confirms that it services the specific serial number.
An original removed cooler is valuable evidence when its history is known. Photograph the complete front and rear, both headers, ports, brackets, fan or guard interfaces and any label or stamped reference. Add a ruler or calibrated scale and identify which side faced the incoming air.
But the old part may already be non-original, modified, repaired or taken from another machine. Bent mounts and brazed adapters can disguise a mismatch. If sample markings conflict with the serial-number catalogue, stop and resolve the machine history before copying the sample.
Excavator cooling packs can contain an engine radiator, charge-air cooler, hydraulic oil cooler, fuel cooler, A/C condenser or combined assembly. Appearance alone is unreliable. Trace the hoses and identify the fluid circuit before removal where safe, or use the service schematic and port destinations.
A hydraulic oil cooler normally connects to an oil return, charge or dedicated cooling circuit, but the precise layout is machine-specific. Do not identify it merely because it is aluminum or has two ports. A wrong heat exchanger may fit the opening yet have unsuitable internal passages, pressure capability and cleanliness.
Document whether the oil cooler is upstream, downstream or side-by-side with the radiator and charge-air cooler, and whether the fan pushes or pulls through the stack. Hyundai has published machine material describing in-line radiator and oil-cooler arrangements, illustrating why stack position is part of the application.
Photograph sealing foam, shrouds, hinges, screens, fan guards and blocked regions. A replacement with the right external dimensions can still reduce engine cooling if it changes air resistance, creates bypass gaps or prevents the stack from opening for cleaning.
The overall height and width include headers, tanks, mounting rails and projecting ports. The active core is the finned heat-transfer region. Record both, plus core thickness. Measure at multiple points because collision damage can distort a used sample.
Specify the measurement convention in the drawing. “Width 700 mm” is ambiguous if one supplier measures the core and another includes brackets. Include header dimensions, tube orientation, fin pitch where controlled, protective guard clearance and the distance from the mounting plane to the deepest point.
Measure hole diameter, slot length, center-to-center distance, bracket thickness, stand-off height and orientation from a defined datum. Include captive nuts, rubber isolators, locating pins and shared fasteners. A two-dimensional front photo cannot show that one mounting ear is offset behind another.
Check the installed clearance to hoses, fan blades, counterweight, doors and adjacent cores. Mounts must locate the cooler without forcing it into the frame. Bending a bracket during installation transfers vibration into the header and can produce an early fatigue leak.
For each port, identify thread system and pitch, nominal size, male or female form, sealing seat or O-ring geometry, boss length and wrench clearance. Measure the port-center coordinates from controlled datums and show the direction and clocking. Photograph the mating hose end when possible.
Two fittings can share a similar outside diameter but use different pitches or sealing methods. A thread that starts does not prove compatibility. Do not solve a wrong-port cooler with unapproved adapters: additional joints add leakage points, may restrict flow and can load the hose or header.
Mark the hoses before disconnection and preserve any flow arrow on the sample. Some cooler cores are symmetric; others use multi-pass circuiting, an integrated bypass or a header arrangement that depends on flow direction. Port location also affects air removal and draining.
Request an internal circuit description or controlled section drawing when the geometry is not obvious. Matching two ports and the envelope does not prove equivalent oil-side pressure drop. An excessively restrictive core can increase return pressure, especially during a cold start when oil viscosity is high.

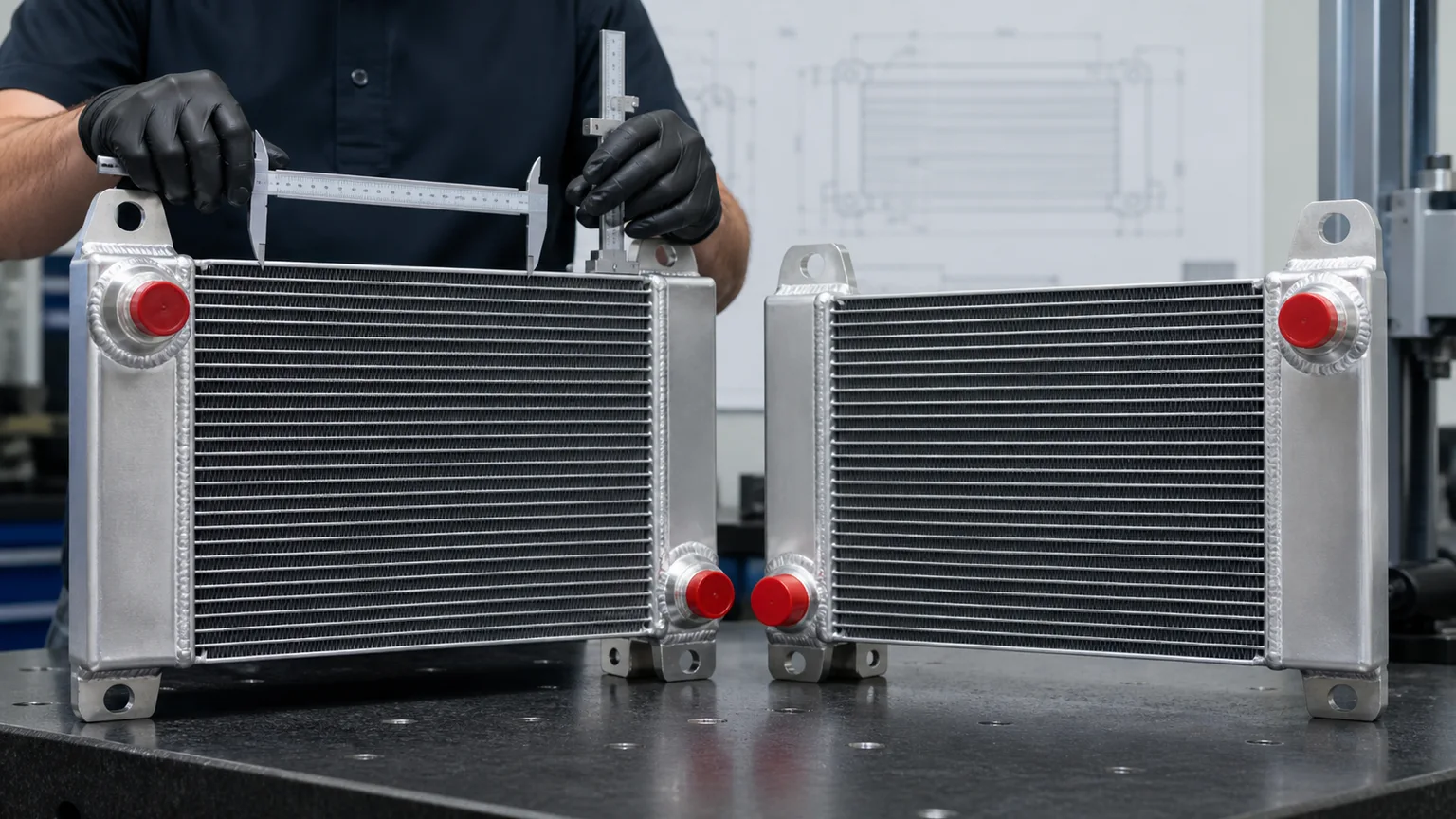

Full model and serial-number evidence resolves production changes that cannot be seen in a marketplace product photo.
Record whether the core is brazed aluminum plate-and-bar, tube-and-fin or another construction, and document header, bracket and port materials. The replacement needs adequate heat rejection, pressure resistance, fatigue life and corrosion compatibility for the machine's service.
Do not infer performance from mass or thickness alone. Fin geometry, oil passage design, turbulence, brazing quality and airflow resistance influence the result. If a supplier proposes a construction change, require engineering comparison and prototype validation rather than calling it equivalent from dimensions.
The applicable circuit pressure, transient pressure, oil flow, temperature and viscosity must come from the machine specification or qualified engineering record. Cooler manufacturers such as Parker emphasize sizing hoses and connections to the system pressure, flow, temperature and fluid, and warn that cold, viscous oil can require bypass protection.
Do not publish or reuse one generic pressure limit for all Hyundai excavators. Confirm the core's allowed working condition and the proof/leak-test method. Where the original system includes a bypass valve, thermal valve or relief path, match its function and setting through approved data.
Hydraulic components are sensitive to particles, water and assembly debris. A physically correct cooler delivered with brazing residue or uncapped ports is not an acceptable match. Define the required internal cleanliness method, reporting basis, drying, preservation and protective caps in the purchase specification.
Keep ports capped until the installation is ready. Clean hoses and surrounding areas before opening the circuit. If the old cooler failed internally or a pump dispersed debris, follow the machine manufacturer's contamination-recovery procedure; installing a clean cooler into a dirty circuit can damage both the new part and expensive controls.
A ruptured or contaminated sample can still provide dimensions and mount geometry, but it may not be suitable for reverse-engineering internal passages or cleanliness. Separate “dimensional master,” “material sample” and “functional test sample” status in the inspection record.
Drain and handle used hydraulic components under an environmental and safety procedure. Unknown oil can be hot, pressurized or contaminated. A supplier should receive disclosed sample condition and agreed return/disposal instructions rather than an unlabelled oily part.
Create a one-page outline drawing tied to a revision-controlled inspection sheet. Include active-core and overall dimensions, thickness, port details, port centers, mounting coordinates, airflow direction, stack position and critical clearances. Add photos that show the selected datums.
Classify dimensions: critical-to-fit, critical-to-function and reference. Apply tolerances to the critical items and define the measurement equipment. This prevents a supplier from treating every handwritten sample dimension as equally accurate or every cosmetic feature as functional.
RFQ item | Supplier response required | Acceptance evidence |
|---|---|---|
Application | Hyundai OE reference, model and serial range claimed | Traceable catalogue/cross-reference basis |
Drawing | Revisioned core, port and mounting dimensions | Signed buyer drawing comparison |
Hydraulic design | Fluid, pressure/flow basis, restriction and bypass compatibility | Engineering data at defined conditions |
Quality | Leak/pressure test, cleanliness, brazing and dimensional controls | Sample and batch inspection records |
Durability | Vibration, thermal cycle and corrosion validation basis | Applicable report and change-control status |
Packaging | Port caps, desiccation/preservation, fin and bracket protection | Approved packaging sample and receiving plan |
For mixed-model purchasing, the same controlled fields can be applied across an excavator oil cooler wholesale sourcing program without assuming that dimensions or ports transfer between machine families.
Begin with document review and a dimensional first-article inspection. Use thread and seat gauges for ports, a fixture or coordinate method for mounts, and calibrated equipment for critical dimensions. Confirm that the sample carries the agreed traceability and arrives with every passage capped.
Then conduct the specified leak or pressure test and cleanliness verification. Installation should be performed by qualified personnel using the approved seals, torque and contamination controls. Record hose alignment, stack closure, fan clearance and any installation force; “it can be bolted in” is not a passing result.
Where the sourcing risk justifies it, compare oil-side pressure drop at defined flow, viscosity and temperature, and assess heat-rejection performance under controlled air and oil conditions. Values must come from the application specification, not from this general guide. Account for measurement uncertainty and stabilize the test before comparing samples.
Operate through the approved duty cycle while monitoring hydraulic oil temperature, relevant pressures, fan operation and engine cooling. Inspect for leaks, hose movement, vibration contact, abnormal noise and hot-air recirculation. Recheck mounts and joints after the defined run period.
Link the approved sample, supplier drawing revision, OE/serial-range evidence, material specification and test reports in one release record. Photograph the approved label and packaging. Production orders should reference that record so a later buyer does not approve a silent substitution from a product-page thumbnail.

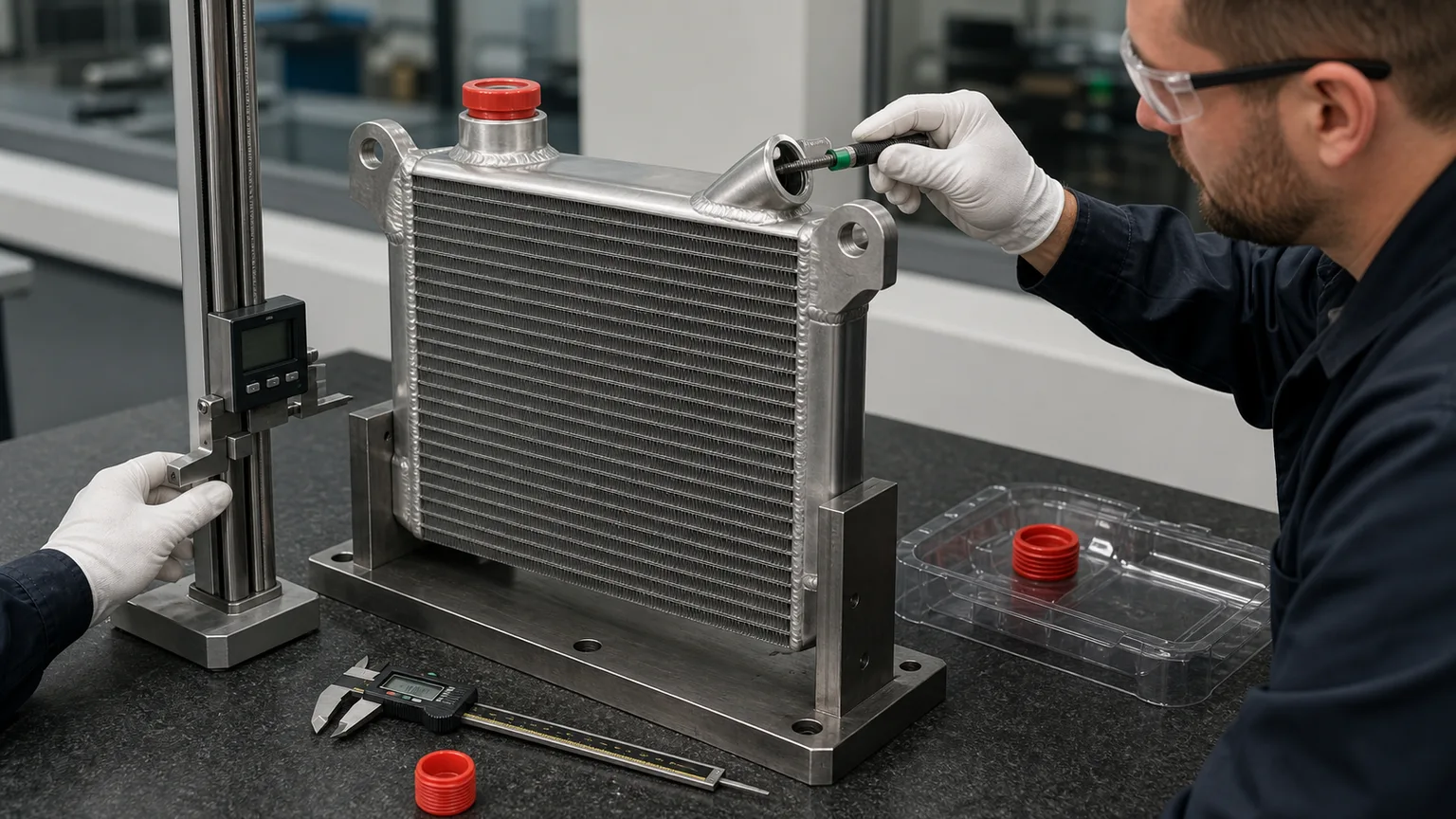

Receiving inspection checks the features that carry fit, sealing and cleanliness risk without turning a visual resemblance into approval.
Verify part and drawing revision, label traceability, packaging condition, capped ports, fin damage, mount position and critical dimensions at the agreed sampling level. Use clean plugs or a controlled test bench for leak testing so inspection does not contaminate the cooler it is meant to protect.
Trend repeat defects by cavity, fixture, production lot and shipping route. Small drift in a port angle or mount stand-off can create hose stress even while every individual dimension appears close to tolerance. A functional gauge can expose the combined effect.
The most common failures are quoting from the base model without the serial number, treating a superseded OE number as universally interchangeable, measuring overall size but not active core, identifying thread by diameter alone, ignoring a rearward port offset, and copying a damaged aftermarket sample.
Other failures include confusing the oil cooler with another stack element, omitting a bypass function, accepting uncapped passages, changing fin density without airflow review, and approving an assembly that requires the installer to bend brackets or twist hoses. Each is preventable with the evidence chain above.
Send the machine plate in context; the full model and serial-number area; the cooler installed in the stack; front and rear views after safe removal; both headers; close-ups of labels; each port with mating hose end; all mounts; fan, shroud and guard interfaces; and a scale view of the active core and overall envelope.
Label orientation and protect confidential identifiers. Photos accelerate triage but do not replace gauged dimensions or catalogue confirmation. Ask the supplier to return a marked comparison drawing showing which features were confirmed, assumed or still unresolved.
Release the match when the OE/supersession applies to the confirmed machine serial number, the drawing and sample agree on critical dimensions and ports, hydraulic construction and cleanliness meet the specification, and the first article passes defined validation. Hold it when any serial split, port seat, mount datum, bypass function or pressure basis remains assumed.
For wholesale sourcing, Elecdura can review a complete evidence pack and prepare a controlled comparison for candidate excavator oil coolers. For example, a product page such as the 11N9-43510 Hyundai excavator oil cooler can serve as a catalogue starting point, but the machine serial evidence and controlled validation in this guide still govern release. Provide the full machine model, masked serial number, traceable OE reference, old-part photos and required quantity; final installation and operating limits remain governed by Hyundai documentation and qualified service procedures.
