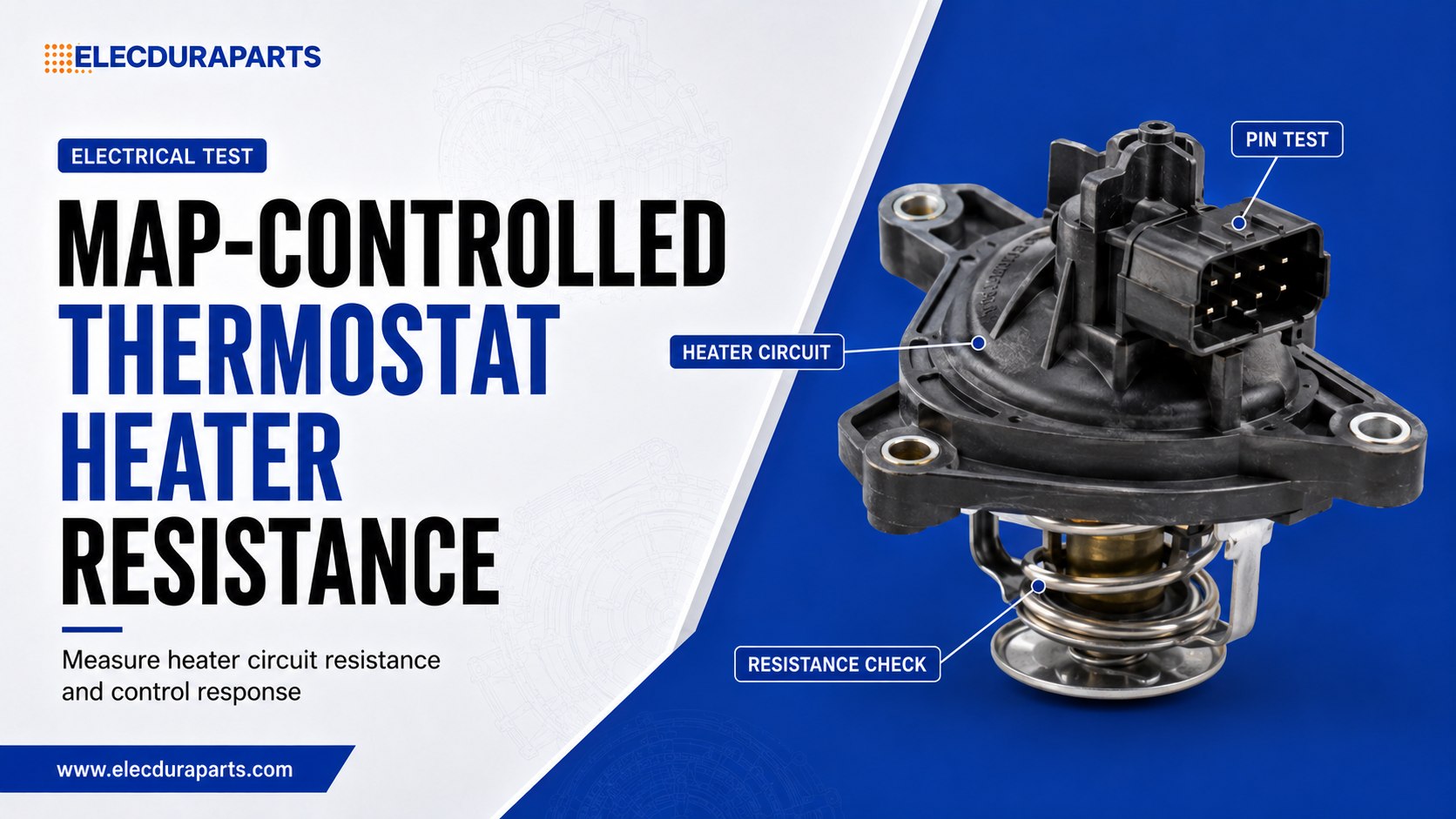

A map-controlled thermostat adds an electrical heater to the wax element so the engine controller can influence opening behavior under selected operating conditions. The heater is not a simple on-off valve actuator: electrical energy changes the wax element's thermal response. A heater that is open, partially shorted or leaking to the housing can therefore alter control authority even when the mechanical thermostat still opens in hot liquid.
A reliable map controlled thermostat heater resistance test combines exact pin identification, controlled component temperature, low-resistance measurement and insulation screening. These checks help qualify a wholesale thermostat lot without repeating the separate vehicle procedure for commanded duty cycle and coolant response.
This guide focuses on static component evidence for workshops, importers and supplier-quality teams. It explains what each reading proves, which test errors create false failures and how to write acceptance limits that remain meaningful across laboratories.
A heater defect is supported when the exact heater pins are identified, component temperature is stabilized, lead and contact resistance are controlled, and the corrected reading falls outside the approved drawing limit. An open circuit, unstable reading or measurable insulation leakage to the housing strengthens the conclusion. A diagnostic trouble code or uncorrected handheld-meter reading alone does not prove the thermostat is defective.
Finding | Likely condition | Next check |
|---|---|---|
Infinite heater resistance | Open element or connector path | Inspect pins and retest at element terminals |
Resistance below minimum | Turn-to-turn short or wrong element | Verify temperature and instrument zero |
Resistance above maximum | Partial open, poor joint or wrong element | Use four-wire measurement |
Leakage to housing | Insulation or contamination failure | Confirm dry fixture and approved test voltage |
Reading changes with connector movement | Pin, weld or lead fault | Controlled continuity stress test |
Static resistance answers whether the heater element and its internal connections present the expected electrical load at a known temperature. Insulation testing answers whether the electrical path remains isolated from the thermostat housing or coolant-facing structure. Neither test proves that the engine controller commands the heater correctly.
Vehicle diagnosis also involves supply voltage, driver duty cycle, ground strategy, harness voltage drop and coolant response. Those subjects belong to the established map-controlled thermostat diagnosis route. Static screening instead isolates the component before installation, after removal or during incoming inspection.
The wax pellet can respond to bath heat even when its embedded heater is open. A mechanical hot-water pass therefore cannot validate the electrical circuit.
A heater can measure correctly while the vehicle harness or controller never delivers usable current. Keep the component boundary explicit in every report.
State whether the reading was taken at the thermostat pins, an adapter harness or the vehicle connector.
Conductor resistance changes as the heater temperature changes. The element, internal joints and meter leads may also warm during measurement if the instrument applies excessive current or the heater has recently been energized. Comparing a cold warehouse sample with a warm returned part can create an apparent product difference.
Condition every sample at the temperature specified by the drawing or test plan, and measure local component temperature rather than relying on room thermostat settings. If qualification covers a temperature range, record a resistance-temperature curve rather than one nominal value.
Hold the component long enough for the housing and heater region to approach the conditioning temperature. Large integrated housings may require more time than bare thermostat inserts.
Use an instrument and range appropriate for low-resistance components. Repeated long measurements can warm the element and shift the result.
A resistance limit without temperature is incomplete. Include reference temperature, stabilization method, instrument accuracy and lead compensation.
Map-controlled thermostats can share connector shapes while using different heater ratings, pin assignments or integrated sensors. Confirm the OE cross-reference, drawing revision, connector keying and circuit diagram before touching probes to the terminals.
Use the verified thermostat catalog as a sourcing reference, but qualify the exact component rather than a visual family. Application pages for BMW thermostats, Audi thermostats and Volkswagen thermostats organize demand; they do not replace drawing-level pin identification.
Look for spread contacts, recessed pins, plating damage, coolant residue, corrosion, molding flash and evidence of probe damage. Photograph defects before cleaning because cleaning can remove the cause of leakage or unstable contact.
Do not force oversized probes into female contacts. Use a mating connector or approved terminal adapter so the test does not create the failure it is supposed to detect.
Label heater, sensor and housing connections on the fixture, then verify them against a known reference part.
A general digital multimeter may screen obvious opens and shorts, but supplier qualification often requires better control of lead and contact resistance. A four-wire Kelvin measurement separates current delivery from voltage sensing and is preferred when the allowed product band is narrow.
Instrument or fixture | Purpose | Control point |
|---|---|---|
Four-wire resistance meter | Correct low-resistance measurement | Current and sense contact placement |
Calibrated temperature sensor | Reference component condition | Location and stabilization |
Insulation resistance tester | Measure leakage to housing | Approved voltage and time |
Mating connector fixture | Protect and stabilize pins | Terminal wear and cleanliness |
Known reference unit | Detect station drift | Control-chart limits |
Short the leads through the same adapters, record residual resistance and subtract it only under the approved method. A simple front-panel zero may not account for variable terminal contact.
Measure the empty dry fixture before testing product. Moisture, dirty supports or damaged cables can create leakage that falsely condemns every sample.
Confirm part number, revision and heater pins.
Inspect and photograph the connector.
Condition the part at the reference temperature.
Verify instrument calibration and fixture baseline.
Connect current and sense leads without stressing terminals.
Allow the displayed value to stabilize within the defined time.
Record raw resistance, component temperature and corrected result.
Repeat only according to the written repeatability rule.
Compare with individual limits before reviewing the lot average.
If the reading is unstable, do not average it into a pass. Hold the connector stationary, then apply only the specified small movement to determine whether the fault follows contact position. An intermittent circuit requires a separate disposition from a stable resistance slightly outside tolerance.
Insulation testing applies a controlled voltage between the joined heater terminals and an approved conductive housing point. The voltage, duration, polarity, ramp and discharge procedure must come from the component specification. Excessive voltage can damage insulation that would have performed correctly in service.
Surface moisture or coolant residue can create an external leakage path. If the production requirement includes wet exposure, use a separate validated environmental sequence rather than mixing accidental contamination with the dry-screen limit.
Painted, coated or plastic surfaces may not provide a meaningful electrical boundary. The drawing should identify where the fixture contacts conductive structure.
Follow the instrument's discharge procedure and confirm safe voltage before disconnecting the sample. Treat the fixture as energized until the discharge step is complete.
Resistance and insulation measurements identify different failure layers. A correct heater resistance with poor insulation means the conductive path may still draw expected current while leaking toward the housing. High resistance with excellent insulation points instead toward the element, terminal joint or internal lead. Record both results before selecting a corrective action.
Resistance | Insulation | Interpretation | Decision |
|---|---|---|---|
Within limit | Within limit | Static electrical screen passes | Continue mechanical and application validation |
High or open | Within limit | Element or series connection fault | Reject and isolate failure point |
Low | Within limit | Wrong element or internal short | Confirm temperature, then reject |
Within limit | Low | Insulation or contamination path | Quarantine and inspect |
Unstable | Variable | Connector, moisture or structural fault | Preserve condition for failure analysis |
The allowed resistance band must come from the approved component specification at a stated temperature. A universal percentage rule ignores heater design, measurement uncertainty and the control strategy.
When a reading sits close to a limit, consider instrument accuracy, resolution, fixture repeatability and temperature uncertainty. A guard band can keep measurement risk from becoming an argument after shipment.
Connector defects can imitate an out-of-tolerance element. A recessed pin, weak crimp, contaminated contact or cracked internal weld adds series resistance and may become intermittent under temperature or vibration. Supplier analysis should separate the heater winding from every joint between the winding and external terminals.
Apply a defined small displacement while recording resistance. Aggressive movement may turn a marginal connection into a complete break and destroy evidence about its original state.
Under an approved low-energy test current, a localized voltage-drop measurement can identify which terminal or joint contributes abnormal resistance. Avoid powering the heater outside its specified electrical and thermal limits.
Coolant ingress and condensation can reduce insulation resistance before visible corrosion appears. Cross-sectioning a failed sample may be necessary to confirm the entry path and distinguish molding porosity from assembly damage.
The heater changes thermostat response within the engine cooling system, but static electrical quality is only one boundary. Pump delivery, bypass routing, radiator heat rejection, fan control and engine load still determine vehicle temperature.
A weak radiator cooling fan assembly can create high-temperature operation even when the thermostat heater passes resistance, insulation and command tests.
A restricted or contaminated radiator limits heat rejection. Static thermostat readings cannot prove radiator flow or air-side performance.
Some integrated housings contain sensors, seals or bypass features that affect replacement decisions. Review the broader engine cooling parts boundary and never transfer a heater specification between visually similar designs.
A qualification plan should define exact part identity, sample distribution, conditioning, four-wire resistance method, insulation voltage and duration, connector inspection, retest rules and lot acceptance. Require raw readings and test-system checks rather than a certificate with only “OK.”
Select units from different cartons, shifts, cavities or assembly periods where traceability permits. Adjacent samples can miss a process drift that occurred earlier in the lot.
Review element material, winding or heater formation, joining parameters, terminal plating, molding, seal placement, leak control, cleanliness and final electrical test. Each parameter should link to a reaction plan when it leaves its process limit.
Changes to heater material, supplier, joining process, connector resin, terminal plating, sealing compound or integrated housing can alter resistance or insulation. Define which changes require requalification.
Buyers can use the Elecduraparts aftermarket supply program and company background when building a documented sourcing route around exact references and evidence.
Incoming inspection may use a reduced version of qualification, but the measurement boundary must remain equivalent. Record part and lot identity, conditioning temperature, corrected resistance, insulation result, terminal inspection and fixture control result for every sampled unit.
Plot average, range and individual extremes by lot. A steady resistance shift or rising insulation leakage can reveal process drift before values cross the rejection limit.
Use tighter sampling after a supplier change, failed lot, extended production interruption, process relocation or field complaint. Reduced inspection should depend on demonstrated stability, not purchasing volume alone.
Keep identified accepted and failed units under controlled storage. Retained samples help resolve later disputes and verify whether transport, coolant exposure or handling changed the electrical condition.
Lot finding | Disposition | Required follow-up |
|---|---|---|
All samples pass with stable spread | Accept under current plan | Archive raw data |
One repeatable resistance failure | Hold and expand sample | Station check and supplier containment |
Any confirmed insulation failure | Quarantine lot | Leakage-path analysis |
Unstable connector readings | Hold affected traceability scope | Terminal and joint audit |
Reference unit also fails | Invalidate test run | Correct station before retest |
Unapproved revision | Quarantine | Complete change review and requalification |
For importers and wholesalers, purchase documents should identify the controlling drawing, reference temperature, electrical methods, records and remedy. Nominal markings are not a substitute for measurable acceptance criteria.
Measuring through a sensor or mixed-function circuit can produce a plausible but irrelevant value. Verify the pinout and reference part before testing the lot.
A warm part can differ from a conditioned part without any manufacturing fault. Log local temperature with every resistance result.
Two-wire readings include leads, adapters and terminal interfaces. Use Kelvin measurement or a validated compensation method when the tolerance is narrow.
Moisture on the support or cable can create apparent leakage. Confirm the empty fixture baseline before condemning product.
A generic high-voltage setting may damage the component. Use only the voltage and duration approved for the exact design.
Catalog families such as Mercedes-Benz thermostats and Skoda thermostats may include conventional and electrically heated designs. Confirm OE number, connector, rated resistance, housing, seal and bypass geometry for each test record.
Keep drawings, pinouts, calibration evidence, environmental conditions, raw resistance, insulation readings, photos, lot traceability and corrective actions. Controlled specifications may be exchanged through the download center.
When a result is disputed, share the original readings, fixture baseline, component temperature, exact terminals and photographs through the contact page. That package is more actionable than a trouble code or a statement that the heater failed.
Confirm exact part identity, revision and pinout.
Inspect terminals and seals before cleaning.
Condition the component at the reference temperature.
Verify the resistance fixture and known reference.
Measure with four-wire connections where required.
Record raw and corrected resistance with temperature.
Validate the empty insulation fixture.
Apply the approved insulation voltage and duration.
Discharge safely and record leakage or resistance.
Investigate unstable readings without destroying evidence.
Apply individual limits before lot statistics.
Archive the decision and supplier action.
Static resistance and insulation tests create a clear component boundary: they prove whether the heater circuit is electrically intact and isolated under controlled conditions. They do not replace vehicle command diagnosis, mechanical response validation or exact fitment review. For additional component procedures, use the Elecduraparts industry insights library.
Repeatable records also protect buyers and suppliers by making every acceptance decision traceable to measured evidence.
