Mercedes Valve Cover Leak: PCV, Gasket, Plastic Housing, and Replacement Checks

A Mercedes valve cover leak should be diagnosed by separating four common areas: the valve cover gasket, spark plug tube seals, the plastic valve cover housing, and the integrated PCV or oil separator system. Oil on the outside of the cylinder head, oil smell after driving, smoke from oil dripping onto hot surfaces, oil inside spark plug wells, rough idle, misfire, high crankcase vacuum, or a whistling PCV noise can all point toward the valve cover assembly. The correct repair may be a gasket set, a complete valve cover, a PCV-related assembly, or related seals depending on the engine design.

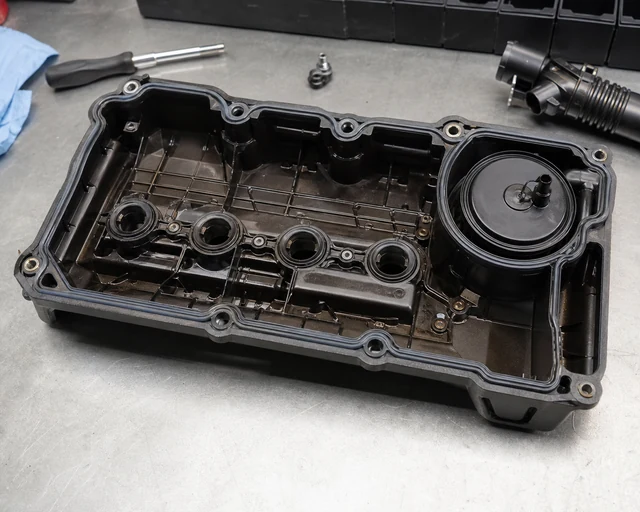

Integrated PCV and oil separator sections make some valve cover leaks more than a simple gasket replacement.

For B2B buyers, repair networks, and distributors, Mercedes valve cover replacement is a fitment and warranty-control task. Many modern Mercedes engines use plastic covers with integrated ventilation channels, oil separators, sensor openings, and molded gasket grooves. A cheap cover that matches the outer shape can still fail if the PCV diaphragm, gasket profile, bolt sleeves, oil separator path, or connector positions do not match the original application.

Quick Diagnosis Table

A Mercedes valve cover leak should not be treated as one universal gasket job. The repair decision depends on whether the cover itself is still flat and structurally sound, whether PCV function is integrated into the cover, and whether oil has reached ignition components.

Integrated PCV and Oil Separator Issues

Many Mercedes valve covers are more than simple covers. They may include crankcase ventilation channels, a PCV diaphragm, oil separator chambers, breather ports, and molded passages. If the PCV diaphragm tears or the ventilation path fails, the engine may show rough idle, whistle noise, excessive crankcase vacuum, oil consumption, smoke, or oil leaks that return after gasket replacement.

A quick gasket replacement may not solve a PCV-driven leak. If crankcase pressure or vacuum is abnormal, oil can be pushed or pulled past seals. The repair shop should check PCV behavior before deciding whether the gasket alone is enough. On some designs, replacing the complete valve cover is more reliable because the PCV components are molded into the assembly.

For sourcing, the buyer should provide engine code, old cover photos, breather port photos, connector or sensor opening photos, and any PCV-related complaint. A cover that looks similar externally may use a different ventilation layout. The Engine Valve Cover category is the correct starting point for this type of replacement, but the integrated ventilation design must be confirmed.

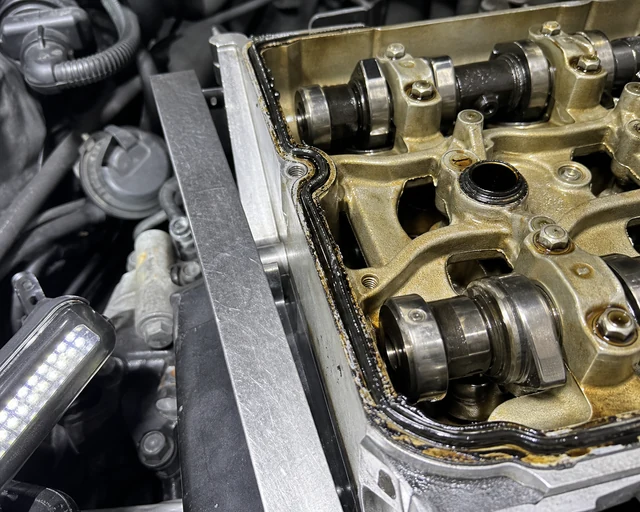

Sealing rail condition, oil residue, and surface flatness should be checked before deciding between a gasket kit and complete cover.

Gasket Leaks and Sealing Surface Checks

Valve cover gaskets harden from heat and age. Once the gasket loses elasticity, oil can seep around the perimeter, especially at corners, half-moon areas, bolt sleeves, and areas near hot exhaust components. Oil smell after driving is common when oil drips onto hot surfaces. A visible leak trail should be cleaned and rechecked before replacement so the exact path is documented.

The sealing surface matters as much as the gasket. The cylinder head surface should be clean, dry, and free from old gasket material. The valve cover gasket groove should not be cracked, widened, or distorted. Bolt sleeves and rubber isolators should be inspected because uneven clamping can cause repeat leakage. If the plastic cover is warped, a new gasket may not seal for long.

Repair networks should document whether the cover was replaced or only the gasket. If a gasket-only repair returns, inspect the cover flatness and PCV function before blaming gasket quality. For B2B parts programs, the listing should state whether the product is a complete cover, cover with gasket, gasket-only kit, or PCV-related assembly.

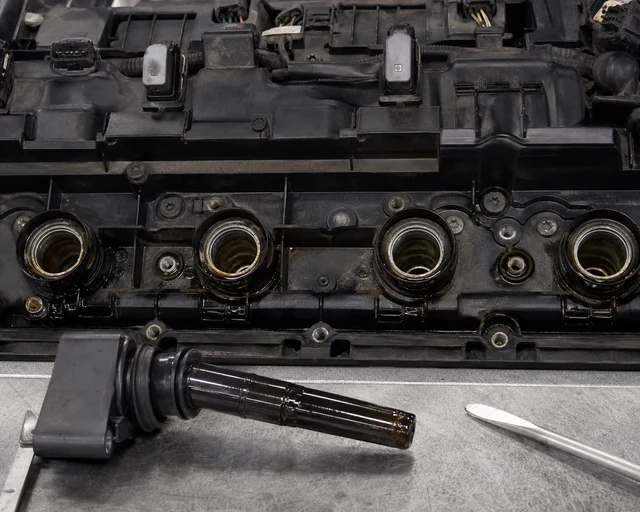

Oil in spark plug tube wells is useful evidence for diagnosing valve cover gasket or tube seal leakage.

Spark Plug Tube Oil Evidence

Oil inside spark plug wells is a stronger warning than a light external seep. Oil can soak coil boots, damage ignition performance, cause misfires, and create customer complaints after the visible leak is repaired. When plug wells contain oil, the repair should include cleaning, coil boot inspection, spark plug inspection, and confirmation that the tube seals are included or integrated in the replacement.

Some Mercedes designs use replaceable spark plug tube seals, while others depend on molded sealing features in the cover. A buyer should not assume that a perimeter gasket kit includes tube seals. The RFQ should identify whether spark plug tube sealing is required, whether the engine has coil-on-plug ignition, and whether misfire evidence exists.

For warranty review, photos of plug wells before cleaning are useful. If the customer later reports a misfire, the distributor can see whether ignition components were contaminated before replacement. This protects the valve cover supplier from claims caused by old oil damage to coils or boots.

Plastic Warping and Heat Aging

Plastic valve covers can warp, crack, or lose gasket-groove shape after years of heat cycling. A cover may look acceptable until placed on a flat surface. Warping can be small but enough to create a leak at the gasket perimeter. Cracks may appear around bolt holes, breather ports, oil separator areas, or high-stress corners.

Overtightening is another problem. If the technician tries to stop a leak by tightening bolts beyond the specified procedure, the plastic cover can distort or crack. Correct torque sequence and fastener condition matter. A cover with crushed bolt sleeves or distorted mounting points should be replaced rather than resealed.

For distributors, plastic aging is a reason to offer complete covers in addition to gasket kits. Customers may request the lowest-cost gasket, but a complete cover may be the better recommendation when the old cover is warped, cracked, or has integrated PCV failure.

Crankcase Vacuum and PCV Testing

PCV-related valve cover failures are easier to confirm when the repair shop records crankcase behavior. Excessive vacuum can pull oil past seals or create whistle noise. Weak ventilation can allow pressure buildup that pushes oil past the gasket. A torn diaphragm or blocked oil separator path can also change idle quality and oil consumption. The exact test method and expected reading depend on the engine, but the repair file should state whether crankcase vacuum or pressure was checked.

For B2B buyers, this matters because a PCV complaint may require a complete valve cover rather than a gasket-only repair. If the cover includes the ventilation diaphragm or oil separator channels, the supplier must know that the complaint includes whistle, rough idle, oil consumption, or abnormal crankcase behavior. A gasket kit will not correct a failed integrated ventilation system.

Common Installation Mistakes

Repeat leaks often come from installation, not from the new cover itself. Common mistakes include leaving old gasket material on the head, pinching the gasket during placement, applying sealant where it is not required, using the wrong bolt sequence, overtightening plastic mounting points, failing to clean oil from plug wells, and reusing damaged coil boots after oil contamination.

Another mistake is comparing only the top side of the cover. The underside matters more for fitment. Check molded passages, gasket groove, tube seal areas, PCV channel, bolt sleeves, and sensor or breather openings. If the underside differs, the replacement may not seal or ventilate correctly even if the top appearance is close.

Installation Torque and Sealing Surface Checks

Valve cover installation should follow the engine-specific service procedure. Bolt torque values and tightening sequence vary by engine and cover design, so the repair should use the correct service data rather than a universal number. Uneven tightening can pinch the gasket, distort the cover, or create gaps at corners.

Before installation, compare the new cover with the old one. Check gasket groove, bolt hole count, breather ports, sensor openings, oil filler neck, mounting bosses, and any integrated PCV features. The gasket should sit correctly in the groove without stretching or twisting. Sealant should be used only where the service procedure requires it; excess sealant can break loose or prevent the gasket from seating.

After installation, inspect for leaks after warm-up and again after a short drive cycle. If oil was already inside spark plug wells, clean those areas and inspect ignition components before returning the vehicle to service.

Mercedes Engine Application Examples

Mercedes valve cover issues are often discussed around engine families such as M271, M272, M274, M276, M278, and OM642, but the engine family alone is not enough for ordering. Production year, vehicle model, market region, sensor layout, breather connection, and old part number can change the replacement. A V6 cover, inline-four cover, and diesel cover may require completely different fitment checks.

For B2B sourcing, engine code and old part photos should be requested before quotation. A customer saying "Mercedes valve cover" may mean a complete plastic cover, a left or right bank cover, a gasket set, a PCV repair part, or a cover with integrated oil separator. The order must clarify which part is needed.

The Mercedes Valve Cover reference can support Mercedes-specific replacement matching, while Engine Valve Cover Leak Symptoms helps buyers compare gasket, PCV, and spark plug tube evidence before placing the order.

Aftermarket Replacement Options

An aftermarket Mercedes valve cover should be evaluated by material quality, gasket fit, PCV function, molded passage accuracy, bolt sleeve design, sensor openings, oil filler neck fit, breather connection, and packaging. A low-cost cover can create repeat leaks if the gasket groove is shallow, the PCV diaphragm behaves poorly, or the plastic distorts under heat.

Sample approval should include bench comparison and installation feedback. If the cover is complete with gasket, confirm that the gasket is seated and protected in packaging. If it is gasket-only, confirm that the old cover is suitable for reuse. If the cover includes PCV function, confirm that the design matches the original application.

For regional distributors, the article Top Engine Valve Cover Manufacturers in Brazil may be useful when comparing supply-chain options, but Mercedes-specific fitment still depends on engine code, old part photos, and application evidence.

Wholesale Return Control

Valve cover returns often come from wrong engine application, gasket-only repair on a warped cover, old oil left in spark plug wells, damaged coil boots, overtightening, missing PCV diagnosis, or poor sealing-surface preparation. The return process should ask for installation photos, leak location, engine code, old part number, and whether the vehicle had PCV or ignition symptoms before replacement.

A return photo should show the exact leak path. Oil around the perimeter suggests gasket or clamping. Oil inside plug wells suggests tube seal or previous contamination. Whistle noise or abnormal idle after replacement suggests the PCV path or incorrect cover version should be reviewed. This evidence allows the distributor to separate product quality from installation or diagnosis issues.

For batch control, save approved sample photos, package contents, gasket shape, PCV port layout, and customer feedback. Future shipments should match the approved sample. If the supplier changes gasket material, PCV design, or packaging, the distributor should review the change before selling the batch.

Packaging and Receiving QC

Plastic valve covers can be damaged before installation if packaging is weak. Corners can crack, gasket grooves can be distorted, pre-installed gaskets can move, and breather ports can collect dust. Packaging should support the cover without pressing on fragile ports or PCV areas. Gaskets should be seated or packed so they do not twist during shipping.

Receiving inspection should check carton condition, cover corners, bolt sleeves, gasket placement, PCV/breather ports, oil filler cap area, sensor openings, and included hardware. If the part is stocked for multiple Mercedes applications, the label should clearly identify the approved engine or OE cross-reference. Wrong-label stock errors create returns that look like fitment defects.

Post-Repair Verification

After installation, the shop should clean old oil from the engine surface, run the engine to operating temperature, inspect the perimeter, check for PCV noise, and confirm idle quality. If spark plug wells were contaminated, coils and boots should be inspected before the vehicle leaves. If the complaint was oil smell or smoke, the area around hot exhaust components should be cleaned so old oil does not mimic a fresh leak.

For repair networks, a follow-up inspection after a short drive cycle is useful. Plastic covers and gaskets heat-cycle quickly. A leak that does not appear at idle may show after road load. Recording the final check protects the repair shop and gives the distributor evidence if the customer later reports a return.

Choosing Gasket Kit or Complete Cover

The buyer should choose the repair scope based on evidence. A gasket kit may be reasonable when the cover is flat, the plastic is not cracked, PCV behavior is normal, and the leak is limited to an aged perimeter gasket. A complete cover is usually safer when the cover is warped, bolt sleeves are damaged, plug tube seals are integrated, PCV function is failed, or the old part has repeated leak history.

For wholesale programs, offering both levels can reduce returns. The counter team should know when to recommend gasket-only repair and when to recommend the complete assembly. That recommendation should be based on photos, engine code, and symptom evidence rather than price alone.

Buyer Checklist

• Mercedes engine code, vehicle model, production year, and market region.

• Old valve cover part number, casting mark, or label photo.

• Photos of cover top, underside, gasket groove, PCV/breather ports, sensor openings, and oil filler neck.

• Leak evidence: perimeter seepage, oil smell, smoke, spark plug well oil, or PCV whistle.

• Ignition evidence: misfire codes, oil-soaked coil boots, or plug well contamination.

• Repair scope: complete cover, gasket kit, tube seals, PCV-related assembly, or related hardware.

• Packaging requirement for gasket protection, ports, and plastic housing.

• Target quantity, label requirement, and repeat-order plan.

Replacement Decision Table

Final Recommendation

Mercedes valve cover leak diagnosis should focus on the gasket, spark plug tube seals, integrated PCV, oil separator paths, plastic cover condition, and installation procedure. Do not replace the part by title alone. Confirm engine code, old part reference, leak evidence, PCV symptoms, gasket profile, sensor openings, and breather layout before ordering.
