R-1234yf and R-134a are not interchangeable automotive A/C service choices. For an importer, distributor, or repair network, the practical risk is not limited to the refrigerant cylinder: it reaches the vehicle label, service-port interface, recovery equipment, lubricant instruction, warranty record, and every component returned from the field. A correct parts program starts by treating the under-hood label and the vehicle-specific service information as the controlling documents.
That rule matters especially when sourcing aftermarket A/C compressors. A compressor, condenser, pressure switch, and receiver-drier can look like familiar replacement parts, but the completed system must be serviced according to its approved refrigerant, lubricant, charge procedure, and safety requirements. A mixed or undocumented system turns a routine warranty claim into an uncertain diagnosis.
Do not treat R-1234yf as an R-134a substitute, and do not use unauthorized field adapters or cross-contamination fittings to make one service connection accept the other system's equipment. R-1234yf is classified as an A2L mildly flammable refrigerant, while R-134a is classified as non-flammable; that difference adds a real safety and equipment-control reason to follow the confirmed vehicle procedure. Do not assume the oil type, charge quantity, leak-test method, recovery procedure, or replacement-parts package is the same merely because both vehicles use a vapor-compression A/C system. The vehicle label, OEM repair data, and approved service equipment decide those details.
For a distributor, the safe commercial position is simple: sell a clearly identified replacement part for a confirmed application, require the workshop to follow the vehicle maker's procedure, and retain enough installation information to understand a future claim. This avoids promising a universal retrofit, universal oil, or universal pressure value that may not apply to the vehicle in front of the technician.
R-134a and R-1234yf systems have the same broad purpose: move heat from the cabin to the outside air through a compressor, condenser, expansion device, evaporator, and controls. That similarity is exactly why wrong assumptions are common. A buyer may see comparable compressor housings, similar condenser locations, or similar pressure-switch functions and conclude that the service environment is transferable. It is not a reliable conclusion.
The refrigerant is part of a system specification. Its service connection, labeling, approved machine, lubricant instruction, component compatibility, and technician process are connected. If one link is uncertain, the right response is to verify the application rather than complete an order from appearance alone.
Control point | What a distributor should verify | Why it prevents avoidable claims |
|---|---|---|
Vehicle identification | Make, model, model year, engine or electrified variant, VIN range when available, and the A/C label. | One model family can use different HVAC architectures across years, markets, engines, or trims. |
Refrigerant identification | Exact refrigerant named on the vehicle label and the matching service documentation. | It prevents a parts quotation from being treated as approval to use another refrigerant. |
Service-port interface | Whether the workshop has the correct dedicated fittings and approved recovery/service equipment. | Adapters hide a process error instead of resolving it. |
Lubricant instruction | Vehicle-specific oil type, amount, and any electrical-isolation requirement for the compressor application. | Oil errors can create poor lubrication, contamination, or electrical-risk issues in electrified systems. |
Replacement scope | Whether the failure calls for a bare component, a kit, a drier, flushing, or a contamination inspection. | A new component cannot correct debris, moisture, restriction, or installation damage elsewhere in the loop. |

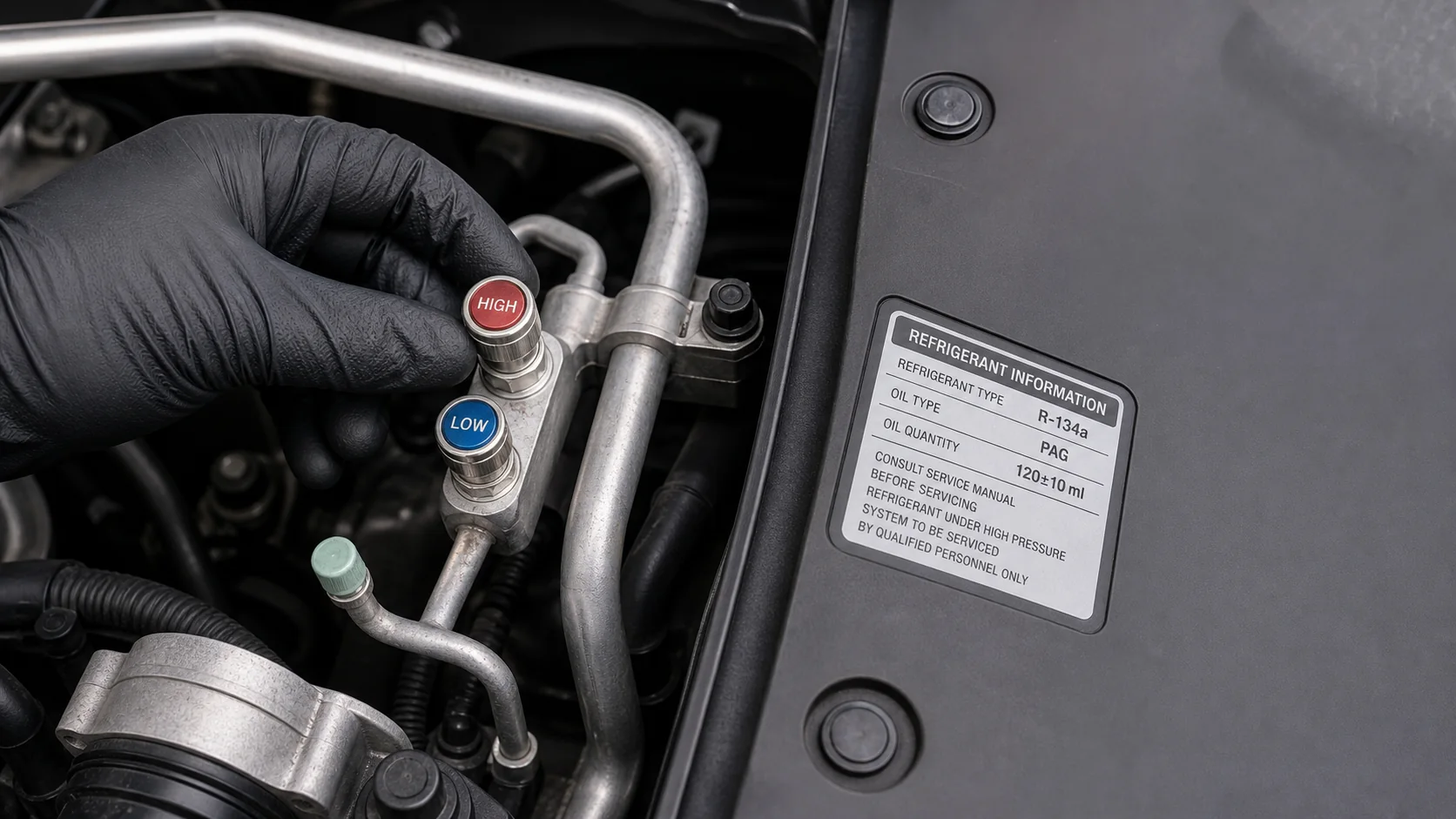

Confirm the vehicle label and service interface before a refrigerant-specific A/C parts quote.
Dedicated fittings are not a cosmetic difference. They are intended to keep an incorrect refrigerant, hose set, or recovery machine out of a system. A buyer who sees a different service-port arrangement should treat it as a verification signal, not as a reason to request an adapter. The connection type, label, and recovery equipment should agree before a returned part is tested, recharged, or put back into stock.
Receiving staff should photograph the vehicle A/C label when a warranty claim begins. The record should capture the stated refrigerant, charge information if shown, warnings, and the service-port area without covering the label. It is a small discipline that helps distinguish a confirmed application from a verbal description such as “late-model refrigerant” or “new-type gas.”
Labels also reduce errors in mixed fleets. A repair network may service older passenger vehicles, newer passenger vehicles, hybrids, light trucks, and commercial equipment in the same week. Separating recovered material, hoses, couplers, and documentation by the approved system specification is a practical quality-control step. It should be built into workshop workflow rather than left to memory.
Compressor oil is often discussed as if it can be selected from refrigerant name alone. That is not a safe purchasing rule. The correct lubricant and amount depend on the vehicle system and the compressor design. Electrified applications add another reason to slow down: high-voltage electric compressors may require a lubricant with specified dielectric properties so that the oil does not compromise electrical isolation. A seemingly ordinary oil decision can therefore become an electrical-safety issue.
For every compressor quotation, request the removed-part label or OE number, the vehicle A/C label, and the service history. Then confirm what the vehicle documentation says about oil and the replacement procedure. The distributor should not make a blanket claim that all R-1234yf systems use one oil category or that all R-134a systems use another. A claim must stay tied to the verified application.
This is also where a parts program benefits from clear packaging. The outer carton, internal label, and product instruction should identify the part number, application range, handling warning, and any instruction to check the vehicle service information. A generic “pre-oiled” statement without context can create more confusion than value. If a compressor arrives with a transport oil charge or installation condition, document exactly what the supplier specifies and what the installer must verify.

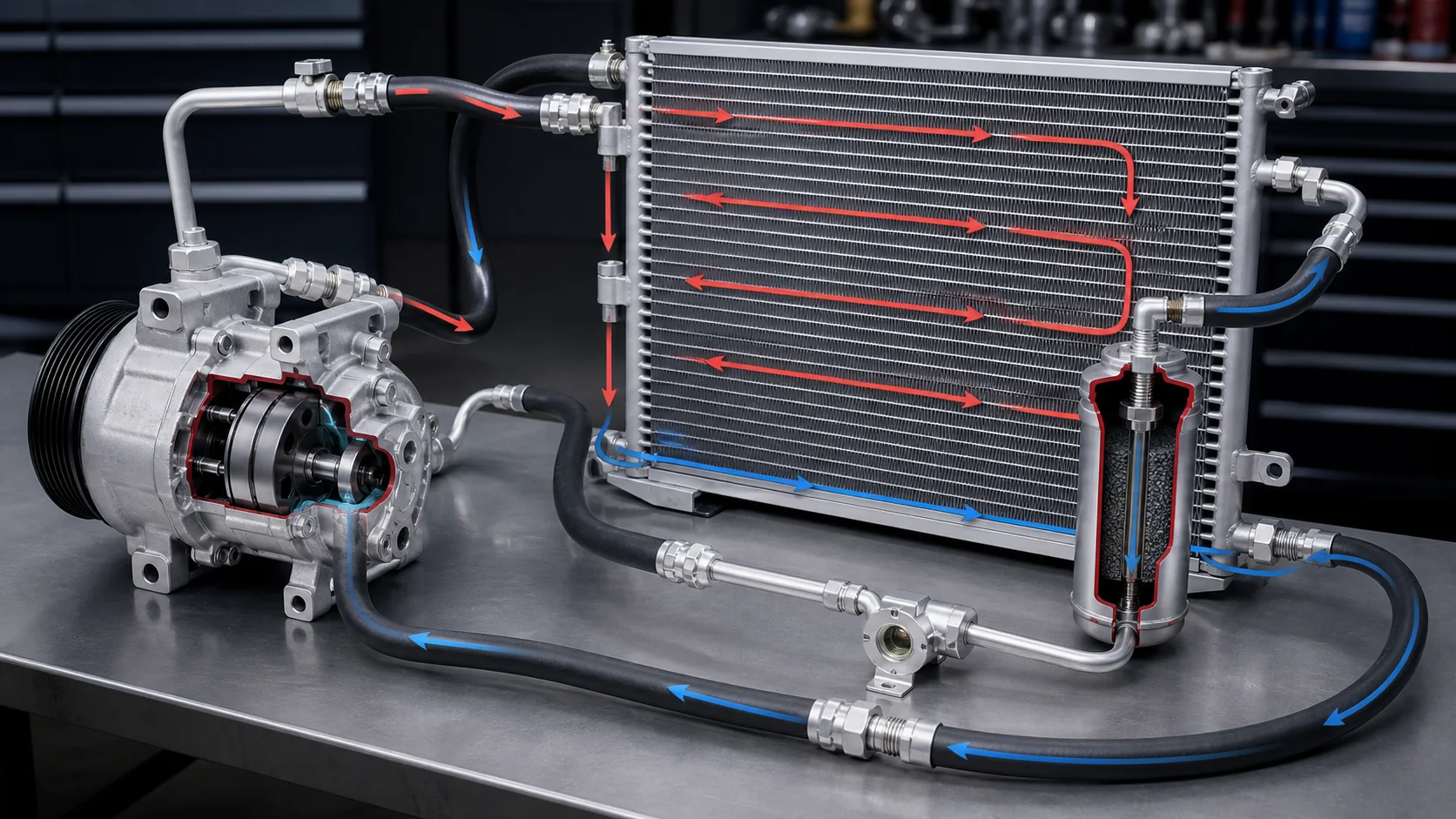

Parts must be matched as a complete refrigerant loop, not as isolated line items.
Correct refrigerant identification does not replace conventional fitment work. A compressor still needs the correct mounting ears, pulley or drive arrangement where applicable, ports, connector, displacement/control design, and application calibration. Its control type must also match the vehicle architecture: an electronically controlled compressor valve is not interchangeable with a traditional clutch-cycling arrangement merely because the housing fits. A condenser still needs the correct active face, core depth, port layout, mounts, and airflow relationship. A pressure switch still needs the correct thread, connector, sealing method, operating role, and control strategy.
For example, an A/C condenser can have the correct external dimensions but still be wrong if the port position, drier integration, mounting isolators, or line routing differs. Likewise, an A/C pressure switch may fit a port physically yet be unsuitable if its connector, sensing method, or control role does not match the vehicle. Refrigerant type is one confirmation field in a fitment file; it is not the complete fitment file.
A useful B2B quote does more than state price and lead time. It reduces the chance that the customer orders a part before checking the system. The following information is worth standardizing for new applications and repeat buyers:
Customer part number and OE number, if present.
Vehicle make, model, year, engine or powertrain variant, and market where relevant.
Photo of the removed component label and the A/C system label.
Compressor connector, ports, mounting, pulley or inverter details as applicable.
Condenser active-face dimensions, port layout, drier arrangement, and bracket positions.
Statement that the workshop will use approved refrigerant-handling equipment and vehicle-specific service information.
Reason for replacement: leak, noise, mechanical damage, electrical fault, poor cooling, contamination, collision, or preventive replacement.
Whether the system was opened, recovered, flushed, or repaired previously.
This data package creates two benefits. First, it improves the original match. Second, it provides a baseline if the customer later reports poor cooling, a noise complaint, a leak, or an electrical issue. Without that baseline, a distributor may receive a component back with no way to separate an application error from a manufacturing question, an installation issue, or another failed part in the system.

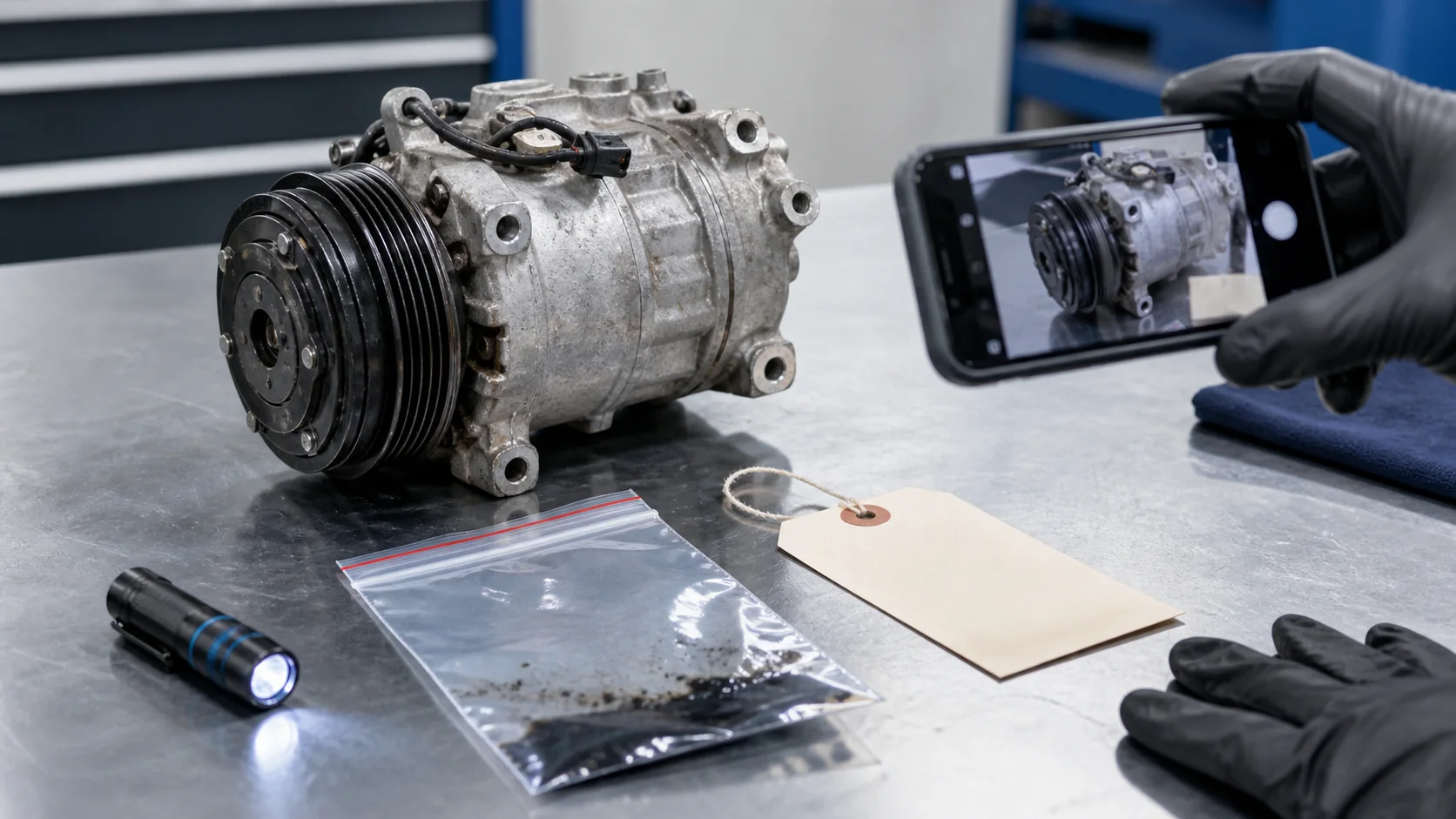

Clear return evidence supports a fair, faster technical review.
A returned compressor or condenser is evidence, not an automatic proof of cause. The part may be damaged by contamination, inadequate airflow, incorrect charge, incorrect installation, a bent line, electrical control problems, impact damage, or a fault in another component. The review should start with condition and documentation, then move to test results and application confirmation.
Confirm the application. Compare the returned label, OE number, vehicle description, system label, and original order record.
Record the condition before cleaning. Photograph ports, mounting points, connectors, seals, pulley or housing as applicable, and carton damage if present.
Collect service evidence. Ask for the repair order, refrigerant recovery record where available, reported symptom, measured pressures and temperatures, and any diagnostic codes.
Inspect the surrounding system. A compressor concern can be linked to contamination, a restriction, control fault, or insufficient heat rejection. A condenser concern can be linked to debris, mounting stress, corrosion, or impact.
Decide the next inspection, not the verdict. When evidence is incomplete, identify what must be checked before assigning responsibility.
This approach is especially important when a system specification is unclear. It is better to record “refrigerant identity not yet verified” than to assume the system used R-134a or R-1234yf from vehicle age, hose appearance, or a workshop recollection. Accuracy at this stage protects both the distributor and the end customer.
Ordering mistake | Why it fails | Better purchasing action |
|---|---|---|
“It is a newer car, so it must use R-1234yf.” | Model year alone does not confirm market, variant, or service specification. | Request a photo of the system label and the vehicle identification details. |
“The service ports are close enough; an adapter will solve it.” | The interface is meant to prevent incorrect equipment and process crossover. | Use the correct dedicated equipment and stop if the system identity is uncertain. |
“Any compressor oil that fits the refrigerant family is acceptable.” | Oil choice and quantity are vehicle- and compressor-specific. | Follow the vehicle and component instructions for the confirmed application. |
“A new compressor will fix weak cooling.” | Weak cooling can come from airflow, controls, charge, restriction, or heat load. | Document the diagnosis and inspect the whole loop before replacing parts. |
“A leak proves the condenser was defective.” | Leak location and cause may involve corrosion, impact, mounting stress, or line damage. | Capture condition evidence and identify the leak path before a warranty decision. |
Mixed-refrigerant demand does not require a distributor to hold every variation of every A/C component. It requires disciplined segmentation. Start with the applications that have repeat demand in the target market, then build records that connect OE reference, vehicle range, refrigerant label, compressor configuration, related drier or switch requirement, and known revision history.
For fast-moving compressor lines, retain a controlled sample or detailed product images that show labels, ports, connector locations, mounting ears, and pulley or inverter characteristics. For condensers, record the active core, port orientation, integrated components, brackets, and packaging protection. For electrically driven compressors, add voltage class, connector interface, insulation-related service notes, and the required vehicle-specific verification fields. The goal is not to make a universal catalogue claim; it is to make each approved listing auditable.
Training matters as much as stock coding. Sales staff need a short escalation path for incomplete inquiries: no system label, no OE number, no photo of the removed part, or an unclear report of what refrigerant was recovered. A disciplined “verify before quote” response is more valuable than a quick but unsupported cross-reference.
The same discipline should continue when goods arrive at the distributor's warehouse. Receiving is not the moment to prove that a compressor will cool a vehicle, but it is the best moment to confirm that the shipment matches the controlled listing. Compare the outer-carton part number, unit label, quantity, revision mark, connector protection, port caps, mounting points, and any included seals or fittings against the approved sample or drawing. Photograph any mismatch before products are mixed into stock.
Port protection deserves special attention. An open, loose, or damaged cap can allow moisture or debris to reach a component that will later be installed in a sealed refrigerant circuit. A damaged connector, bent mounting ear, distorted pulley, or crushed condenser corner may also become a field complaint even when the part number is correct. Receiving teams should separate transport damage from product-identity errors and record both against the purchase order.
For compressors, create a simple incoming record that captures model reference, batch or date code where provided, visible oil or shipping-seal condition, connector orientation, port geometry, mounting pattern, and drive arrangement if the unit is belt driven. For condensers, record core face, tube and fin condition, port locations, brackets, drier configuration where applicable, and packaging support around the vulnerable corners. For switches and electronic components, record connector keying, thread or mounting method, protective cap condition, and label readability.
A good receiving record does not replace end-of-line performance testing by the manufacturer or vehicle-level diagnosis by the workshop. It creates traceability. If one batch later produces an unusual pattern of returns, the distributor can compare labels, packaging condition, revision history, and application records before making a broad quality conclusion. This is also useful when a supplier introduces a controlled improvement: a revised label, a stronger bracket, an updated connector seal, or a packaging change should be visible in the batch record instead of appearing as an unexplained difference to the sales team.
Product descriptions should help a buyer identify a replacement part without instructing an unqualified person to recover, charge, or modify a refrigerant circuit. Terms such as OE-equivalent, cross-reference, and application match describe a parts-supply position; they do not remove the need for correct service equipment, trained technicians, or vehicle-specific instructions. Keep this boundary consistent in catalogues, quotations, carton inserts, and warranty communications.
That separation is commercially useful. It lets a distributor explain exactly what information is needed for a credible fitment review while avoiding unsupported promises about vehicle performance, refrigerant conversion, or universal installation. The result is clearer communication with both workshop customers and suppliers.
Do not make that decision from a parts catalogue. The vehicle manufacturer, approved refrigerant listing, and applicable service requirements control whether a refrigerant is permitted. A distributor should not present a replacement part as authorization for a refrigerant conversion.
It needs the compressor specified for that confirmed vehicle application. Refrigerant identity alone does not determine mounting, control method, oil instruction, voltage class, or physical fitment. Verify the component label and vehicle data together.
No. A pressure switch can be an important application-specific component, but its appearance or thread does not establish the whole A/C system specification. Use the vehicle label and service information.
Keep the order record, vehicle and A/C labels, removed-part and replacement-part labels, installation date, symptom, diagnostic measurements, recovery or service record where available, photographs, and the returned-part condition before cleaning or disassembly.
R-1234yf versus R-134a is not a debate about which refrigerant is “better” for every vehicle. It is a control question: does the replacement part, service equipment, workshop procedure, and warranty record all match the confirmed vehicle system? Distributors that make the label, fitment evidence, and service boundary part of the order process can reduce preventable returns while giving repair networks clearer support.
For a new A/C compressor or condenser program, send the OE reference, vehicle application, A/C label photo, removed-part photos, and expected order volume. Elecdura can review the physical and application information for an OE-equivalent aftermarket supply discussion before bulk ordering.
