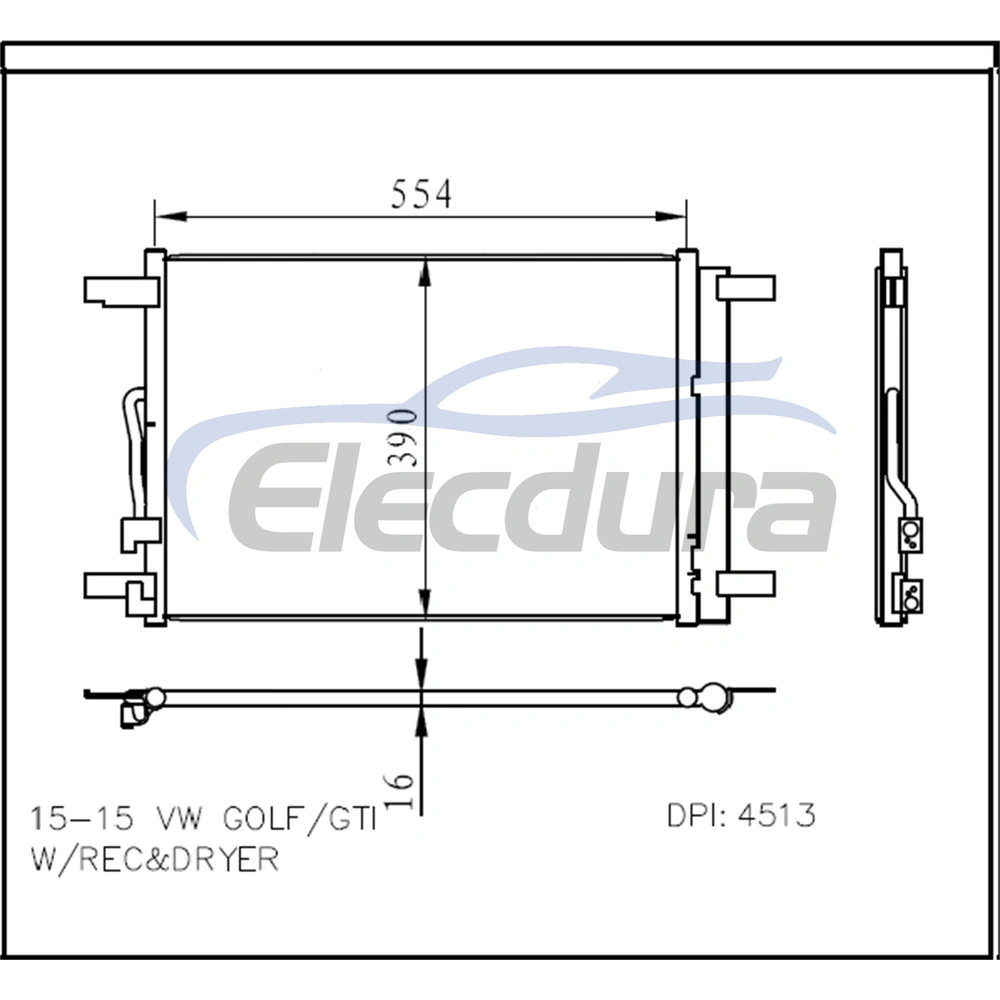

5Q0816411AB Volkswagen Golf 2015-2021 A/C Condenser 16mm Core

Designed for aftermarket A/C supply programs, this condenser supports refrigerant heat rejection, cabin cooling restoration, and replacement inventory planning.

Lead Time:
60 days
Minimum Order:
100
Warranty:
12 Months

Availability:



Inquiry Catalog Download

Product Description

5Q0816411AB Volkswagen Golf 2015-2021 A/C Condenser 16mm Core OEM and Cross Reference

OEM / Cross Reference
5Q0816411AB
5Q0816411AP
5Q0816411AR

5Q0816411AB Volkswagen Golf 2015-2021 A/C Condenser 16mm Core Application

Brand	Model	Year	Position
Volkswagen	Golf	2015-2021	Front
Volkswagen	Arteon	2019-2023	Front
Volkswagen	Jetta	2019-2024	Front
Volkswagen	Taos	2022-2024	Front
Volkswagen	Tiguan	2018-2024	Front

5Q0816411AB Volkswagen Golf 2015-2021 A/C Condenser 16mm Core Specifications

Parameter	Value
Product Type	A/C Condenser
Core Thickness	16mm
Fin Height	8mm
Receiver/Drier Included	Yes

5Q0816411AB Volkswagen Golf 2015-2021 A/C Condenser 16mm Core Aftermarket Supply from Elecdura

Elecdura supplies vehicle-specific A/C condensers for distributors, repair-parts programs, and private label projects. Share the OEM reference, target application, technical requirements, and order quantity for quotation and fitment review.

5Q0816411AB Volkswagen Golf 2015-2021 A/C Condenser 16mm Core FAQ

Does this A/C condenser replace OEM 5Q0816411AB?

OEM 5Q0816411AB is the primary verified reference for this condenser. Compare the number on the original part together with the ports, mounting layout, and vehicle application before installation.

Which vehicle applications are listed for this condenser?

The verified application list includes Volkswagen Golf 2015-2021, Volkswagen Arteon 2019-2023, Volkswagen Jetta 2019-2024, plus the additional applications shown in the table. Confirm the OEM number and physical connections for the exact vehicle configuration.

What symptoms can indicate that this A/C condenser needs inspection?

Inspect the condenser when the vehicle shows refrigerant, oil, or or dye traces around the core. Confirm the leak or restriction before replacement and service the refrigerant circuit using the vehicle manufacturer's procedure.

What should be confirmed before ordering this condenser?

Match OEM 5Q0816411AB, including core thickness 16mm, receiver/drier included Yes. Also compare port orientation, mounting points, and receiver/drier arrangement with the original part before ordering.

What is the minimum order, and can I request a sample?

The standard minimum order is 100 pcs per model. Sample support is available for OEM, dimensional, connection, and installation evaluation before bulk purchasing.
