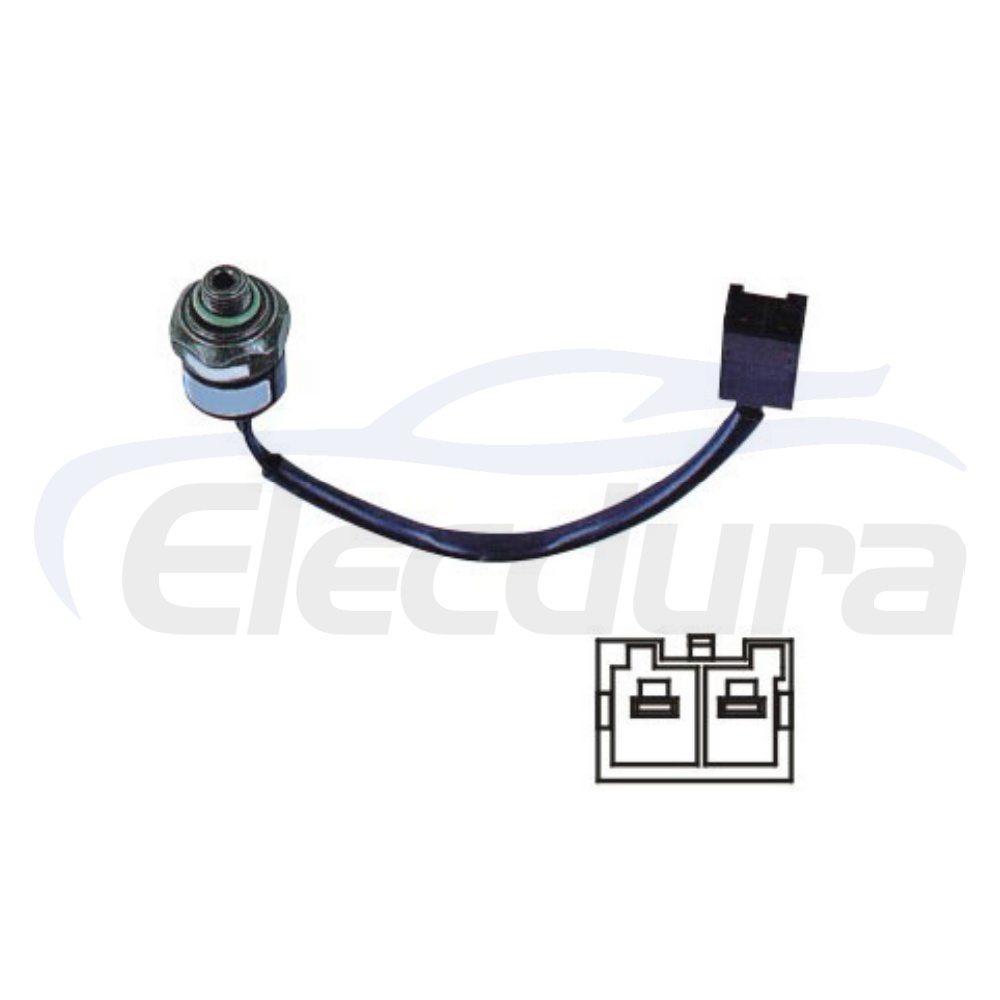

92225-01E01 92225-01E00 A/C Pressure Switch for 1989-1996 Nissan Maxima 300ZX

High precision dual pressure switch for Nissan and Infiniti HVAC systems. Integrated 27 kg/cm² high pressure and 2.0 kg/cm² low pressure cut-off logic for maximum compressor protection. Machined 3/8-24 UNF male fitting ensures a leak-free seal in R134a environments. Engineered for professional automotive wholesale distribution and large-scale procurement.

Brands:
Infiniti, Nissan
Lead Time:
60 days
Minimum Order:
100
Certification:
IATF 16949, CE
Warranty:
12 Months

Availability:



Inquiry

Product Description

Product Description

92225-01E01 A/C Pressure Switch Cross Reference

Brand Name	Reference Number
Nissan OE	92225-01E01
Nissan OE	92225-01E00
Four Seasons	35811
Santech	MT0625
Omega	29-30200

Technical Specifications for 92225-01E01 A/C Pressure Switch

Technical Parameter	Specification Detail
Thread Size	3/8-24 UNF Male
High Pressure Cut-Off	27 kg/cm² OFF
Low Pressure Cut-Off	2.0 kg/cm² OFF
Function Type	Dual Action Safety Switch
Refrigerant Compatibility	R12 and HFC R134a
Quality Standard	IATF 16949

92225-01E01 A/C Pressure Switch Vehicle Application

Vehicle Make	Vehicle Model	Year Range
Nissan	Maxima J30	1989 to 1994
Nissan	300ZX Z32	1990 to 1996
Infiniti	G20	1991 to 1996
Infiniti	M30	1990 to 1992

Sourcing 92225-01E01 A/C Pressure Switch FAQs

Why is the 27 kg/cm² high pressure threshold critical for Nissan HVAC safety?

Nissan systems in this era require strict pressure management to protect aging condensers and original seals. The 27 kg/cm² cut-off is a calibrated fail-safe that stops the compressor immediately if the cooling airflow is restricted. Every unit undergoes 100 percent automated pressure bench testing to ensure zero-drift calibration for these safety-critical points.

Can we implement private label laser marking for our bulk orders?

Yes. For our professional importers and Top 100 global wholesalers we provide high-definition laser etching. We can mark your brand logo and the 92225-01E01 OE number directly on the sensor body to help you build brand authority in the Nissan aftermarket.

What is the standard manufacturing lead time for wholesale orders?

Our fixed lead time is 60 days. This duration allows for precision diaphragm assembly and IATF 16949 multi-point calibration along with comprehensive vacuum leak testing. This rigorous cycle ensures the long-term reliability required by international procurement networks.

Is this switch compatible with R134a retrofitted systems?

Absolutely. We use high-grade internal seals and diaphragms that are chemically resistant to both R12 and HFC R134a refrigerants as well as modern PAG oils. This prevents seal degradation and signal failure in older vehicles updated to modern environmental standards.

Do you support mixed wholesale orders for Japanese car sensors?

Yes. We prioritize flexibility for our international distributors. You can combine the 92225-01E01 with other Nissan or Toyota pressure sensors to meet our 100-unit MOQ to effectively optimize your logistics costs.

How do you protect the 3/8-24 UNF threads and terminals during shipping?

Each unit is individually sealed in a moisture-proof industrial bag with a protective plastic cap on the threads. For bulk export we use reinforced export-grade cartons with internal shock-absorbing dividers to ensure the terminals and threads arrive in perfect condition.
