Weak airflow from the dashboard vents does not automatically mean the HVAC blower motor is worn out. The motor may be receiving low voltage, drawing excessive current through tight bearings, spinning a loose wheel, or moving air through a clogged filter, dirty evaporator, closed door or collapsed duct. Those faults can feel identical at the vents while requiring completely different parts.
A useful blower motor amperage test therefore combines three observations: electrical load, voltage delivered at the motor and actual airflow. Current alone cannot tell whether a high reading comes from motor friction or a contaminated wheel. A normal current reading cannot prove the HVAC case is unrestricted. This guide builds an evidence chain before replacement and explains the product information a distributor needs when matching a vehicle air-conditioning component.
Quick answer: reproduce the complaint with the doors, vents and recirculation mode controlled; inspect the cabin filter and blower wheel; measure motor current at every available speed; then measure feed-side and ground-side voltage drop while the motor is loaded. High current with correct terminal voltage points toward mechanical drag, wheel loading or an internally failing motor. Low current with low terminal voltage points toward wiring, a resistor, controller or connector loss. Normal current and speed with weak vent airflow points away from the motor and toward a restriction, door or duct fault.
First confirm what “weak” means. Compare panel, floor and defrost modes; fresh-air and recirculation settings; low and high speed; left and right outlets; and cold versus heat operation. A complaint limited to one outlet suggests a local duct or door problem. A complaint present at every outlet is more consistent with a common restriction, slow wheel or large air leak inside the case.
Record battery voltage, engine state, HVAC mode, blower command, cabin-filter condition, door positions and the outlets being measured. Keep windows and doors in the same position during comparisons. If the vehicle automatically changes blower speed to protect a cold evaporator, hot power module or low battery, capture scan data rather than overriding the control logic.
Outlet area and duct length change measured velocity. A center vent in panel mode cannot be compared directly with a narrow demist outlet. Use the same vent, grille opening and instrument position for before-and-after readings.
Observation | What it reveals | What it cannot prove alone |
|---|---|---|
Motor current | Electrical load required to turn the installed wheel | Whether airflow reaches the vents |
Voltage at motor | Usable electrical pressure under load | Where a circuit loss occurs |
Feed and ground voltage drop | Resistance in each loaded circuit path | Motor mechanical condition |
Vent velocity or volume | Delivered airflow under a controlled mode | Whether low flow comes from the motor or restriction |
The readings must be interpreted together. Elecdura’s broader automotive HVAC system range includes electrical, airflow and refrigerant-side parts; the measurement pattern determines which branch deserves attention.
Remove and inspect the cabin filter according to the service procedure. Check whether an incorrect filter is folded, wet, installed backward or packed with dust. Look through the blower opening for leaves, insulation, rodent debris and a wheel coated unevenly with dirt. Inspect the intake grille and confirm that the recirculation door travels fully without blocking both paths.
Deposits alter blade geometry, add rotating mass and can unbalance the wheel. Current may rise because the motor is doing more work, while airflow falls because the blade passages no longer move air efficiently. Cleaning evidence must be evaluated carefully: a cracked wheel, enlarged hub or damaged balance clip usually requires replacement rather than aggressive cleaning.

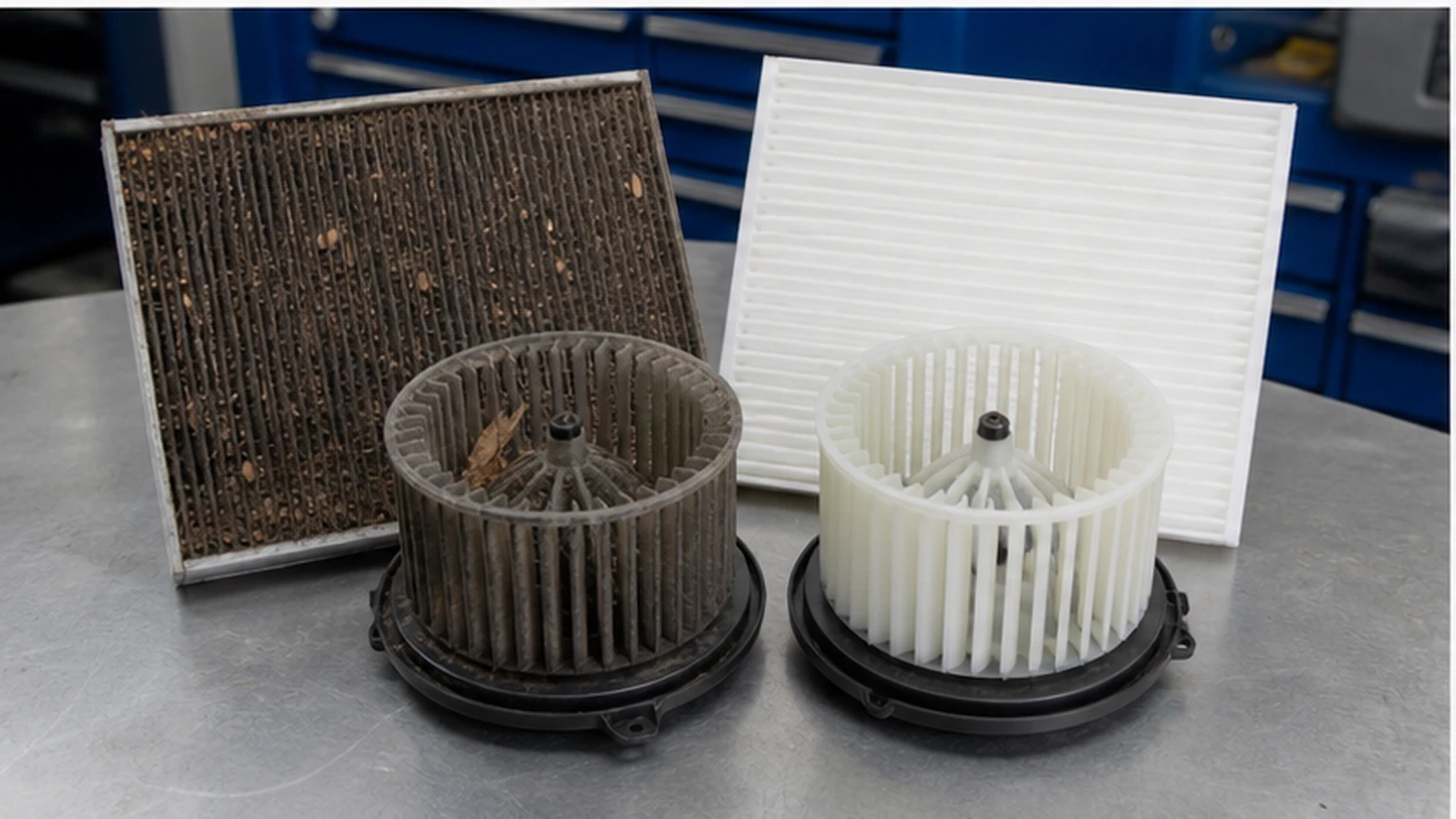

Restriction and wheel contamination can reduce vent airflow even when the motor still runs.
Where access permits, inspect for matted debris, icing, bent fins or residue. Do not force tools through a narrow opening or spray an unsuitable cleaner onto electronics and insulation. A loaded evaporator face can reduce airflow across all speeds while the motor current remains plausible.
Use a current clamp with suitable range, resolution and zeroing procedure around the motor feed conductor identified in the wiring diagram. The motor should remain installed with its normal wheel and duct load. A free-spinning bench motor can appear healthy because it is no longer overcoming the installed aerodynamic and mechanical load.
Observe inrush current at start-up, stabilized current after the wheel reaches speed and behavior during a slow speed sweep. Repeat the measurement after heat soak if the complaint is temperature related. Compare results with the vehicle or motor specification; there is no universal “good” amperage for every blower size and voltage.

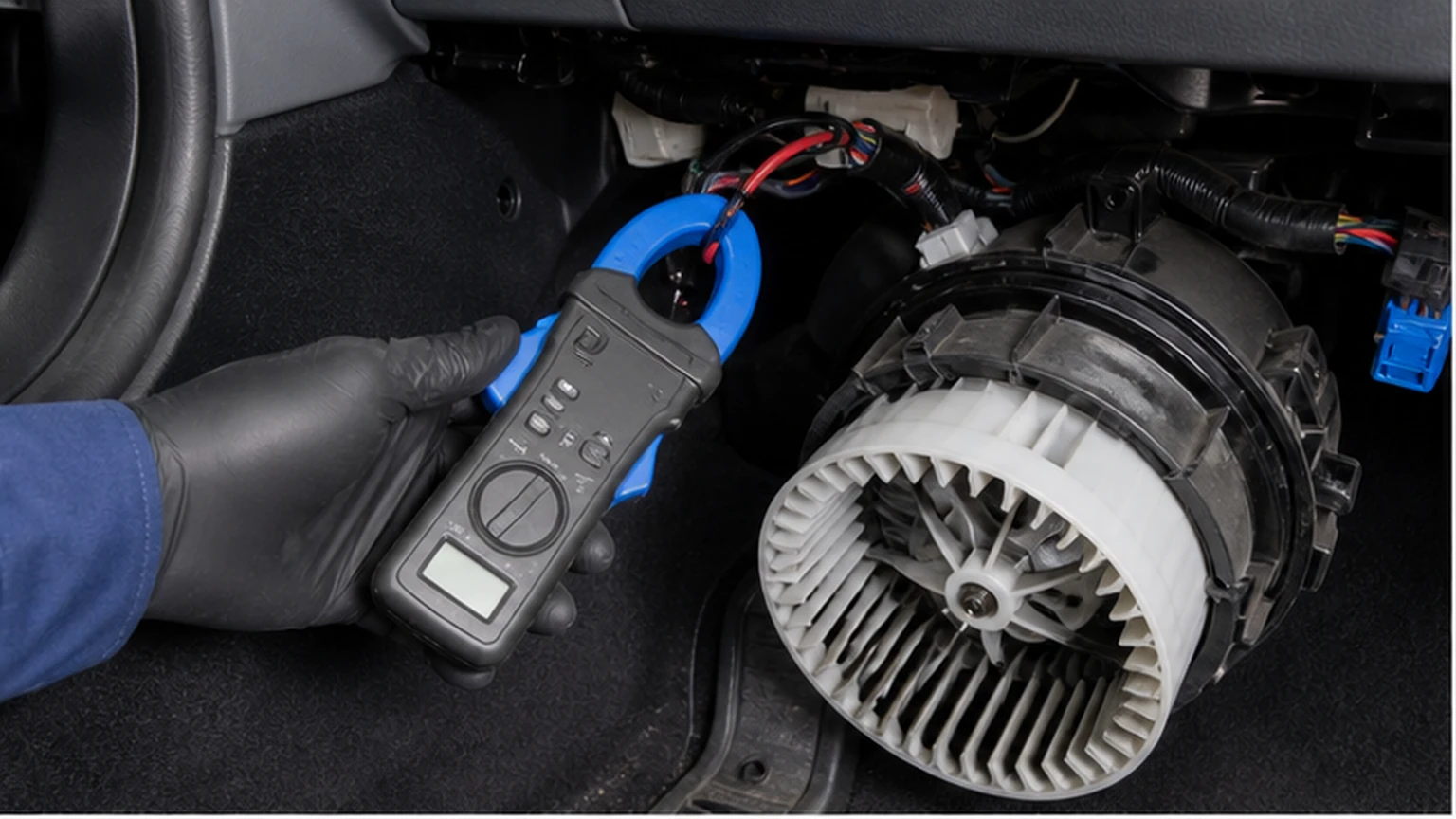

Current should be recorded while the blower operates with its normal wheel and air-path load.
High stable current with correct voltage can indicate bearing drag, brush or commutator damage, partial internal shorting, a rubbing wheel or excessive debris. Listen for scraping and vibration, and inspect wheel clearance before condemning the motor. If current rises sharply as the unit warms while speed falls, internal mechanical or electrical deterioration becomes more likely.
A power transistor or smart module may reduce duty cycle when load is excessive. The measured supply current may pulse or plateau rather than climbing continuously. Observe commanded speed, control signal and module temperature so protective behavior is not mistaken for a healthy motor.
Low current with slow speed may mean low delivered voltage, worn brushes, an open motor winding segment or a control module that is not providing the requested duty cycle. Low current with normal audible speed but weak airflow points toward a loose or incorrect wheel, reversed rotation, duct leakage or downstream restriction.
A battery reading does not show what reaches the blower. Back-probe or use approved breakout leads at the motor while it is commanded to the complaint speed. Record battery voltage and terminal voltage simultaneously. If the motor sees substantially less than expected, divide the circuit rather than replacing it.
Place the voltmeter across the positive path—from source positive to the motor positive terminal—while the blower is loaded. The reading represents voltage consumed by resistance in fuses, relays, switches, connectors, wiring and control devices. Move the lead in stages to locate the loss.
Measure between the motor ground terminal and source negative under the same load. Loose eyelets, corroded splices and heat-damaged connectors can restrict current without appearing open in a continuity test. Follow the exact architecture because a controlled motor may not use a permanently connected chassis ground.

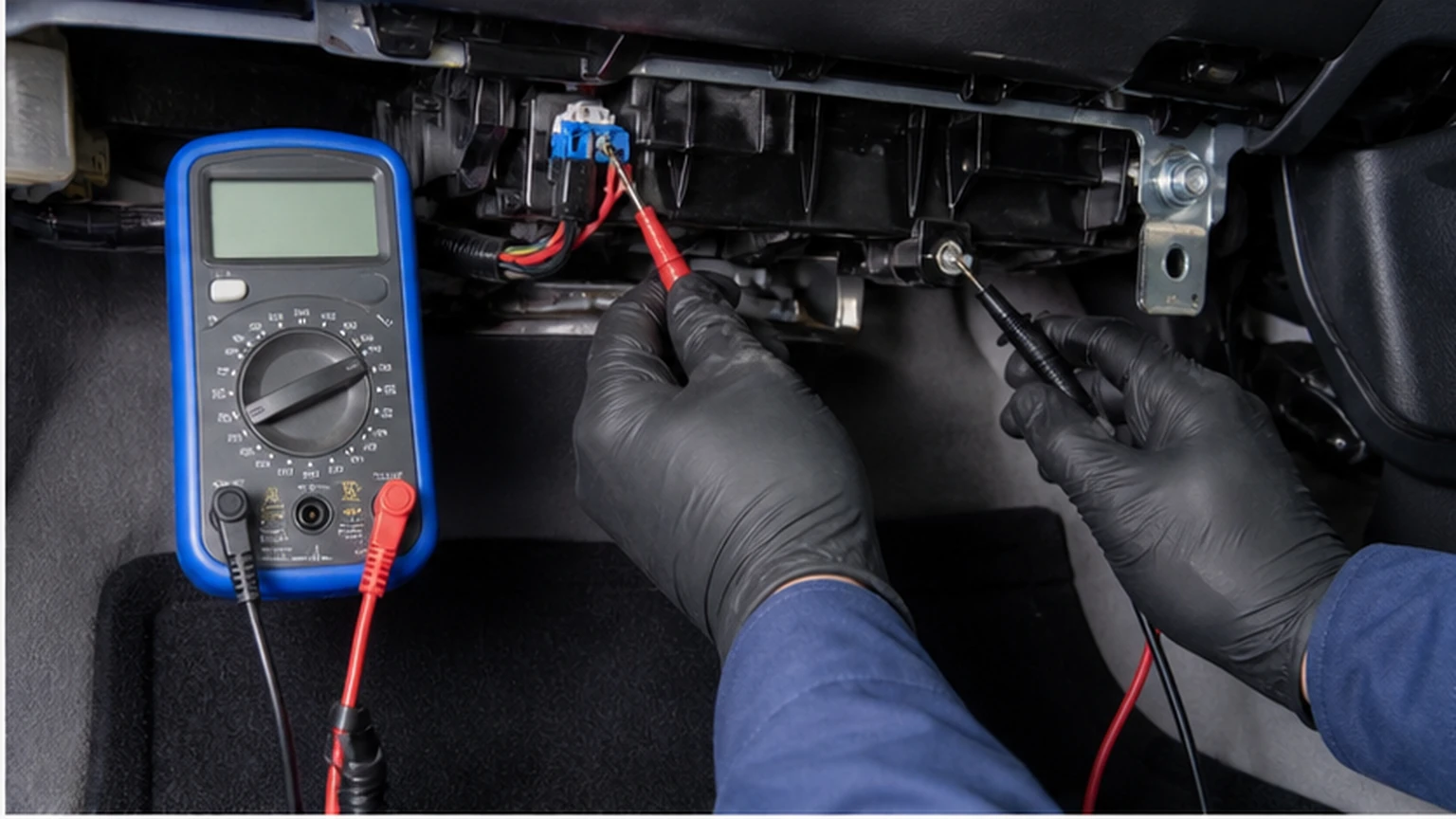

Loaded voltage-drop testing locates circuit resistance that an unloaded continuity check can miss.
A browned connector shows heat, but heat may result from poor terminal tension or from a motor drawing excessive current. Replace or repair the connector correctly and verify motor load; otherwise the new terminal may overheat again.
Older systems often use switched resistors for lower speeds, while automatic climate systems commonly use an electronic power module. A blower that works only on high has a different diagnostic path from one that turns at every speed but moves too little air. The related guide to a blower operating only at high speed focuses that specific control symptom.
Use the wiring diagram and scan data to compare requested speed with the controller input and motor output. On PWM systems, examine duty cycle and waveform integrity with suitable equipment. A correct command entering the module but inadequate loaded output can implicate the module or its power and ground paths. An incorrect command means diagnosis must move upstream.
Applying battery power directly can damage a brushless or module-integrated blower. It also removes normal current limiting and control. Perform a bypass only where the manufacturer supplies a safe method and only after confirming terminal identity.
An anemometer adds repeatable evidence when used at the same vent, distance and mode. Record velocity at several blower commands and compare the shape of the increase. The goal is not to invent a universal vent-speed specification but to determine whether electrical speed changes produce a proportional airflow response.
If delivered voltage, current and motor speed are plausible but airflow remains low, inspect the filter, evaporator, heater core face, mode doors, recirculation door and ducts. A detached duct may dump air behind the dashboard. Foam seals can deteriorate and allow internal bypass. These faults are not corrected by a higher-output motor.
This pattern points toward distribution rather than generation. Confirm actuator travel and actual door position. An actuator sound does not prove that its shaft or door moves. Do not confuse a mode-control failure with the electrical load of the blower.
Evidence pattern | Likely direction | Next decision |
|---|---|---|
High current, correct voltage, rubbing or slow wheel | Motor, bearing, wheel or debris load | Inspect wheel clearance; replace damaged motor/wheel assembly |
Low motor voltage, excessive feed drop | Positive circuit, relay, connector or module | Section the feed path before ordering a motor |
Low motor voltage, excessive ground drop | Ground path or controlled low-side driver | Repair the verified path or diagnose module control |
Normal load and speed, weak all-mode airflow | Filter, heat-exchanger face, intake or major duct restriction | Inspect and correct the air path |
Normal flow in one mode only | Door, actuator or local duct | Verify door travel and linkage |
Connector heat plus excessive motor current | Combined terminal and motor fault | Repair connector and replace verified overloaded motor |
After any repair, repeat current, voltage-drop and airflow readings under the original conditions. The complaint is resolved only when the motor load is stable, connectors remain cool and vent performance returns without controller protection.
For a replacement enquiry, provide the OE number, vehicle identification, model year, HVAC option and left- or right-hand-drive configuration where relevant. Record rated voltage, connector shape, pin count, wire positions, mounting flange, rotation direction, wheel diameter, wheel width, shaft design and whether the controller is separate or integrated.
A motor-only replacement may reuse a distorted, unbalanced or cracked wheel. A complete assembly may include a wheel and housing but not the resistor, module or sealing gasket. Confirm the supply boundary explicitly. Elecdura’s wholesale parts program can organize mixed HVAC enquiries, while the technical enquiry form should include connector and mounting photographs plus measured current and voltage.
Two motors can share voltage and mounting dimensions yet rotate differently or use a wheel with different blade pitch. A visually similar unit can draw current and make noise while delivering poor airflow. Do not approve fitment from housing diameter alone.
For batch orders, inspect carton protection, connector caps, flange distortion and wheel clearance before powering the unit. Sample-test current, speed, vibration and audible bearing noise with a controlled fixture that reproduces the intended voltage and load. Record lot codes and supplier results rather than judging quality from no-load rotation alone.
A squirrel-cage wheel can arrive cracked or shifted even when the motor is electrically sound. Packaging must prevent hub and blade loads. Rotate the wheel by hand during receiving inspection and reject contact, wobble or damaged balance features under the agreed criteria.
If the assembly includes electronics, preserve connector, label and revision evidence. Do not mix visually similar modules across lots. For related electrical cooling components, review the difference between a discrete motor and a fan control module; integrated control changes how a powered test is performed.
Cabin airflow diagnosis should remain separate from under-hood heat rejection. A radiator fan motor, A/C condenser fan or cooling fan assembly may affect refrigerant pressure and vent temperature, but it does not generate cabin airflow. Similarly, a pressure switch fault can inhibit cooling while the blower remains mechanically healthy.
If air volume is correct but outlet temperature is not, move to refrigerant, coolant-door or heat-exchanger diagnosis. Inspect the A/C condenser and compressor circuit only when pressure and temperature evidence supports that direction. This prevents an airflow article from turning every cooling complaint into a blower order.
Use adjacent product pages as diagnostic boundaries, not as a shopping list. The A/C compressor range is relevant when refrigerant circulation is deficient; the wholesale compressor program requires different matching evidence from a blower. A radiator supply enquiry belongs to engine heat rejection, while a fan-clutch application concerns mechanically driven under-hood airflow. Naming these boundaries matters because customers often describe all four systems simply as “the fan” or “the cooling problem.” Confirming which air stream is weak prevents a technically plausible but irrelevant replacement.
Brush contact and rotor position can change the value, and the reading does not reveal bearing drag or delivered voltage. Loaded current, voltage drop and airflow are more useful together.
Record current, terminal voltage and module command from cold start through the slowdown. Rising current suggests load; falling voltage suggests circuit or protective control.
The installed motor drives the wheel and its air load. Debris, distortion and incorrect wheel geometry can raise current without an internal winding failure.
Do not assume a direct failure from filter appearance. Measure motor load and module temperature, correct the restriction and retest.
Provide the OE number, vehicle and HVAC application, connector photographs, pin layout, mounting flange, wheel dimensions, rotation, rated voltage, controller inclusion, measured current and required quantity.
A defensible blower diagnosis connects the driver’s airflow complaint to a controlled vent test, installed motor current, terminal voltage, loaded feed and ground losses, wheel condition and HVAC-case restriction checks. That chain shows whether the order needs a motor, complete blower assembly, connector repair, control module or no blower part at all.
For wholesale matching, send Elecdura the OE reference, vehicle/HVAC configuration, connector and flange photographs, wheel measurements, rotation, controller type, current and voltage-drop results, observed restriction and required quantity. Those product-specific details allow the quotation to match the measured failure instead of only the symptom.
