A generator oil cooler cannot be selected reliably from engine power, core dimensions, or port size alone. The correct cooler must satisfy the diesel engine's lubrication circuit, heat rejection, oil flow, allowable pressure drop, cold-start behavior, cooling-air or coolant conditions, mounting envelope, vibration duty, and service environment.
This guide addresses engine-lubricating-oil coolers used with diesel generator sets in the U.S. market. It does not cover transformer-oil cooling, which uses different equipment, fluids, risk controls, and engineering standards. Defining that boundary at the start prevents a common search and sourcing error.
A genset may contain engine lubricating oil, fuel, coolant, and sometimes hydraulic or gearbox circuits in auxiliary equipment. “Generator oil cooler” is therefore ambiguous. Identify the engine or auxiliary system, the fluid specification, and the original assembly before requesting a replacement.
For engine-lube cooling, collect the generator set model, diesel engine make and model, engine serial information where appropriate, original cooler number, installation location, and cooling-system arrangement. If the cooler is integrated with an oil-filter housing, bypass valve, thermostat, or coolant manifold, the complete assembly architecture must be recorded.
Diesel gensets commonly use oil-to-coolant or oil-to-air heat exchangers. An oil-to-coolant unit transfers oil heat to the engine coolant, often through a plate stack, shell-and-tube exchanger, or integrated housing. An oil-to-air cooler rejects heat directly to airflow and may be installed near the radiator or in a separate ducted path.

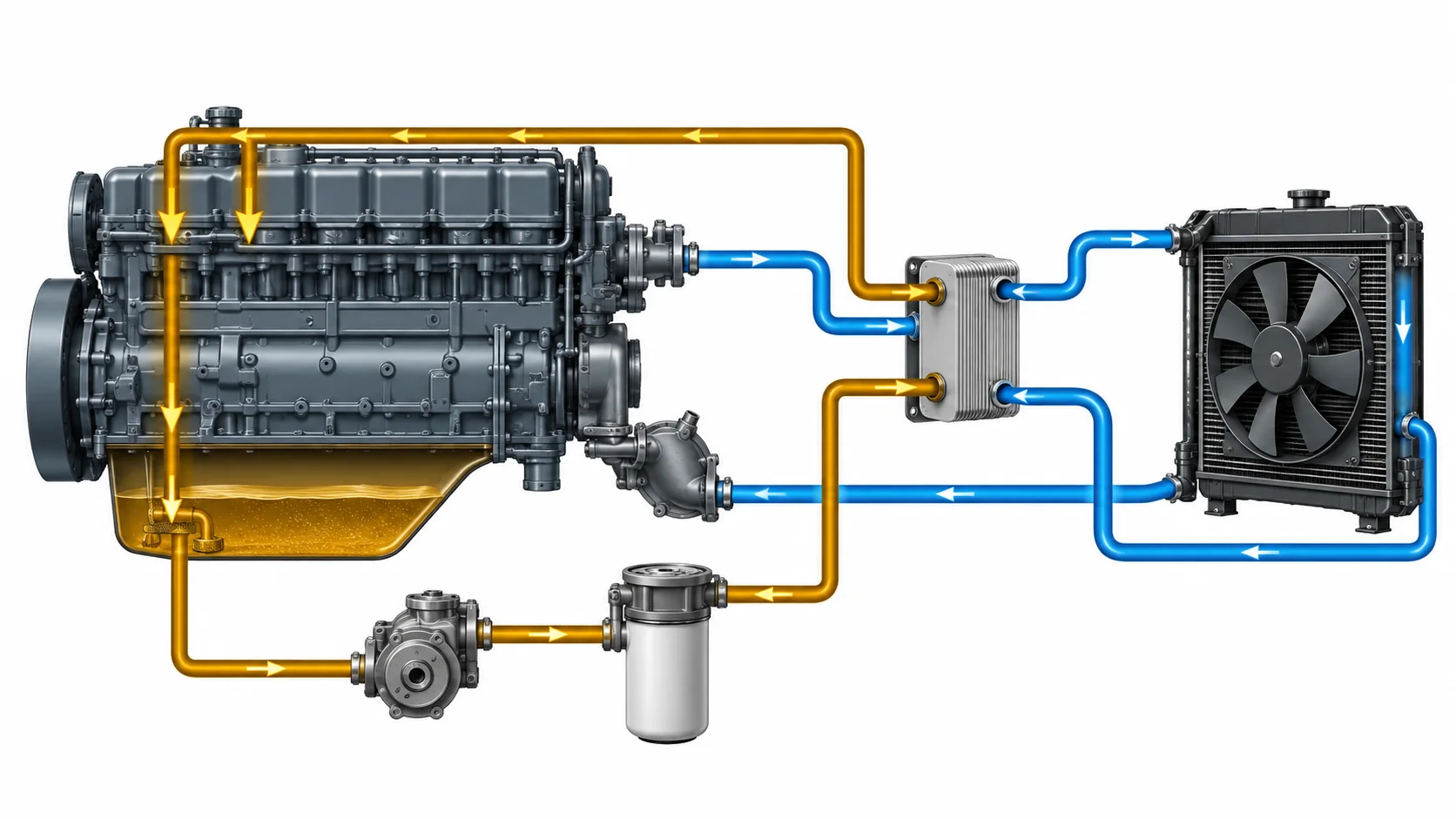

The oil cooler must be evaluated within the complete engine-lubrication and heat-rejection circuit.
The two designs are not interchangeable by capacity alone. A liquid-cooled unit depends on coolant temperature, flow, chemistry, and pressure. An air-cooled unit depends on ambient temperature, airflow, fan performance, duct sealing, and contamination. Specify both the hot and cold sides of the exchanger.
A heat-rejection figure is meaningful only when its operating condition is known. Useful inputs include oil inlet temperature, desired outlet temperature, oil flow, oil properties, cooling-air or coolant inlet temperature, secondary-side flow, altitude where relevant, and continuous versus standby duty.
Standby generator sets may run infrequently but must reach rated load when demanded. Prime-power and continuous-duty sets can accumulate heat for long periods. A cooler selected around a short unloaded test may be inadequate at sustained electrical load.
Generator output provides context but does not establish how much heat enters the engine oil. Engine efficiency, operating point, lubrication architecture, coolant balance, and manufacturer calibration all matter. Use the engine or genset manufacturer's thermal data when available.
The cooler adds resistance to the lubrication circuit. Excessive pressure drop can reduce the pressure or flow available to critical engine components, especially when oil is cold and viscous. A low-restriction core that does not reject enough heat is also unacceptable; both requirements must be met.
Record oil flow and allowable cooler pressure drop across the expected temperature range. Confirm whether the system has a cooler bypass, thermostatic valve, or pressure-relief arrangement. Do not remove or block a bypass to force all oil through a replacement cooler.
Some systems route oil through the cooler continuously, while others use a thermostatic or pressure-responsive bypass. An integrated oil-filter housing may contain several passages and valves that are not visible from the outside. Replacing only the heat exchanger core does not correct a stuck bypass or damaged housing.
Document the complete oil path and consult verified service information. If oil temperature remains high after cooler replacement, investigate load, oil level and grade, coolant temperature, airflow, filter restriction, bypass operation, contamination, and sensor accuracy rather than assuming the new core is defective.
Provide maximum inlet-air temperature, available airflow, fan and shroud arrangement, permitted recirculation, altitude or density assumptions when relevant, and contamination conditions. Record whether the cooler sits ahead of or behind the radiator and charge-air cooler. Heat rejected by one core changes the inlet condition of the next.
Fin pitch should reflect the environment. Dense fins can improve clean-core heat transfer but may block rapidly in dusty, oily, or fibrous conditions. Cleaning access and protective grille design belong in the selection discussion.
Provide coolant composition, inlet temperature, flow, system pressure, port arrangement, and allowable pressure drop. Material and seal compatibility matter. An internal failure can mix oil and coolant, so leak integrity and cross-contamination risk must be addressed.
External length and width are only the start. Record core thickness, tank depth, port type and sealing method, thread or flange details, center distances, hose clearance, mounting-hole spacing, bracket offsets, installed orientation, and surrounding envelope.

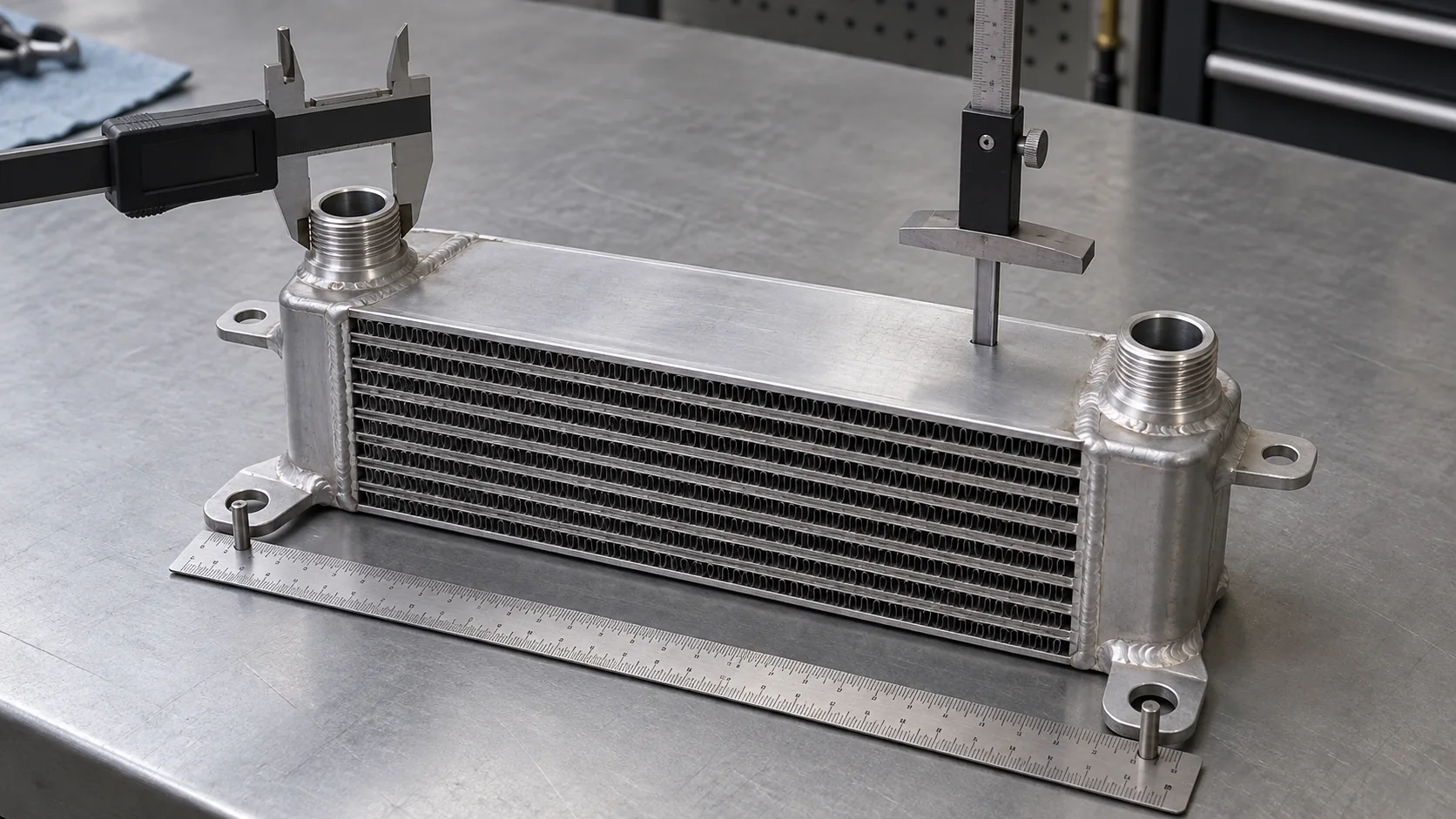

Port seats, bracket offsets, mounting datums, and core depth should be measured from repeatable reference surfaces.
Photograph the original installed before removal, then photograph every face on a clean bench. Include a clear datum and units for each measurement. If a bracket is bent or a port is damaged, identify that condition so it is not copied as original geometry.
Evidence | Why it matters | Common mistake |
|---|---|---|
Engine and cooler reference | Defines the catalog boundary | Using genset model alone when several engines are offered |
Heat duty and temperatures | Defines required thermal performance | Matching by envelope only |
Oil flow and pressure drop | Protects lubrication supply | Checking working pressure but not restriction |
Cooling-side conditions | Defines available heat sink | Ignoring hot-air recirculation or coolant inlet temperature |
Ports and mounting datums | Establishes physical interchange | Assuming a thread or bracket from appearance |
Test and change records | Supports repeatable supply | Accepting an undocumented “tested” claim |
Cooler materials must be compatible with the oil, coolant if present, ambient contaminants, and connected metals. Coastal, humid, dusty, or chemically aggressive locations can increase corrosion exposure. Protective coatings must not obstruct heat-transfer surfaces or interfere with electrical grounding where that is part of the equipment design.
Do not approve a switch among aluminum, copper-brass, steel, or stainless construction without technical review. The change can affect weight, galvanic behavior, fatigue, repairability, and performance.
Ask the supplier to identify the test method, medium, pressure, duration, acceptance criteria, and traceability. A production leak test is not the same as proof, burst, thermal-performance, or pressure-pulsation validation. The required evidence should reflect the specified duty and purchasing risk.
The oil cooler pressure-test evidence guide provides a framework for separating these claims. Also define internal cleanliness, moisture control, capped-port protection, packaging, and handling. A clean cooler can be contaminated after testing if ports are left open.
Preserve the failed cooler long enough to document the cause. External fin blockage, oil leakage, coolant leakage, cracked brackets, vibration damage, corrosion, internal restriction, and contamination require different corrective actions. If the system problem is not corrected, the replacement may fail again.
Inspect hoses, supports, fan and shroud condition, radiator cleanliness, coolant operation, oil filter and bypass arrangement, and nearby vibration sources. A cooler that cracks near a port may be carrying hose load that should have been supported elsewhere.
Generator set, engine model, and original cooler reference;
engine-lube or auxiliary circuit identification;
oil type, flow, inlet temperature, and target outlet temperature;
heat rejection at the specified operating point;
maximum working pressure and allowable pressure drop;
air or coolant inlet conditions and flow;
standby, prime, or continuous duty and ambient range;
core envelope, ports, sealing faces, brackets, and mounting datums;
materials, coatings, cleanliness, and packaging requirements;
drawings, test records, sample approval, and change control;
annual demand and target U.S. market.
The broader Elecdura oil cooler range includes engine, transmission, and hydraulic applications. For an uncertain generator application, submit the original reference and a technical package before asking for a price comparison.
No. This guide addresses diesel genset engine-lubrication cooling. Transformer-oil systems are a separate engineering category and should be specified independently.
Not reliably. Use verified heat-rejection, flow, temperature, pressure-drop, cooling-side, and installation data for the actual engine and duty.
A larger envelope does not guarantee correct performance. It may change pressure drop, warm-up behavior, fan loading, airflow balance, mounting stress, and service clearance.
Use the genset and engine identity, installed photographs, cooler construction, ports, mounting datums, dimensions, and operating data. Treat the result as an evidence-based match requiring sample confirmation.
Follow the engine manufacturer's approved contamination procedure. Some failure modes can leave debris in passages that cannot be verified clean by a casual rinse; replacement may be required.
The correct generator oil cooler is the unit that satisfies the defined thermal duty without unacceptable restriction, fits the mechanical and fluid interfaces, survives the installation environment, and arrives with appropriate cleanliness and quality evidence. A similar-looking core is only a candidate.
For a wholesale enquiry, provide Elecdura with the original reference, complete genset and engine data, circuit identification, operating conditions, photographs, measurements, documentation requirements, and expected quantity. Keeping assumptions visible is faster and safer than discovering them after installation.
