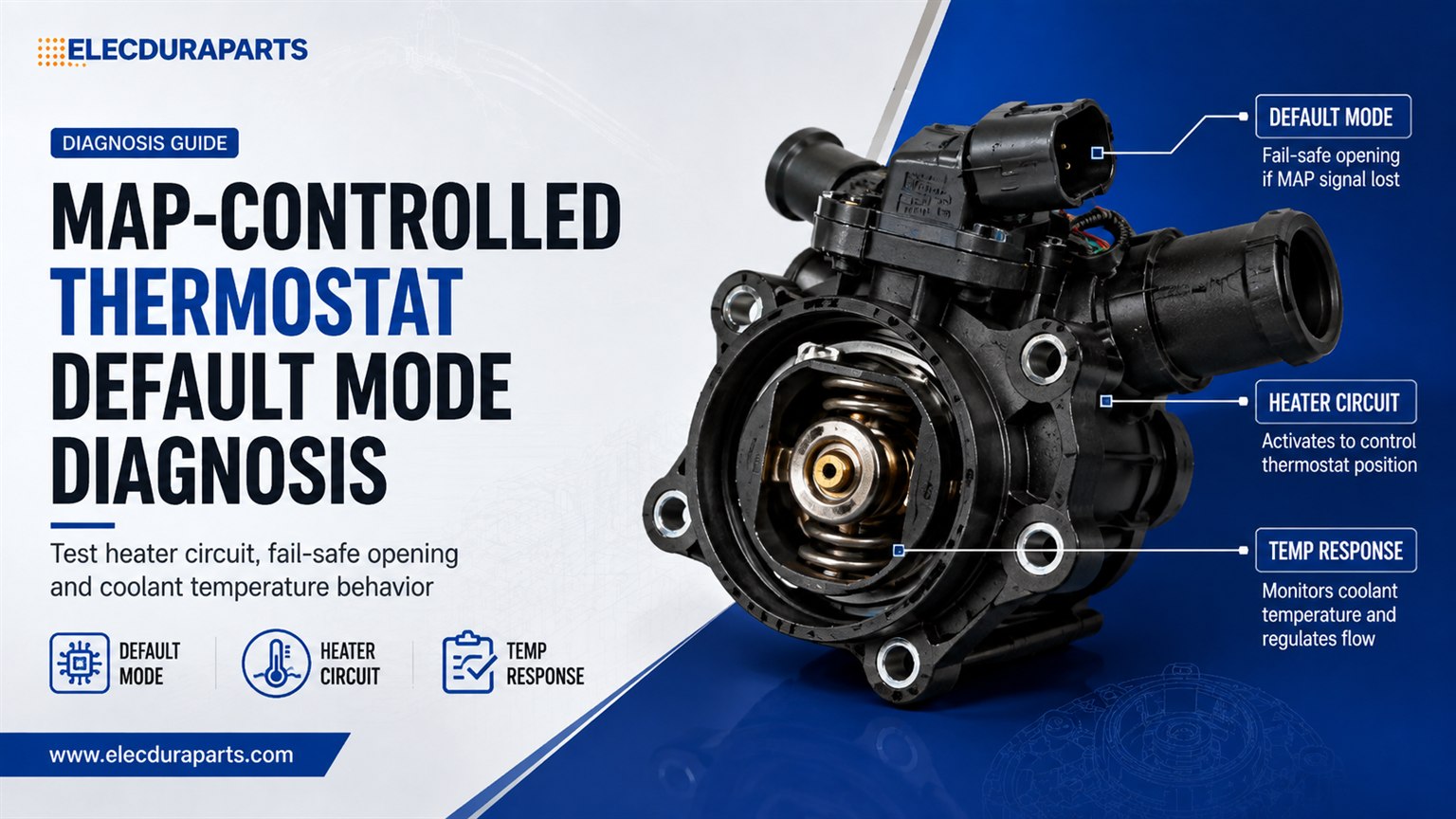

A map-controlled thermostat combines a conventional wax element with an electric heater. Without electrical assistance, the wax element opens according to its mechanical temperature curve. When the engine control unit energizes the heater, the added heat expands the wax earlier, allowing the cooling system to increase flow at a lower coolant temperature under selected load, speed, knock, emissions, or protection conditions.
This architecture creates two separate diagnostic questions. Is the thermostat mechanically capable of opening and closing? Is the ECU able to command and deliver the intended heater power? An open heater circuit may leave the engine operating near the mechanical default temperature rather than causing a completely closed thermostat. Conversely, a thermostat stuck mechanically open can keep coolant cool even when the electrical circuit tests correctly. Elecdura's guide to thermostat opening temperature provides the mechanical baseline needed before control data is interpreted.
Default mode is the thermostat's mechanical behavior when its heater receives no effective power. In many designs, the spring-loaded wax element still opens at a higher base temperature, so loss of electrical control does not mean zero coolant flow. The exact default curve is application-specific. Some control systems set a fault code, increase fan operation, limit load, or use another protective strategy when the heater circuit is implausible.
Evidence | Likely interpretation | Next check |
|---|---|---|
Heater fault code, temperature follows higher mechanical curve | Electrical control lost; wax element may still work | Resistance, supply, driver, connector, and command |
Heater current correct but coolant remains too cool | Mechanical valve leaking/stuck open or sensor biased | Warm-up curve and physical thermostat test |
Command present but no current | Open heater, wiring, or connector | Voltage on both sides and resistance when isolated |
High current or blown driver/fuse | Shorted heater or harness | Isolation test and exact circuit diagram |
Temperature high under load despite commanded heating | Thermostat, coolant flow, radiator, pump, or airflow fault | Mechanical and whole-system diagnosis |
A mechanical opening path reduces the chance of total blockage after electrical failure, but it can still operate outside the intended temperature strategy. Higher coolant temperature during light load may be deliberate for efficiency; earlier opening under high load may protect against knock and component heat. Losing the heater can remove that active range.
Thermostat calibration, sensor location, ECU map, engine load, ambient temperature, and cooling-system pressure differ. Use exact service data and the correct engine code.
As engine coolant warms the wax capsule, expansion drives a piston and opens the valve. The process remains gradual. Start-to-open temperature is not full-open temperature, and the valve needs sufficient stroke to uncover the required flow area.
A capsule can respond but move too little because of wax loss, friction, deposits, spring issues, or frame deformation. Electrical heating cannot repair a mechanically restricted valve; it may only shift when the limited movement begins.
A resistive element inside or adjacent to the wax capsule adds controlled heat. ECU power raises capsule temperature above the surrounding coolant and advances valve opening. Once power is reduced, capsule temperature returns toward coolant temperature and the mechanical curve again dominates.
The ECU can switch power or ground rapidly and vary average energy through duty cycle. A basic multimeter may display an averaged voltage that is difficult to interpret. Use a scope, current clamp, or scan data according to the circuit design.
Under light load, a higher coolant temperature can reduce friction and support combustion efficiency. Under high load, the ECU may energize the thermostat heater so the valve opens earlier, lowering coolant temperature before combustion chambers, turbocharger surroundings, or other components accumulate excessive heat.
Load, engine speed, intake-air temperature, vehicle speed, knock activity, oil temperature, ambient conditions, A/C demand, and modeled component temperature may influence command. A heater activation seen before the coolant reaches its mechanical rating can therefore be normal.
Scan data may show a calculated duty or request while an open wire prevents current. Confirm electrical delivery at the component.
The ECU may alter fan speed while changing thermostat heating. A fan running at a different threshold after a fault does not prove the fan module is defective. The distinction between a coolant sensor and fan-control problem should be resolved with commanded and actual data.
One circuit may supply battery voltage through a fuse or relay while the ECU controls the ground side. Another may provide a fixed ground and control power. Testing must follow the exact wiring diagram; a test light connected to the wrong side can overload an ECU driver.
Many map-controlled thermostats use two heater pins, but similar connectors can use different terminal positions, keying, resistance, and control logic. Do not apply battery voltage directly unless an approved component test specifies it.
Some systems energize the heater in defined operating zones; others modulate power. The diagnostic specification may give resistance, maximum current, command duty, or activation conditions. Compare like measurements at the same voltage and temperature.
Measure an isolated component at the specified temperature and allow for meter-lead resistance. A value outside the correct range can indicate an open, shorted, or degraded element, but an in-range static measurement does not prove operation under heat and vibration.
Save all powertrain and cooling-system codes before clearing them. Record coolant temperature, engine load, speed, vehicle speed, battery voltage, run time, intake temperature, thermostat command, and fan state from the freeze frame. The conditions show whether the code appeared during cold start, cruise, high load, or shutdown.
An open/short code directly targets electrical plausibility. A rationality or temperature-regulation code can arise from mechanical leakage, sensor bias, coolant level, pump control, radiator capacity, or environmental conditions.
Begin from a cold engine. Check level, concentration, bleeding history, leaks, cap condition, and evidence of air. Compare coolant-temperature readings with ambient and other temperature sensors before startup. Large cold-soak disagreement can indicate a sensor or wiring bias.
A thermostat designed to sense liquid may respond late or erratically when trapped air surrounds it. Correct fill and bleeding precede electrical conclusions.
Look for coolant migration, oil, corrosion, loose terminals, backed-out pins, spread contacts, harness tension, abrasion, heat damage, and prior repairs. Perform a terminal-drag or specified contact test without deforming the connector.
Capillary action can carry fluid from a leaking housing or sensor along copper strands toward another connector or controller. Inspect beyond the visible wet point.
Switch off and isolate the circuit according to the service procedure. Measure across the heater pins and compare with exact temperature-corrected specifications. An infinite value supports an open element; near-zero resistance can indicate a short. Do not probe terminals with oversized tools.
Check each conductor for continuity, short to ground, short to power, and cross-short only after modules are isolated as required. Wiggle the harness while observing resistance to expose intermittent faults.
Use a scan tool to command the heater only if the platform supports an active test. Measure supply voltage, control-side switching, and current simultaneously. A voltage reading with no load can remain normal through a corroded connection, so evaluate voltage drop while current flows.
Correct current shows that electrical energy reaches the heater. It does not prove the wax element expands, the piston moves, the valve is installed correctly, or coolant circulates.
Where the manufacturer provides a safe procedure, compare temperature behavior with the heater commanded and not commanded. Record coolant temperature at the thermostat, radiator inlet and outlet, engine load, and time. The response should match the system strategy rather than a universal number.
Disconnecting the thermostat can set faults, change fan strategy, and alter engine protection. Follow an approved test plan and restore all connections before operation.
A mechanically leaking thermostat can warm the radiator too early and delay engine warm-up. A late or restricted opening can produce a rapid temperature rise followed by insufficient cooling under load. Compare the pattern with stuck-open and stuck-closed thermostat behavior.
Many engines use a bypass valve or secondary disc that must close as the main radiator path opens. A wrong thermostat can leave the bypass open, reducing radiator flow even when the primary valve moves.
Use the exact manufacturer method. The mechanical portion can often be heated in a controlled bath while stroke is measured. Electrical heating may require a regulated power source, duty limit, fixture, and temperature monitoring. Uncontrolled direct battery power can overheat the element.
Visible movement is not sufficient. Record lift at specified temperatures and compare the electrical-assist response where data exists. Elecdura's thermostat test-jig guide explains why controlled bath temperature and repeatable lift measurement matter.
An integrated plastic housing can warp, crack, leak, or hold the thermostat out of alignment. Check the groove, O-ring, mating face, fasteners, hose necks, and electrical penetration. Use the plastic thermostat housing replacement checks when leakage or distortion is present.
Fault | Why it resembles thermostat-control failure | Separating evidence |
|---|---|---|
Biased coolant sensor | Incorrect command and displayed temperature | Cold-soak comparison and calibrated reference |
Weak electric water pump | High temperature despite commanded opening | Pump command, current, speed, flow, and codes |
Restricted radiator | Poor cooling after valve opens | Core temperature map and pressure/flow test |
Fan or shroud fault | Overheating at low speed | Commanded versus actual airflow |
Air pocket or low coolant | Erratic sensing and heater performance | Leak repair, vacuum fill, and bleed response |
Combustion-gas intrusion | Pressure, air, and overheating | Approved gas and leak-down tests |
Wrong replacement thermostat | Valid electrical readings, wrong temperature control | OE cross-check, geometry, rating, and heater spec |
The thermostat can open correctly while a blocked radiator, damaged cooling fan, missing shroud seal, or stacked-condenser load prevents heat rejection. System diagnosis must extend beyond the electronic component.
Some controlled thermostats are serviceable inserts; others are built into multi-port housings with sensors, pumps, valves, or coolant pipes. Replace the complete module when the insert is not separately available, the housing is warped or leaking, electrical terminals are integrated, or an internal mechanism cannot be verified.
Matching connector shape does not prove resistance, pin function, heater power, mechanical curve, or bypass geometry. A repinned or adapted component can damage the driver or create incorrect thermal control.
Provide the OE number, vehicle make, model, year, engine code and displacement, VIN or chassis range where relevant, housing and thermostat markings, base mechanical opening rating, heater resistance specification, connector photos, pin count, hose-port directions, sensor inclusion, mounting dimensions, and photographs of the installed assembly.
Outer housing dimensions are a confirmation step, not the primary match. A model-specific example such as the VW/Audi thermostat housing cross-check illustrates how nearby references can hide different internal configurations.
Incoming inspection should verify heater resistance at a defined temperature, insulation where specified, terminal position and retention, connector keying, mechanical start temperature, stroke, closing behavior, housing dimensions, seal fit, marking, and leak integrity.
A heater can measure correctly yet be poorly coupled to the wax capsule. Sample validation should compare response time and stroke under controlled electrical power and bath conditions.
Bench equipment must limit voltage and current and avoid inductive or reverse-polarity events. On-vehicle breakout equipment should preserve terminal fit and ECU protection. A shorted replacement can damage a driver stage and turn a component claim into a controller repair.
Wax formulation, heater resistance, spring, housing resin, connector terminal, or supplier changes can alter behavior without changing outer appearance. Use lot traceability and controlled approval. Elecdura's aftermarket supplier evaluation guide provides the broader quality framework.
Many designs still open mechanically at their default temperature, but the exact behavior is application-specific. Unplugging also sets faults and may change fan or protection strategy. Do not use disconnection as an unsupervised experiment.
No. The higher default curve may remove early-opening protection under load, and mechanical, pump, radiator, air, or fan faults can still cause overheating.
Only if the manufacturer specifies the voltage, current limit, duty, time, and fixture. Direct battery power can overheat the element, damage it, or create burns.
It supports electrical continuity at the measured temperature. It does not prove ECU command, loaded voltage, heater-to-wax coupling, valve stroke, or installed coolant flow.
Possible causes include wiring, terminal tension, coolant migration, incorrect heater resistance, wrong application, ECU driver damage, low voltage, air in the system, or a performance fault unrelated to the heater. Review thermostat faults after replacement before repeating the order.
Some ECUs use high fan operation as a protective response, but behavior varies. Diagnose the stored code and actual command before replacing the fan module.
Send OE references, complete engine applications, mechanical opening and stroke data, heater resistance and power requirements, pinout, connector and housing dimensions, included sensors and seals, annual quantity, sample plan, and required test reports. Use Elecdura's thermostat buying guide for category context and the aftermarket range for product discovery.
A map-controlled thermostat is a mechanical wax valve plus an electrical heat input. Its default mode can maintain a basic coolant path while losing active temperature control. A valid diagnosis must prove the mechanical opening curve, heater resistance, delivered current, wiring and driver integrity, sensor plausibility, coolant condition, pump flow, radiator capacity, and fan response.
For exact matching, send Elecdura the OE number, vehicle and engine data, housing reference, mechanical rating, heater resistance and pinout, connector photos, coolant-port layout, sensor and seal requirements, quantity, and validation plan through the technical quotation form. Compare controlled and OE versus aftermarket thermostats by verified thermal and electrical data, then use Elecdura's wholesale process for the approved specification.
