A thermostat that opens in a saucepan is not automatically suitable for wholesale release. The visual test does not control fluid temperature at the wax element, heating rate, circulation, measurement uncertainty, valve lift, leakage, hysteresis or housing dimensions. It may catch a completely seized valve, but it cannot establish whether a batch follows the agreed opening curve or fits the intended engine.
A useful thermostat quality test begins with an approved drawing or verified reference and a controlled jig. It defines sample identity, conditioning, bath uniformity, temperature ramp, opening criterion, stroke measurement and acceptance logic before testing starts. Elecdura’s engine coolant thermostat range covers housing assemblies and insert types with different calibrations; no single opening temperature or lift limit applies to all.
Quick answer: quarantine the incoming lot, verify part and application identity, inspect dimensions and materials, then test a documented random sample in a circulated fluid bath with calibrated temperature probes positioned near the sensing element. Apply the specified heating rate, record initial opening, stroke versus temperature, full travel, closing behavior and leakage where required. Compare each curve with the part-specific specification, retain raw data and sample identity, and expand or reject the lot according to a pre-agreed sampling plan—not according to one visually successful unit.
Quality is conformance to an application-specific requirement, not a brand impression or a polished housing. The plan should distinguish identity, fit, sealing, thermal actuation, flow control, material integrity and packaging. A unit can pass opening temperature but fail because its flange is wrong, stroke is insufficient, bypass disc is misplaced or electrical heater has the wrong connector.
Use the OE drawing or service specification where legally and practically available, followed by an approved customer drawing and a verified reference sample. Record drawing revision. A catalog claim without a defined method is weaker evidence than a controlled requirement.
Different engines use different nominal temperatures, opening definitions, strokes, bypass functions and flow areas. Measurement limits must include the method and instrument uncertainty. Avoid converting one sample’s result into a batch specification.
Define lot boundaries by supplier, part number, production batch and receipt. Select samples randomly across cartons and pallet positions. The number of samples and acceptance number should follow the agreed risk, lot size and quality plan. Do not test only the easiest cartons or replace a failed sample quietly.
A new supplier, process change, prior complaint or safety-critical application may justify tighter inspection than a stable, capable process. Incoming inspection does not replace supplier process control; it verifies that the delivered evidence remains trustworthy.
Label tested units without marking a sealing surface. Keep failed samples, raw curves, photographs, carton identity and instrument records. If destructive inspection is used, separate those units from saleable stock.
A batch average can look correct while one thermostat opens dangerously late. Apply both individual limits and any distribution criteria stated in the plan. Record outliers rather than deleting them as “test noise” without investigation.
The bath needs adequate volume, circulation, heating control and safe containment. Fluid around the thermostat should remain uniform enough that the reference probe represents the wax element temperature. A heater directly beneath the sample can create a local hot zone and an artificially early result.

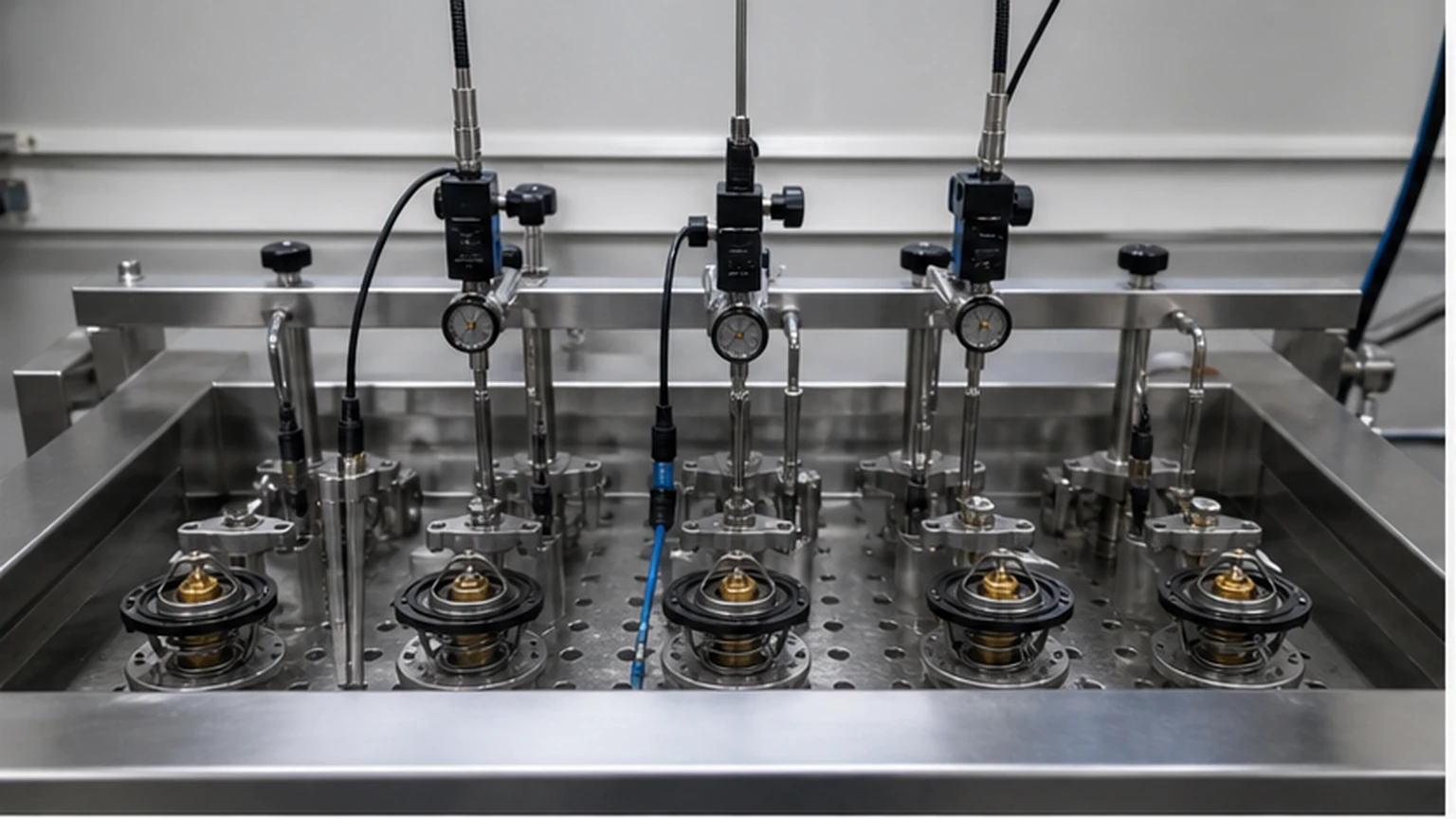

A circulated bath and fixed sample positions improve temperature uniformity and repeatability across a batch test.
Use the specified water, coolant mixture or other approved medium. Fluid composition affects boiling margin, corrosion, wetting and heat transfer. Replace contaminated fluid and document concentration. Do not use oil or household chemicals merely to reach a higher temperature.
Hold the unit in its defined orientation without blocking the valve, bypass disc or sensing element. Keep it away from the heater wall and pump outlet. A fixture should support nonfunctional areas and avoid stressing plastic housings or flanges.
An electrically heated thermostat may require a separate test for the heater circuit and controlled energization. Do not immerse connectors beyond the specified boundary or apply voltage without a circuit plan. Its mechanical wax behavior and electrical response are separate characteristics.
Use calibrated probes with suitable range, resolution and response. Place the primary probe near the wax element without touching metal that could conduct heat differently from the fluid. A second probe can verify bath uniformity. Record calibration status and pre-test cross-check.
The wax element and metal body need time to approach fluid temperature. A rapid ramp creates thermal lag, so the bath display can pass the nominal value before the element responds. Follow the specified rate and stabilization holds. Use the same ramp for supplier comparisons.
“Starts to open” must be measurable. It may be a specified valve lift, first continuous movement or a defined flow. Visual detection varies by operator and lighting. A dial indicator, displacement sensor or controlled flow threshold improves repeatability.
Probe accuracy, bath gradient, reading resolution and fixture alignment contribute uncertainty. If the result lies near a limit, repeat according to the plan rather than rounding toward a pass.

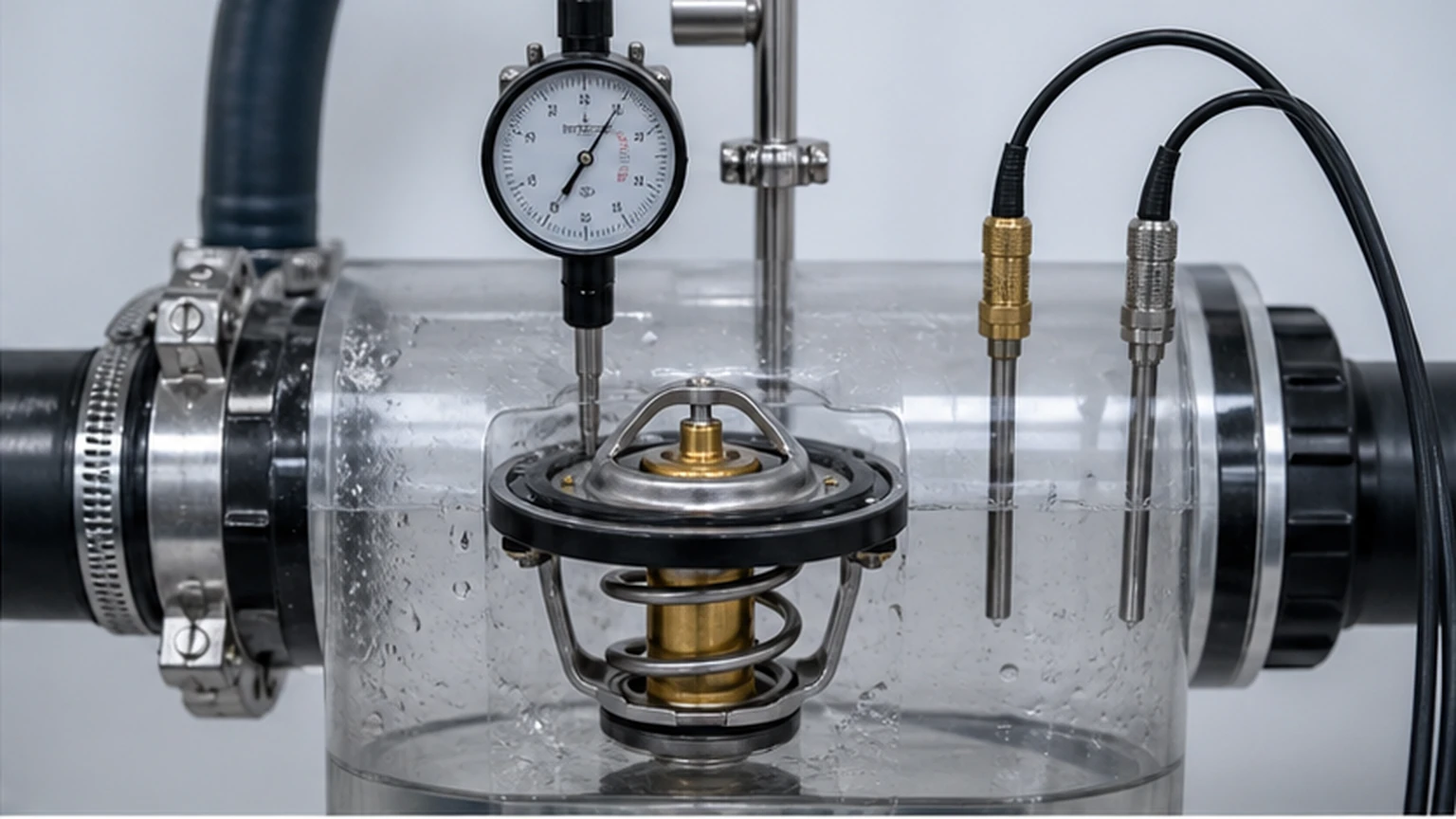

One temperature point cannot show how the thermostat controls flow. Record valve lift at several temperatures through initial opening, intermediate travel and the specified upper point. Plot temperature against stroke for each sample. Compare curve shape as well as endpoints.
Stroke-versus-temperature data reveals slow, short or irregular movement that a simple open/closed check misses.
A valve can begin opening at the expected temperature yet never achieve the required lift. Wax loss, friction, spring error or mechanical interference can limit travel. Inspect the main valve and any bypass disc together because their movement may be coordinated.
Stick-slip motion, pauses or sudden jumps can indicate a misaligned guide, damaged frame, contamination or wax-element problem. Record the curve and inspect the sample after cooling. Do not smooth away the irregularity in reported data.
Thermal hysteresis is expected, but its allowed magnitude is part specific. Continue the controlled sequence through cooling where required. A valve that opens correctly but remains partly open when cold can create slow warm-up and cabin-heating complaints.
The thermostat must control leakage when nominally closed. Some designs intentionally include a jiggle valve, bleed notch or bypass path, so a visible trickle is not automatically a defect. The fixture must direct flow through the intended boundary and use the specified differential pressure and fluid temperature.
Measure flow or pressure decay across the main seat while accounting for approved bleed features. Record test direction and pressure. Comparing a thermostat with a bleed valve against one without it creates a false supplier ranking.
A molding chip, metal burr or packaging debris can hold the valve open. Preserve the particle for root-cause analysis. Cleaning the sample and reporting a pass hides a process-control problem.

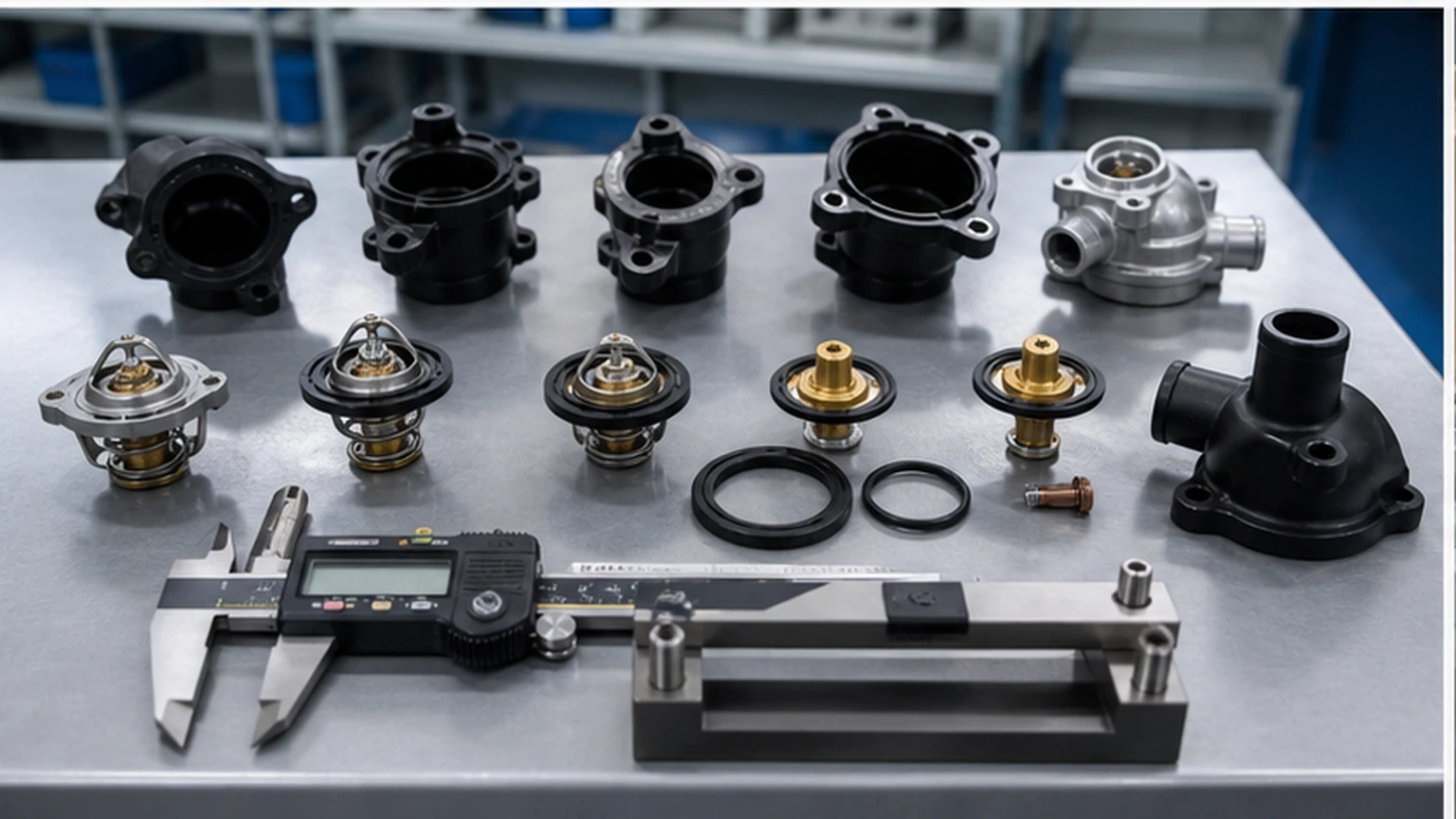

Before or after thermal testing, check the dimensions that actually control installation: flange diameter and thickness, insertion depth, sealing groove, bolt pattern, housing orientation, hose neck diameter and angle, connector position, sensor ports and bypass-disc geometry. Use calibrated tools and defined datum points.
Application accuracy depends on controlled dimensions, sealing features and orientation—not only opening temperature.
Check material, profile, molding condition, flash, cuts and retention. A correct thermostat with the wrong seal can leak externally or sit at the wrong depth. Confirm whether the seal is supplied installed, loose or excluded.
Inspect warpage, knit lines, voids, thread quality, sensor seats, metal inserts and hose-bead shape. Use a fixture that does not force a distorted flange flat. Heat-cycle or pressure testing may be required for supplier qualification beyond incoming visual inspection.
Two inserts can share a nominal diameter while using different opening calibration, stroke, bypass plate, frame height or seal design. OE reference and exact application remain essential.
Stainless appearance, brass color or a heavier spring does not prove durability. Supplier evidence may include material certificates, coating specification, dimensional capability, weld or crimp controls and wax-element validation. Confirm that documents correspond to the delivered lot and part revision.
Look for incomplete crimps, off-center bridges, rough guides, spring mislocation and sharp edges that can damage seals. Cycle-test selected samples where the qualification plan requires it. A single opening cycle is receiving evidence, not lifetime validation.
Do not convert a short bench test into a mileage or years-of-service statement. Durability claims require defined cycles, fluid, temperature range, pressure, vibration and pass criteria.
Finding | Immediate action | Supplier evidence required |
|---|---|---|
Wrong label, OE cross-reference or configuration | Quarantine lot | Traceability and segregation review |
Opening curve outside individual limit | Apply sampling-plan reject/escalation rule | Wax-element and calibration root cause |
Correct start temperature, insufficient stroke | Do not release | Frame, spring and element process review |
Excess closed-seat leakage | Inspect bleed design and seat contamination | Drawing confirmation and cleanliness action |
Dimensional mismatch | Stop fitment release | Tooling, datum and measurement capability |
Packaging damage or mixed lots | Segregate affected stock | Packaging correction and lot reconciliation |
A retest plan must be defined before use and explain why the first result was invalid or how an expanded sample changes confidence. Repeatedly testing until enough units pass is not quality control.
Run repeatability checks using stable reference samples. Evaluate operator, position and day-to-day variation. Verify temperature uniformity at every occupied fixture position and confirm that the stroke sensor does not load the valve significantly.
A known conforming sample checks normal operation. Where available, retained nonconforming samples challenge the ability to detect late opening, short stroke or leakage. Protect references from corrosion and uncontrolled reuse.
Record probe, indicator, pressure sensor and timer identifiers. Protect formulas and report templates from unauthorized change. If automated data capture is used, retain raw values as well as graphs.
If the jig cannot test a mapped thermostat’s electrical heater or a housing under pressure, state that limitation. Send those characteristics to a qualified fixture rather than declaring the complete assembly passed.
Buyer searches for the “best car thermostat brand” often hide a more useful question: which supplier can deliver the correct application repeatedly, prove calibration and respond to nonconformance? Compare traceability, process controls, dimensional capability, thermal curves, corrective-action quality, packaging and delivery performance.
A wide range helps distributors consolidate orders, but it does not prove every SKU is validated. Sample risk should reflect application family, manufacturing process and change history. Elecdura’s wholesale thermostat program should receive exact SKU and validation requirements, not a generic request for “good quality.”
Wax formulation, spring, frame stamping, crimp setting, plastic material and sub-supplier can affect performance. Require change notification and requalification appropriate to risk.
Provide OE number, vehicle or equipment identification, model year, engine code, market, power rating and emission configuration. For housed thermostats, photograph hose ports, connector, sensor, bolt pattern, bypass passages and included seals. For inserts, record flange, frame, depth and bypass geometry.
Record connector shape, pin count, heater resistance or specified electrical test, voltage strategy and ECU application. A mechanical bath curve alone does not validate ECU compatibility. The article on electronic versus mechanical thermostats should be used when identifying the control architecture.
Confirm sensors, gaskets, bolts, bleed fittings and coolant outlets. Elecdura’s thermostat housing category covers a different supply boundary from a loose wax-element insert.
Similar vehicles can use different engine or emissions configurations. Verify the OE cross-reference and application dataset rather than assuming that climate or country alone determines temperature rating.
Brand categories such as Ford thermostats, Honda thermostats, Hyundai thermostats and Isuzu thermostats help route catalog searches, but they are not batch specifications. Within one brand, engine families can use different housings, bypass geometry and calibration. The receiving lot must remain tied to its exact part number and approved application rather than a broad make label.
Protect sealing faces, hose necks, connectors and wax-element rods from impact. Keep rubber seals free from deformation, oil and incompatible packaging material. Separate part numbers physically and use scannable lot identity that links cartons to inspection results.
Condensation can corrode moving and sealing surfaces. Extreme heat may affect packaging or elastomers. Define warehouse conditions and first-in/first-out rules appropriate to the product and supplier specification.
Check label, quantity, included seal, product configuration and lot before release. A thermally correct thermostat in the wrong box remains a serious fitment failure.
Vehicle-level overheating diagnosis remains separate from batch inspection. Use the guide to stuck-open versus stuck-closed thermostat behavior when diagnosing an installed vehicle. A radiator, cooling fan or water pump should not be added to a thermostat quality dispute without its own evidence.
For application-specific product selection, review Elecdura’s engine cooling parts only after the required assembly boundary is clear. The wholesale program can coordinate mixed orders, but batch acceptance remains part-number specific.
It does not reliably measure element temperature, heating rate, opening criterion, stroke, leakage, hysteresis or dimensional fit.
There is no universal sample count. New suppliers, changes and prior failures may require tighter inspection.
A unit can start moving on time but provide too little flow or remain partly open when cold.
Sample orientation, probe position, stroke direction, opening criterion and electrical boundaries may need dedicated adapters and programs.
Provide OE number, vehicle/engine data, configuration photographs, nominal curve and stroke criteria where available, included seals or housing scope, lot quantity, sampling level, packaging needs and destination through the Elecdura contact page.
A professional thermostat test replaces the subjective question “did it open?” with a controlled evidence chain: correct identity, random sample, calibrated and uniform bath, specified ramp, measurable opening criterion, stroke curve, closing behavior, leakage, dimensions and traceable disposition.
For supplier evaluation, send Elecdura the exact application and OE reference, assembly scope, performance specification, sample plan, drawing revision, packaging requirement and order quantity. Those inputs allow the thermostat batch to be judged against its intended engine and risk—not against a generic boiling-water demonstration.
