Tractor AC Compressor Not Engaging: Field Diagnosis Before Replacing the Compressor

When a tractor A/C compressor does not engage, the compressor is not automatically dead. The system may be blocking engagement because refrigerant pressure is too low, the pressure switch is open, the relay is not sending power, the clutch coil is weak, the thermostat or controller is not requesting cooling, the belt drive is slipping, or the wiring has voltage drop. Replacing the compressor before these checks can waste money, delay field work, and create a return claim when the new compressor also refuses to engage.

For agricultural repair shops and parts dealers, the best process is a field diagnosis sequence. Confirm the complaint, check whether the compressor is being commanded on, verify refrigerant pressure and pressure-switch logic, test the relay and clutch circuit, inspect the belt and pulley, and only then decide whether the order should include an agricultural A/C compressor, pressure switch, relay, harness repair, condenser service, or a broader A/C repair package.

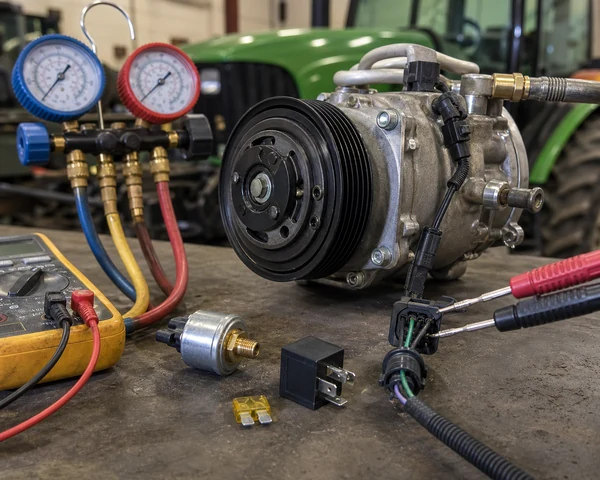

A non-engaging tractor A/C compressor should be diagnosed as part of an electrical and refrigerant-control circuit.

Start by Defining "Not Engaging"

The phrase "compressor not engaging" can describe several different conditions. The clutch may never click. The clutch may click once and release. The clutch may engage only when power is jumped directly. The compressor may engage but the belt slips. The system may engage at first and stop when pressure rises. Each condition points to a different test path.

Before ordering parts, ask the repair shop to describe what was actually observed. Was A/C requested from the cab control? Did the condenser fan or blower operate? Was there voltage at the compressor clutch connector? Did the clutch plate move? Was the refrigerant static pressure reasonable for the ambient condition? Did any fuse blow? Was the compressor noisy before it stopped engaging? Those details matter because they separate a bad compressor from a control problem.

For distributors, this question protects both inventory and reputation. A customer who says "send a compressor" may really need a pressure switch or wiring repair. If the new compressor is shipped and the system still does not work, the customer may assume the supplier sent a defective part.

Check Refrigerant Pressure Before Condemning the Compressor

Most tractor A/C systems will not allow compressor operation when refrigerant pressure is too low. This protects the compressor from running without proper refrigerant and oil circulation. If the system has leaked down, the low-pressure switch or pressure sensor may prevent clutch engagement. In that case, the compressor is doing nothing because the control circuit is protecting it.

A static pressure check is a first step, not a final diagnosis. If pressure is very low, the repair should search for leaks instead of jumping the switch and forcing the compressor to run. Common leak points include hose crimps, condenser tubes, service ports, shaft seal, evaporator, receiver drier fittings, and pressure-switch ports. A tractor working around dust, vibration, and debris may also have line damage or condenser impact damage.

If static pressure is reasonable but the compressor still does not engage, the diagnosis moves to electrical command and switch logic. The key is not to assume that pressure exists just because the system was recently charged. A slow leak, incorrect charge, or blocked component can still keep the system outside the expected range.

Pressure Switch or Pressure Sensor?

Many agricultural A/C systems use a pressure switch to protect the compressor. Some systems use an electronic pressure sensor. Others use more than one pressure-control device. The repair shop needs to know which part is in the circuit. A mechanical switch may open or close power to the clutch circuit. An electronic sensor may send a signal to a controller that decides whether the compressor should engage.

If the switch is open, it may be failed, but it may also be reporting a real pressure problem. If the sensor signal is implausible, the controller may refuse compressor engagement. If the connector is corroded, loose, or damaged, the control module may read the wrong state. For sourcing teams, the right part may be an A/C pressure switch, pressure sensor, or connector repair rather than a compressor.

Do not approve a switch replacement only because someone jumped the switch and the compressor clicked. That test shows the clutch circuit can operate, but it does not prove the switch is bad. The system may have low charge. The switch may be doing its job. A proper diagnosis compares pressure reading, switch state, and system behavior.

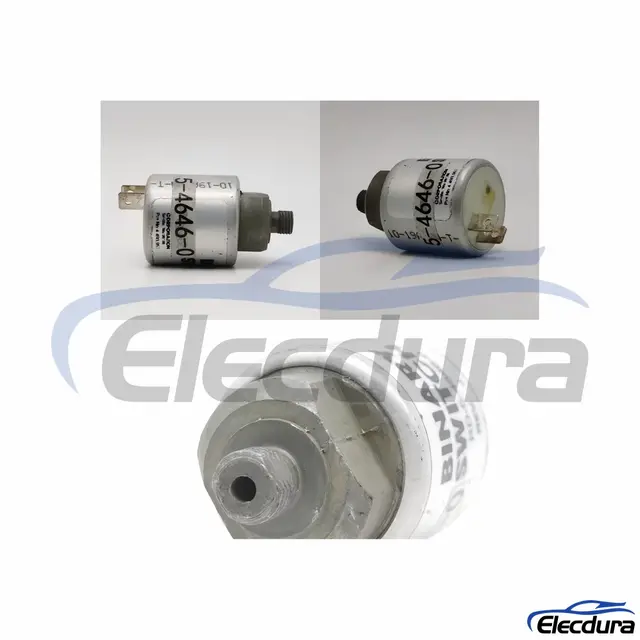

Pressure switches and sensors often decide whether the compressor clutch is allowed to engage.

Relay, Fuse, and Power Supply Checks

If the system has enough refrigerant and the pressure-control signal is valid, check the power path. A compressor clutch usually depends on a fuse, relay, control signal, wiring harness, connector, and ground. A blown fuse may indicate a shorted clutch coil, damaged wire, or overloaded circuit. A relay may click but fail to carry current. A connector may show voltage with no load but drop voltage when connected to the clutch.

A repair shop should test voltage at the compressor connector while the system is requesting A/C. If there is no voltage, work backward through relay, fuse, pressure switch, thermostat, and control signal. If there is voltage but the clutch does not pull in, check coil resistance, ground, clutch air gap, and connector condition. If the clutch engages with direct battery power but not through the system, the issue is likely upstream in the control circuit.

For dealers, these tests shape the parts order. A machine may need relay and pressure switch stock more often than a compressor. If a compressor is sold into a wiring fault, the repair fails and the new part may be blamed.

Quick Counter Decision Matrix

Pressure, command voltage, clutch connector condition, relay/fuse state, and compressor pulley behavior should be checked before approving a compressor-only order.

Clutch Coil and Air Gap

A compressor clutch can fail mechanically or electrically. The coil may be open, shorted, weak, overheated, or intermittently failing. The clutch air gap may be too large for the magnetic field to pull the plate in consistently. The clutch face may be worn or contaminated. The pulley bearing may be noisy. In some cases, the compressor body is still serviceable but the clutch assembly is the failed component. In other cases, clutch damage is a symptom of compressor drag or heat.

Testing coil resistance can help identify an open or shorted coil. Checking voltage under load can reveal wiring problems. Inspecting the clutch face can show overheating or slipping. Listening for pulley bearing noise can prevent a new belt failure. If the clutch clicks but slips, the compressor may be dragging, the belt may be loose, or the clutch face may be worn.

For agricultural equipment, clutch voltage must be confirmed before replacement. A 12V compressor and a 24V compressor should never be treated as interchangeable. If a dealer stocks both, labels and product photos should make the distinction obvious.

Belt, Pulley, and Mounting Alignment

A compressor may appear not to engage if the belt drive cannot transmit load correctly. A loose belt, glazed belt, seized idler, misaligned pulley, or damaged bracket can prevent normal compressor operation. If the belt squeals when A/C is requested, do not assume the new compressor will fix it. Check belt tension, pulley alignment, bracket security, and compressor rotation.

Pulley mismatch becomes important when the compressor was previously replaced. A wrong pulley groove count or offset can make the belt run out of plane. The clutch may engage, but the belt slips or overheats. For parts buyers, this is why old compressor photos and pulley measurements are critical before ordering replacements for Fendt, Claas, John Deere, and other agricultural applications.

If the old compressor seized, inspect the belt and bracket before installing the new unit. A seized compressor can shock-load the drive system. Reusing a damaged belt or stressed bracket can create a second failure.

Condenser Airflow and High-Pressure Cutout

Sometimes the compressor engages briefly and then drops out. One possible reason is excessive high-side pressure. On tractors, condenser airflow can be reduced by dust, chaff, mud, bent fins, blocked screens, fan problems, or a condenser installed in a poor airflow position. When head pressure rises too high, the pressure switch or control module may cut compressor operation to protect the system.

If the compressor engages after a cold start but stops during field work, check condenser cleanliness, fan operation, charge level, and high-side pressure. Poor condenser airflow can look like a compressor fault from the cab. The operator feels warm air and hears the compressor cycle out. The root cause may be heat rejection, not compressor failure.

For buyers, this matters because the correct order may include cleaning service, condenser replacement, fan repair, or pressure switch review. A compressor-only quote may not solve a high-pressure cutout complaint.

When the Compressor Is Actually the Problem

After pressure, electrical command, clutch, belt, and airflow checks, the compressor may still be the correct replacement. Strong evidence includes seized shaft, noisy internal damage, metal debris, black oil, clutch overheating caused by compressor drag, poor pumping performance with correct charge, or verified coil failure when clutch parts are not serviced separately. In those cases, the replacement scope should still be planned carefully.

A clean compressor replacement may require oil confirmation, O-rings, receiver drier review, evacuation, correct charge, and leak testing. A contamination failure may require more: condenser review, expansion valve inspection, flushing strategy, drier replacement, and hose inspection. Installing a new compressor into a dirty or restricted system can cause early failure.

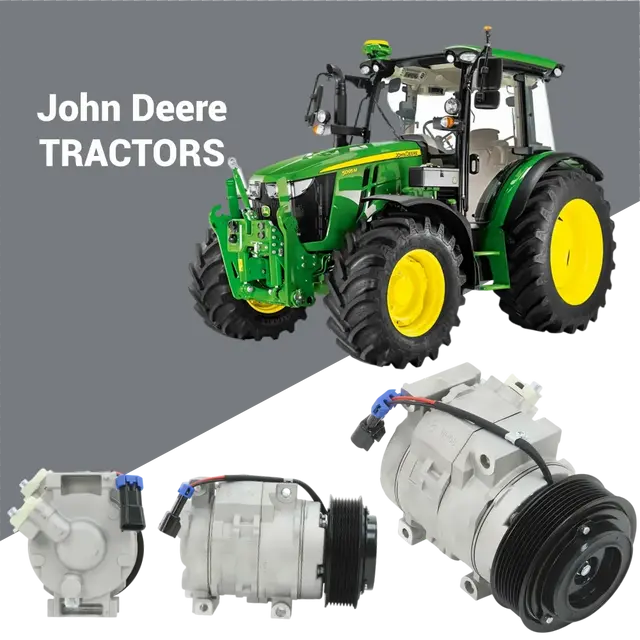

When compressor replacement is justified, clutch voltage, pulley, bracket, ports, and system cleanliness still need confirmation.

Field Diagnosis Sequence

Ordering Data to Send with the Request

Once the diagnosis supports replacement, collect the data needed for correct sourcing. Send tractor brand, model, serial number if available, old compressor label, pulley photo, clutch connector photo, rear-head port photo, mounting photo, voltage, and failure notes. If the issue involved pressure cutout or no clutch signal, include pressure switch or sensor photos too. If contamination is suspected, include oil condition and condenser notes.

For dealer stock, separate application families clearly. A John Deere loader compressor, a Claas tractor compressor, and a Fendt tractor compressor may all be agricultural A/C parts, but the mounting and clutch details are not interchangeable. Brand and application pages such as John Deere A/C compressors, Fendt A/C compressors, and Claas A/C compressors are useful starting points, but the final match still depends on the old part and machine data.

Why Jumping the Pressure Switch Can Mislead the Repair

In the field, some technicians briefly jump a pressure switch to see whether the clutch will pull in. This can be useful as a controlled diagnostic clue, but it should not become the repair plan. If the system is low on refrigerant, jumping the switch only proves that the clutch circuit can move. It does not prove that the switch is faulty. Running the compressor with low refrigerant can reduce oil circulation and damage the replacement decision before the real leak is found.

A safer interpretation is: if the clutch engages when the switch is bypassed, the circuit downstream of that point may be capable of operating. The next step is to verify actual pressure and switch function. If pressure is low, find the leak. If pressure is normal and the switch state is wrong, replace the switch or inspect its connector. If the system uses a pressure sensor, do not treat it like a simple switch without understanding the signal expected by the controller.

For distributors, this matters because the customer may ask for a compressor after a quick jump test. The correct counter-question is whether the system pressure, switch state, and voltage at the clutch were measured. Without that information, the order is based on a shortcut rather than evidence.

Seasonal Pressure on Agricultural Repairs

Tractor A/C failures often happen when the machine is needed most. During planting, haying, harvest, or summer transport work, a cab without cooling can remove a machine from service or make long shifts difficult for the operator. That urgency pushes shops and dealers toward fast replacement decisions. Fast is useful only when the part is correct and the diagnosis is sound.

Seasonal repair pressure is one reason dealers should prepare A/C diagnostic and sourcing packages before peak season. Stock the fast-moving compressors, pressure switches, relays, O-rings, and selected condenser items that match the local machine population. Keep photo-based fitment notes for Fendt, Claas, John Deere, Case IH, New Holland, and other common agricultural machines in the market. Train counter staff to ask for clutch voltage, pulley photo, and connector photo before promising a compressor.

The goal is not to slow the repair. The goal is to prevent the wrong fast answer. A correctly matched compressor shipped the first time is faster than a rushed compressor followed by a second shipment, new drier, hose correction, or warranty discussion.

Parts Bundles That Reduce Repeat Calls

When a tractor compressor does not engage, the most common order request may be the compressor itself. A better quote often includes optional related parts based on the diagnosis. If the issue is low pressure from a leak, quote O-rings, receiver drier, service-port caps, or condenser parts as needed. If the issue is no clutch power, quote pressure switch, relay, fuse holder, or connector repair. If the issue is clutch failure with high mileage, quote the compressor assembly and related sealing parts. If the issue is contamination, quote a broader repair package.

Distributors can structure this as a decision tree rather than a hard bundle. The customer still chooses what to buy, but the quote makes the risk clear. Compressor-only is suitable for a clean, verified compressor fault. Compressor plus drier and O-rings is suitable when the system is opened. Compressor plus condenser review is suitable when debris or high-side restriction is suspected. Compressor plus pressure-control parts is suitable when clutch command is inconsistent or switch faults are confirmed.

This approach also helps warehouse planning. Instead of stocking unrelated parts randomly, stock parts that commonly solve the same repair event. A tractor A/C repair event may involve compressor, pressure switch, belt, drier, condenser, and O-rings. If those parts are available together, the dealer can serve urgent field repairs with fewer delays.

Evidence That Should Stop a Compressor-Only Sale

Some customer notes should make a sourcing team pause before selling only a compressor. "System was empty" suggests a leak diagnosis is needed. "Compressor engages when jumped" suggests the control circuit may be the issue. "New compressor already failed once" suggests contamination, oil, belt, condenser, or installation problem. "High pressure rises quickly" points toward airflow, condenser restriction, overcharge, or fan issues. "Belt squeals when A/C is turned on" can indicate pulley, clutch, belt tension, or compressor drag.

These notes do not always mean the compressor is good. They mean the compressor is not the only question. A parts supplier that asks for more evidence may feel slower in the moment, but it prevents an expensive wrong shipment. This is especially true for agricultural customers far from the warehouse. A second shipment can cost more in downtime than the part itself.

How to Reduce Wrong Compressor Replacement

When the complaint is "compressor not engaging," send diagnostic notes instead of only the model name. A photo set and a few test results can prevent unnecessary compressor replacement and help decide whether the repair needs a pressure switch, wiring item, condenser support, or compressor assembly.

The goal is simple: replace the compressor only when the evidence points there, and make sure the replacement matches the tractor before the machine is opened. That approach protects the repair shop, the distributor, and the farmer waiting for the tractor to return to work. Elecdura can review compressor type, clutch voltage, pulley, mounting, ports, pressure-control evidence, and expected demand when buyers need a matched agricultural A/C sourcing plan.
