Radiator Fan Runs Constantly: Causes, Relay Checks, and Replacement Risks

A radiator fan that runs constantly is not always a failed fan motor. It can be normal for the fan to run for a short time after shutdown on some vehicles, especially after hot driving, high A/C load, towing, hill climbing, or stop-and-go traffic. It becomes a fault when the fan runs at full speed from a cold start, keeps running long after the engine has cooled, drains the battery, ignores the fan command, or runs even when the relay or control module should be off.

The most common causes are a stuck cooling fan relay, a failing fan control module, an incorrect coolant temperature signal, an A/C pressure request that stays active, shorted wiring, low coolant or real overheating, and control-system fail-safe logic. The correct repair depends on which one is proven. Replacing the radiator fan assembly without checking command, relay, power, ground, and sensor data can waste money and create repeat returns.

A fan that stays on should be diagnosed as a control-system problem before the motor or complete assembly is blamed.

When a Running Fan Is Normal

Many drivers notice the radiator fan after the engine is turned off because the engine is suddenly quiet. A short fan run after shutdown can be normal. The engine still contains heat, coolant temperature can rise for a short period after circulation slows, and the radiator or condenser may need extra airflow. This is often called heat soak. Some vehicles are programmed to run the fan after shutdown to protect the engine bay, turbocharger area, plastic cooling parts, or A/C pressure conditions.

Normal post-shutdown fan operation usually has limits. The fan runs for a short period, changes speed normally, and then shuts off. The next cold start does not immediately trigger full fan speed. There is no battery drain complaint. The coolant level is correct, the temperature gauge behaves normally, and there are no cooling-system warning lights. In this case, replacing parts is unnecessary unless another symptom exists.

A constant fan becomes suspicious when it runs every time the key is on, even with a cold engine. It is also suspicious when it runs for a very long time after shutdown, restarts by itself, or continues until the battery is weak. Full-speed operation from key-on can mean the control system has entered fail-safe mode, the relay contacts are stuck, or the module is sending power continuously. The diagnostic goal is to separate normal heat management from an electrical or signal fault.

First Question: Is the Engine Actually Hot?

Before testing relays and modules, confirm whether the engine is actually overheating. A fan that runs constantly may be doing its job. Low coolant, trapped air, a stuck thermostat, poor radiator flow, clogged fins, a slipping water pump, a blocked condenser, or a weak radiator cap can keep temperature high enough to demand fan operation. If the fan is running because heat is real, replacing the relay or fan module will not solve the root problem.

Compare the temperature gauge with scan-tool coolant temperature data when possible. Check coolant level only when the engine is cool and safe to open. Look for wet stains, coolant smell, collapsed hoses, blocked radiator fins, debris between radiator and condenser, or signs of recent coolant service. If the fan runs constantly after a coolant flush or cooling-system repair, trapped air is a common suspect. Air pockets can make the temperature sensor see abnormal conditions or prevent stable coolant flow.

If actual temperature is normal but the fan command remains high, move toward electrical and signal diagnosis. If actual temperature is high, diagnose the cooling system first. The fan may be the messenger, not the problem.

Common Causes and What Each One Looks Like

This table is a starting point, not a substitute for vehicle service information. Fan strategies vary widely. Some cars use a temperature switch. Some use ECU logic. Some use low-speed and high-speed relay paths. Some use a PWM command to a fan module. Some have a module integrated into the fan assembly. The diagnostic method must match the vehicle design.

Relay Checks: Simple Fault, Common Misdiagnosis

A stuck relay is one of the easiest causes to test on relay-controlled fans. Relay contacts can weld closed after age, heat, high current, or motor overload. When this happens, the fan receives power even when the control side is not requesting operation. Removing the relay may stop the fan. Swapping in a known-good relay of the same rating can help confirm the issue, but a full check should include the socket and circuit.

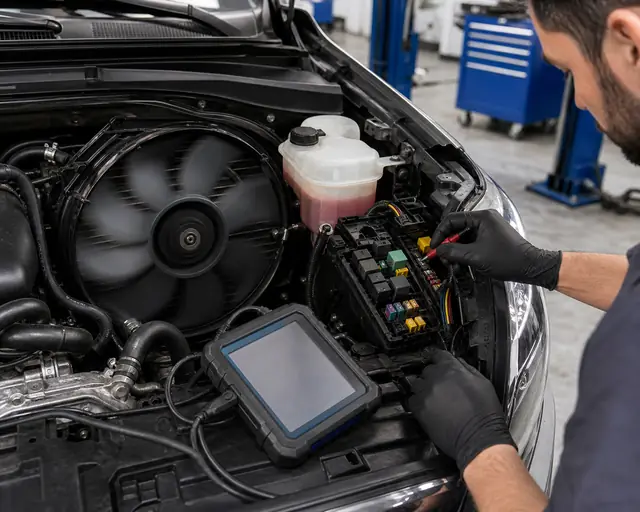

A fan that keeps running should be checked at the relay, sensor signal, and module command before replacing the fan assembly.

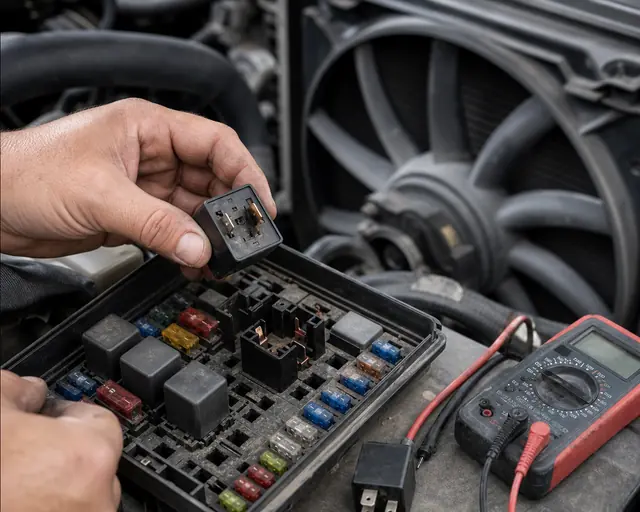

Heat-damaged relay sockets point to load, terminal tension, or motor current problems, not only a bad relay.

If a new relay fails again, do not keep replacing relays. Measure fan motor current draw and inspect the connector. A weak or dragging fan motor can overload the relay. A loose terminal can create heat, which damages the relay socket. A wrong aftermarket fan motor with excessive current can also shorten relay life. In those cases the relay is the failed part, but not the root cause.

For distributors, relay-related complaints matter because a customer may return the fan assembly as "always on" when the installed relay has welded contacts. Ask for a relay test result, fan command data, connector photos, and current draw before accepting the fan motor as the cause.

Fan Control Module Faults

Modern fan systems often use a separate control module or an integrated fan controller. The module may receive battery power, ground, and a command signal from the ECU. It then controls fan speed or power output. When the module fails, the fan may not run, may run only at one speed, may run constantly, or may operate intermittently. A fan that runs after shutdown can also point toward module failure if the module continues to send power when command is absent.

The important point is that a module should be tested before replacement. Confirm power and ground at the module. Confirm command signal from the ECU. Confirm module output to the fan. If the module has correct power, ground, and command-off condition but still powers the fan, the module is suspect. If the module receives a constant command from the ECU, the module may only be obeying instructions. In that case, look upstream at coolant temperature data, A/C pressure request, or wiring.

Elecdura's fan control module vs cooling fan resistor article explains why these parts should not be treated as the same component. A resistor usually supports fixed lower fan speed in a simpler circuit. A module electronically controls speed or duty cycle. A buyer matching by appearance alone can order the wrong control part even when the connector looks similar.

Coolant Temperature Sensor and Fail-Safe Operation

The coolant temperature sensor is a frequent reason for a fan that seems to run for no reason. The ECU uses coolant temperature data to decide when to activate the fan. If the sensor reads too hot, the ECU may command the fan. If the sensor signal is missing or implausible, some vehicles run the fan as a fail-safe strategy to protect the engine. This can make the fan run at high speed even when the engine is cold.

A cold engine reading that looks too hot can make a healthy fan system run in fail-safe mode.

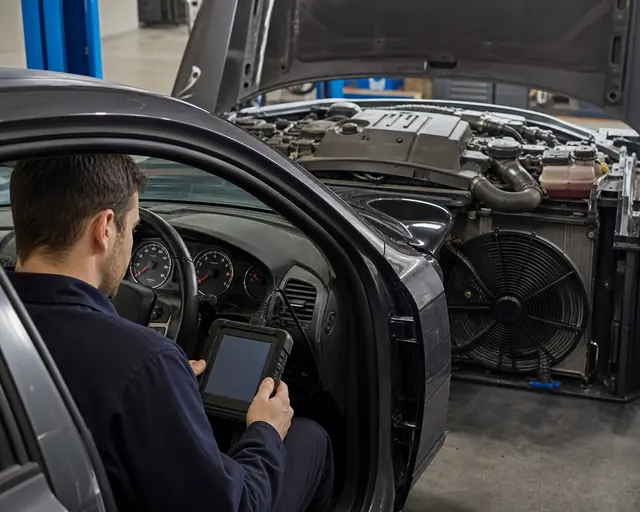

Scan-tool data is the best first check. Compare coolant temperature after an overnight cold soak with ambient temperature. If the sensor reports a much hotter value than reality, there is a sensor, connector, or wiring problem. If the sensor reads extremely cold, extremely hot, or does not change as the engine warms, investigate the sensor circuit. A connector that has coolant contamination or corrosion can cause intermittent fan behavior.

Do not replace the fan module just because the fan is on. If the scan tool shows the ECU is commanding the fan because coolant temperature data is wrong, the module may be functioning correctly. The same logic applies to the fan motor. A motor that runs constantly may be healthy. The command may be wrong.

A/C Request and Condenser Pressure

The radiator fan also supports the A/C condenser. When the A/C is on, many vehicles command the fan to move air across the condenser, especially at idle or low vehicle speed. If A/C pressure is high, the ECU may command high fan speed. If the A/C pressure sensor reports an incorrect high value, the fan may run more often than expected. If the condenser is blocked or the fan airflow is weak, pressure can rise and keep the fan active.

This is why a constant fan complaint should include A/C status. Does the fan stop when A/C is off? Does pressure data look reasonable? Is the condenser face blocked with debris? Does the fan move air in the correct direction? Is the fan assembly the correct design for the vehicle? A replacement radiator cooling fan assembly with wrong blade pitch or motor output may spin but fail to control condenser pressure well enough.

A/C-related fan operation is often normal, but continuous full-speed operation is not something to ignore. High pressure can damage A/C performance, increase compressor load, and lead to customer complaints such as "A/C warm at idle" or "fan never shuts off when A/C is used."

Wiring Shorts and Control Signal Problems

If relay, module, sensor data, and A/C pressure request do not explain the problem, inspect wiring. A control wire shorted to ground or power can keep a relay or module active. Harness damage near the radiator support, fan shroud, battery tray, crash repair area, or previous splice is common. Rodent damage and corrosion can also create unexpected fan behavior.

Wiring faults can be intermittent. The fan may run constantly only after rain, only after a hot soak, or only when the harness is moved. A wiggle test, voltage check, continuity check, and visual inspection are all useful. Pay special attention to connectors exposed to heat, water, and vibration. A fan circuit carries enough current that a poor connection may discolor plastic or loosen terminal tension.

For B2B buyers, harness and connector problems are a major warranty gray area. A new fan motor or module can fail early if installed into a burned connector. When supplying replacement fans, provide clear connector photos and remind customers to inspect terminal condition. If the harness side is damaged, the replacement part may not solve the complaint.

How to Diagnose a Constantly Running Fan

1. Confirm the exact behavior: cold start, hot idle, A/C on, after shutdown, or overnight battery drain.

2. Check whether the engine is actually overheating or whether the fan is responding to false data.

3. Read coolant temperature and A/C pressure data with a scan tool if available.

4. Check for cooling fan control codes, temperature sensor codes, and A/C pressure sensor codes.

5. If relay-controlled, remove or swap the relay and check whether the fan stops.

6. Check relay socket condition, load-side power, and control-side command.

7. If module-controlled, check module power, ground, command signal, and output.

8. Inspect fan connector, module connector, ground points, and harness routing.

9. Measure fan motor current draw if relay or module failure repeats.

10. Decide whether the fault is command, control, wiring, motor load, or real cooling-system heat.

This sequence avoids the most expensive mistake: replacing the complete fan assembly first and discovering that the ECU is still commanding the new fan to run constantly. It also avoids the opposite mistake: replacing sensors and relays when the fan motor is drawing too much current and damaging control parts.

Replacement Risks: What Not to Replace Too Early

Do not replace the radiator fan motor just because the fan is running constantly. A motor usually follows power. If it is receiving continuous power from a relay or module, it may be doing exactly what the circuit tells it to do. Replace the motor when it has high current draw, bearing noise, weak airflow, intermittent operation, burned terminals caused by motor load, or failure in a direct test. For motor-specific testing, see Elecdura's radiator fan motor testing workflow.

Do not replace the fan control module until you know whether it is receiving a valid command. A module that receives a constant fan command from the ECU may not be faulty. Do not replace the coolant temperature sensor without comparing live data. A sensor may be blamed because it is common, but wiring or connector resistance can create the same data problem. Do not replace the relay and stop there if the new relay fails again. High motor current may be damaging the relay.

What This Means for Importers and Distributors

A fan that runs constantly can create several different customer complaints. Drivers may report battery drain, loud fan noise, A/C behavior changes, or a fan that stays on after parking. Repair shops may order a fan assembly because it is visible and easy to blame. Distributors may receive returns even when the supplied fan is not the root cause. The solution is to collect the right evidence before selling or approving a claim.

For a replacement inquiry, ask for the OE number, vehicle details, connector photos, number of pins, whether the fan uses a separate module, whether the complaint occurs cold or hot, and whether the relay or module output has been tested. If the vehicle uses an integrated controller, complete assembly matching may be safer. If the fan motor draws excessive current, a new module alone may fail again. If the harness connector is melted, the customer must repair the vehicle-side connector before judging the new part.

Elecdura supports wholesale customers with radiator fan motors, complete assemblies, and related control parts. When customers send OEM numbers, sample photos, target vehicle coverage, and quantity requirements, it is easier to determine whether they need a motor-only solution, a complete assembly, or a related control component. The goal is not simply to sell a fan. The goal is to reduce repeat failures, wrong shipments, and warranty disputes across the aftermarket supply chain.

Final Diagnosis

A radiator fan that runs constantly is a symptom, not a diagnosis. Short fan operation after hot shutdown can be normal. Continuous full-speed operation when cold, long post-shutdown operation, battery drain, or fan activity that ignores command usually points to a fault. The most useful diagnostic order is: confirm real temperature, read live sensor data, check A/C request, test relay behavior, test module power/ground/command/output, inspect wiring, and measure fan motor current if control parts fail repeatedly.

Replace the part that failed the evidence, not the part that is easiest to see. Sometimes that is a relay. Sometimes it is a fan control module. Sometimes it is a coolant temperature sensor or wiring repair. Sometimes it is the radiator fan motor or full fan assembly. A disciplined test protects the engine, protects the battery, and helps aftermarket buyers choose the correct cooling fan solution for their market.
