Charge Air Cooler Pressure Test: Finding Boost Leaks, Cracks, and Internal Contamination

How Do You Pressure-Test a Charge Air Cooler Safely?

Pressure-test a charge air cooler by first deciding whether the fault could be anywhere in the installed charge-air path or specifically inside the cooler. Follow the exact vehicle or engine service procedure for adapters, test pressure, stabilization time and permitted decay. Use regulated filtered air, clean oil-free collars, positively retained plugs, safety tethers and a remote gauge. Start with the regulator at minimum, increase pressure gradually, keep everyone out of the line of fire and bleed the system to zero before touching any adapter.

There is no universal CAC pressure or decay limit. A value published for one truck, engine or tool kit can damage another system or produce a false conclusion. The result is useful only when the tested boundary, temperature, volume, equipment leakage and acceptance criterion are known. Elecdura's charge air cooler assembly range covers different air-to-air and compact charge-cooling applications, so the diagnostic and replacement evidence must stay tied to the exact application.

Test the Complete Charge-Air Path Before Blaming the Core

A boost leak can occur at the turbocharger outlet, resonator, hot-side pipe, hose, clamp, CAC tank, core, cold-side pipe, sensor seal, throttle or intake connection. A test across the complete installed path is often the fastest way to prove that the system leaks. It does not identify the component until the escaping air is localized or the boundary is divided.

Record the customer's complaint, DTCs, commanded and actual boost if available, operating condition, recent repairs and visible evidence before disconnecting anything. Low power, smoke, slow boost response, high turbo speed, hissing and oil tracks can have other causes. Garrett's diagnostic guidance tells technicians to check filters, hoses, pipes, supports and intercooler cracks or leaks before condemning a turbo. A restricted intake, exhaust fault, control problem or engine condition may resemble a CAC leak.

Visual inspection is necessary but not decisive

Inspect rubbed pipes, split hose folds, loose clamps, damaged beads, misaligned brackets, impact marks, cracked mounting ears, fin damage, wet seams and disturbed connectors. Check whether an engine movement or previous repair is pulling a hose off-axis. GM service information notes that a static visual inspection may not reveal an inadequate charge-pipe connection. A joint can appear seated at rest and open under engine roll, heat or boost.

Photograph hose insertion depth, clamp position and oil tracks before cleaning. Do not assume the wettest point is the source; airflow can carry oil mist away from a small leak. Clean the suspect area after documentation and repeat the prescribed test. If the evidence returns at the joint, correct the connection and retention before replacing the cooler.

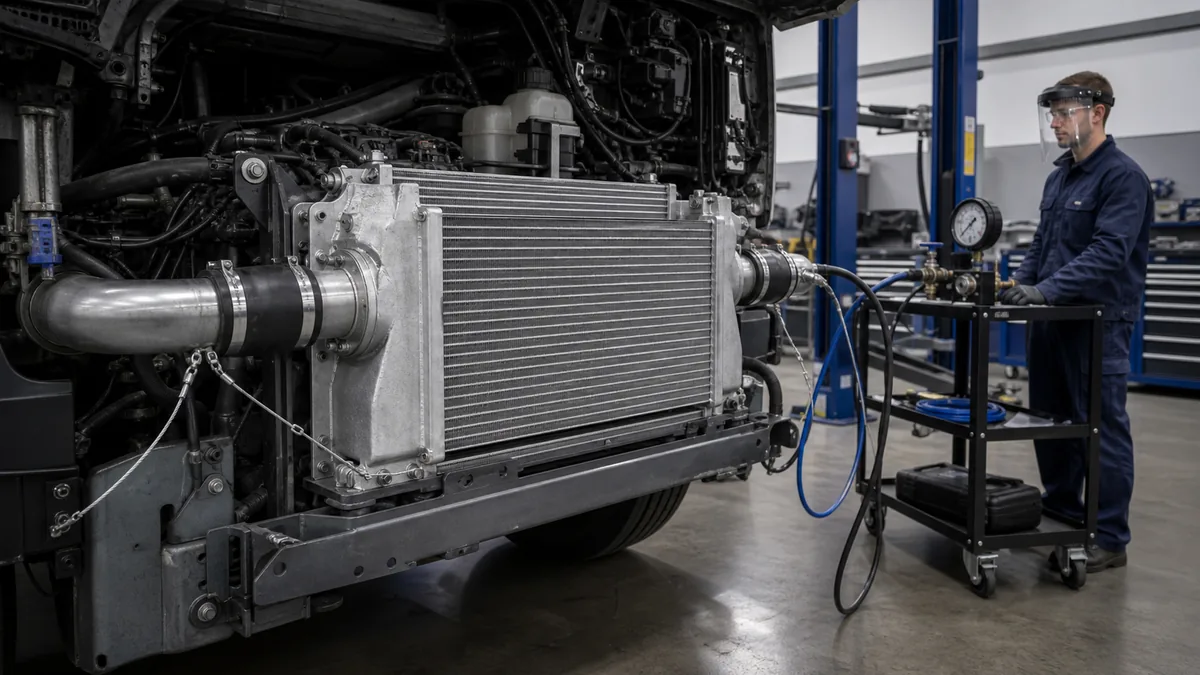

A safe installed-path test uses the prescribed adapters, gradual regulation, positive retention, safety tethers and a gauge outside the coupler line.

Prepare the Vehicle and Tester Before Applying Air

Park and secure the vehicle, allow hot components to cool, and follow the manufacturer procedure for ignition, battery and intake-valve state. Identify the test endpoints and components that must be isolated. Do not apply pressure through a path that could turn the engine, contaminate sensors or force liquid into a cylinder. If the procedure requires removal of a sensor or valve, protect the opening and the component from contamination.

Inspect adapters, collars, hoses, clamps, regulator, gauge, shutoff, bleed valve and safety cables. International/Navistar service material warns that oil or grease on rubber collars and test components can allow metal couplers to be forced out. Clean the parts with the approved method. Reject cut, swollen, hardened or poorly fitting collars. Use the clamp type and engagement specified by the tool or service procedure.

Attach safety cables to the adapter and a suitable stationary structure as instructed. A cable is secondary retention, not a substitute for correct fit and clamping. Position the gauge and controls so the operator can stand clear. Wear eye/face protection and any additional PPE required by the shop. Warn people nearby that the circuit stores compressed energy.

Set the regulator to minimum first

Back the regulator to its minimum setting before connecting the filtered air supply. Open the supply and raise pressure slowly while watching hoses, adapters and the gauge. Stop immediately if a coupler moves, a hose balloons, the fixture distorts or a major leak makes control unstable. Never hold an adapter by hand or strike a clamp while the system is pressurized.

Use the Correct Pressure, Stabilization and Decay Criteria

The service procedure should state the target pressure or pressure range, how long to stabilize, when to isolate the supply, how long to measure and how much loss is allowed. Record starting and ending pressure, elapsed time, ambient or component temperature and the tested volume. Air temperature changes can move the gauge even without a new leak. A hot assembly cooling during the test may appear to lose pressure.

The tester also has leakage. Verify the capped tool or use the manufacturer's check method before attributing a small decay to the CAC. Repeatability matters: a result that changes widely across identical setups indicates unstable adapters, temperature or technique. Do not tighten connections repeatedly until the desired result appears. Find the source of the variation.

Localize the Leak Without Creating Another Hazard

Large leaks may be audible, but hearing alone can misplace the source. Use the leak-localization method approved for the application: a specified soap solution on external joints, an approved smoke diagnostic system, an ultrasonic detector or a divided pressure test. Protect electronics, sensors and coated surfaces. Do not use flammable sprays or an unapproved smoke fluid in the intake path.

GM has published CAC procedures that use an approved smoke leak detector. That demonstrates one valid approach, not permission to introduce any smoke into every engine. Follow the equipment and vehicle instructions, especially for pressure, fluid compatibility, sensor removal and ventilation. A smoke trace from a clamp, sensor seal or duct prevents an unnecessary core replacement.

Check the hose bead, clamp and support together

A connection is a system: tube bead, hose condition, insertion depth, clamp type and position, bracket alignment and engine movement all matter. A new clamp will not correct a cracked hose, deformed plastic neck or misaligned pipe. A new cooler can fail again if its mounting isolates are missing and the pipes load the tank.

Inspect tank-to-core joints and impact zones

On an air-to-air CAC, examine crimped or welded tank joints, tube-to-header regions, corners, mounting bosses and the exposed face. Road impact can fold fins without opening a tube, or it can produce a small crack that grows under thermal cycling. A dark oil track at a seam strengthens the leak hypothesis because charge air commonly carries a light aerosol, but the path must still be verified.

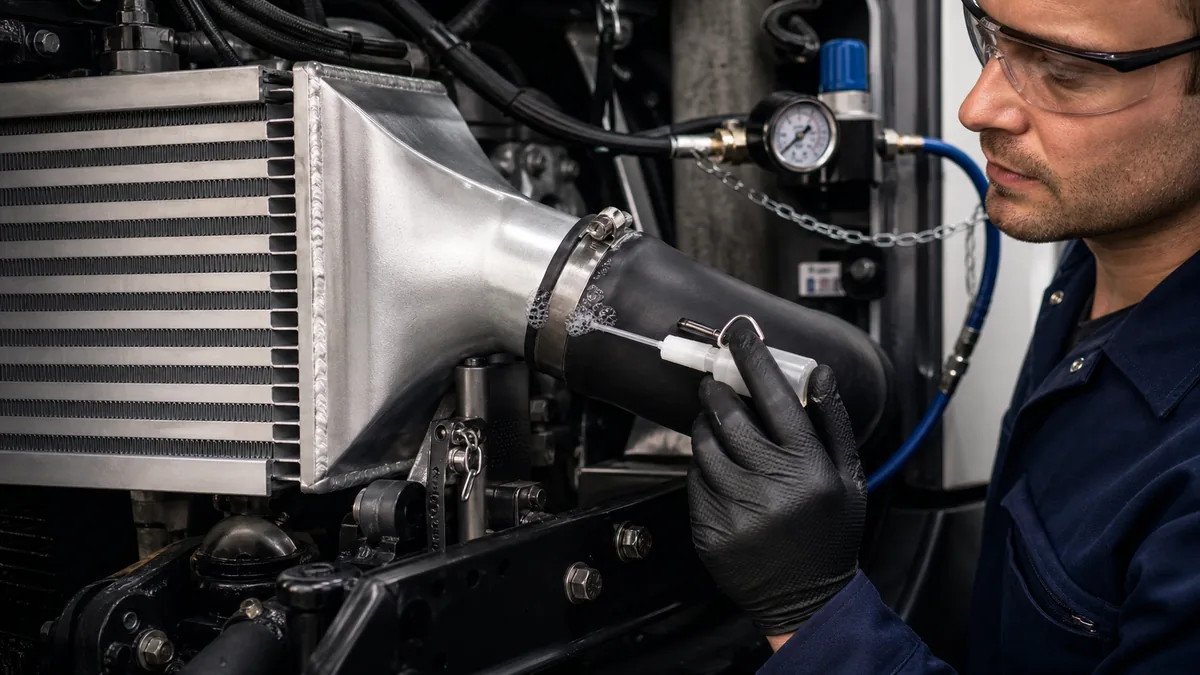

Divide the system and localize the escape at joints, ducts, tank seams or damaged core areas before authorizing replacement.

Interpret a Failed Decay Test by Boundary

Do not use an arbitrary zero-leak expectation. Some service procedures specify an allowed decay, and at least one International/Navistar bulletin warns that charge air coolers should not be treated like radiators in a submersion tank because almost all may show leakage under that unapproved method. Use the procedure that defines the product boundary and acceptance limit.

When Should the Cooler Be Tested Off the Vehicle?

An off-vehicle test can isolate the cooler after the installed system has shown a leak, when access prevents localization, or when internal contamination requires removal. It also allows inspection of hidden surfaces and mounts. However, removing the CAC can disturb a leaking joint and erase evidence. Document the installed condition first.

Cap the correct ports with purpose-designed adapters and retain them exactly as the procedure requires. Support the cooler at its mounts without distorting the tanks or core. Do not improvise expanding plugs, wooden caps or loose sheet-metal plates. Apply the specified regulated pressure gradually and keep the assembly dry unless the manufacturer explicitly authorizes another medium or method.

A passed bench test does not prove the installed system is sealed. It excludes the isolated cooler only within the sensitivity and conditions of that test. Recheck ducts, joints, sensors and components removed from the boundary. It also does not measure cooling efficiency, internal restriction or installed airflow.

Separate Leakage From Restriction and Heat-Rejection Problems

A CAC can hold pressure but still perform poorly. External debris, bent fins, blocked airflow, internal oil/sludge, collapsed passages or an unsuitable replacement can increase intake temperature or pressure drop. Pressure decay measures leakage; it does not provide a complete flow or thermal-performance result.

Compare charge temperature, pressure drop and boost response using the vehicle's diagnostic method. Inspect the entire cooling stack and fan operation. An air-to-air cooler behind a blocked condenser or with recirculating hot air may run hotter without leaking. A liquid-cooled CAC also requires coolant-flow, pump, valve, circuit and internal cross-leak checks. Elecdura's air intake cooling system category shows why air-to-air and liquid-cooled architectures cannot share one generic test conclusion.

What Does Oil Inside a Charge Air Cooler Mean?

A light oil film in a hose or cooler can occur from crankcase ventilation carryover and normal charge-air aerosol on some engines. It is not automatic proof that the turbocharger seal or CAC has failed. Mack/Volvo and Hino service material both caution against condemning a turbo solely because oil is observed in the charge-air system.

Excessive pooling, continuing oil consumption, heavy smoke, loss of power or oil that returns quickly after cleaning requires a broader diagnosis. Check the air filter and inlet restriction, crankcase ventilation system, engine oil level and dilution, turbo oil supply and drain, turbo condition, engine blow-by or misfire and previous failure history. Follow the engine maker's quantity criteria and repair procedure; do not invent a universal depth or volume limit.

Protect against diesel engine runaway risk

A diesel engine may ingest accumulated combustible oil from the intake path. If there is substantial pooled oil, unexplained oil consumption, heavy smoke or a previous turbo failure, do not restart merely to “see if it clears.” Follow the engine manufacturer's safe inspection and recovery procedure. Garrett's diagnostic workflow instructs stopping trials at signs such as excessive oil consumption, black smoke or engine runaway.

Distinguish Oil, Condensate, Coolant and Debris

Collect contaminants in a clean tray and keep samples separated. Note which port, hose or low point released the material. Photograph volume and appearance with a scale, but do not taste or rely on color alone. Use appropriate fluid identification and waste handling. Water from condensation, coolant and cleaning solution can look similar.

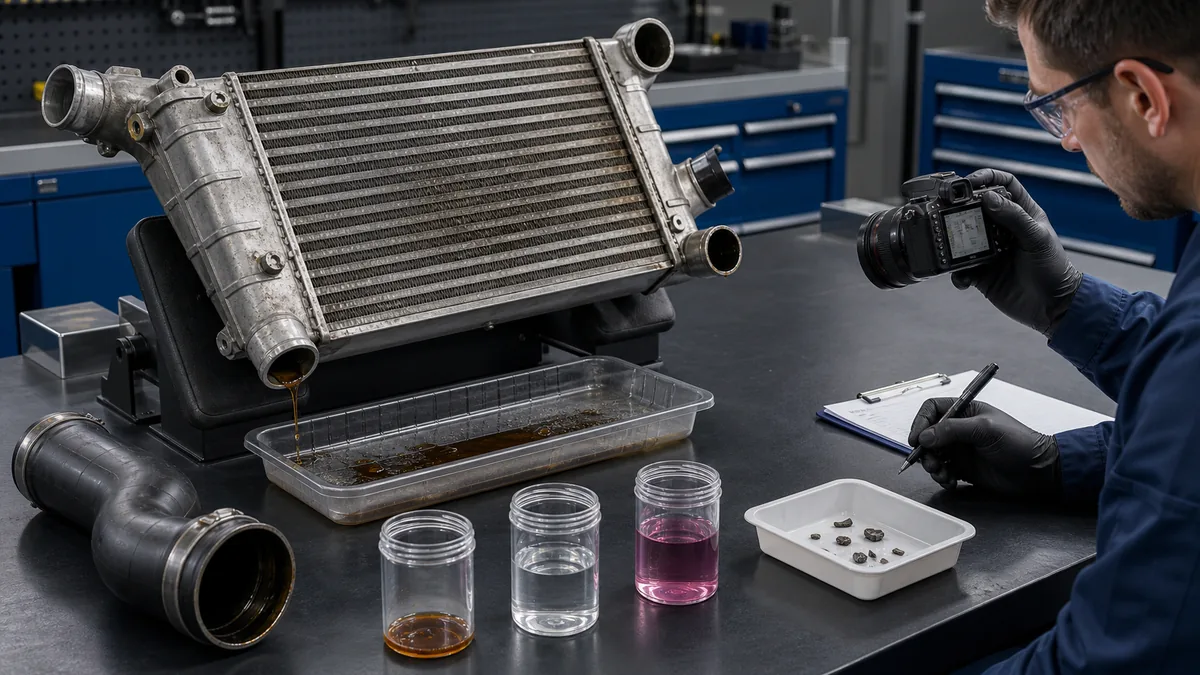

Document the amount, location and type of internal contamination separately; a light film, pooled oil, condensate, coolant and debris imply different investigations.

Do Not Turn Cleaning Into an Automatic Remedy

Some vehicle procedures allow a frozen or contaminated CAC to be removed, thawed, washed and reinstalled when it does not leak. Other failures require replacement. Cleaning permission, chemistry, flushing direction, drying and residual limits are application-specific. Solvent can attack hoses, coatings or seals, while incomplete drying can introduce liquid into the engine.

After a compressor-wheel or foreign-object failure, small fragments may lodge in passages and later enter the engine. Do not assume that rinsing makes the cooler safe. Follow the engine or vehicle policy for the failed component and affected intake path. Preserve warranty evidence before cleaning. If a supplier must authorize disposition, share contamination photographs, recovered material, test results and the upstream root cause.

Inspect Cracks and Mounting Damage Beyond the Wet Spot

A cracked tank or tube may be the final result of mechanical load rather than a material defect. Check missing isolators, loose or distorted brackets, frame movement, collision damage, contact with adjacent components and pipe misalignment. Inspect the opposite mount and hose flexibility. Replacing the core without removing the load can repeat the crack.

For warranty analysis, document crack origin, propagation, corrosion, impact marks, mount position and installed clearances. A leak at a welded neck can arise from a poorly supported pipe; a core-face puncture has different evidence. Keep the failed part dry and protected after testing so residue and fracture surfaces remain useful.

Confirm the Replacement by More Than Core Size

Match the OE number and supersession, vehicle and engine, production split, air-to-air or liquid-cooled architecture, overall core and tank dimensions, port shape and orientation, hose bead, mounting points, isolators, brackets, sensors and airflow direction. Check whether seals, clips, ducts or adapters are included. A similar core can place a pipe under stress or change installed pressure drop.

For liquid-cooled assemblies, also match coolant ports, internal circuit arrangement and test requirements. For complete modules, identify bypass valves, throttle interfaces, temperature or pressure sensors and mounting hardware. Use the Elecdura product center only as a category reference; the approved application record must control the order.

Build a Warranty Evidence File That Can Be Reproduced

Record part and OE references, vehicle/engine and serial or VIN range where appropriate, mileage/hours, complaint, DTCs, boost data, recent work, test boundary, adapter/tool, specified method, start/end pressure, time, temperature, leak location, photographs and contamination. Identify who performed the test and when the gauge/regulator was calibrated or verified.

Keep removed hoses, clamps and mounts with the cooler when the cause is disputed. Mark their orientation without damaging the fracture or seal surface. State whether the result changed after connection repair. This distinguishes a leaking core from a poor installation and gives the supplier evidence that can lead to corrective action.

A Practical Pass, Repair or Replace Decision

Repair a connection when the prescribed test proves the core is acceptable and the fault is a serviceable hose, clamp, seal, bracket or duct. Replace the CAC when the approved procedure confirms a non-repairable core/tank leak, structural crack, unacceptable damage or contamination that the manufacturer says cannot be safely removed. Continue diagnosis when the test passes or oil evidence lacks a proven source.

After repair, repeat the same controlled test, restore all sensors and ducts, clear or retain diagnostic data as required, and verify operation under the service procedure. A single successful static pressure result should not erase evidence of a heat-, motion- or load-dependent connection fault. Confirm that brackets and hoses remain aligned.

What Should a Buyer Send for Charge Air Cooler Sourcing?

Send the OE reference and supersession, vehicle/engine and year or serial range, cooler architecture, clear images of both sides and every port, core/tank/mount measurements, hose connection type, sensor/bracket provisions, included-part scope, failure location, test evidence, target quantity and market. If internal contamination followed a turbo or engine failure, disclose it so cleaning and warranty assumptions are not confused with product quality.

Elecdura can review replacement sourcing when the technical evidence and commercial scope are supplied. Use the Elecdura contact page to send the OE/application, photographs, measurements and order forecast. Final installation and pressure-test values must come from the applicable vehicle or engine service information.

References

• International/Navistar, CAC Leak Test (Air Decay Test) — pressure-test kit, regulator/gauge, bleed and safety-cable context.

• International/Navistar, Off-Vehicle CAC Pressure Test — clean collars, tethered adapters, minimum regulator setting and method limitations.

• Detroit Diesel, Restricted or Cracked Charge Air Cooler — regulated test equipment, safety straps and eye/face protection.

• General Motors, Charge Air Cooler Diagnosis — approved smoke test and application-specific clean/reinstall direction.

• Garrett Motion, Turbocharger System Diagnostics — system checks before replacement, CAC leak/crack and engine-safety context.

• Mack/Volvo, Oil Residue in Charge Air System — oil presence alone does not condemn the turbo.

• Hino, Turbocharger Replacement Guide — light versus excessive oil evidence and broader diagnostic causes.
