Pneumatic Fan Clutch Diagnosis for Heavy-Duty Trucks

A pneumatic fan clutch can remain engaged, fail to engage, cycle incorrectly, leak air, or create noise even when the clutch assembly is not the original cause. Heavy-duty systems combine an ECU request, temperature and pressure inputs, electrical wiring, an air solenoid, supply plumbing, release or engagement pressure, bearings, friction surfaces, and a mechanically loaded fan. Diagnosis must separate these layers before a replacement is ordered.

The most important first question is whether the clutch design is air-to-release or air-to-engage. Many heavy-duty fan clutches are spring-engaged and use air pressure to release, so loss of air can make the fan stay locked as a fail-safe. Other systems use air to engage. Applying the wrong assumption reverses the entire test logic and can make normal fail-safe behavior look like a defective clutch.

This pneumatic fan clutch diagnosis follows the energy path from ECU command to mechanical fan response. Elecdura’s fan clutch range covers vehicle-specific applications, but correct sourcing requires more than fan diameter and bolt pattern. Actuation type, hub geometry, air port, pulley, bearing, connector, fan pilot, and release/engagement behavior must match.

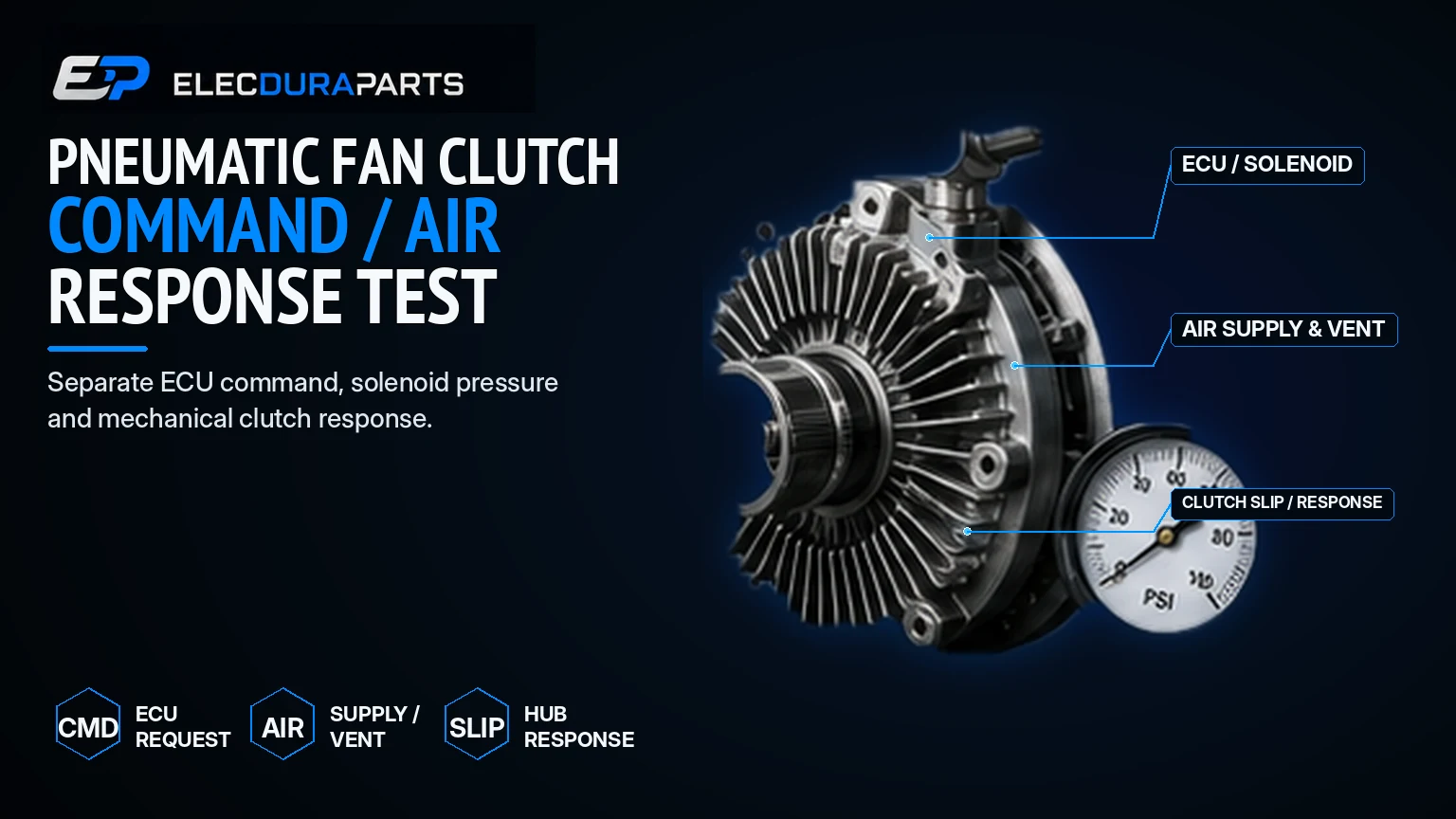

Quick Answer: Diagnose Three States Separately

A fault can exist in any one state. Valid ECU command with no outlet pressure points toward air supply, solenoid, plumbing, or restrictions. Correct clutch-port pressure with no mechanical response points toward the clutch mechanism. Correct command and response with persistent overheating points beyond the clutch to fan direction, blade, shroud, cooler stack, coolant flow, or engine load.

Understand the Actuation Logic

Air-to-release clutch

Spring force engages the clutch when air is absent; air pressure moves the internal piston to release or reduce drive. Loss of supply, a disconnected hose, or a solenoid that fails to deliver air may therefore create a continuously engaged fan and high noise. This fail-safe behavior helps protect the engine, but it increases fuel use and can hide the original pneumatic fault.

Air-to-engage clutch

Air pressure applies the clutch. Missing pressure can produce a fan that freewheels and an overheating complaint. Testing must confirm that the pressure reaches the clutch under an engagement request and is vented under a release request.

Two-speed or modulating designs

Some assemblies provide an intermediate or modulated state rather than simple on/off operation. Others combine a viscous element with pneumatic control. Identify the exact design and expected slip before using a locked/free judgment. An electronic viscous fan clutch uses different command and feedback evidence than a pneumatic friction clutch.

Never infer design from hose presence alone

A visible air line proves pneumatic actuation but does not prove whether pressure engages or releases. Obtain the clutch specification, vehicle pneumatic schematic, or an authoritative service procedure.

Inputs That Cause a Fan Request

The engine controller can request fan operation from coolant temperature, intake manifold or charge-air temperature, A/C pressure, transmission temperature, retarder use, engine braking, exhaust aftertreatment temperature, or an operator switch. It may also engage the fan after detecting a sensor or communication fault.

Fail-safe requests

An unplugged coolant sensor or implausible pressure signal can command the fan continuously even though the clutch, solenoid, and air system work correctly. Record all related codes and scan values. A commanded-on fan is not proof of a stuck clutch.

A/C-related operation

High refrigerant pressure may request fan engagement to increase condenser airflow. If head pressure stays high despite engagement, inspect blade pitch, direction, shroud sealing, condenser blockage, and the complete engine cooling system. Do not replace the clutch solely because the A/C system requested it frequently.

Diagnostic Sequence

1. Reproduce and classify the complaint

Determine whether the complaint is continuous fan roar, overheating, intermittent engagement, slow release, air leakage, vibration, bearing noise, belt damage, or high fuel consumption. Record whether it occurs cold, hot, under load, during A/C operation, after shutdown, or during an engine-brake event.

Keep clear of the fan. A pneumatic clutch can change state without warning. Follow lockout, air-system, engine-running, and rotating-component procedures. Never work in the fan plane or rely on an air line remaining disconnected as the only safety control.

2. Inspect the fan, hub, drive, and air plumbing

Inspect blade cracks, missing material, pitch, pilot fit, fasteners, shroud clearance, pulley alignment, belt condition, hub mounting, bearing play, air hose chafing, fittings, contamination, and solenoid exhaust. A damaged or mismatched fan increases clutch load and can damage bearings or friction components.

Air-line condition affects response time

A kinked, swollen, internally collapsed, excessively long, or contaminated line can delay pressure application and exhaust. Measure at the clutch port rather than assuming solenoid outlet pressure arrives unchanged.

3. Read the ECU command and relevant inputs

Use a scan tool to record requested fan state or percentage, coolant temperature, A/C pressure, charge-air temperature, transmission temperature, and fault codes. If supported, use an output test to command both states. Confirm whether the displayed command describes electrical solenoid state or mechanical clutch state; labels differ by manufacturer.

4. Test the solenoid electrical circuit

Identify whether the ECU supplies power or ground to the solenoid, whether a relay is used, and whether the circuit is duty-cycle controlled. Measure loaded voltage, ground-side voltage drop, coil current, and command. A solenoid can click while its spool remains restricted or its electrical connection loses voltage under load.

Coil resistance is only a preliminary check

A resistance value can identify an open or gross short, but it does not prove spool movement, airflow capacity, hot operation, or connector integrity. Test the complete electrical and pneumatic response.

5. Verify air supply to the solenoid

Measure supply pressure under the conditions that produce the complaint. A vehicle can show normal reservoir pressure yet lose pressure through a restricted branch, frozen dryer, damaged fitting, or protection valve. Follow the vehicle maker’s limits and safe procedures; never loosen a pressurized fitting without controlling the stored energy.

6. Measure solenoid outlet and clutch-port pressure

Compare supply, solenoid outlet, and clutch-port pressure during commanded state changes. Observe how quickly pressure builds and vents. A correct electrical command with no pressure change supports a pneumatic solenoid or supply problem. Correct solenoid outlet but incorrect clutch-port pressure points toward the line, fittings, or a leak between them.

7. Check leakage and exhaust behavior

Listen for leakage only as a clue; quantify pressure decay or airflow according to the service procedure. Leakage may come from a hose, fitting, solenoid exhaust, rotating air union, piston seal, or clutch housing. Some venting during state change is normal. Continuous exhaust requires architecture-specific interpretation.

8. Compare clutch response with port pressure

Once the correct clutch-port pressure is proven, observe fan engagement or release, hub speed, noise, and slip. A tachometer or approved speed data is more reliable than visual estimation. Do not touch or attempt to stop a rotating fan.

Mechanical delay can be evidence

A clutch that receives correct pressure but releases slowly may have contamination, worn seals, damaged piston surfaces, warped friction parts, or mechanical binding. A clutch that engages weakly may have worn friction material, oil contamination, spring damage, or incorrect assembly.

9. Inspect bearings and pulley system

With the engine safely stopped and stored energy controlled, inspect axial/radial play, roughness, seal leakage, pulley alignment, and belt tracking according to service limits. Bearing noise can be mistaken for clutch friction noise. A seized or loose bearing may require a hub or complete clutch assembly rather than an air-system repair.

Command-to-Response Decision Matrix

Common Misdiagnoses

Calling a continuously engaged fan clutch “locked”

An air-to-release clutch normally engages when pressure is lost. Prove whether release pressure reaches the clutch before condemning the friction mechanism.

Replacing the solenoid because the fan stays on

The ECU may be intentionally commanding engagement because of temperature, A/C pressure, sensor failure, or a manual switch. Check command and inputs first.

Testing pressure only at the reservoir

Branch restrictions, the solenoid, a hose, or fitting can reduce pressure at the clutch. Measure at each stage under the complaint condition.

Assuming fan roar proves overheating protection

A roaring fan may be fail-safe engaged during a pneumatic fault even when coolant is cold. Conversely, correct fan engagement does not prove adequate airflow if the blade, shroud, or cooler stack is wrong.

Ordering by truck model and fan diameter

Within one truck platform, engine, horsepower, emission package, production date, pulley ratio, fan pilot, actuation logic, air port, and connector can differ. Match the clutch OE number and drive geometry.

Repair or Replace?

External air hoses, fittings, electrical connectors, and solenoids may be serviceable separately when the manufacturer provides procedures and parts. Internal clutch seals, bearings, friction components, or rotating unions may require a rebuild kit, hub, or complete assembly depending on the design and service policy.

Review the fan clutch repair-or-replace guide for service-boundary considerations. For distributor sourcing, Elecdura’s wholesale fan clutch program supports application-based matching.

Replacement Matching and Wholesale Quality Control

Information required for matching

• Clutch, hub, fan, pulley, and vehicle OE references

• Truck make, model, year, VIN range, engine model, horsepower, and emission level

• Air-to-release, air-to-engage, two-speed, or modulating architecture

• Air port size, thread, angle, fitting, hose routing, and required pressure behavior

• Solenoid voltage, connector, flow direction, port labeling, and control logic

• Pulley diameter, groove count/type, offset, pilot, mounting holes, and rotation

• Fan pilot diameter, bolt circle, blade diameter, blade count, and shroud clearance

• Bearing/hub configuration and included mounting hardware

• Diagnostic pressure, command, leakage, speed, noise, and failure evidence

• Required quantity, sample validation, packaging, corrosion protection, and traceability

Incoming inspection

Verify OE label traceability, casting/machining, pulley runout, bearing smoothness and play, air-port thread and orientation, connector keying, solenoid labeling, fastener quality, fan pilot geometry, and protective packaging. Functional samples should be tested with controlled air pressure and the correct actuation logic. Record engagement/release response and leakage using the application procedure.

Do not apply one leakage or release-pressure limit to unrelated designs. Keep the approved sample, measurement method, air temperature, supply pressure, and fixture volume attached to the exact SKU. Related engine cooling parts, including shrouds and radiators, should be reviewed when a replacement clutch changes fan position or loading.

Related Diagnostic Boundaries

A pneumatic clutch article should not be used to diagnose every fan system. A thermal viscous clutch follows bimetal spring and silicone-fluid behavior; an engagement spring diagnosis applies to that design. Electronic viscous clutches require command and feedback analysis. Electric fans require motor, relay, resistor, module, PWM/LIN, voltage-drop, and current testing. Identify the product before selecting the test route.

When the clutch responds correctly but the engine still overheats, inspect the cooling stack and airflow path, radiator condition, coolant flow, thermostat, cap, combustion load, and operating duty. A correct fan request does not prove the rest of the thermal system.

Application Differences That Change the Replacement

Truck manufacturers can use different clutch suppliers and control strategies across engine families, emissions levels, and production ranges. An Iveco fan clutch application may differ from a Volvo fan clutch in air-port orientation, pulley offset, pilot, mounting pattern, solenoid arrangement, or fail-safe logic even when fan diameter is similar. Treat the vehicle brand as a catalog filter, not as a complete specification.

The same caution applies to Scania fan clutch configurations and Mercedes-Benz fan clutch applications. Record the engine code, horsepower, emission stage, VIN or chassis range, and original clutch label. A superseded OE number may include a revised pulley, bearing, air fitting, or control valve and should be checked as an application update rather than assumed to be an identical casting.

Noise does not identify the actuation architecture

A driver may describe any high fan speed as roaring. The fan clutch roaring-noise guide helps separate normal cold-start or commanded airflow from an abnormal locked state, but pneumatic measurements remain necessary on an air-operated clutch. A generic fan clutch test also cannot replace clutch-port pressure and solenoid-flow evidence.

Keep the original fan loading in the matching record

Fan diameter alone does not define load. Blade count, pitch, material, mass, pilot fit, spacer, and shroud position affect clutch torque and bearing stress. If the vehicle has a non-original blade or spacer, document it and compare against the OE configuration before using the observed load to approve a replacement clutch.

FAQ

Does loss of air make a truck fan clutch engage?

It depends on the clutch design

Many heavy-duty clutches are air-to-release and engage without air as a fail-safe. Others are air-to-engage. Confirm the exact architecture.

Can a fan clutch solenoid click but fail?

Yes

The coil can move while the spool is restricted, ports are contaminated, airflow is inadequate, or the valve fails when hot. Measure pressure and flow response.

Why is the fan engaged when the engine is cold?

Possible reasons include fail-safe air loss, startup strategy, manual request, A/C pressure, sensor faults, or internal clutch binding

Compare ECU command, solenoid state, clutch-port pressure, and mechanical response.

Can I diagnose the clutch by spinning the fan by hand?

No single hand-spin result proves the complete system

Engine-off drag varies by design and temperature. It does not test ECU command, solenoid flow, air pressure, dynamic slip, bearing load, or hot response.

What information should be sent for a replacement quote?

Send both application and physical-actuation data

Include OE numbers, truck/engine/VIN range, actuation logic, air-port details, solenoid voltage/connector, pulley and fan-pilot measurements, mounting geometry, required quantity, and photographs.
