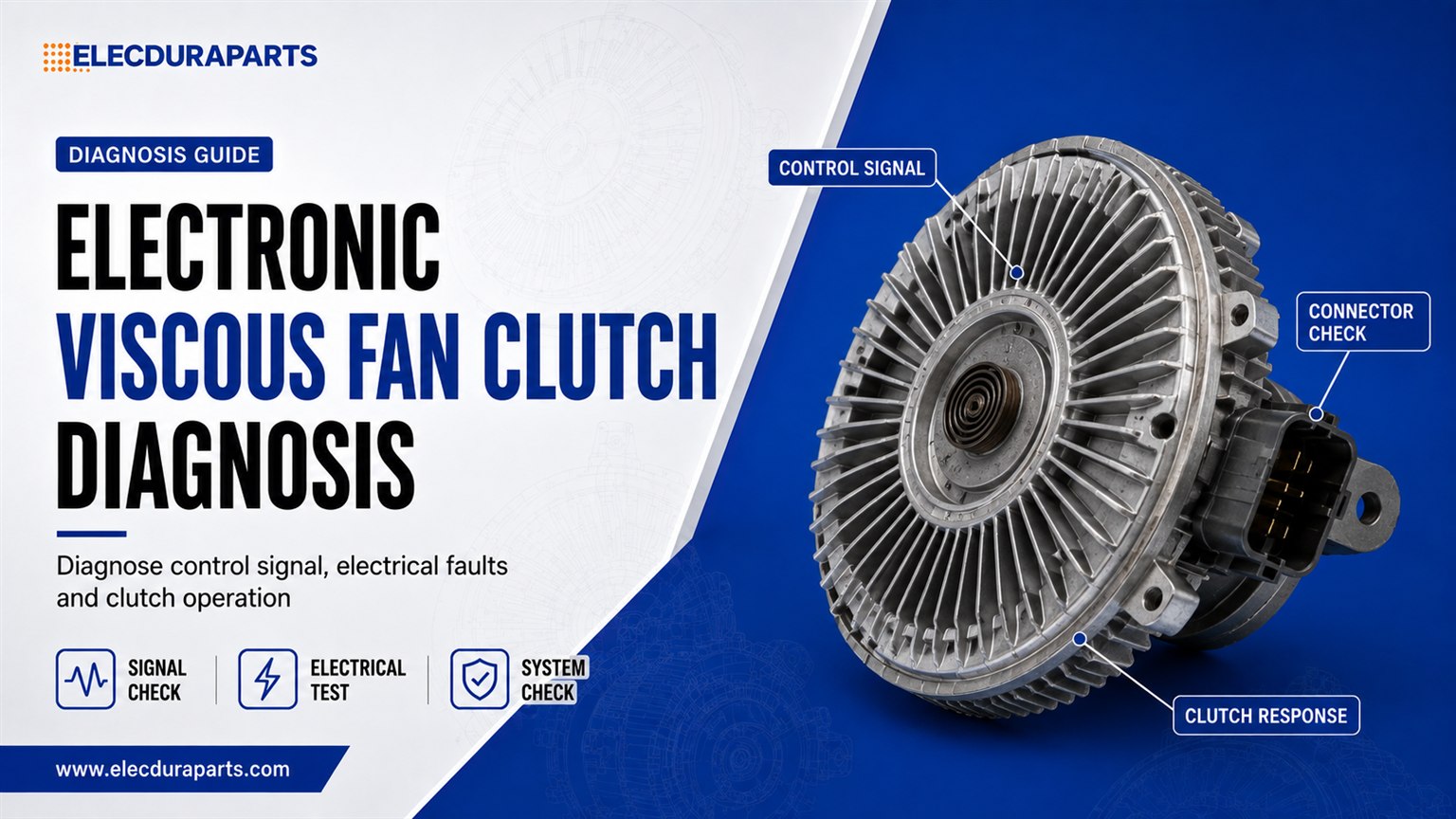

Electronic Viscous Fan Clutch Signal and Speed Diagnosis

An electronic viscous fan clutch is neither a simple electrically driven fan nor a conventional thermal clutch with only a bimetal spring. Engine torque still reaches the fan through viscous shear, but an actuator controls silicone-fluid distribution in response to an ECU command. Many systems also return a fan-speed signal. This combination gives the engine controller more precise cooling authority, yet it creates several failure paths that produce the same complaint: insufficient fan speed, excessive fan speed, a fault code, weak A/C at idle, or overheating under load.

The diagnosis must answer three separate questions. Did the controller request the correct fan state? Did the command reach the clutch in an electrically valid form? Did the mechanical clutch create the expected speed and airflow? Replacing the fan clutch because command and actual speed disagree skips the wiring, power-supply, feedback, calibration, and cooling-demand checks that make the disagreement meaningful.

Quick Decision: Command, Feedback, or Mechanical Slip?

Identify the Electronic Clutch Architecture First

Count wires only as a starting clue

Connector pin count does not establish a universal test method. One design may use power, ground, a pulse-width-modulated control, and fan-speed feedback. Another may control a solenoid on the power side or ground side, use a different duty-cycle convention, or share a reference circuit. Some heavy-duty systems use a normally engaged strategy so loss of electrical control commands more cooling; others default toward greater slip. Obtain the wiring diagram and pin function for the exact engine and clutch.

Do not apply battery voltage to an unknown control terminal

A low-current ECU driver or sensor input can be damaged by a direct jumper. Back-probe with appropriate high-impedance equipment, identify power and ground through the diagram, and use a fused or current-limited method only where the service procedure authorizes it. If the connector or pinout cannot be confirmed, stop the electrical actuation test and complete mechanical and visual identification first.

Determine whether command polarity is inverted

A displayed duty cycle can mislead when the scan tool labels electrical duty rather than requested engagement. In some circuits, a higher displayed percentage means more actuator current and greater engagement; in others, the ECU creates the opposite electrical state. Compare the command with the manufacturer's definition and the measured waveform. Never decide that a clutch “works backwards” from a percentage alone.

The distinction between an electronic viscous clutch and a complete electric radiator fan assembly also matters during sourcing. Similar multi-pin connectors do not make the motors, controls, mounting loads, or diagnostic methods interchangeable.

Decide Whether High Fan Demand Is Justified

Read all temperature and pressure inputs that can request airflow

Engine coolant temperature is only one possible input. A/C refrigerant pressure, intake or charge-air temperature, engine oil temperature, transmission temperature, retarder load, ambient conditions, and aftertreatment strategy may affect requested fan speed. A clutch that engages while coolant appears normal may be responding correctly to another protected system. Review the controller data at the moment the complaint occurs.

Check sensor plausibility before blaming control logic

A biased pressure or temperature sensor can create a valid-looking but false demand. Compare cold-soak temperatures with ambient, compare pressure readings with a calibrated gauge where appropriate, and assess circuit codes or rationality faults. Substituting a clutch cannot correct an ECU that is making a reasonable decision from inaccurate input data.

Consider programmed fail-safe behavior

Loss of a critical sensor, network message, speed feedback, or clutch-control circuit may cause maximum fan demand to protect the engine. That explains why the audible complaint can begin at the same time as an unrelated electrical fault. Scan all relevant modules, not only the engine controller, and preserve freeze-frame data before clearing codes. The article on fan clutch roaring noise covers the mechanical and thermal alternatives when no commanded fail-safe state exists.

Inspect the Connector and Harness Under Load

Separate visual cleanliness from electrical integrity

A connector can look dry and still have poor terminal tension, fretting, a backed-out pin, broken conductor strands, or oil migration inside the insulation. Look for unequal terminal height, seal displacement, green or black deposits, heat discoloration, and harness movement near the rotating fan drive. Perform voltage-drop and waveform checks while the circuit is commanded, because a continuity test with no load may pass through a nearly broken conductor.

Check the ground reference at the clutch

Measure ground-side voltage drop between the clutch connector and the specified battery or engine reference during actuation. A poor ground can reduce actuator current and distort a feedback signal even when static resistance appears low. Shared grounds can also create symptoms only when another high-current device operates.

Use a scope for the command waveform

A multimeter may average a PWM signal and display a plausible voltage while hiding missing pulses, unstable frequency, poor amplitude, or electrical noise. Record duty cycle, frequency, high and low levels, and waveform stability at both the controller side and clutch connector if access permits. Compare the waveform during low and high commands. A correct waveform at the controller but a degraded one at the clutch directs attention to the harness.

Do not load a network or feedback line as though it were a solenoid

Fan-speed feedback may be an open-collector pulse that depends on a controller pull-up. Some systems use a different signaling method. Use the specified test load or scope input. An incandescent test lamp placed on a low-current signal can pull it outside the valid range and create a fault that was not present.

Compare Fan Speed With Pulley or Engine Speed

Measure the two rotating members

The clutch transmits torque with intentional slip, so fan speed needs a reference. Record fan speed and the speed of the clutch input, drive pulley, or engine, accounting for pulley ratio. A single fan RPM value without drive speed cannot show how much slip exists. Mark and measure only through an approved non-contact procedure with guards and rotating clearances respected.

Build a short test record that contains coolant and other relevant temperatures, fan command, measured control waveform, fan-speed feedback, independent fan RPM, and drive RPM. The values should be time-aligned. If fan speed changes before the scan command, the feedback scaling or scan refresh rate may be misleading; if it follows the command but cooling does not change, airflow and heat-transfer checks become more important.

Use trends, not a universal lockup percentage

Expected slip depends on clutch design, fan load, fluid temperature, engine speed, and control strategy. A percentage taken from another application is not a safe acceptance limit. Use service specifications or compare a verified unit under the same conditions. For purchasing, ask whether the supplier's performance test represents the actual part number rather than a generic family.

Confirm the feedback signal independently

If scan data shows an implausible fan speed, use an optical or other approved tachometer. At the same time, measure feedback frequency at the connector and determine pulses per revolution from service information. A stable physical speed with a missing or erratic electrical signal indicates a feedback circuit problem, not necessarily weak torque transfer.

Prove Airflow and Cooling-System Response

A fast fan can still move too little useful air

Incorrect blade pitch, reversed rotation, excessive tip clearance, a partial shroud, missing seals, or stack blockage can reduce airflow even when RPM is correct. Inspect fan diameter, blade count, rotation marking, installed depth, and shroud overlap. Review the system-level differences in mechanical fan versus electric fan architecture before approving substitutions.

Observe what changes when command increases

Measure radiator-discharge air, coolant temperature trend, and A/C pressure where relevant. A strong increase in fan speed with little airflow change suggests geometry or restriction. A strong airflow increase with no coolant response suggests coolant-flow, radiator, or heat-load issues. A head-pressure reduction after airflow rises supports a condenser-airflow relationship, as explained in the fan clutch and A/C diagnosis.

Inspect the complete cooling stack

On trucks and off-highway equipment, dust, chaff, oil mist, and bent fins can block layers that are difficult to see from the front. Separate cores where the approved procedure allows inspection and use light or measured pressure drop rather than judging only the visible face. The off-highway cooling stack inspection provides the broader sequence.

Separate Electronic, Hydraulic, and Mechanical Faults

Internal actuator operation is not the same as torque capacity

An electrical click or current change shows that a solenoid circuit may be active. It does not prove that the control valve meters fluid correctly or that the working chamber can transmit the required fan torque. Conversely, a mechanical clutch can still transmit some torque with an inactive actuator. Use the entire evidence chain rather than one bench observation.

Mechanical wear can distort an electrical diagnosis

Bearing play, drive-hub damage, wrong fan mass, bent blades, or contact with the fan shroud changes required torque and may cause the controller to request more engagement. Inspect rotation, runout, fasteners, and clearances before interpreting slow response as an electronic fault.

Replacement and Wholesale Matching

Collect electrical identity and mechanical dimensions

Send the OE number, engine and equipment model, build year or serial range, connector photographs, terminal count and keying, wiring information if available, fan diameter and blade count, rotation direction, mounting thread or bolt pattern, pilot diameter, installed depth, and required quantity. Include scan codes and a short command-versus-speed record. The same bolt pattern does not guarantee the same default mode, PWM convention, speed-feedback scaling, or torque curve.

Confirm what is included in the supplied unit

Clarify whether the quotation covers the clutch only, clutch and fan, connector pigtail, mounting hardware, or a complete drive assembly. A replacement fan with different inertia or blade pitch can overload a correctly controlled clutch. Review the supplier's approved application rather than combining independently selected components.

Define batch-level electrical and mechanical checks

For wholesale approval, verify connector keying, terminal retention, coil or actuator electrical values, feedback output, bearing condition, pilot and thread dimensions, face runout, leakage, traceability, and packaging support. Functional fixtures should use the specified command frequency and duty convention and should measure fan or output response under a defined temperature and load. A fixture that only energizes the actuator is incomplete.

Use Elecdura's engine cooling parts range to keep the clutch, fan, shroud, and heat exchanger within a consistent system review. Importers can compare the aftermarket program and wholesale supply options, then send the exact application, electrical evidence, mounting photographs, quantity, packaging requirement, and destination to the Elecdura contact team.

Validate the Repair Under the Original Duty Cycle

Repeat the same load with synchronized records

A repair is not proven by clearing the fault code or hearing one engagement event in the workshop. Reproduce the operating condition that created the complaint: hot idle with A/C, a loaded grade, slow off-highway work, retarder operation, or another documented duty. Record the same parameters used for diagnosis, including command, independent fan RPM, drive RPM, relevant temperatures or pressures, and control waveform. Comparing before-and-after records prevents a temporary weather or load change from being mistaken for a successful component replacement.

Check for control adaptation and related codes

Some applications require a reset, calibration, or learned-value procedure; others recognize the replacement without intervention. Follow the exact service information and do not invent a programming step. Scan all modules after the drive cycle, because a missing temperature or pressure message can keep the clutch in protection mode even after its local circuit has been repaired. If the system still reports only a general cooling fan not working complaint, return to architecture identification instead of repeating parts replacement.

Inspect the replacement as part of the rotating system

Confirm fan fastener torque, pilot seating, belt alignment, harness retention, connector locks, blade-to-shroud clearance, and evidence of contact after the hot test. A connector routed too close to the fan can pass an initial command test and fail after engine movement. A mismatch in blade load may also create a response that appears electrically slow. The electrical measurement principles used for radiator fan motor testing are useful for distinguishing supply and signal evidence, although a viscous clutch still requires the separate drive-speed comparison described above.

Keep a reference trace for future warranty analysis

Save one known-good waveform and speed-response record for each important application or batch. It gives a distributor a defensible comparison when a later return arrives with “fan too slow” or “fan always on” as the only description. Combine the record with receiving inspection and the supplier-evaluation principles in the fan clutch supplier overview. For mixed-application stocking, use the wholesale cooling fan range only after separating electronic viscous clutches from electric motor assemblies in the catalog data.

FAQ

Can I command an electronic viscous fan clutch with a generic PWM tool?

Only after confirming pinout, voltage, frequency, polarity, and default strategy

A generic tool can damage a driver or produce the opposite response if its output does not match the clutch. Use the service specification and a current-limited interface. Keep fan speed and rotating safety under control during any bench or vehicle actuation test.

Does 100% scan-tool command mean the clutch should lock solid?

No; the clutch can retain designed slip

The displayed percentage may not equal electrical duty, and maximum command does not necessarily create a rigid mechanical connection. Compare fan speed with drive speed and use the application specification. Do not apply a universal lockup ratio.

Can a missing fan-speed signal cause maximum engagement?

Yes on systems programmed to fail safe, but verify the strategy

The ECU may command high fan speed when feedback is absent or implausible. Other systems set a code without the same response. Check the wiring diagram, service logic, scope signal, and independent fan RPM before replacing the clutch.

Why is a new electronic fan clutch always engaged?

Wrong application, inverted control, circuit failure, or protection logic are all possible

Confirm the part number, pinout, command definition, active codes, control waveform, and default state. Also allow for normal cold fluid distribution. If the command is low and wiring is valid yet the verified fan-speed ratio stays high after stabilization, internal control or mechanical lockup becomes more likely.
