An off-highway cooling stack should be inspected as a layered airflow system, not as one isolated radiator. Excavators, loaders, graders, tractors, harvesters, telehandlers, compact machines, and quarry equipment often place several heat exchangers close together: radiator, hydraulic oil cooler, charge air cooler, A/C condenser, fuel cooler, transmission oil cooler, screen, fan shroud, and sometimes reversible fan hardware. When dust, chaff, mud, seed, fibers, plastic film, insects, bent fins, or oil residue block one layer, several temperature complaints can appear at once.
This guide explains how repair networks, fleet buyers, equipment dealers, and aftermarket parts distributors can inspect the cooling stack before ordering replacement parts. The aim is to separate cleaning problems from true core failure, identify which heat exchanger is affected, and collect evidence that a remote supplier can use. Elecdura supports related categories such as radiators, hydraulic oil coolers, charge air coolers, A/C condensers, radiator fan parts, and other engine cooling parts when buyers provide part numbers, photos, dimensions, and working-condition evidence.

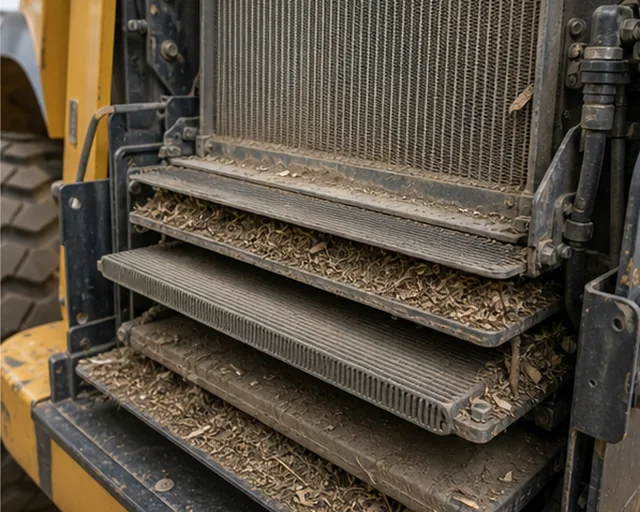

Off-highway cooling stack with debris blockage between radiator oil cooler CAC and condenser layers.
If an off-highway machine overheats, loses hydraulic performance, shows high intake-air temperature, or has weak cab A/C, do not order a radiator, oil cooler, CAC, or condenser from the symptom alone. First inspect the cooling stack from the air-entry side and the fan side. Look between the layers, not only at the visible outer face. Many machines look clean from the outside while the inner face between the radiator and oil cooler is packed with dust and oily debris.
The practical sequence is: confirm the complaint under the working condition, inspect fan and shroud condition, open or separate the stack if the design allows, photograph every layer before cleaning, clean from the low-pressure side toward the dirty side where possible, avoid fin damage, run the machine again, then compare temperatures and performance. Replacement becomes the right decision when the core leaks, is internally restricted, has crushed fins, has separated tubes, has cracked tanks, has worn mounting points, or cannot be cleaned without damage.
A cooling stack is a set of heat exchangers sharing the same airflow. If the front screen or condenser is blocked, the radiator behind it receives hot, slow air. If the hydraulic oil cooler is packed with debris, hydraulic temperature rises and the radiator may also run hotter because the fan is pulling through a restricted stack. If the charge air cooler is blocked, engine intake-air temperature rises, power drops, fuel use may increase, and exhaust temperature can climb. If the fan shroud is missing or the sealing foam is torn, the fan may recirculate hot air rather than pulling fresh air through the cores.
That is why operators often describe mixed symptoms: engine coolant temperature rises during heavy digging, hydraulic oil alarm appears during continuous boom work, A/C cools at idle but fades under load, or the machine overheats only when the ambient temperature is high. A single replacement part may not solve these complaints if the root cause is airflow restriction across the stack.
For distributors and fleet buyers, this matters commercially. A radiator can be returned as "poor cooling" when the actual problem was a blocked oil cooler in front of it. A hydraulic oil cooler can be blamed when the fan belt is slipping. A condenser can be replaced even though the stack seal was missing and hot air recirculated. The best warranty defense is not a long disclaimer. It is a clear inspection process with photos, cleaning evidence, temperature readings, and old-part condition records.
Stack layer | What it controls | Common blockage signs | Replacement signs |
|---|---|---|---|
Radiator | Engine coolant temperature | Coolant temperature rises under load, dirty fins, blocked air path behind front layers | Coolant leak, cracked tank, rotten core, internal tube blockage, badly crushed fins |
Hydraulic oil cooler | Hydraulic oil temperature and system performance | Hydraulic temperature alarm, slow functions when hot, oil residue holding dust | Oil leak, damaged fittings, swollen or split core, internal restriction, broken mounts |
Charge air cooler | Turbocharged intake-air temperature and boost retention | High intake-air temperature, poor power, soot, clogged external fins | Boost leak, cracked tank, separated tube, oil-wet leak track, failed pressure test |
A/C condenser | Cab cooling and refrigerant heat rejection | Poor A/C in heat, high head pressure, blocked front face, bent fins | Refrigerant leak, impact damage, corroded tube, damaged receiver drier area |
Fan, shroud, screen, and seals | Air volume and air path through the stack | Debris on screen, broken shroud, missing foam seals, weak fan airflow | Cracked blade, failed fan motor or clutch, torn shroud, missing guard or seal |

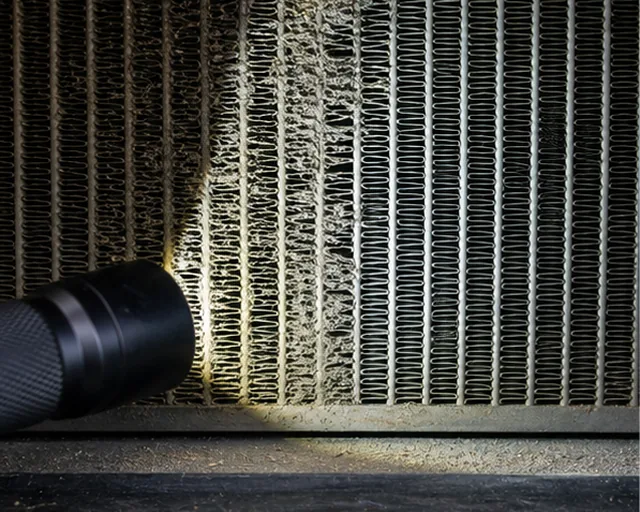

Flashlight inspection through blocked cooling fins to compare dirty and cleaned airflow areas.
Before opening the cooling stack, record when the complaint happens. Engine coolant overheating during road travel is different from overheating during low-speed digging. Hydraulic oil temperature during hammer work is different from temperature during light travel. Weak A/C at idle may suggest airflow, condenser blockage, fan speed, refrigerant charge, or condenser fan problems. High intake temperature under boost may point to charge air cooler blockage or leakage. The condition tells the technician which layer deserves priority.
Useful notes include ambient temperature, machine model, engine hours, attachment use, travel speed, fan mode, load condition, warning lamp, gauge reading, and whether the complaint improves after cleaning the screen. For fleet buyers, attach a short operator note. "Overheats after two hours with hydraulic breaker in 38 C quarry dust" is much more useful than "machine hot." It helps a supplier understand whether the repair is a normal replacement, severe-service upgrade, airflow issue, or maintenance problem.
If the machine has service data or diagnostic software, record coolant temperature, hydraulic oil temperature, intake-air temperature, fan command, fan speed, and fault codes where available. Do not invent readings. A simple infrared thermometer comparison across the stack can still help when factory data is not available. The point is to move from complaint to evidence.
Start with the easy airflow items: side screens, front grille, pre-screen, rotary screen, debris guard, fan guard, shroud, sealing foam, belt, fan blade, and fan direction. A clogged screen can make a good radiator look weak. Missing seals can let the fan pull air around the stack instead of through it. A bent guard can sit against the core and trap debris. A damaged fan blade can reduce airflow and create vibration that cracks cooler mounts.
On machines with reversible fans, confirm the fan is operating correctly and that the reversal cycle is not simply moving debris from one layer to another. Reversible fans help in agriculture, waste handling, forestry, quarry, and dusty construction work, but they are not a replacement for periodic deep cleaning. Heavy oily dust, fibers, grass seed, and mud can remain stuck between stacked cores.
Photograph the air-entry side before cleaning. If the machine is in a fleet, use the same photo angles every time. Over a season, those photos show whether one job site, crop condition, quarry area, or operator practice is creating repeated blockage. That information can guide maintenance intervals and stocking decisions.
The most common inspection mistake is judging the stack by the outermost visible surface. Many off-highway machines use hinged coolers or service gaps so the radiator, hydraulic oil cooler, condenser, and charge air cooler can be separated for cleaning. If the design allows, open the stack and inspect the inner faces. The worst debris is often trapped where two cores face each other.
Look for dry dust mats, oily dust, mud, crop chaff, plastic wrap, paper, cottonwood seed, straw, insects, and bent fins. Oily dust deserves special attention because it may indicate a small hydraulic leak, engine oil leak, crankcase breather issue, or charge air cooler oil seep. If oil coats the fins, fresh dust will stick quickly after cleaning. In that case, replacing a cooler may not solve the blockage unless the leak source is also fixed.
For remote sourcing, inner-face photos are extremely useful. A supplier can see whether the old core failed by leakage, impact, corrosion, fin collapse, debris packing, or wrong cleaning method. If the photos show only dirt and no physical damage, the first recommendation may be cleaning and retesting rather than ordering a new core.
Cleaning can fix the complaint, but the wrong cleaning method can destroy the core. High-pressure water used too close to the fins can fold them over and reduce airflow. Aggressive compressed air can drive debris deeper or bend fins. Harsh chemicals can attack aluminum, copper, solder, paint, seals, or plastic tanks. A safe method depends on the machine, debris type, and core construction.
A general principle is to clean from the clean side toward the dirty side when access allows, pushing debris back out rather than deeper through the stack. Use moderate pressure, distance, and a wide spray pattern. For dry dust and chaff, low-pressure air and careful brushing may be enough. For oily dirt, a suitable cleaner and rinse may be needed, but the technician should protect electrical components, bearings, belts, and nearby sensors. After cleaning, inspect the fins again rather than assuming the stack is clear.
Do not hide cleaning damage. If fins were already crushed before service, photograph them. If cleaning caused fin folding, record it and decide whether the core can still pass enough air. A cleaned core with 30 percent of the face flattened may still perform poorly. A heavily corroded radiator or oil cooler may begin leaking after debris is removed because the dirt was masking a weak area.
After cleaning, run the machine under the same condition that created the complaint. A no-load idle test may not prove anything if the original problem happened during digging, mowing, harvesting, hammer work, towing, or high travel speed. Compare temperatures before and after cleaning if readings were recorded. Check whether the warning returns, how fast the temperature rises, and whether fan airflow feels stronger through the stack.
If performance improves, the first problem was airflow restriction. The repair may still require maintenance changes: shorter cleaning intervals, screen repair, leak repair, shroud seal replacement, operator inspection checklist, or better packing of replacement cores. If performance does not improve, inspect for internal restrictions, leaks, fan problems, thermostat issues, pump flow, coolant condition, hydraulic load, or charge air leakage. The stack is only one part of the thermal system.
For warranty and procurement, save before-and-after photos and readings. They show whether the replacement part is being requested because cleaning failed, because the core leaked, or because the machine needs a different specification. A supplier can quote more accurately when the buyer separates "dirty but serviceable" from "damaged and must be replaced."
The radiator should be checked for external fin blockage, coolant leak, cracked plastic tank, solder or brazed joint failure, cap neck damage, loose mounting pins, internal scale, and restricted tubes. Off-highway radiators can be damaged by vibration, poor mounts, fan contact, pressure-cap problems, coolant neglect, and corrosive water. If the radiator face is blocked by dirt from the condenser or oil cooler in front of it, replacing the radiator alone will not solve the airflow problem.
Ask for core height, core width, core thickness, tank layout, inlet and outlet positions, cap neck, drain plug, mounting brackets, and fan shroud points before ordering. Some machines use similar-looking radiators with different mounting holes or hose angles. If the machine has been repaired before, the old radiator may not match the original catalogue exactly. Photos and measurements reduce wrong-fit shipments.
Replace the radiator when there is clear leakage, structural damage, severe fin loss, internal blockage, repeated overheating after verified cleaning and airflow checks, or pressure-test failure. Do not replace it only because the coolant gauge is high. The radiator may be innocent if the fan, shroud, thermostat, water pump, coolant mixture, or front stack layers are the real cause.
Hydraulic oil coolers in off-highway machines work under demanding conditions. They may be exposed to pressure pulsation, vibration, oil contamination, hose stress, fan blast, debris, and rough cleaning. External blockage raises hydraulic oil temperature and can make functions slow, noisy, or inconsistent. A leak at the oil cooler can also coat the fins with oil, which traps dust and creates a self-reinforcing blockage.
Inspect hose fittings, port orientation, mounting brackets, fan clearance, rubber isolators, and any guard that protects the cooler. Check whether the cooler is separate or combined with other cores. If a hydraulic cooler is replaced, the buyer should confirm pressure rating, port thread, flow direction where relevant, core size, mounting hole pitch, and whether the machine uses a bypass or thermostat in the hydraulic cooling circuit. A cooler that looks similar but has the wrong port angle can create hose stress and early leakage.
Replace the hydraulic oil cooler when it leaks, fails pressure testing, has internal restriction, has damaged ports, has cracked mounting areas, or has fin damage that cannot be cleaned without unacceptable airflow loss. If the cooler failed after a pump or motor failure, check for contamination in the oil and filters. A new cooler installed into dirty hydraulic oil can be damaged or restricted quickly.
The charge air cooler, often called the CAC or intercooler, reduces the temperature of compressed intake air from the turbocharger. External blockage reduces heat rejection, while internal leakage reduces boost pressure. A blocked CAC can contribute to high intake-air temperature, reduced power, soot, increased fuel use, and higher thermal stress. A leaking CAC can sound like a boost leak and may leave oil-wet tracks near cracks or tube joints.
Inspect the CAC face for dirt, bent fins, oil residue, cracked tanks, loose clamps, damaged boots, and broken mounts. If possible, pressure-test the CAC according to the machine's service limits. Do not confuse normal light oil mist in intake piping with a failed cooler, but do investigate wet streaks, split boots, or obvious cracks. A damaged charge air cooler can make the engine work harder and worsen heat load on the rest of the stack.
Before ordering, record core size, inlet and outlet diameter, tank shape, mounting points, sensor ports, and pipe orientation. The CAC must line up with intake piping without stress. A similar core with a different outlet angle can create boost hose problems and repeat failures. For parts distributors, clear photos of both tanks and ports are essential.
The A/C condenser is often near the front of the cooling stack, so it catches insects, chaff, plastic film, and stone impact. When the condenser face is blocked, cab cooling can fall and system pressure can rise. The condenser can also block airflow to the radiator and oil cooler behind it. In hot cabins, operators may report only "A/C weak," while the same blockage is also reducing engine cooling margin.
Inspect the condenser for external blockage, bent fins, refrigerant leaks, damaged receiver drier area if integrated, cracked tubes, loose mounts, and rubbed lines. If the condenser is packed with debris, clean and retest before replacing it. If it leaks or has severe impact damage, replacement is appropriate. When replacing, confirm core dimensions, fitting type, port angle, bracket positions, and receiver drier configuration.
Because the condenser may sit in front of several other cores, a damaged condenser can be a cooling-stack issue, not only an A/C issue. For distributors selling both cooling and A/C parts, it is useful to quote condenser, radiator, fan, shroud, and dryer-related items together when the machine had front-end damage or long-term blockage.
Cleaning is usually enough when the core is structurally sound, the fins remain open after careful cleaning, there is no leak, mounting points are intact, and temperatures return to normal under the same working condition. A machine that overheated only because the outer screen was blocked should not receive a new radiator unless testing shows additional damage. Good cleaning evidence can save money and prevent unnecessary parts returns.
Replacement is better when there is a leak, internal restriction, severe corrosion, crushed fin area that cannot pass air, cracked tank, damaged fitting, broken bracket, pressure-test failure, boost leak, or repeated overheating after verified cleaning and airflow checks. Replacement is also reasonable when downtime cost is high and the old core is near the end of life, but the buyer should still document why the replacement is needed.
Sometimes cleaning and replacement both happen. A leaking hydraulic oil cooler may need replacement, while the radiator and condenser only need cleaning. A cracked CAC may need replacement, while the fan shroud and seals also need repair. A radiator may be replaced, but the stack should still be cleaned before the new part is installed. Installing a clean new core behind a dirty front layer is an expensive way to repeat the same complaint.
For a reliable quote, send the machine model, serial number if available, engine model, application, operating environment, old part photos, core measurements, port and fitting photos, mounting bracket photos, fan-side and air-entry-side stack photos, and the symptom condition. For hydraulic oil coolers, include port thread and pressure context where known. For charge air coolers, include pipe diameters and pressure-test result. For condensers, include fitting type and receiver drier configuration. For radiators, include tank layout, inlet and outlet positions, cap neck, drain plug, and shroud mounts.
Also send cleaning evidence if the complaint is overheating or poor cooling. Photos before and after cleaning help the supplier decide whether the old core failed or the stack was simply blocked. Temperature readings before and after cleaning are even better. If a core leaks, mark the leak point on the photo. If a fitting is damaged, show the fitting and the hose or pipe attached to it. If the core was hit by debris or a fan, show the impact path.
For importers and distributors, convert that evidence into catalogue fields. Do not rely only on a machine model name. Record core size, thickness, material, port type, bracket pitch, fan shroud compatibility, combined-core arrangement, and packaging requirement. Off-highway heat exchangers are often large and easy to damage in shipping, so carton strength, corner protection, face protection, pallet plan, and label clarity matter.
Off-highway cooling-stack inspection is a practical way to prevent wrong parts and repeat warranty claims. The machine may need a radiator, hydraulic oil cooler, charge air cooler, condenser, fan, shroud, seal, hose, or only a careful cleaning. The correct answer comes from evidence: where the blockage sits, which temperature rises, whether the core leaks, whether airflow is strong, and whether the machine improves after cleaning.
