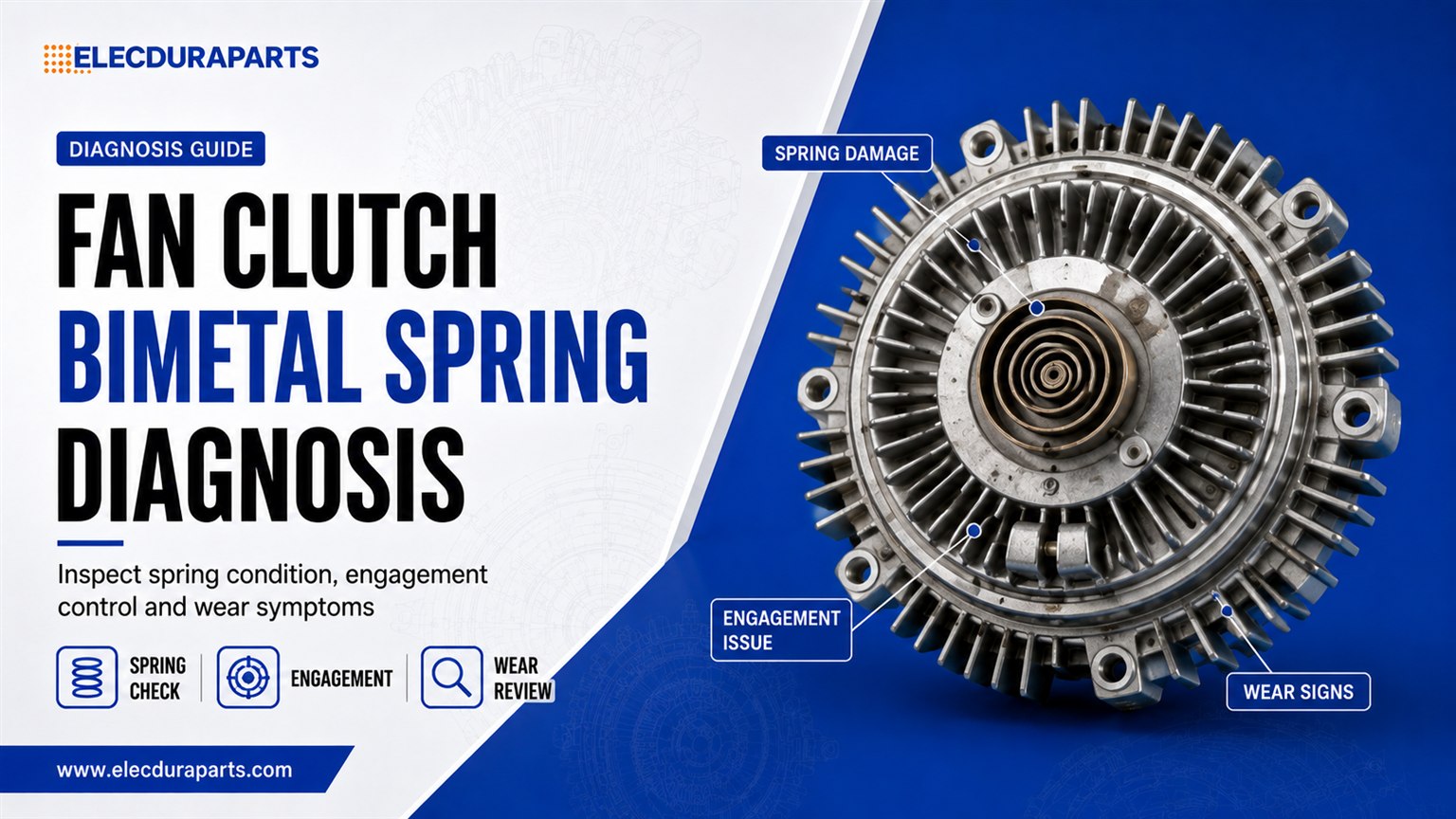

A fan clutch bimetal spring does not respond directly to coolant temperature. It senses the temperature of the air leaving the radiator and moves a small control shaft or valve as the spring changes shape. That distinction explains why a mechanically sound clutch may stay disengaged when radiator airflow is bypassing the spring, and why a clutch can engage even when the dashboard gauge does not yet appear unusually high.
Diagnosis therefore has to connect four events in the correct order: the engine creates heat, coolant carries that heat to the radiator, air absorbs it as it crosses the core, and the heated discharge air reaches the clutch face. Replacing a fan clutch before proving this thermal path can leave the original overheating or excessive-noise complaint unchanged.
The spring rotates or pushes a control mechanism that meters silicone fluid into the clutch working chamber. More fluid in the shearing area increases torque transfer from the drive plate to the fan. Less fluid allows greater slip. The spring is only the temperature-sensitive input; it is not the torque-producing element. A correct spring movement cannot overcome an empty fluid reservoir, a damaged internal valve, worn working surfaces, or a failed bearing.
Observation | What it suggests | What it does not prove |
|---|---|---|
Spring changes position when heated | The exposed sensing element is responding | Correct calibration or internal fluid transfer |
Spring remains fixed | Corrosion, mechanical damage, or an inappropriate test temperature | That the complete clutch cannot transmit torque |
Fan becomes louder after hot idle | Clutch engagement may be increasing | That engagement speed and duration are correct |
Fan roars from every cold start | Fluid drain-back, valve position, or a locked clutch needs evaluation | A failed bimetal spring by itself |
Engine overheats but spring area stays cool | Hot radiator-exit air is not reaching the sensor | That the clutch should already be fully engaged |
A thermostat that remains closed, an air pocket, a restricted hose, low coolant level, or a slipping water pump can leave part of the radiator cool while the engine becomes hot. In that condition, the bimetal element may be reporting the air temperature accurately. Compare inlet and outlet temperatures across the radiator and look for a plausible temperature distribution rather than focusing on one hot point. An infrared camera can show patterns, but emissivity, reflective metal, dirt, and viewing angle affect the reading.
The coolant sensor and the clutch spring occupy different parts of the heat-transfer chain. ECU filtering can also make the displayed gauge deliberately stable across a range of actual coolant temperatures. Record scan-tool coolant temperature, radiator inlet temperature, radiator outlet temperature, and air temperature immediately behind the core. The relationship between them is more useful than any one value.
Missing foam seals, open service gaps, an incorrectly installed shroud, or a non-original cooling stack can let cool ambient air reach the clutch face without crossing the hot part of the radiator. The spring then receives a diluted temperature signal. A damaged fan shroud can produce the same misleading result while also reducing airflow at idle.
Inspect the gap between the radiator, condenser, charge-air cooler, and support panels. On heavy-duty applications, debris may block one section of the stack while air finds an easier path around another. The sensing spring should be exposed to representative radiator-discharge air, not to a localized cold leak path.
Front-of-vehicle ambient temperature is not the controlling input. Place a suitable probe in the discharge-air stream without allowing it to contact the fan. Follow the vehicle maker's safety procedure and keep leads, clothing, and tools outside the rotating envelope. For a road-load complaint, a stationary test may need controlled load and airflow to reproduce the same stack temperature.
Some thermal fan clutches use a visible spiral coil; others use a flat bimetal strip. Their motion direction, travel, and attachment method differ. A replacement chosen only by fan bolt pattern can have a different temperature response even if it physically fits. Compare the clutch face, pilot diameter, mounting depth, rotation direction, and thermal-control design with the original unit; the broader list of fan clutch failure signs should not override these application-specific measurements.
Corrosion around the spring anchor, paint overspray, impact damage, an incorrectly refitted retaining clip, or a bent cover can restrict movement. Road dirt on the face normally changes heat transfer gradually; a heavy coating of oil or sealant can insulate the sensor more significantly. Photograph the spring at a known cold condition before applying controlled heat so its movement can be compared.
Bending an exposed bimetal element changes preload and can shift the valve position without establishing the intended engagement curve. It may create continuous engagement, noise, reduced fuel economy, and excessive fan stress, yet still fail to provide the correct hot response. A field adjustment also destroys useful warranty evidence and makes later diagnosis ambiguous.
A heat gun aimed closely at one point can overheat the cover, seals, or spring before the measured air temperature represents real service. Use a controlled, distributed heat source and a temperature probe near the element. Increase temperature gradually while recording spring position. The purpose is to confirm smooth and repeatable movement, not to force maximum travel.
Exact calibration temperatures are application-specific. Do not import a threshold from a different clutch, engine, fan diameter, or radiator arrangement. If the maker does not publish the curve, compare a suspect unit with a verified original sample under the same fixture and airflow conditions. A simple go/no-go observation can identify a seized element, but it cannot certify calibration for a batch order.
Bimetal systems have thermal lag and may show hysteresis between heating and cooling. Record both directions. Jerky motion, failure to return, or a large change between repeated cycles can indicate mechanical friction or damage. However, some difference between the heating and cooling paths can be normal; the decision needs the application specification or a controlled reference unit.
The exposed element can move while the internal valve remains disconnected, obstructed, or unable to move silicone fluid. Conversely, an internal fault can keep the clutch engaged regardless of spring position. After the thermal movement check, measure the actual change in fan behavior. This is the point at which a fan clutch test must include speed or airflow evidence.
A viscous clutch is designed to slip; it should not be judged as a simple on/off coupling. Use non-contact speed measurement where the service procedure permits, and record engine or pulley speed and fan speed under defined cold and hot conditions. The ratio should change as the clutch engages. Fan diameter, blade mass, drive ratio, and test load all influence the result, so an unreferenced universal percentage is not a safe replacement criterion.
Fan roar is useful when it changes predictably with discharge-air temperature, but noise can also come from aggressive blade geometry, bearing damage, belt problems, or contact with the shroud. A known temperature rise followed by higher fan speed and stronger airflow is more persuasive than sound alone. The existing guide to fan clutch roaring noise should handle the separate question of normal cold-start roar versus a clutch that stays locked.
A marginal clutch usually reveals itself at low road speed, under towing load, or during prolonged idle, because vehicle motion no longer supplies enough ram air. Record coolant temperature trend, condenser pressure when A/C is operating, and discharge-air temperature while the fan response changes. If cooling is normal at highway speed but deteriorates at idle, the thermal clutch is one candidate, but core blockage, recirculation, fan blade orientation, and shroud sealing remain competing causes.
When the complaint is weak air-conditioning at idle, verify condenser condition and refrigerant charge before declaring that the fan clutch affects A/C. High head pressure that falls as verified fan airflow increases is useful evidence. Pressure alone does not identify which airflow component is responsible.
Failure area | Typical evidence | Best confirmation |
|---|---|---|
Bimetal element or linkage | No, restricted, or non-repeatable movement under controlled temperature | Measured heat-cycle comparison with specification or reference unit |
Internal silicone-fluid circuit | Spring moves but hot speed ratio and airflow do not increase | Hot operational test after proving discharge-air temperature |
Bearing | Roughness, play, leakage, or noise unrelated to thermal state | Mechanical inspection using the maker's limits |
Locked working chamber | Persistent high fan speed and roar after normal warm-up transitions | Cold-to-hot speed history and internal clutch evaluation |
Cooling-system heat path | Engine hot but radiator or clutch-face air does not follow | Coolant flow and temperature mapping |
Air bypass or recirculation | Uneven discharge temperature and poor idle cooling | Seal, stack, shroud, and airflow inspection |
A worn or partially seized bearing may make the fan difficult to turn and create noise, but that resistance is not controlled torque transfer. Look for axial or radial play, roughness, heat discoloration, and lubricant leakage. Do not use a hand-spin duration as the only verdict; oil distribution and temperature change the feel of a viscous clutch.
External oily residue around the clutch seam or shaft can support a fluid-loss diagnosis, especially when the spring responds but the fan never develops the expected hot airflow. Residue must be localized carefully because engine oil, belt dressing, and road contamination can reach the clutch face. Cleaning the area and observing a controlled heat cycle provides stronger evidence than a single stained photograph.
Some clutches produce a temporary cold-start roar after fluid settles into the working chamber. The sound should reduce as fluid redistributes. A fan that remains strongly coupled can have a stuck internal valve, distorted working plates, contamination, or incorrect replacement calibration. Use the decision process in fan clutch repair or replace rather than altering the spring.
For replacement matching, provide the OE number, vehicle or equipment model, engine, model year or serial-number range, fan diameter, blade count, rotation direction, hub or pilot size, mounting thread or bolt pattern, and overall installed depth. A clutch with the wrong offset can move the fan outside the shroud's effective zone or reduce clearance to the radiator. The mechanical versus electric fan architecture must also be confirmed before a quotation is compared.
Take straight-on images of the bimetal face and the fan-mounting face, plus a side image with a scale. Mark vehicle front and rotation direction. Perspective can make coil diameter, pilot depth, or mounting offset appear compatible when it is not. If the old unit has been adjusted or damaged, say so rather than treating its spring position as the original calibration reference.
Two clutches can share threads and fan mounting dimensions but use different engagement curves because radiator capacity, engine duty, noise targets, and fan blade load differ. For fleet or distributor orders, request the supplier's application reference and test method. Avoid claims such as “heavy duty” unless the clutch has defined torque capacity, speed, temperature response, and application coverage.
A sample plan should cover visible spring retention, cover damage, seam leakage, bearing feel, pilot and mounting dimensions, fan-face runout, packaging support, and traceability. Thermal response can be checked in a controlled fixture, but the fixture needs repeatable air temperature, airflow direction, heating rate, and position measurement. Comparing random samples under uncontrolled heat does not establish a meaningful acceptance limit.
A carton that supports the clutch by the exposed spring or control face can change calibration before installation. Use caps, trays, or clearance features that prevent direct load on the bimetal element and protect threads and pilot surfaces. Keep units in the specified orientation if the manufacturer requires it, and investigate oil staining rather than wiping it away during receiving inspection.
Agree on the photographs, temperature records, speed data, and installation information required for a claim. A returned clutch with a bent spring provides different evidence from a unit whose spring moves normally but whose hot speed ratio remains low. Traceable production codes allow the supplier to determine whether a complaint is isolated or associated with a material, fill, calibration, or assembly lot.
Importers can review the broader fan clutch supplier landscape, but supplier names do not replace application-specific validation. Use the aftermarket parts program to define the required application coverage and the wholesale program to align packaging, traceability, quantity, and delivery terms. For a wholesale inquiry, send Elecdura the OE reference, engine and equipment details, mounting-face photographs, fan diameter and rotation, installed depth, required quantity, and any measured hot/cold speed or temperature evidence through the contact page.
A heat gun can demonstrate whether the exposed element moves, but concentrated heat can damage parts and does not prove the original calibration. Measure temperature at the spring, heat gradually, record position, allow cooling, and then confirm actual fan-speed or airflow response under service conditions.
Coolant must first reach and transfer heat through the radiator. Ambient temperature, radiator load, airflow, thermostat behavior, and stack condition all affect the air reaching the clutch. Use a probe at the clutch face rather than equating coolant temperature with spring temperature. If the complaint is engine-speed disturbance rather than overheating, assess the separate question of whether a fan clutch can contribute to rough idle under the exact engagement condition.
On many automotive clutches, the sensing element and internal valve relationship is established during manufacture and the unit is serviced as an assembly. Installing an unverified spring or changing preload can alter engagement behavior. Confirm the specific clutch's approved service scope before separating components.
A correct new clutch cannot respond to hot air that never reaches its sensor. Also check installation depth, rotation direction, fan blade and shroud geometry, coolant flow, radiator condition, and the replacement's calibration/application reference. Do not assume the new part is correct merely because it bolts on.
Where a mechanical architecture is being converted or compared with an electric assembly, review the available engine cooling parts as a system and confirm control strategy, fan performance, shroud coverage, and electrical capacity before approving a change.
