| OEM / Reference |
|---|
| 162-6198 |
| Brand | Model |
|---|---|
| CAT | E308B |
| Item | Details |
|---|---|
| Overall Dimensions | 515 × 590 mm |
| Inlet Diameter | 32 mm |
| Outlet Diameter | 32 mm |
Elecdura supplies this aftermarket radiator for wholesalers, distributors, and dealer inventory programs. Reference numbers are used for product identification only. This product is not supplied as a genuine OEM part.
| Item | Details |
|---|---|
| Minimum Order | 100 pcs per model |
| Lead Time | 60 days |
| Warranty | 12 months |

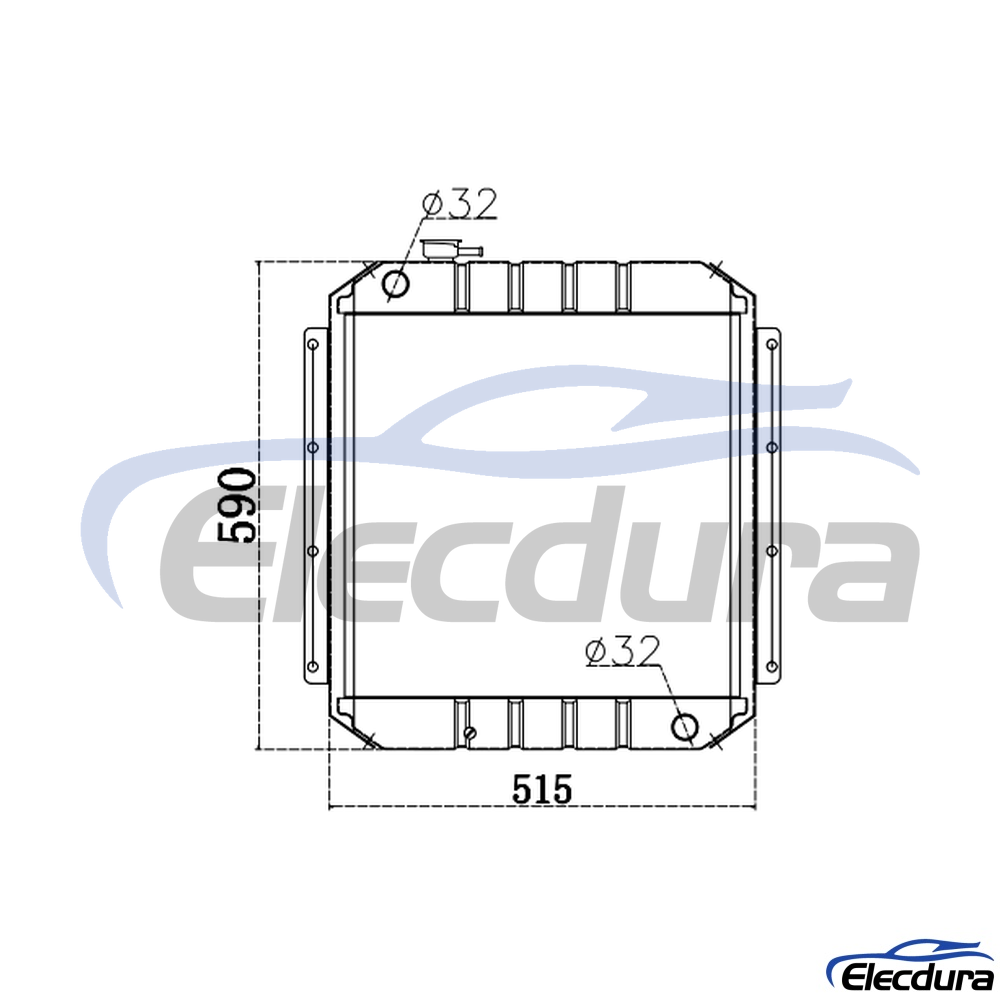

The principal size details for reference 162-6198 are Overall Dimensions: 515 × 590 mm. They describe the radiator used for CAT E308B and should be considered together with the mounting arrangement and connection layout.
For the 162-6198 radiator, use Inlet Diameter: 32 mm; Outlet Diameter: 32 mm. A hose diameter can match while the outlet position differs, so distributors should compare the complete tank and connection layout.
Reference 162-6198 is used for an aftermarket radiator on CAT E308B. Do not extend this application to other machines solely because they share the same brand or series name. Compare the hose positions and mounting points with the existing radiator before ordering.
Cooling performance that becomes less stable as workload increases, damp hose joints around the inlet and outlet, and local fin damage that creates uneven cooling across the core are common warning signs. The practical result is less consistent cooling and a greater risk of work interruptions under load.
A complete inquiry should include reference 162-6198, the application CAT E308B, order quantity, and clear photos showing the upper and lower hose connections. Include Inlet Diameter: 32 mm. If the order needs custom labeling or packing, state those details at the same time.
The standard minimum order is 100 pcs per model, the normal lead time is 60 days, and the warranty period is 12 months for the 162-6198 radiator used on CAT E308B. For mixed-model purchasing, state the quantity required for each reference before quotation approval.
