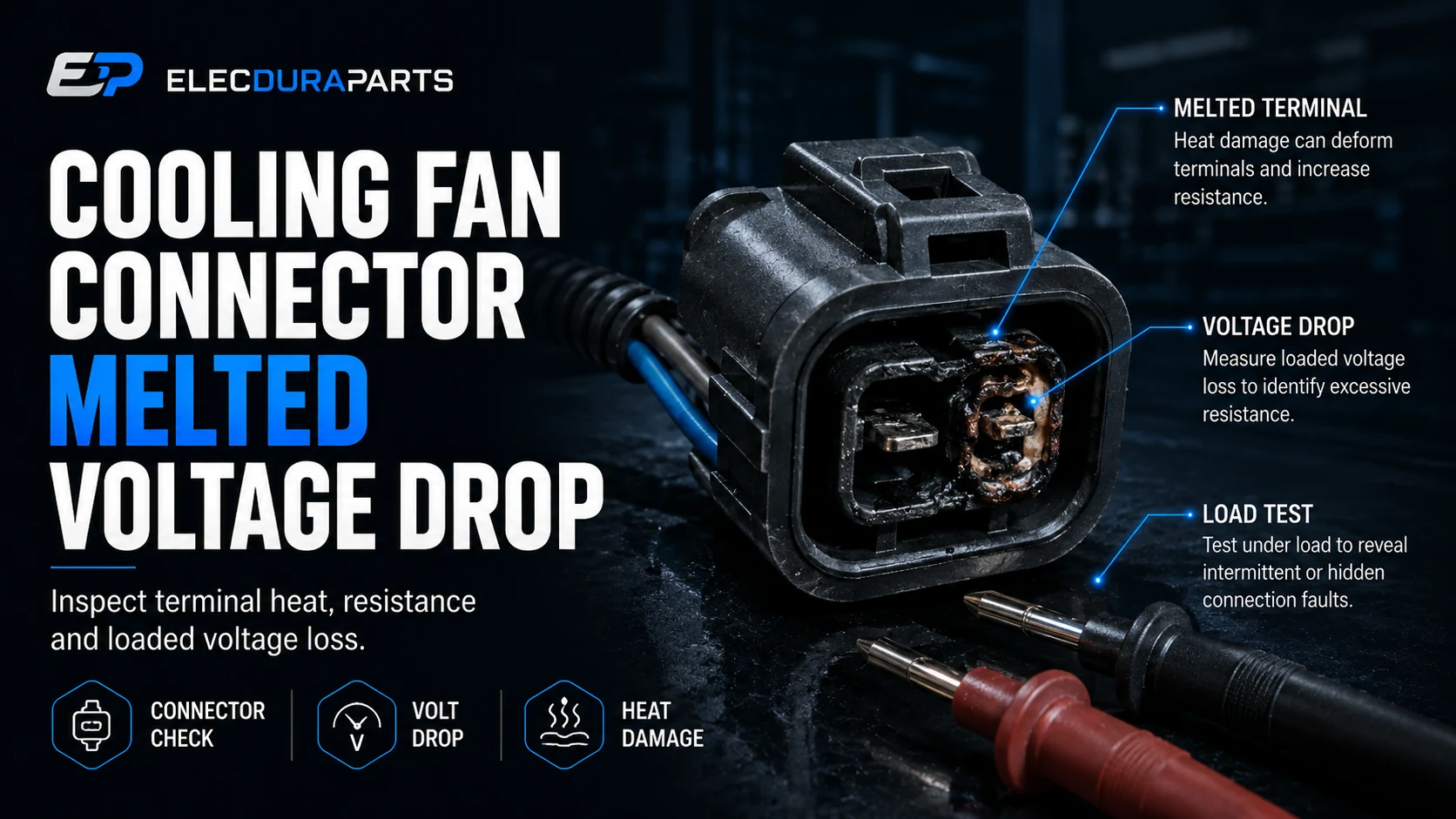

Cooling Fan Connector Heat Damage: Terminal Tension and Voltage-Drop Tests

A cooling fan connector melts when heat generated at or near the terminal exceeds what the connector body, seal and surrounding wire can tolerate. The most common electrical mechanism is contact resistance: current passing through a poor terminal interface creates localized heat. Excessive fan current can intensify that heating, but replacing only the motor or only the plug without proving both sides can produce a repeat failure.

The damage pattern matters. One darkened cavity may indicate low terminal spring force, corrosion, incomplete insertion or a damaged crimp. Broad heating across several cavities can indicate sustained electrical load, inadequate connection capacity, environmental contamination or heat conducted from an adjacent component. A correct diagnosis of a cooling fan electrical connection combines visual evidence with loaded voltage drop, current, terminal retention and circuit-command checks.

This guide does not prescribe a universal wire size or fuse. Those values depend on the application, conductor length, insulation temperature rating, control architecture and manufacturer protection strategy. Its purpose is to identify where energy is being lost as heat and to define whether the repair should include a terminal, pigtail, harness section, controller, motor or complete fan assembly.

Quick Answer: Test the Connection While the Fan Carries Load

Do not judge a heat-damaged plug with an unloaded ohmmeter alone. Reproduce the commanded fan stage safely, measure current, and measure voltage drop directly across the suspect connection. A meaningful voltage difference across two points that should be electrically continuous indicates resistance under load. Compare power-side and ground-side drops, connector temperature and motor current before choosing the correct repair scope.

Why a Small Contact Resistance Creates Serious Heat

Fan circuits carry meaningful current

Cooling fan motors may operate for extended periods at idle, during air-conditioning demand, after-run cooling or high-load work. Even a resistance too small to appear dramatic on a handheld meter can generate concentrated heat when substantial current flows continuously.

Heat follows current squared

Power dissipated at a resistance rises with the square of current. Doubling current can produce four times the heating at the same defective interface. This is why a marginal terminal may survive low stage but overheat during high stage.

Thermal damage can become self-accelerating

Heat softens connector plastic, reduces terminal alignment and relaxes spring force. Lower contact force can increase resistance, which creates still more heat. Oxidation and arcing may then damage plating and enlarge the affected area.

A cooled connector may temporarily test better

Terminal position and resistance can change with temperature and vibration. A cold shop test after shutdown may miss the operating fault. Preserve thermal images or voltage data during the complaint when safe.

Distinguish Connection Heating from Motor Overload

Localized heat points toward the interface

When one terminal is much hotter than the conductor on either side, the interface is a strong suspect. Compare temperature along the wire, crimp barrel, male blade, female contact and connector body. A thermal gradient centered on the mating point supports contact resistance.

Current can remain within the expected range

A poor connection can overheat even when motor current is normal. Therefore, normal current does not clear the connector. It only reduces the likelihood that motor overload is the primary heat source.

Broad conductor heating points toward sustained load

If wire temperature rises over a longer length and multiple correctly seated terminals heat similarly, measure fan current and speed. Bearing drag, blade contact, incorrect blade pitch, winding damage or a mismatched replacement fan assembly can raise load.

Both faults may coexist

Excess current can expose a weak terminal, and a high-resistance terminal can lower motor voltage so the fan runs slowly. The repair must address the load and the connection rather than selecting one explanation prematurely.

Preserve Evidence Before Separating the Plug

Record the installed condition

Photograph connector orientation, latch position, harness support, proximity to exhaust heat, fluid contamination, routing tension and cavity colors. Note whether the plug is fully seated and whether a secondary lock is present.

Do not pull on softened wires

Heat-damaged insulation and terminal retention may fail during handling. Isolate power according to service information, release the lock correctly and support the connector body. Preserve loose pieces for examination.

Mark each cavity and circuit function

Identify battery feed, ground, relay output, PWM command, feedback and communication circuits from verified fan-circuit diagrams. Do not assume the largest wire is the only loaded circuit, especially on integrated controllers.

Control pins require different interpretation

A low-current command terminal can be damaged by poor sealing or heat conducted from an adjacent power cavity. Its failure may stop the fan without being the original heat source.

Loaded Voltage-Drop Testing

Measure across the suspect interface

Backprobe or use approved breakout equipment without spreading terminals. Place one meter lead on the upstream conductor or terminal and the other downstream, then command the fan under the condition that creates heat. The measured voltage is energy being lost across that section.

Use application limits, not a universal number

Acceptable drop depends on circuit design, current and manufacturer procedure. Compare with service limits, a known-good circuit or matched parallel path. Avoid puncturing insulation unless an approved sealed repair will follow.

Separate power-side and ground-side loss

Measure from battery positive to motor positive, then from motor ground to battery negative while loaded. Subdivide the side with excessive loss across fuse contacts, relay contacts, splices, connector halves and ground points.

Measure motor-terminal voltage simultaneously when possible

Current without terminal voltage lacks context. A slow fan on low voltage may not have an internal motor fault. Elecdura’s fan circuit diagnostic resources support an evidence chain from command to delivered voltage and response.

Terminal Tension, Retention and Mating Inspection

Terminal tension is spring-force integrity

A female terminal must grip the specified male blade over vibration and temperature cycles. Loss of spring force increases microscopic contact resistance. Visual appearance alone cannot confirm adequate force.

Use the correct test probe

Terminal-tension gauges or specified test blades must match terminal geometry. An oversized meter probe can spread a good contact and create the fault being diagnosed. Never force probes into the mating face.

Check retention in the housing

A terminal may have good internal spring force but sit too far back because its locking tang is damaged or the secondary lock is open. A partially backed-out terminal can touch intermittently and arc under vibration.

Compare cavity depth and witness marks

Inspect terminal face position, mating witness line, seal compression and pull retention against an undamaged cavity. Replace housings that no longer locate the contact accurately.

Crimp and Conductor Inspection

A poor crimp can heat behind the connector

Incorrect crimp height, wrong terminal range, cut strands, insufficient conductor insertion or crimping over insulation can increase resistance. Capillary corrosion may travel under insulation beyond the visible damage.

Inspect far enough to reach clean copper

When a pigtail is authorized, remove damaged conductor until clean, flexible strands and intact insulation are found. Do not place a new splice inside heat-brittled or contaminated wire.

Match the repair terminal system

Terminal family, plating, conductor range, seal, cavity position and mating blade must be compatible. A generic contact that physically fits may have different spring force or current capability.

Use the specified crimp tooling and pull test

Open-barrel terminals require controlled conductor and insulation crimps. Follow supplier or manufacturer tooling data and verify representative crimps rather than crushing the barrel with general pliers.

Current and Motor Condition Tests

Capture startup and stabilized current

A motor can produce a brief high inrush normally, while mechanical drag or winding faults can prolong excessive current. Capture the waveform, time to speed and current at each commanded stage. Compare at verified terminal voltage.

Inspect mechanical freedom with power isolated

Check blade contact, debris, bearing roughness and shroud distortion using the approved method. A fan that rubs only when hot or under mounting stress may appear free on the bench.

Confirm that the controller is not commanding an abnormal duty cycle

Sensor faults, network commands or air-conditioning pressure requests can keep the fan at high output. Continuous legitimate high-stage operation should not melt a correctly matched circuit, but it exposes weak connections faster.

Do not increase fuse rating

A larger fuse does not repair resistance or overload; it can remove conductor protection. Use only the application-specified fan protection after finding why the original event occurred.

Heat Pattern to Cause Matrix

Define the Correct Repair Scope

Terminal-only repair has a narrow use case

A terminal may be replaced only when the housing retains geometry, adjacent cavities are unaffected, conductor remains sound, mating blade is undamaged and the approved terminal is serviceable separately. Heat-softened plastic usually makes terminal-only repair unreliable.

Replace both halves when mating surfaces are damaged

A new female terminal connected to a pitted, overheated male blade can fail again. If the motor or controller blade is integrated and cannot be serviced, the module may need replacement.

Use a pigtail when local harness damage is contained

An approved pigtail can restore the housing, seals and terminals if sound wire exists beyond the heat-affected area. Stagger splices where specified, maintain strain relief and keep repairs away from flex, water traps and high heat.

Splice method must match the environment

Use the manufacturer-approved crimp or sealed splice system. The repair must tolerate current, vibration, moisture and temperature. Twisted-and-taped conductors are not acceptable.

Replace a longer harness section when damage has propagated

Widespread copper corrosion, brittle insulation, multiple overheated splices or prior undocumented repairs justify a larger harness repair. Trace voltage drop beyond the visible connector before defining the cut point.

Replace the fan motor or module when it created the load

If current, speed, mechanical or internal-terminal evidence proves the motor/controller defective, repair the connector and replace the relevant fan motor or complete module. One without the other leaves a repeat-failure path.

Connector, Harness or Motor Decision Table

Post-Repair Verification

Repeat the original load condition

Command every applicable speed stage and reproduce the ambient or A/C condition that produced the complaint. Record motor-terminal voltage, power and ground drop, current, speed and connector temperature.

Inspect after thermal stabilization

A connector that remains cool for thirty seconds has not completed a meaningful endurance check. Use a safe duration based on service requirements and stop limits, then inspect latch, splice and terminal areas.

Verify control and feedback circuits

Heat from a power cavity may damage adjacent PWM, feedback or network terminals. Confirm command response, diagnostic codes and fan speed correlation after the power repair.

Document baseline values for future service

Keep current, voltage-drop and temperature results with photographs. These values help distinguish a future motor-load change from connection deterioration.

Wholesale Matching and Quality Control

Connector matching requires more than cavity count

Provide OE number, vehicle or equipment application, voltage, motor/controller label, connector face and rear-wire photographs, keying, latch, terminal family, wire colors and circuit functions. Similar cavity layouts may use different terminals or pin assignments.

State whether the pigtail is a repair part or assembly lead

Some replacement fan assemblies include a short lead, while others terminate directly at the motor or controller. Confirm included connector halves and seals before quotation.

Quality checks must include terminal mechanics

Inspect cavity position, terminal retention, mating force, crimp geometry, conductor insertion, seal placement and latch function. Electrical continuity alone does not prove a low-resistance connection under fan load.

Sample under representative current

Where appropriate, perform loaded voltage-drop and thermal-rise sampling at defined current and duration. Elecdura’s wholesale cooling-parts program can align inspection with the motor and connector architecture.

Packaging must protect terminals and locks

Caps, separators and strain relief should prevent terminal spreading, seal displacement and latch impact in transit. Do not allow a heavy motor to load the pigtail inside the carton.

Use return evidence to refine purchasing

Classify heat returns by cavity, drop, current, motor condition, contamination and repair history. The aftermarket quality process should distinguish connection resistance from fan overload.

Frequently Asked Questions

Can a melted cooling fan connector make the fan run slowly?

Yes

Resistance can reduce voltage delivered to the motor. Confirm with loaded voltage drop and motor-terminal voltage rather than judging speed alone.

Should I replace only the plug?

Only after proving the motor load and mating side are sound

Replace every heat-damaged terminal, housing, conductor or integrated male blade required to restore the complete interface.

Does a normal fuse mean the fan current is safe?

No

A localized resistance can melt a connector below the fuse-opening threshold. The fuse protects the circuit against specified overcurrent, not every high-resistance joint.

Can I clean and reuse a darkened terminal?

Not when heat, pitting, plating loss or spring-force damage is present

Cleaning does not restore plating, geometry or temper. Follow the approved terminal or connector replacement procedure.

What data are needed for a fan connector quotation?

Provide application, connector and electrical-load evidence

Send OE references, motor label, connector photos, keying, pin functions, wire information, damaged cavities, loaded current/drop results and quantity.

Correct the Heat Source and Every Damaged Interface

A melted radiator fan plug is not a complete diagnosis. The repair is proven only when the fan receives the correct command and terminal voltage, current and mechanical load are acceptable, voltage loss across each connection is controlled, terminals retain proper force, and connector temperature remains stable during the original operating condition.

For replacement matching, send OE number, vehicle or equipment application, motor/controller label, connector-face and wire-side photographs, pin functions, damaged-cavity details, current and voltage-drop evidence, required repair scope and quantity through the Elecdura contact page. Elecdura can review a fan assembly inquiry, related application matching, wholesale order controls and cooling-system diagnostic resources as one repair decision.
