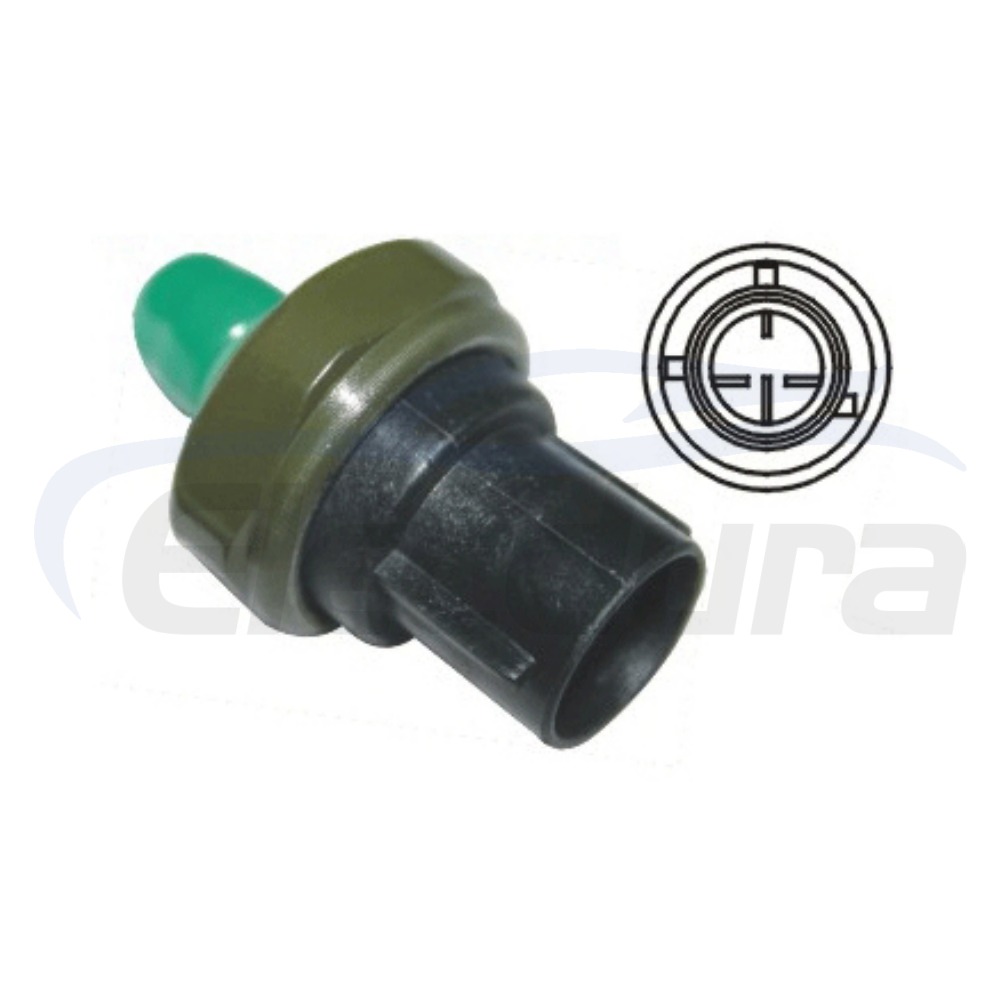

80440-SM4-003 A/C Pressure Switch for Honda Accord and Isuzu Systems

Designed as a high-durability replacement for legacy Honda and Isuzu air conditioning systems, this pressure switch (OE 80440-SM4-003) ensures precise compressor cycling. It is dual-refrigerant compatible (R-12/R-134a) and features a heavy-duty 3/8-24 UNF male thread. Our units undergo rigorous 100% pressure-leak testing to meet the demands of global HVAC wholesalers and professional repair networks.

Brands:
Acura, Honda, Isuzu
Lead Time:
60 days
Minimum Order:
100
Certification:
IATF 16949, CE
Warranty:
12 Months

Availability:



Inquiry

Product Description

Product Description

80440-SM4-003 A/C Pressure Switch Cross Reference & OE Numbers

Brand	Reference Number
Honda / Acura OE	80440-SM4-003
Isuzu OE	8-97095-6590
Four Seasons	35911
Global Air Inc.	SW 2000C
Omega	29-30113
Santech	MT0614

Technical Specifications for 80440-SM4-003 Wholesale

Technical Parameter	Specification Detail
Thread Size	3/8-24 UNF Male
Refrigerant Compatibility	R-12 and R-134a
High Pressure Cut-Off (A)	27 kg/cm² OFF
High Pressure Cut-Off (B)	32 kg/cm² OFF
High Pressure Cut-Off (C)	30 kg/cm² OFF
Low Pressure Cut-Off	2.0 kg/cm² OFF
Port Type	Male Threaded Port
Certificate Standard	IATF 16949 / RoHS Compliant

80440-SM4-003 Vehicle Application & Fitment for Honda/Acura

Make	Model	Year Range
Honda	Accord (All Trims)	1990 - 1993
Honda	Prelude	1992 - 1996
Acura	Legend	1991 - 1995
Acura	NSX	1991 - 2005
Isuzu	Trooper	1992 - 1995
Isuzu	Pickup / Rodeo	1993 - 1995

Sourcing 80440-SM4-003 from Professional Supplier FAQs

Does this pressure switch handle the higher pressures of R-134a conversions?

Absolutely. While many older Honda systems originally used R-12, our 80440-SM4-003 is engineered with modern internal seals that are fully compatible with R-134a. This makes it an ideal component for shops performing refrigerant conversions and retrofits.

How do you guarantee the reliability of the high-pressure (30-32 kg/cm²) cut-off points?

Precision is our priority. Every switch is tested on our automated pressure-bench line where we simulate real-world HVAC cycles. We guarantee that the circuit will break exactly at the specified thresholds to prevent catastrophic system failure or hose bursts.

What customization options do you provide for large-scale B2B importers?

We offer comprehensive private label services. For bulk orders meeting our MOQ, we can provide custom-branded neutral boxes, laser-etched logos or OE numbers on the switch body, and palletized shipping configurations optimized for container sea-freight.

How does your lead time compare to original equipment manufacturers for these legacy parts?

Since these are legacy OE numbers, many original manufacturers have moved to small-batch, high-cost production. As a specialized aftermarket factory, we maintain high-volume production efficiency, typically fulfilling wholesale orders within 60 days at a significantly more competitive price point.

Can we consolidate this SKU with other Honda electrical sensors in one shipment?

Yes. Our "One-Stop Sourcing" model allows you to mix multiple SKUs—including ABS sensors, blower motor resistors, and other pressure switches—into a single wholesale order. This drastically reduces your per-unit logistics cost and simplifies inventory management.

What is your policy on defect claims for international wholesale accounts?

We stand behind our quality with a 12-month warranty. In the rare event of a functional failure, we provide a streamlined claim process where we offer replacements or credits in your next bulk shipment upon verification of the batch number and defect report.
