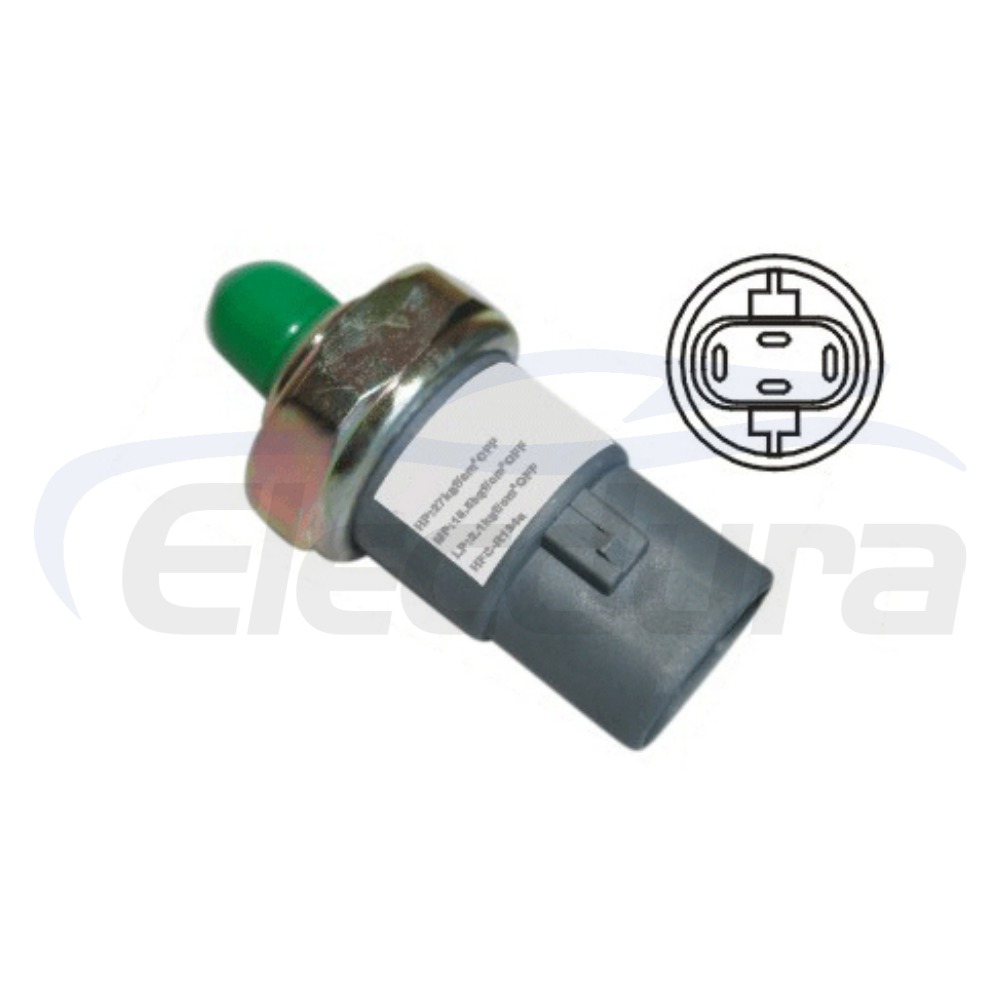

88645-20040 A/C Pressure Switch Cross Reference & OE Numbers
Brand Name | Reference Number |
Toyota Lexus OE | 88645-20040 |
Denso | 443440-0010 |
Santech | MT0625 |
Four Seasons | 35914 |
Omega | 29-30116 |
Global Air | SW 2000C |
Technical Specifications for 88645-20040 Wholesale
Technical Parameter | Specification Detail |
Thread Size | 3/8-24 UNF Male |
Refrigerant Compatibility | HFC R134a |
High Pressure Cut Off | 27 kg/cm² OFF |
Medium Pressure Trigger | 15.5 kg/cm² OFF |
Low Pressure Cut Off | 2.1 kg/cm² OFF |
Logic Function | Triple Function Trinary Switch |
Material Quality | OE Grade Machined Aluminum |
88645-20040 Vehicle Application & Fitment
Vehicle Make | Vehicle Model | Year Range |
Toyota | Camry | 1994 to 2001 |
Toyota | Corolla | 1993 to 2002 |
Toyota | Avalon | 1995 to 1999 |
Lexus | ES300 | 1994 to 2001 |
Lexus | SC300 / SC400 | 1994 to 2000 |
Acura | RL / TL | 1996 to 2004 |
Sourcing 88645-20040 from Professional Supplier FAQs
How does the 15.5kg/cm² medium pressure logic benefit the HVAC system life?
The 15.5kg/cm² threshold is designed to trigger the condenser fan before the system reaches dangerous high pressure levels. By managing heat dissipation early, our 88645-20040 switch reduces the workload on the compressor, effectively extending the lifespan of the entire climate control system. We calibrate each unit on an automated pressure bench to ensure this threshold is met with 100 percent accuracy.
Can we implement our own brand logo on the 88645-20040 sensor housing?
Yes. For our top tier wholesale partners and brand owners, we offer full private label services. This includes precision laser etching of your brand logo and the 88645-20040 part number directly on the aluminum body. We also provide professional bulk packaging and custom box designs that align with your brand standards in the international aftermarket.
What is the standard lead time for a wholesale order of this pressure switch?
Our fixed manufacturing lead time is 60 days. This cycle is essential for maintaining our IATF 16949 quality standards, allowing for thorough vacuum leak testing and multiple stages of pressure cycle validation. This rigorous process ensures that the 88645-20040 units you receive are ready for immediate high volume distribution.
Is this 88645-20040 switch fully compatible with HFC R134a and modern oils?
Absolutely. We use premium internal seals and diaphragms that are chemically resistant to HFC R134a and common PAG or Ester oils. This ensures that the switch will not leak or experience signal drift over time, even under the high thermal stress common in the engine bays of luxury Toyota and Lexus vehicles.
How do you handle shipping and consolidation for international wholesale importers?
We offer flexible consolidation options, allowing you to mix the 88645-20040 with other automotive electrical sensors in a single shipment. This strategy helps you meet our 100 unit MOQ while significantly reducing your per unit logistics costs for maritime or air freight.
What quality control measures protect the 4 pin terminals during transit?
Every 88645-20040 switch is sealed in moisture proof industrial packaging. For large wholesale orders, we use high density internal dividers within export grade cartons and palletized shipping. This prevent pins from bending and ensures that the 3/8-24 UNF threads remain pristine during long distance transport to your distribution center.
