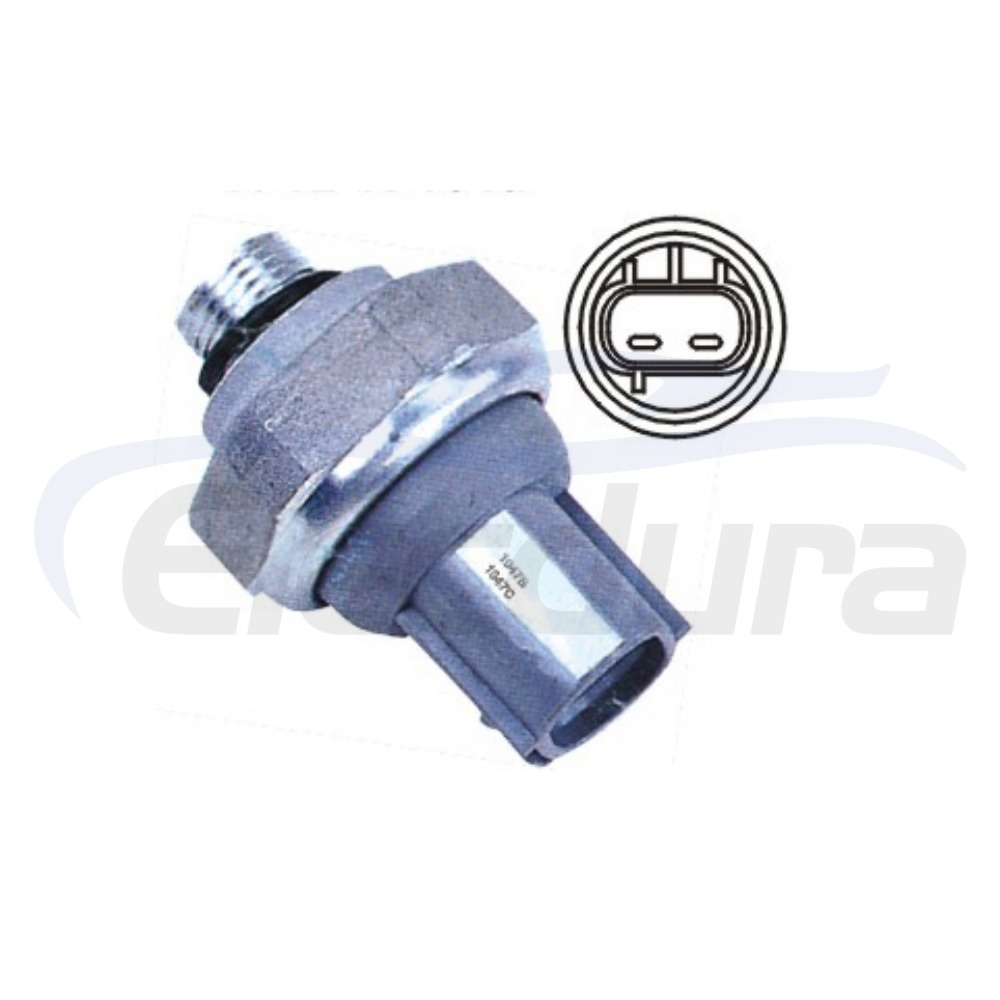

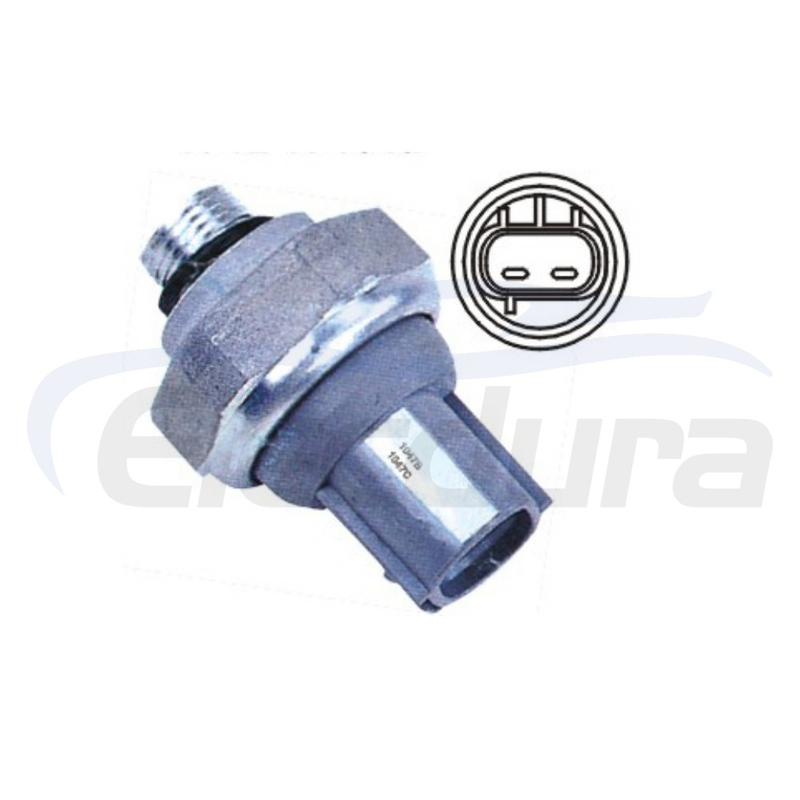

SW 11646C A/C Pressure Switch M11-P1.0 for Honda Civic K600

Specifically engineered for the iconic Honda Civic K6 (1992-1995), this SW 11646C A/C pressure switch features a high-precision M11-P1.0 metric thread. It provides dual-refrigerant protection for both R-12 and R-134a systems, ensuring compressor safety through calibrated 27-32kg/cm² high-pressure cut-offs. Our factory-tested sensors guarantee the durability required for classic Honda HVAC restoration and high-volume wholesale distribution.

Brands:
Acura, Honda
Lead Time:
60 days
Minimum Order:
100
Certification:
IATF 16949, CE
Warranty:
12 Months

Availability:



Inquiry

Product Description

Product Description

SW 11646C A/C Pressure Switch Cross Reference & OE Numbers

Brand / Source	Reference Number
Industry Ref	SW 11646C
SKS Ref	SKSFP-1490030
RC Reference	RC.200.225 / RC.200.122
Honda Application	Civic K6 / K600 (92-95)
Four Seasons	35848
Santech	MT0621

Technical Specifications for SW 11646C Wholesale

Technical Parameter	Specification Detail
Thread Size	M11-P1.0 Male
Refrigerant Compatibility	R-12 and R-134a
High Pressure Cut-Off (A)	27 kg/cm² OFF
High Pressure Cut-Off (B)	32 kg/cm² OFF
High Pressure Cut-Off (C)	30 kg/cm² OFF
Low Pressure Cut-Off	2.0 kg/cm² OFF
Port Type	Metric Male Connection
Quality Certification	IATF 16949 / RoHS

SW 11646C Vehicle Application & Fitment for Honda/Acura

Make	Model	Year Range
Honda	Civic (K6 / EG / EJ)	1992 - 1995
Honda	Accord (K600 / CD)	1994 - 1997
Honda	CRX / del Sol	1993 - 1997
Acura	Integra	1994 - 2001

Sourcing SW 11646C from Professional Supplier FAQs

Is the SW 11646C compatible with both the 2-pin and 4-pin Honda Civic setups?

Our SW 11646C is designed to match the specific terminal configuration of the 92-95 Civic K6 series. We recommend your procurement team verify the connector pin count against our technical drawings before bulk ordering, as some JDM variants may vary. We provide 100% fitment guarantee based on the M11-P1.0 thread standard.

How does your 60-day lead time benefit the quality of this classic SKU?

The 60-day cycle allows us to perform intensive aging tests on the internal sensor diaphragms. For classic parts like the SW 11646C, ensuring the metal housing doesn't fatigue under repeated R-134a pressure cycles is key. Our IATF 16949 process ensures that even "older" models are built to modern premium standards.

Do you offer private labeling for the RC.200.225 or RC.200.122 references?

Yes. For established wholesalers and brand owners, we can laser-etch your preferred reference (whether it's the SKS, RC, or SW number) directly on the product. This helps your local distributors identify the part easily within their existing catalog structures.

What is the advantage of the M11-P1.0 thread for your wholesale customers?

Accuracy in thread machining is the biggest pain point for Civic K6 parts. Our M11-P1.0 threads are machined to zero-tolerance specifications, preventing the "slow leaks" that common 3/8-UNF generic alternatives cause when forced onto metric pipes. This drastically reduces after-sales claims for your business.

Can we consolidate a wholesale order of SW 11646C with other Honda cooling parts?

Absolutely. We specialize in one-stop B2B supply. You can mix this pressure switch with our other Honda HVAC sensors, fan clutches, or oil coolers to meet our MOQ and optimize your container space, significantly lowering your landing cost per unit.

What support do you offer for large importers targeting the Latin American market?

We provide bilingual technical support and full export documentation tailored for LatAm customs. Given the high demand for Civic K6 parts in countries like Brazil and Mexico, we ensure our bulk packaging is moisture-sealed to withstand long-distance maritime transit and humid warehouse conditions.
