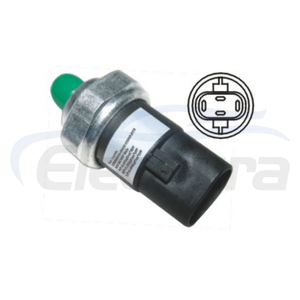

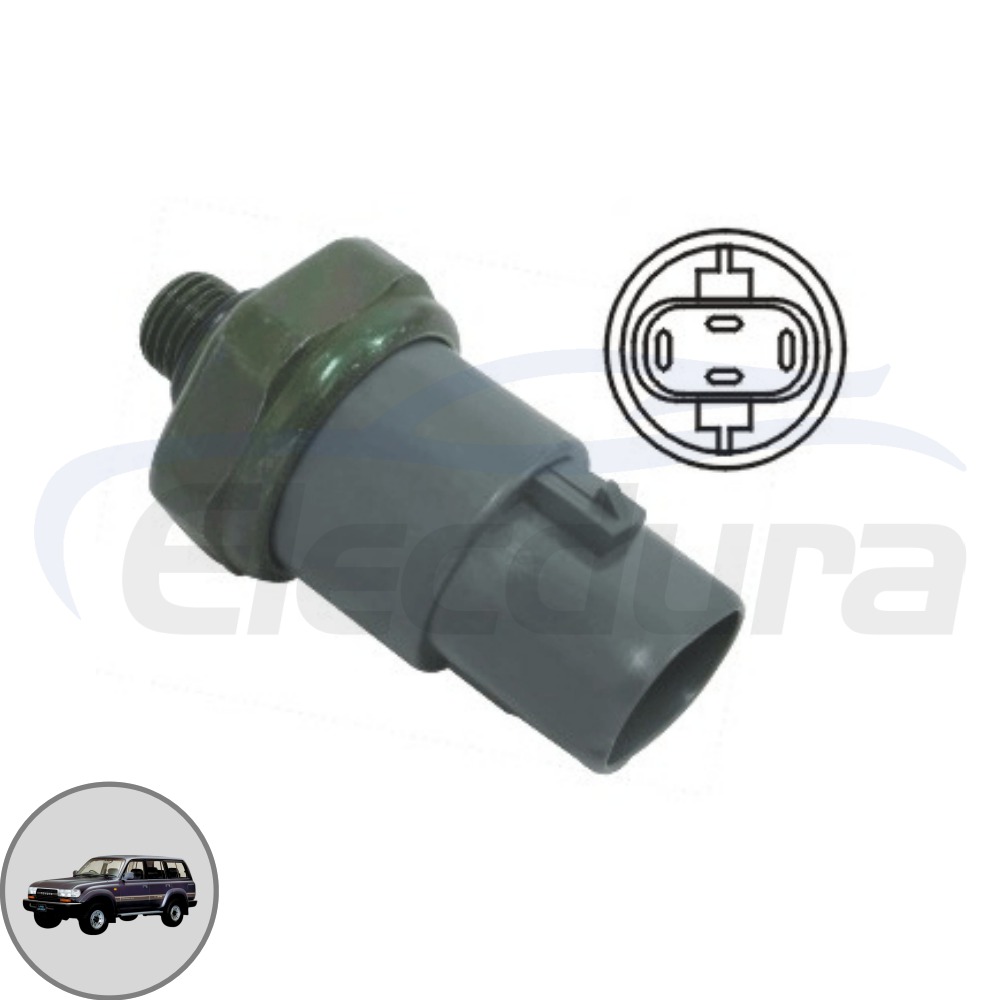

88645-60010 A/C Pressure Switch Cross Reference & OE Numbers
Brand Name | Reference Number |
Toyota OE | 88645-60010 |
Denso | 443440-0010 |
Santech | MT0625 |
Four Seasons | 35914 |
Omega | 29-30116 |
Global Air | SW 2000C |
Technical Specifications for 88645-60010 Wholesale
Technical Parameter | Specification Detail |
Thread Size | 3/8-24 UNF Male |
Refrigerant Compatibility | HFC R134a |
High Pressure Cut Off | 29 kg/cm² OFF |
Medium Pressure Trigger | 13.5 kg/cm² ON |
Low Pressure Cut Off | 2.1 kg/cm² OFF |
Control Logic | Triple Function Trinary Switch |
Connector Type | 4 Pin Sealed Connector |
88645-60010 Vehicle Application & Fitment
Vehicle Make | Vehicle Model | Year Range |
Toyota | Land Cruiser 80 Series | 1992 to 1997 |
Toyota | Camry | 1992 to 1996 |
Toyota | Corolla | 1993 to 1997 |
Toyota | 4Runner | 1994 to 1995 |
Lexus | LX450 | 1996 to 1997 |
Lexus | ES300 | 1992 to 1996 |
Sourcing 88645-60010 from Professional Supplier FAQs
Why is the 29kg/cm² high pressure setting significant for the 88645-60010?
The 29kg/cm² limit is specifically designed for heavy duty Toyota systems that may operate in high ambient temperatures. This higher threshold ensures the A/C does not cut out prematurely while still providing a vital safety margin for the compressor. We calibrate every 88645-60010 unit using precision nitrogen testing to ensure this safety limit is perfectly maintained across all wholesale batches.
Can we implement our own brand logo on the 88645-60010 for wholesale orders?
Yes. For our professional importers and "Top 100" wholesalers, we offer comprehensive private label services. This includes high definition laser etching of your brand logo and the 88645-60010 OE number on the machined aluminum body. We also provide custom designed bulk packaging to help you build brand consistency in your local automotive aftermarket.
What is the standard lead time for manufacturing a bulk order of this switch?
Our lead time is fixed at 60 days. This duration is strictly required to fulfill our IATF 16949 quality protocols, which include automated pressure bench testing and helium leak detection for the 3/8-24 UNF threads. This ensures that every 88645-60010 unit we deliver to your international warehouse is free from defects.
Is this 88645-60010 switch compatible with modern R134a lubricants?
Absolutely. We utilize high grade internal seals and diaphragms that are fully compatible with HFC R134a refrigerant and common PAG oils. This prevents seal degradation and signal drift, ensuring long term performance in the demanding environment of a Toyota engine bay.
How do you manage logistics and consolidation for international wholesale buyers?
We offer flexible consolidation, allowing you to include the 88645-60010 as part of a mixed order with other Toyota or Honda electrical sensors. This helps you reach our 100 unit MOQ while significantly reducing the per unit shipping costs for maritime or air freight.
How are the 4 pin terminals protected against corrosion and transit damage?
Each 88645-60010 switch is individually sealed in an anti static moisture proof bag. For bulk shipments, we use export grade cartons with internal shock absorbing dividers to prevent the 4 pin terminals from bending or corroding. This ensures your order arrives in showroom condition ready for immediate distribution.
