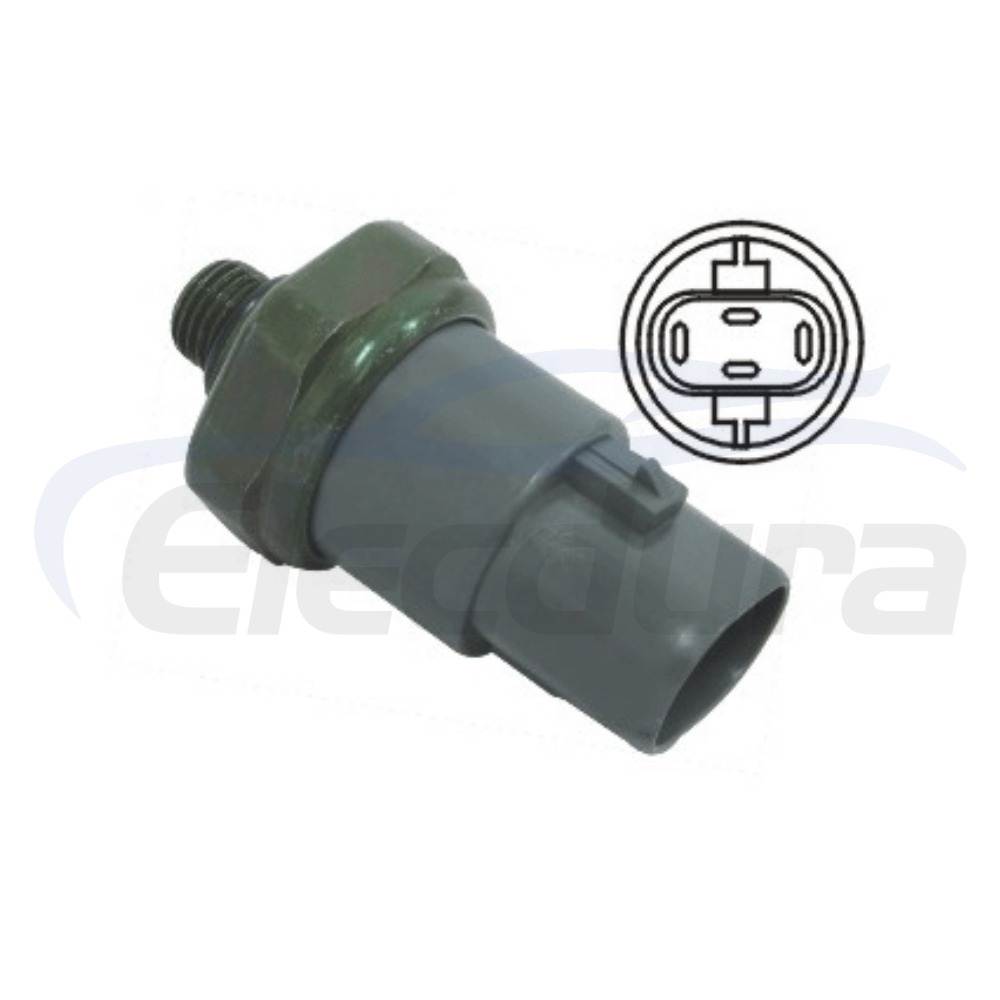

88645-60020 A/C Pressure Switch Cross Reference & OE Numbers
Brand Name | Reference Number |
Toyota OE | 88645-60020 |
Denso | 443440-0050 |
Santech | MT0625 |
Four Seasons | 35914 |
Omega | 29-30116 |
Delphi | TSP0435011 |
Technical Specifications for 88645-60020 Wholesale
Technical Parameter | Specification Detail |
Thread Size | 3/8-24 UNF Male |
Refrigerant Compatibility | HFC R134a |
High Pressure Cut Off | 27 kg/cm² OFF |
Medium Pressure Trigger | 13.5 kg/cm² ON |
Low Pressure Cut Off | 2.1 kg/cm² OFF |
Connection Logic | Triple Function Trinary |
Body Material | High Grade Machined Aluminum |
88645-60020 Vehicle Application & Fitment
Vehicle Make | Vehicle Model | Year Range |
Toyota | Land Cruiser 100 Series | 1998 to 2007 |
Toyota | Camry | 1996 to 2001 |
Toyota | Corolla | 1997 to 2002 |
Toyota | RAV4 | 1996 to 2000 |
Lexus | LX470 | 1998 to 2007 |
Lexus | ES300 | 1997 to 2001 |
Sourcing 88645-60020 from Professional Supplier FAQs
Why is the 13.5kg/cm² medium pressure setting important for Toyota Land Cruiser models?
For vehicles with large cabin volumes like the Land Cruiser, heat dissipation at the condenser is critical. Our 88645-60020 switch triggers the cooling fan at exactly 13.5kg/cm² to ensure the system does not reach the 27kg/cm² high pressure limit. This precision prevents frequent compressor cycling and ensures consistent cabin cooling for your professional repair clients.
Can you provide private label services for the 88645-60020 in bulk orders?
Yes. For our top 100 global importers, we offer a complete private label service. This includes high precision laser etching of your brand logo and the 88645-60020 part number directly on the aluminum housing. We also provide professional bulk packaging and custom box designs that meet the aesthetic standards of premium distribution networks.
How does your 60 day manufacturing lead time guarantee quality for this switch?
The 60 day period allows us to implement a full cycle of IATF 16949 quality audits. This includes vacuum leak testing of the 3/8-24 UNF threads and automated pressure bench calibration for each of the three functional points. This structured timeline ensures that every 88645-60020 unit shipped to your warehouse is defect free.
Is this 88645-60020 switch compatible with the R134a refrigerant common in the aftermarket?
Absolutely. While this model number has a long history in the Toyota catalog, our modern manufacturing process utilizes advanced internal seals that are specifically designed for HFC R134a and modern PAG oils. This ensures that the switch will not leak or degrade prematurely when used in updated climate control systems.
What are the shipping and consolidation options for wholesale importers?
We support mixed wholesale orders, allowing you to combine the 88645-60020 with other electrical sensors for Honda or Toyota. This consolidation helps you reach our 100 unit MOQ more efficiently and significantly reduces the per unit logistics cost for international maritime or air freight.
How do you protect the 4 pin terminals during international maritime transit?
Every 88645-60020 switch is individually protected by a moisture sealed polymer bag. For bulk orders, we use high density internal dividers within our export grade cartons and palletize all shipments. This prevents vibration damage to the delicate 4 pin terminals and keeps the aluminum threads pristine during long distance transport.
