Coolant bubbling in the reservoir can describe five very different events: normal return flow, trapped service air leaving the circuit, localized boiling, gas drawn into the system through a leak, or combustion pressure entering a coolant passage. The bubbles look similar through translucent plastic, but their timing and the system conditions around them are not the same. A reliable diagnosis therefore begins before the engine is hot. Record when the bubbles start, whether the cap is installed, how quickly pressure builds, what the heater is doing, and whether the coolant temperature is stable.
This distinction prevents unnecessary replacement of a radiator, thermostat, water pump, or engine component. Elecdura's engine cooling parts range covers components that control flow, heat rejection, and airflow, but no single part should be selected from the sight of bubbles alone. The useful evidence comes from the cooling circuit as a system.
A few bubbles after coolant service can be normal while trapped air reaches the deaeration point. A visible return stream may also disturb the reservoir without indicating a fault. Continuous bubbles from a cold start, rapid hose hardening, coolant pushed out under load, repeated air after correct bleeding, or a positive combustion-gas test are not normal. Bubbling that begins only near excessive temperature suggests boiling or poor circulation rather than an immediate conclusion about the head gasket.
Observed pattern | Most useful interpretation | Next evidence to collect |
|---|---|---|
Short-lived bubbles after service | Trapped air may be leaving the circuit | Cool-down level, heater stability, bleed procedure |
Steady movement at a return port | Normal return flow may be visible | Compare with system diagram and engine speed |
Bubbles begin at excessive temperature | Localized or system boiling | Actual temperature, cap pressure, circulation, fan operation |
Rhythmic bubbles immediately after a cold start | Combustion gas becomes more plausible | Cold pressure rise, gas test, cylinder evidence |
Bubbles appear after shutdown | Heat soak, boiling, or return from a hot spot | Shutdown temperature, cap condition, coolant concentration |
Image 1: Cooling circuit and deaeration route; label the pressure boundary and reservoir return path.
The coolant reservoir is an observation point, not a fault code. Its behavior depends on whether the vehicle uses a pressurized expansion tank or a non-pressurized overflow bottle. A pressurized tank is part of the main circuit and may have a continuous small return. An overflow bottle receives displaced coolant as pressure rises and returns coolant as the system cools. Confusing the two layouts can turn normal movement into a false diagnosis.
At a true cold start, coolant is far below its boiling point. Repeated gas pulses at this stage cannot be explained by heat alone. Combustion leakage becomes a concern, especially when the upper hose becomes firm unusually quickly or gas production increases with cylinder load. However, an open reservoir, low coolant level, a suction-side leak, or an incorrectly routed return line can also introduce air. Confirm the system is full and closed as designed before treating the pattern as combustion evidence.
Bubble size changes with reservoir geometry and return-line position. Pressure behavior is more transferable. Attach the approved cooling-system pressure tool when the engine is cold, observe the baseline, then start the engine without allowing it to overheat. A rapid pressure rise that follows engine firing is different from the slow increase created by thermal expansion. Never remove a hot pressure cap to perform this observation.
Freshly filled systems retain air in the heater core, cylinder-head galleries, thermostat housing, and high hose loops. As the thermostat begins to open, these pockets can move toward the deaeration line. Heater output may alternate hot and cool while the air passes. Follow the vehicle maker's filling method; some systems require a vacuum fill, raised reservoir, bleed screw, auxiliary pump command, or specific heater setting. The engine coolant thermostat affects when the main radiator circuit joins the flow path, so air released at that moment is not automatically evidence of a defective thermostat.
Service air should decrease as the procedure is completed and should not return after a full heat cycle, complete cool-down, and level correction. Repeated loss of heater output, a reservoir level that falls again, or a new pocket every morning indicates an unresolved leak, a poor fill method, or gas entering the circuit. Document the quantity added after each cool-down; repeated additions are more meaningful than one transient bubble episode.
Hot-only bubbling shifts attention toward boiling and circulation. Coolant can boil locally even when the dashboard gauge has not reached its highest zone. Low system pressure lowers the boiling margin. A weak cap seal, cracked tank neck, damaged hose connection, or external leak can prevent the system from holding designed pressure. Restricted flow can create hot spots in the cylinder head while the radiator outlet remains much cooler.
The radiator must reject the heat delivered to it. Internal tube restriction, external fin blockage, low fan airflow, or a blocked condenser in front of the radiator can raise coolant temperature under specific operating conditions. Compare the condition with Elecdura's automotive radiator range and radiator cooling fan assemblies only after the failing function has been identified.
When the engine stops, coolant flow may slow immediately while metal temperatures continue to transfer heat into nearby passages. This heat soak can produce gurgling or bubbling if the system has marginal pressure, trapped air, insufficient coolant, or a localized hot zone. Some vehicles operate electric pumps or fans after shutdown; others do not. Compare the behavior with the vehicle's control strategy rather than assuming any post-shutdown sound is abnormal.
Air is compressible; coolant is effectively not. A pocket changes pump inlet conditions, interrupts heater-core flow, and expands as temperature rises. The pocket may repeatedly move rather than leave if the bleed line is blocked or if a hose loop sits above the intended fill point. In a large truck or off-highway machine, remote tanks and long heater lines make routing especially important. Elecdura separates on-highway cooling applications from off-highway thermal systems because reservoir height, hose length, duty cycle, and service access can differ substantially.
The pressure cap is a calibrated boundary. If its sealing surfaces, spring, valve, or neck interface cannot retain pressure, the coolant's boiling margin falls. A cap can look clean and still open early; a neck can be distorted even when the cap itself passes. Test the cap and the system with the correct adapter. Replacing a thermostat because bubbles appeared near normal operating temperature does not correct a pressure boundary that cannot seal.
Circulation depends on pump output, belt or electric-pump control, thermostat position, hose integrity, radiator flow distribution, and the absence of internal blockage. A damaged pump impeller may move enough coolant at idle but not under load. A lower hose can collapse at high pump demand if its reinforcement is weak. A thermostat can open partially, and a radiator can pass coolant through only a fraction of its tubes. Each condition can create high local temperature without producing the same external symptoms.
A leakage path may exist at a head gasket, cracked casting, liner seal, or other combustion-adjacent surface. Gas entering the coolant can displace liquid, increase pressure, and interrupt circulation. The same engine may show no visible oil contamination. Conversely, oil in coolant has several possible sources, as explained in the oil cooler versus head-gasket diagnostic guide. Use gas-specific evidence rather than relying on fluid appearance alone.

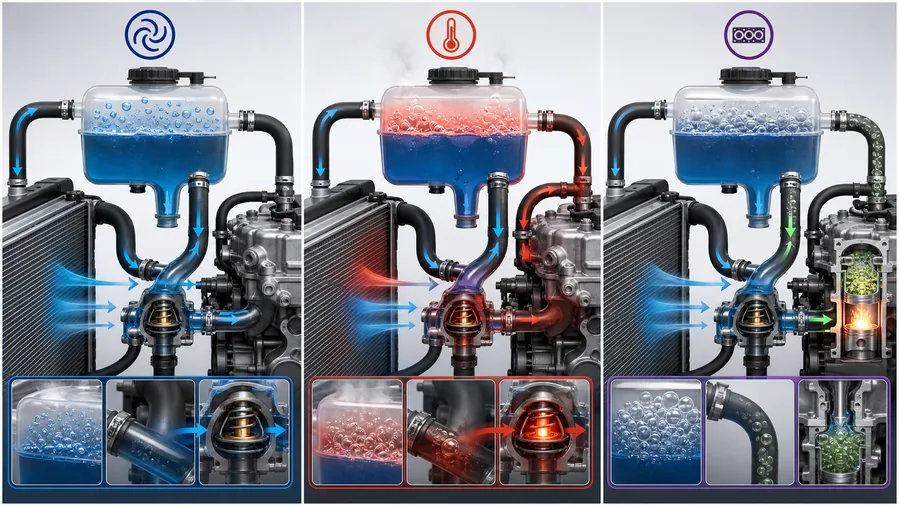

Image 2: Three bubble patterns with cold-start, hot-running, and post-service timing labels.
Confirm whether the visible container is pressurized, where the small return or deaeration line enters, whether a separate radiator cap exists, and whether the thermostat is in the engine outlet, inlet, or an integrated housing. Record engine, model year, equipment model, and cooling package. Do not open a hot system.
With the engine fully cold, verify the level against the correct mark. Inspect dried coolant traces at the cap neck, tank seam, hose connections, thermostat housing, radiator tanks, heater connections, pump vent, and cooler interfaces. A small external leak can admit air during cool-down without leaving a large puddle. Plastic housings deserve close attention because heat aging, surface distortion, and installation stress can produce an intermittent seal. Elecdura's wholesale thermostat program includes both individual thermostats and application-dependent housing assemblies, which should not be treated as the same service boundary.
Use the approved observation method for the system. Record the first appearance of bubbles, engine speed, hose firmness, coolant movement, heater behavior, and scan-tool temperature. If gas pulses begin immediately and intensify with load, preserve that evidence for a combustion-gas test. Do not rev an open or underfilled system simply to create visible movement.
Compare scan data with a calibrated contact or infrared measurement at appropriate surfaces. Confirm thermostat opening by the change in radiator inlet temperature and by the expected flow response. Map the radiator rather than taking one reading at each hose. A broad, progressive temperature drop differs from isolated cold sections caused by poor tube distribution.
A heater that becomes cold during an overheat event suggests loss of liquid flow through the heater core, often from low level, gas displacement, pump cavitation, or a large air pocket. Consistently hot heater output does not prove the radiator is clear, but it helps define which branch still has circulation.
Pressure-test the cold system to the manufacturer's procedure and inspect for external leakage and pressure decay. Test the cap with the correct neck adapter. A system that holds shop pressure can still develop a combustion leak only under firing load, so a static pressure test and a gas test answer different questions.
Follow the test manufacturer's sampling procedure and avoid drawing liquid coolant into the test chamber. A positive result is meaningful evidence; a negative result during a symptom-free idle does not always exclude an intermittent load-dependent leak. If the complaint appears only under towing or boost, the workshop may need a controlled load test, cylinder leak-down correlation, or pressure recording appropriate to the engine.

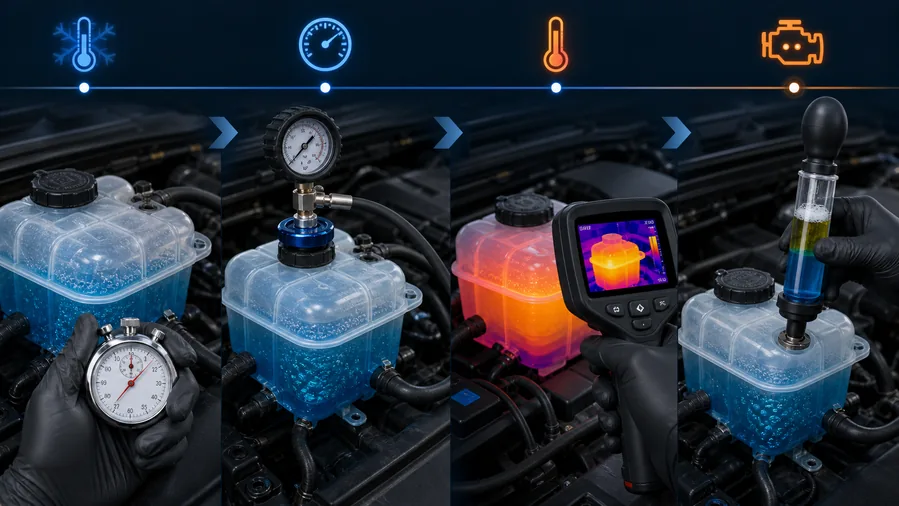

Image 3: Diagnostic sequence with safety gates and evidence required before replacement.
Test or observation | What it supports | What it does not prove alone |
|---|---|---|
Bubbles after refill | Air is moving through the reservoir | The source of the air |
Cap fails bench test | Pressure boundary is defective | No other cooling fault exists |
Rapid cold pressure rise | Gas is entering or expanding unusually early | Exact internal leakage location |
Positive combustion-gas test | Combustion products reached the sampled coolant vapor | Which gasket, casting, or cylinder is responsible |
Radiator cold sections | Uneven heat transfer or flow distribution | Internal clog without checking airflow and measurement conditions |
Fan command with low airflow | Airflow system needs electrical or mechanical diagnosis | The radiator core is internally clear |
Stop the engine and allow it to cool if coolant is being expelled, temperature is rising uncontrollably, the heater suddenly turns cold during overheating, a warning requires shutdown, or hoses and the reservoir show abnormal pressure. Continued operation can turn a cap, hose, thermostat, fan, or radiator problem into cylinder-head distortion or bearing damage. Never remove the pressure cap while the coolant is hot.
A pressure-boundary failure may require a cap, tank, neck, hose, or sealing repair rather than a heat exchanger. A flow-control failure may involve a thermostat, housing, pump, or blocked passage. An airflow failure may require a radiator fan motor, relay, module, blade, or complete shroud assembly. Keep these quotation branches separate so a workshop does not receive a radiator for a fan-current problem.
If coolant contains engine or transmission oil, identify the exchanger that shares both fluids. Elecdura's oil cooler range includes application-specific plate, housing, port, and seal configurations. Correct the contamination source and define how the remaining circuit will be cleaned before installing new cooling parts.

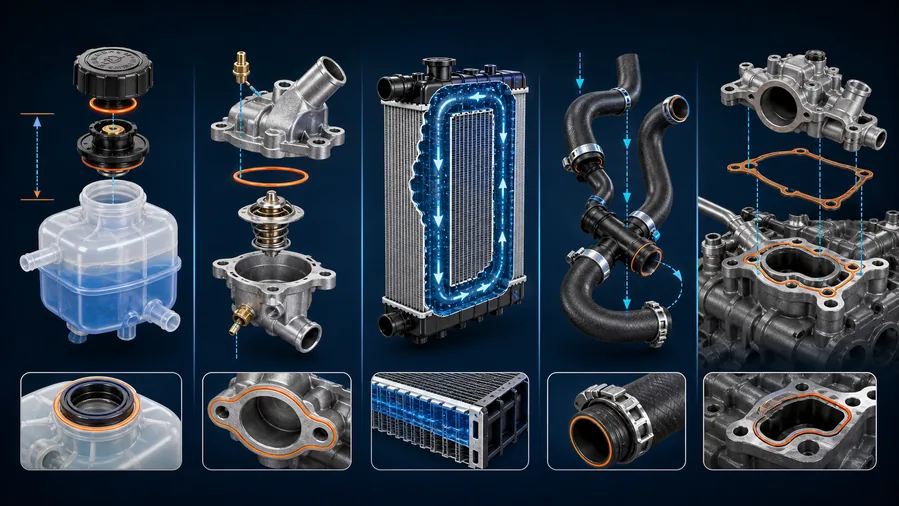

A diagnosis should end with a failed function and a service boundary. For a radiator, confirm core dimensions, tank layout, inlet and outlet position, transmission or engine-oil cooler connections, sensor ports, mounting points, cap neck arrangement, and fan-shroud interface. The wholesale radiator range is matched by application and physical configuration, not by core appearance alone.
For a thermostat or housing assembly, provide the OE reference, engine code, opening specification from the service data, connector details for mapped thermostats, housing port layout, included seals, and whether sensors are transferred or supplied. For an airflow fault, identify whether the vehicle uses a single fan, dual fans, separate motors, series/parallel relays, or a PWM control module. Review the wholesale cooling fan options before deciding whether the motor or complete assembly is the safer service unit.
Do not order a radiator, thermostat, fan, or oil cooler merely because coolant bubbled. Send the OE number, vehicle or equipment model, engine, cooling-system layout, failure evidence, connector and port photographs, key dimensions, and required quantity through the Elecdura contact page. That information allows the quotation to follow the confirmed cooling function instead of the most visible symptom.
For a broader choice of verified replacement paths, review Elecdura's cooling and thermal-management products. If testing shows that the thermostat remains open or closed rather than a gas fault, use the stuck-open versus stuck-closed comparison to define the next test without turning every bubble pattern into the same diagnosis.
Yes, indirectly. A thermostat that does not open sufficiently can reduce radiator circulation and create excessive temperature or localized boiling. Bubbling alone does not confirm the thermostat; verify temperature behavior and flow response.
It can reduce the system's pressure margin and allow vapor formation at a temperature that the engine may temporarily tolerate. Test both the cap and neck rather than judging the spring by hand.
No. Trapped air, visible return flow, pressure loss, boiling, and circulation faults can all produce bubbles. Cold-start pressure behavior and a correctly performed combustion-gas test provide better evidence.
Heat soak continues after flow slows. Marginal pressure, low coolant, trapped air, or a hot spot can then create gurgling or vapor. Check shutdown temperature and pressure retention.
Neither decision follows from bubbles alone. Flush only when the contamination and component design allow an effective, controlled cleaning procedure. Replace a radiator when leakage, structural damage, persistent internal restriction, incompatible contamination, or unreliable repair makes reuse unsuitable.
Coolant bubbling becomes diagnostically useful only when it is connected to time, temperature, pressure, circulation, and gas evidence. Begin cold, preserve the pattern, test the cap and circuit separately, map heat transfer, and confirm combustion leakage before naming an expensive part. The correct replacement is the component that failed its functional test, matched to the exact cooling-system configuration.
