Oil in the coolant reservoir does not automatically prove a head gasket failure. It can come from an engine oil cooler, oil cooler gasket or adapter, head gasket, cracked cylinder head, cracked block, transmission cooler inside the radiator, turbo oil/coolant interface, or another housing where oil and coolant passages sit close together. For repair networks and parts buyers, guessing is expensive. A head gasket job may be unnecessary, while a failed oil cooler ignored too long can contaminate the whole cooling system and damage hoses, seals, and the replacement part.
This article explains how to trace oil in coolant before ordering parts. It is written for distributors, fleet buyers, importers, and repair operations that need practical evidence, not a dramatic diagnosis from a coolant cap photo. Elecdura supports related sourcing for engine oil coolers, oil cooler parts, radiators, engine cooling parts, and related gasket or cooler assemblies when buyers provide vehicle data, old part photos, test results, and contamination evidence.

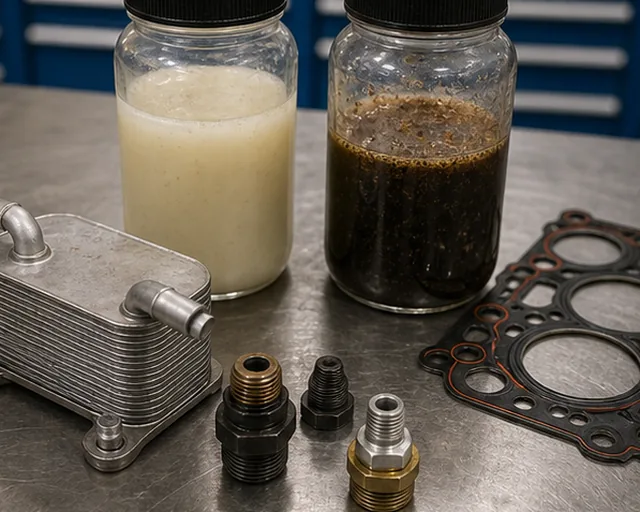

Oil cooler versus head gasket diagnostic fluid samples with contaminated coolant and oil residue.
If the engine runs smoothly, has no white exhaust smoke, shows no combustion gas in the coolant, and the main symptom is oil floating in the coolant reservoir, the oil cooler or oil cooler adapter should be investigated before assuming the head gasket. If the engine has rough running, hard start, overheating, bubbles in the expansion tank, white smoke, coolant loss into a cylinder, low compression, or a positive combustion-gas test, the head gasket, cylinder head, or block becomes more likely.
Oil pressure is usually higher than cooling-system pressure while the engine is running. That pressure difference can push engine oil into the coolant through a failed oil cooler or gasket. A head gasket can also mix fluids, but it often leaves additional clues because it seals combustion pressure, coolant, and oil at the same joint. The safest repair decision is made from a sequence: identify the fluid, confirm the direction of mixing, check for combustion gas, pressure-test the cooling system, inspect the oil cooler path, and only then order parts.
Evidence | More consistent with oil cooler or adapter | More consistent with head gasket/head/block |
|---|---|---|
Engine performance | Often starts, idles, and pulls normally | May have rough idle, misfire, hard start, or power loss |
Coolant reservoir | Oil film, brown sludge, repeated oil contamination | Oil contamination plus bubbles, pressure, coolant loss, or combustion smell |
Exhaust | Usually no persistent white smoke from coolant burning | White smoke or steam can appear if coolant enters a cylinder |
Combustion-gas/block test | Usually negative if only cooler has failed | Often positive when combustion gas enters coolant |
Compression or leak-down | Usually normal if engine internals are sound | May show one or two weak cylinders or leakage into coolant |
Cooler bench or bypass test | Leak can be confirmed at cooler or adapter | May not change if head or block is the leak path |
Not every oily film in the reservoir is engine oil. Engine oil is usually dark brown or black and may form thick sludge when mixed with coolant. Automatic transmission fluid can look red, pink, or brown depending on age and can enter coolant through a radiator-integrated transmission cooler. Some stop-leak products, assembly residue, old coolant sludge, or previous repair contamination can also create confusing residue. A buyer should not order an engine oil cooler only because the coolant tank looks dirty.
Start by recording engine oil level, coolant level, transmission fluid level if the radiator has an ATF cooler, and the appearance of each fluid. If engine oil level is falling while the coolant reservoir gains oily sludge, an engine oil path becomes more likely. If transmission fluid level is falling and the coolant has a reddish or ATF-like smell, inspect the radiator transmission cooler path. If the engine oil dipstick is milky or the oil level rises, coolant may be entering the crankcase, which is a more urgent lubrication risk.
For fleet and wholesale situations, ask for photos of the coolant reservoir, radiator cap, engine oil dipstick, oil filler cap, drain sample, and any transmission fluid sample. The photos should be taken before the system is flushed. Once a shop flushes everything, the evidence may be lost, and the parts buyer is left with a vague request for an oil cooler or head gasket set.

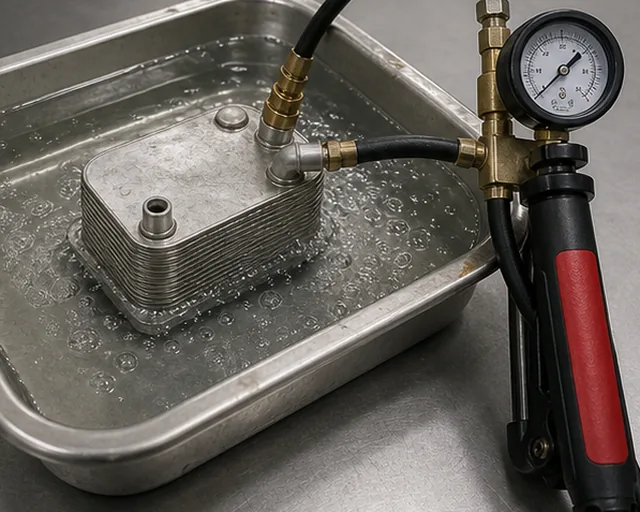

Engine oil cooler pressure test in water tray for confirming internal leakage before ordering parts.
A head gasket, cracked head, or cracked block can connect combustion pressure with the cooling system. That usually creates clues beyond simple oil film. Look for bubbles in the expansion tank, coolant being pushed out, hoses hardening quickly after a cold start, persistent white exhaust smoke, rough running, misfire on start-up, coolant smell from the exhaust, overheating under load, or repeated coolant loss with no external leak.
A combustion-gas test, often called a block test or CO2 test, is a useful non-invasive screen. If combustion gases are detected in the coolant, the diagnosis moves toward head gasket, head, or block sealing failure. A negative test does not prove the oil cooler in every case, but it makes a combustion-to-coolant breach less likely, especially when the engine runs normally and the main problem is oil in coolant.
Compression and leak-down tests add more evidence. A head gasket failure may show one or two low cylinders, leakage into the cooling system, or pressure behavior that changes by cylinder. Some failures are small and heat-related, so one test may not catch every case, but the combination of symptoms and test results is stronger than guessing from sludge alone.
A cooling-system pressure test helps find external leaks and internal pressure loss. Pressurizing the cooling system with the engine off can show whether pressure drops and whether coolant appears in oil, cylinders, cooler housings, or external seams. If pressure drops with no external leak, the leak may be internal. The next step is to isolate likely paths instead of immediately ordering the most expensive repair.
On engines with water-cooled oil coolers, the cooler sits between oil and coolant circuits. If the cooler or gasket fails internally, pressure testing or bench testing may reveal leakage. Some shops remove the cooler and pressure-test it separately. Others bypass or isolate the cooler circuit according to safe service procedure to see whether pressure behavior changes. The exact test depends on engine design, but the principle is the same: prove the leak path.
Do not exceed safe pressure limits. Cooling systems, coolers, plastic tanks, and hoses can be damaged by careless testing. Record the test pressure, duration, pressure drop, and visible leak point. For sourcing, a photo of the removed cooler with the leak area marked is much more useful than the sentence "oil cooler bad."
Many engines use a coolant-to-oil heat exchanger near the oil filter housing, inside the engine valley, on the block side, or as part of an oil filter module. The cooler may fail at the core, gasket, O-ring, adapter plate, housing, cover, or sealing surface. Some failures create an external oil leak. Others create internal oil-to-coolant mixing. On some vehicles, the gasket or housing fails more often than the cooler core itself.
Inspection should include old part number, cooler type, gasket shape, bolt pattern, port layout, sealing surface, oil filter location, coolant hose connections, and whether the vehicle uses an integrated housing assembly. If the cooler was previously removed, check whether the sealing surface was scratched, the gasket was installed incorrectly, or wrong sealant was used. A new cooler can leak if the mating surface is damaged or bolts are not tightened correctly.
For parts buyers, the order may be the cooler core, cooler housing, oil filter adapter, gasket set, O-ring, seals, or a complete module. The correct item depends on the failure point. If a shop asks for "oil cooler" but the actual leak is the housing gasket, the buyer may ship the wrong part and still not solve the contamination.
Some vehicles route automatic transmission fluid through a cooler inside the radiator tank. If that cooler fails internally, ATF and coolant can mix. This can be mistaken for engine oil in coolant, especially after the fluid darkens. The repair path is different: the buyer may need a radiator with integrated transmission cooler, transmission fluid service, cooler-line flushing, and inspection for transmission damage.
Check the transmission fluid level and color. A rising coolant level with ATF loss, reddish sludge, harsh shifting, slipping, or coolant in transmission fluid should move the investigation toward the radiator transmission cooler. If the vehicle is manual transmission or has an external-only cooler, this path may not apply. The point is to identify the fluid before the buyer orders engine parts.
For sourcing, radiator oil cooler ports must be confirmed. A replacement radiator without the correct integrated transmission cooler fittings may physically fit the vehicle but cannot connect to the cooler lines. Elecdura's radiator category can support these checks when buyers provide tank photos, fitting close-ups, and transmission type.
If the oil cooler and head gasket evidence do not line up, inspect other places where fluids can cross. Some engines have oil filter housings with coolant passages, timing covers that seal oil and coolant near each other, EGR coolers, turbocharger oil and coolant connections, intake manifold gaskets, front covers, or block casting areas that can create confusing contamination. These are engine-specific, so the buyer should avoid universal assumptions.
Vehicle history matters. A previous overheating event raises the risk of head or gasket damage. Freezing coolant raises the risk of cracked castings. Recent oil cooler service raises the risk of gasket or assembly error. A recent radiator replacement raises the possibility of transmission cooler confusion. A recent engine rebuild raises questions about gasket orientation, torque, surface finish, and sealant use.
When the source is not obvious, a repair network should document what has been ruled out. "Negative combustion-gas test, normal compression, pressure loss stops when cooler is isolated" is a strong case for cooler sourcing. "Positive block test, cylinder 3 leak-down into coolant, white smoke" is a strong case against a simple cooler order.
Once oil enters the cooling system, repair is not finished when the leaking part is replaced. Oil residue can coat hoses, radiator tubes, heater core passages, thermostat, expansion tank, cap, and seals. It can reduce heat transfer and make rubber parts swell or soften. If the system is not cleaned properly, the customer may think the new oil cooler or gasket is leaking again because residue returns to the tank.
Cleaning must follow the vehicle and chemical manufacturer's instructions. Some systems need repeated flushes with an approved cleaner, careful rinsing, thermostat inspection, hose inspection, and replacement of contaminated expansion tank or cap. Heater cores and radiators can hold residue. If sludge is heavy, the radiator may be restricted and require replacement. Do not use harsh chemicals that damage aluminum, plastic, or rubber.
For warranty and procurement, record the cleaning process. Photos after the first flush and after final fill help separate old residue from a new leak. If the customer returns after a week, compare fresh fluid samples with earlier photos. A small amount of residual film after a heavy contamination event is different from active oil pressure pushing fresh oil into the coolant again.
Before ordering an oil cooler, head gasket set, radiator, or related parts, collect:
Vehicle model, engine code, year, mileage or hours, and recent repair history.
Photos of coolant reservoir, radiator cap, oil dipstick, oil filler cap, and any drain samples.
Engine oil level trend, coolant level trend, and transmission fluid level trend if applicable.
Combustion-gas test result, compression or leak-down result, and cooling-system pressure-test result.
Old oil cooler photos, gasket photos, housing photos, port layout, bolt pattern, and part number.
Evidence of white smoke, rough idle, overheating, coolant bubbles, pressure build-up, or normal engine performance.
Radiator transmission cooler fitting photos if ATF contamination is possible.
Cleaning plan for the cooling system after replacement.
Decision on whether the order needs cooler core, housing, gasket kit, radiator, thermostat, hoses, cap, or complete module.
Repair networks should prioritize diagnostic proof before disassembly. Removing the head too early can be costly if the oil cooler was the problem. Replacing the cooler too quickly can also be costly if combustion gases are entering the coolant. The best workflow is to test, isolate, photograph, and then order. The customer will accept the repair more easily when the diagnosis is visible.
Fleet buyers should track repeat contamination by vehicle family. If several vehicles with the same engine develop oil in coolant, a known oil cooler gasket, housing, or cooler design may be the fast-moving part. If failures follow overheating events, head gasket and cooling-system maintenance should move up the list. Fleet records help decide whether to stock coolers, gasket kits, radiators, caps, hoses, or complete cooling-system service packages.
Importers and distributors should avoid vague product descriptions. "Oil cooler" can mean engine oil cooler, transmission oil cooler, hydraulic oil cooler, oil filter housing, adapter, gasket set, or complete module. Product records should show port count, gasket layout, material, core dimensions, bolt holes, sealing surfaces, engine application, and included seals. Clear photos reduce wrong shipments and help sales teams ask the right diagnostic questions.
Oil in coolant often creates urgency because the visual symptom looks severe. That urgency can push a buyer toward the most expensive explanation first. A repair desk may request a head gasket set, head bolts, timing parts, thermostat, hoses, and machining work before the cooler path has been tested. Another shop may do the opposite and order only an oil cooler because the engine still runs well. Both approaches can be wrong when the evidence is incomplete.
A better quote separates confirmed parts from conditional parts. Confirmed parts are supported by test results or visible failure: a cooler that fails a bench pressure test, a gasket that is visibly split, a radiator tank cooler that shows ATF mixing, or a positive combustion-gas test with matching symptoms. Conditional parts should be held until the shop verifies the next step. For example, a head gasket kit can be prepared as a follow-up option if combustion testing fails, while an oil cooler gasket set can be quoted first if the cooler assembly is the only proven leak path.
This staged approach helps distributors protect both speed and accuracy. The customer sees that the supplier is not minimizing the problem, but also not selling a major engine repair kit from a reservoir photo. It also helps inventory planning: fast-moving cooler gaskets, complete cooler modules, radiator tank cooler applications, and head gasket sets can each be stocked according to proven failure patterns rather than panic orders.
Oil in coolant is a warning sign, not a final diagnosis. An oil cooler or adapter problem may be the source when the engine runs normally and combustion tests are negative. A head gasket, head, or block problem becomes more likely when combustion gas, white smoke, rough running, low compression, pressure build-up, or coolant loss into cylinders appears. A radiator transmission cooler can imitate engine oil contamination on automatic vehicles. The correct order depends on the leak path.
Elecdura can help buyers source oil coolers, radiators, gaskets, housings, and related cooling parts when the inquiry includes fluid photos, test results, old part photos, engine data, and failure evidence. The more complete the evidence, the lower the risk of ordering a cooler when the vehicle needs engine sealing work, or ordering head-gasket parts when a cooler or radiator tank cooler is the real source.
