Mitsubishi oil cooler replacement should be considered when there is confirmed oil leakage around the cooler or housing, oil and coolant mixing, rising oil temperature, damaged sealing faces, hardened O-rings, internal restriction, or a replacement mismatch that affects flow and installation. The cooler should not be replaced only because the engine bay is oily. The first step is to clean the area, locate the exact leak point, confirm whether the failure is the cooler core, gasket, O-ring, housing, hose, or mounting surface, and then match the replacement by engine application and physical interface.

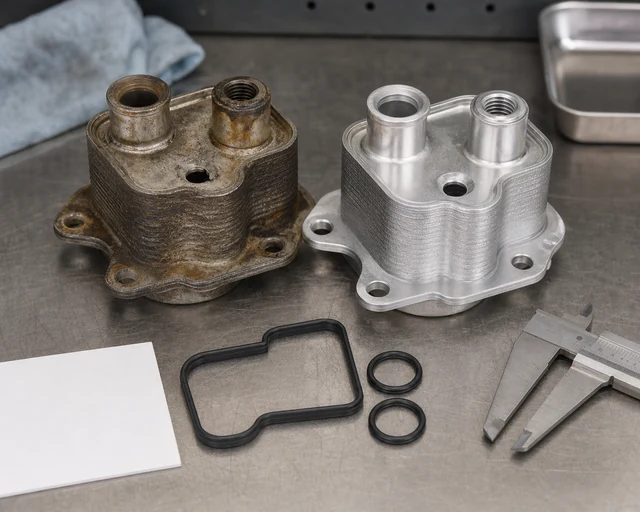

Compare the old cooler against the replacement by port position, sealing face, gasket shape, and mounting layout before approval.
For importers, distributors, repair networks, and fleet buyers, Mitsubishi oil cooler sourcing requires more than a model name. Different engines and markets can use different cooler styles, housing designs, gasket profiles, plate stacks, port layouts, and mounting details. A correct aftermarket option should solve the failure without creating oil pressure, temperature, sealing, or fitment problems after installation.
Evidence found | Likely decision | Buyer check |
|---|---|---|
Oil leak at gasket or O-ring area | Replace seals and inspect cooler/housing surface | Confirm gasket profile, O-ring size, and sealing face condition |
Oil leak from cooler core or plate seam | Replace cooler assembly | Document exact leak point and old part reference |
Oil in coolant or coolant in oil | Pressure-test cooler and inspect housing paths | Confirm whether the core, gasket, or housing caused mixing |
High oil temperature after replacement | Review flow path, plate stack, and pressure drop | Compare old/new cooler dimensions and passage layout |
Replacement does not sit flush | Stop installation | Check housing face, bolt pattern, thickness, and gasket alignment |
The best replacement decision separates three issues: the failed component, the sealing system, and the fitment specification. If those are mixed together, a good cooler may be blamed for a bad gasket, or a bad cooler may be reused because the leak looks small.
External oil leakage is the most visible Mitsubishi oil cooler complaint. Oil may collect around the cooler body, housing, mounting plate, filter base, gasket edge, hose connection, or lower engine area. Because airflow spreads oil across nearby surfaces, the wettest area is not always the leak source. Clean the area first, run the engine, and inspect again with good lighting before ordering parts.
A leak at the cooler core or plate seam usually supports cooler replacement. A leak at the gasket face may require a gasket or O-ring set, housing inspection, surface cleaning, and correct tightening. A leak at a hose or fitting should be handled as a connection problem unless the cooler port is cracked or damaged. These distinctions matter for warranty review and for selecting the right replacement package.
For B2B inquiries, photos should show the cleaned leak area, the leak after operation, the cooler from several angles, and the old part reference. If the leak is at a sealing face, include a close-up of the gasket groove or O-ring seat. If the cooler body is cracked, photograph the crack before removal and again after the part is on the bench.

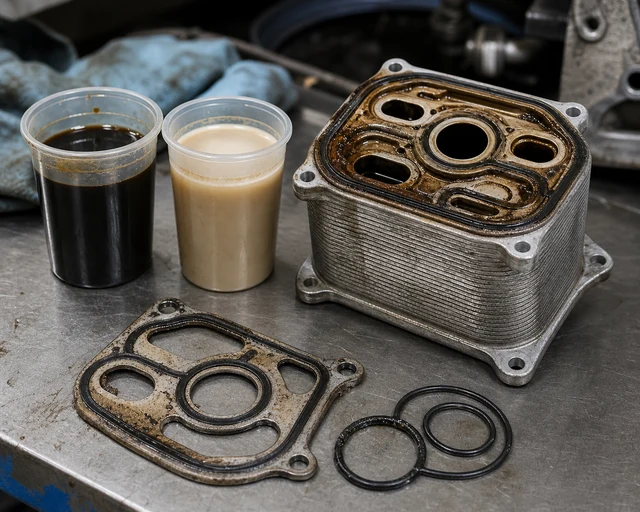

Oil and coolant mixing should be confirmed with sample evidence and related leak checks before the cooler is blamed.
Some Mitsubishi oil coolers transfer heat between engine oil and engine coolant. In those designs, internal failure can allow oil and coolant to mix. Oil in the coolant reservoir may appear as dark film, sludge, swollen hoses, or oily residue. Coolant in oil may create milky oil, rising oil level, bearing risk, and lubrication problems. The engine should not continue operating if coolant contamination of oil is suspected.
Pressure testing helps identify whether the cooler core or sealing area is responsible. The test method should match the cooler design and engine service procedure. A bench test may apply controlled air pressure to one side while observing the other side or using a water/submersion check for bubbles. The record should include pressure, hold time, leak point, and whether the cooler was tested alone or with housing components.
Mixing does not always prove the cooler core is cracked. Incorrect gasket installation, housing corrosion, damaged O-ring, warped surface, or debris trapped under the seal can create a path between fluids. A complete inspection protects the buyer from replacing the cooler while leaving the real sealing problem in place.

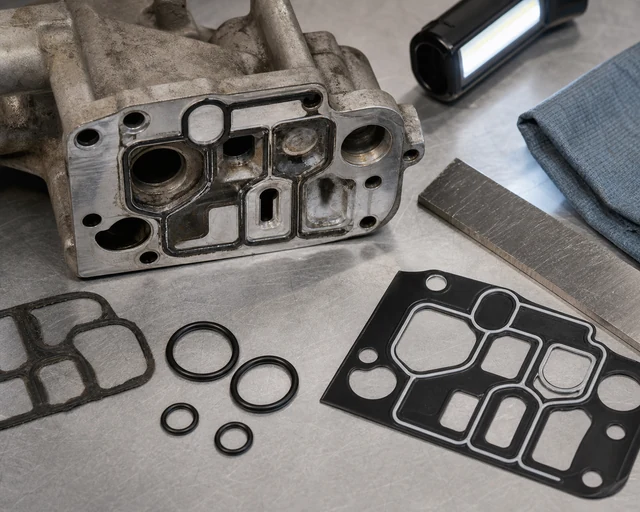

Housing condition, gasket grooves, and O-rings determine whether the repair needs seals only or a complete cooler assembly.
Gaskets and O-rings are not minor accessories in an oil cooler repair. They control fluid separation and external sealing. Old rubber can harden from heat. A gasket can be crushed, misaligned, or torn during installation. A sealing face can be scratched, pitted, or contaminated with old gasket material. If the replacement cooler is installed on a damaged housing surface, the leak may return quickly.
Before installation, inspect the housing, bolt holes, sealing grooves, gasket profile, and cooler seating surface. Confirm whether the Mitsubishi application requires a specific gasket set, O-ring shape, or seal kit. If a cooler is supplied without seals, the buyer should know this before shipment. If seals are included, the kit contents should match the repair requirement.
For wholesale orders, ask whether the customer expects cooler-only supply or a kit. A kit can reduce installation delays, but only if the included seals are correct. A cooler-only shipment may be acceptable for repair shops that source genuine or local gasket sets separately. The quotation should make this clear.
An aftermarket Mitsubishi oil cooler should be evaluated by function and fit, not only price. Compare the old and new cooler by engine application, OE reference, plate stack, core thickness, bolt pattern, oil and coolant passage openings, gasket face, housing depth, and any flow-direction markings. A visually similar cooler can still differ in internal passage layout or sealing details.
Elecdura's Engine Oil Cooler category is the most relevant reference when the repair involves engine oil heat exchange. For broader sourcing across oil-cooling products, buyers can also review Oil Cooler, but the engine model and cooler housing must still be confirmed. If the issue is high oil temperature after replacement, Normal Engine Oil Temperature helps frame the diagnostic side of the problem.
For buyers comparing aftermarket options, sample approval should include receiving inspection, installation fit, leak test result, and operating feedback. If the sample works, save the photos and measurements for repeat orders. If it differs from the original, record whether the difference is an approved supersession, a supplier improvement, or a fitment risk.
Related seals should be replaced when the cooler is removed, when oil/coolant mixing is present, when the old seal is hardened, or when the repair history is unknown. Reusing old seals can create a repeat leak that looks like a failed cooler. This is especially important when the repair requires removing a housing or adapter plate to access the cooler.
The seal decision should include the gasket between cooler and housing, O-rings around oil and coolant passages, port seals where applicable, and any housing gasket disturbed during service. The repair file should state which seals were replaced. If the customer reports leakage later, the distributor can review whether the cooler, seal kit, or installation process is the likely cause.
For B2B packaging, seal kits should be labeled clearly and protected from deformation. Thin gaskets and O-rings can be damaged if packed loosely with a metal cooler. Separate bags, part labels, and installation notes reduce mistakes at the repair shop.
Mitsubishi oil coolers may appear in passenger vehicles, light commercial vehicles, industrial engines, forklifts, and equipment applications depending on the market. The same brand name does not mean the same cooler body. Engine code, production year, fuel type, cooler housing, filter base design, and market region can change the cooler and gasket requirements. For B2B sourcing, the safest match uses the old part number and physical interface, not only the model name.
Application variants also affect how the customer describes the part. Some buyers ask for an engine oil cooler, while others use a broader Automotive Oil Cooler term. The supplier should confirm whether the requested unit cools engine oil, transmission oil, or another oil circuit. A shared word in the product name does not make the parts interchangeable.
If the old part has no readable number, use photos and measurements to narrow the match. Housing photos, gasket face photos, passage openings, and bolt pattern are more useful than a single exterior photo. For distributors, saving these details after a successful installation helps prevent future confusion across similar Mitsubishi applications.
A distributor should create a fitment note for each confirmed Mitsubishi oil cooler. The note should include engine code or engine family, vehicle or equipment application, production year or market if available, OE reference, cooler photos, housing photos, gasket details, and installation feedback. This prevents the next order from depending on memory or a generic product title.
If the customer cannot provide an OE number, request photos before quoting. Useful photos include the cooler on the engine, the removed cooler from all sides, the gasket face, passage openings, bolt pattern, and any label or casting mark. Measurements should include overall length, width, thickness, bolt spacing, cooler depth, and passage openings.
When a Mitsubishi oil cooler is used across several similar-looking applications, the distributor should avoid combining them into one stock item without evidence. Small differences in sealing face or passage layout can create serious leak or flow problems.
After installation, the repair should be checked under the condition that caused the original complaint. If the issue was external leakage, clean the area and inspect again after warm-up. If the issue was fluid mixing, check oil and coolant appearance after the first run and again after cooling. If the issue was high oil temperature, compare the repaired engine under similar load and ambient conditions rather than relying only on a short idle test.
Oil pressure behavior should also be observed. A replacement cooler with a different internal passage design can affect pressure drop. If the engine now runs with different oil pressure or oil temperature behavior, review the cooler specification, gasket openings, bypass relationship, and installation position. The goal is not only a dry repair; the goal is stable oil flow and heat control.
The retest record protects the shop and distributor. It shows that the cooler was installed correctly, the system was cleaned where needed, and the complaint was checked after repair. Without this record, a later issue becomes difficult to separate from residue, installation error, or an unrelated engine problem.
When an oil cooler leaks internally, cleaning is part of the repair. If oil entered the coolant side, the cooling path may hold oily residue even after the cooler is replaced. If coolant entered the oil side, the oil and filter service becomes urgent because lubrication quality has been compromised. The repair procedure should match the contamination direction and engine condition.
Cleaning should be documented so the customer does not mistake old residue for a new failure. Note what was drained, flushed, replaced, and retested. If oil film remains in the reservoir immediately after repair but decreases after cleaning cycles, the record should explain that. If contamination returns strongly, retest the cooler and housing.
Do not install a replacement cooler into a dirty or contaminated system without addressing the cause. Sludge, old gasket material, corrosion particles, or coolant-contaminated oil can shorten the life of the new part and create a claim that is not caused by the cooler itself.
Packaging must protect sealing faces, gasket surfaces, plate edges, ports, and any included seals. A cooler can be functionally correct but become unusable if the gasket face is scratched during shipment. Protective caps, foam separation, clear labels, and strong cartons reduce receiving damage.
Labels should identify part number, application reference, batch or inspection information, and whether seals are included. For distributors, this reduces counter mistakes. For repair shops, it prevents a technician from opening the package and discovering that critical seals are missing.
Receiving teams should inspect carton condition, protective caps, visible damage, and label accuracy before the part enters stock. This step is simple, but it prevents transport damage from being discovered only after the engine has been disassembled.
For repeat purchasing, compare every batch with the approved sample. Check cooler depth, gasket face, passage openings, bolt pattern, plate stack, protective caps, label, and carton condition. If the supplier changes a sealing surface or included seal kit, the distributor should know before parts reach customers. A small uncontrolled change can create many field complaints when the part is sold across a repair network.
Quality control should also include packaging drop-risk areas. Metal edges can cut thin gaskets. Loose coolers can scratch sealing faces. Ports without caps can collect debris. These are not cosmetic issues; they can become leaks after installation. For B2B buyers, packaging is part of product reliability.
After-sales records should keep the approved sample photos, batch label, receiving inspection, installation result, and any claim photos together. This makes it possible to see whether a future issue comes from a changed batch, shipping damage, missing seal, installation surface, or a true cooler defect.
If the part is used by several branches, share the same record with each counter team. Consistent reference photos reduce substitutions when a technician is waiting for a fast repair.
Mitsubishi engine model, vehicle or equipment application, and production year if available.
Old cooler part number, casting mark, or supplier reference.
Photos of cooler body, housing, gasket face, passage openings, and bolt pattern.
Leak evidence: external oil leak, oil in coolant, coolant in oil, or oil temperature complaint.
Pressure-test result with pressure, hold time, leak point, and test setup.
Gasket and O-ring requirements, including whether seals are included.
Service history: previous cooler replacement, engine repair, contamination, or overheating.
Target quantity, packaging requirements, label requirements, and repeat-order plan.
Evidence found | Recommended decision | Risk if ignored |
|---|---|---|
External leak at gasket face, core body dry | Replace seals and inspect housing surface | Unnecessary cooler replacement or repeat leak |
Leak from core seam or plate stack | Replace cooler and verify application match | Oil loss and return claim |
Oil/coolant mixing and cooler fails pressure test | Replace cooler, seals, and clean affected paths | Repeat contamination and lubrication risk |
Replacement has different passage openings | Stop and confirm before installation | Flow change, sealing failure, or oil temperature issue |
Oil temperature high after replacement | Review cooler specification and pressure-drop behavior | Wrong version may be blamed as engine problem |
Mitsubishi oil cooler replacement should be handled with confirmed leak evidence, sealing inspection, and fitment matching. Identify whether the failure is the cooler core, gasket, O-ring, housing, hose, or installation surface. If oil and coolant mix, pressure-test the cooler and inspect the sealing path before choosing the replacement. If high oil temperature is the issue, compare flow path, plate stack, and pressure-drop behavior as well as outer dimensions.
Elecdura can support Mitsubishi oil cooler sourcing with photo comparison, gasket and housing review, replacement matching, packaging discussion, and repeat-order planning. Send the old part number, engine application, photos, dimensions, failure evidence, pressure-test result, seal requirements, and target quantity so the replacement can be checked before shipment.
