Normal Engine Oil Temperature: When the Oil Cooler or Cooling Stack Is the Real Problem

Normal engine oil temperature depends on engine design, oil grade, load, ambient temperature, cooling-system condition, and where the temperature is measured. Many engines run oil warmer than coolant during heavy load, towing, long climbs, or high-speed operation. The warning sign is not a single universal number. The warning sign is oil temperature that climbs beyond the vehicle's normal pattern, stays high after load is reduced, rises while coolant temperature looks normal, or returns quickly after the oil cooler or cooling stack is cleaned, repaired, or replaced.

Oil temperature complaints should be checked with measured data, not only the dashboard gauge or a general overheating description.

For B2B buyers, repair networks, and fleet managers, this topic matters because high oil temperature is often misdiagnosed. A shop may blame oil grade, engine wear, or driver behavior when the real problem is a restricted oil cooler, internal cooler bypass issue, poor radiator-side heat rejection, weak fan airflow, external debris, or a front cooling stack that cannot move enough air. This article explains how to judge oil temperature complaints, when the engine oil cooler becomes a suspect, and what sourcing data buyers should collect before approving replacement.

Quick Answer: When Is the Oil Cooler the Real Problem?

A normal oil temperature reading is only useful when compared with the machine's normal operating pattern. Record load, ambient temperature, engine speed, road or job-site condition, coolant temperature, oil pressure, fan behavior, and whether the problem appears after a specific repair.

Normal Oil Temperature Depends on Engine and Load

Oil temperature is not fixed across every vehicle. A light-duty engine, heavy truck, generator, construction machine, and performance engine can all have different normal ranges. Oil temperature also changes with towing, climbing, idle time, payload, oil viscosity, and heat exchanger design. A number that looks high in a passenger car may be normal in a heavy-duty application under load, while a number that looks moderate may still be abnormal if that engine usually runs cooler.

The useful question is trend. Did oil temperature start rising after a cooler replacement? Does it rise only when the fan cannot pull enough air? Does it rise faster with a particular route, attachment, or ambient condition? Does it return to normal after debris is cleaned from the cooling stack? These details point toward a real diagnosis rather than a generic "oil runs hot" complaint.

For fleet buyers, build a baseline for common vehicles. Record normal oil temperature during idle, road load, hill climb, towing, or work cycles. When a vehicle deviates from that baseline, the maintenance team can decide whether the issue is oil grade, cooling-stack airflow, oil cooler performance, or another engine condition.

When High Oil Temperature Becomes a Warning

High oil temperature becomes a warning when it is persistent, repeatable, and tied to a condition that should be manageable. If oil temperature spikes only for a short time during heavy load and returns quickly, the system may be operating within its intended range. If the temperature keeps climbing during moderate load, remains high after the load drops, or appears after a new part was installed, the cooling path deserves attention.

Oil that runs too hot can oxidize faster, thin out, lose protective film strength, and increase wear risk. Seals and gaskets may age faster. Bearings, turbocharger oil supply, timing components, or high-load lubrication points may become less protected if temperature and pressure behavior are both poor. These risks make oil cooler diagnosis more than a comfort issue.

A warning pattern is especially important when coolant temperature looks normal. If coolant is controlled but oil temperature rises, the problem may be on the oil side: internal cooler restriction, bypass behavior, oil flow path, incorrect replacement cooler, or heavy load beyond the cooler's capacity. If both oil and coolant rise together, focus more on the radiator, fan airflow, debris, and heat rejection across the cooling stack.

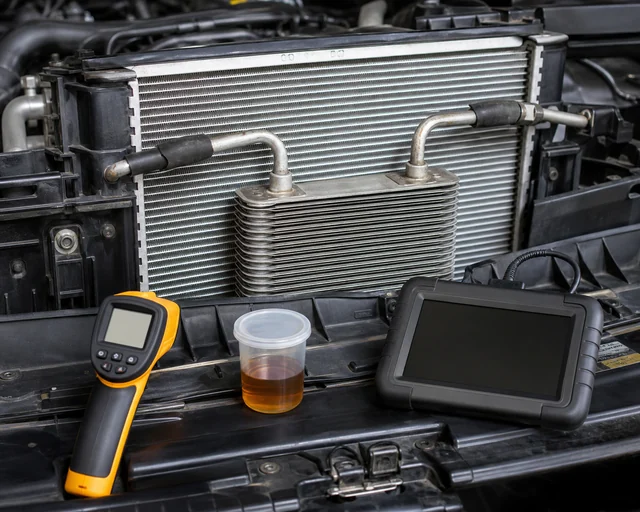

Sensor and Gauge Confirmation

Before replacing parts, confirm that the temperature reading is trustworthy. A dashboard gauge may be damped or approximate. A scan-tool value may come from a sensor in a specific location. An aftermarket gauge may read at the sump, filter housing, cooler outlet, or another point. Each location can show a different number. A buyer should not approve a cooler replacement based on an unverified reading.

Compare the reading with other evidence. Does oil pressure behave normally? Does the engine smell overheated? Does the fan engage correctly? Is coolant temperature stable? Does an infrared reading on the cooler inlet and outlet show a reasonable temperature difference? Is the sensor connector damaged or contaminated? These checks prevent a good oil cooler from being replaced because of a gauge problem.

For repair networks, the work order should state where the temperature was measured and under what condition. "Oil temperature high" is weak evidence. "Oil temperature rises during 30-minute loaded route while coolant remains stable; cooler inlet/outlet temperature difference is low" is much more useful.

Oil Cooler Failure Modes

Engine oil coolers can fail externally, internally, or functionally. External leaks may appear at the cooler body, gasket, housing, seal, hose, or mounting plate. Internal leaks can allow oil and coolant to mix in water-cooled designs. Functional failure may happen when internal passages clog with sludge, debris, sealant, or corrosion products, reducing heat transfer or increasing pressure drop.

A clogged oil-side passage may raise oil temperature while the outside of the cooler looks normal. A cooler with internal erosion or gasket failure may create cross-contamination. A cooler with the wrong replacement specification may fit the engine but have a different flow path, port size, plate stack, bypass function, or sealing arrangement. These differences can create high temperature, leakage, or pressure issues after installation.

Oil cooler diagnosis should include service history. Recent engine failure, bearing debris, sludge, incorrect sealant use, poor oil-change history, or previous cooler replacement can all explain a new oil-temperature complaint. If contamination is present, replacing the cooler without cleaning the related oil path can lead to another failure.

Water-Cooled Versus Air-Cooled Oil Coolers

Some engine oil coolers transfer heat from oil into engine coolant through a plate-style or housing-mounted heat exchanger. Others reject heat directly to outside air through a finned cooler. The diagnostic path is different. A water-cooled oil cooler can create cross-contamination if an internal plate, seal, or gasket fails. It may also struggle if the engine coolant side is restricted, the housing is corroded, or the wrong gasket blocks a passage. An air-cooled oil cooler depends more directly on airflow, fin condition, port layout, and mounting position.

Buyers should identify which style they are sourcing before ordering. A water-cooled cooler needs gasket, seal, housing, passage, and fluid-mixing checks. An air-cooled cooler needs core size, fin condition, port direction, hose clearance, airflow path, and mounting checks. Treating both designs as the same product category can lead to wrong repair advice and weak quotation data.

Water-cooled designs may also rely on a relief or bypass path to protect oil flow when oil is cold, thick, or restricted. The exact opening pressure depends on the engine and housing design, so buyers should not assume one universal PSI or bar value. What matters is whether the replacement preserves the original oil direction, gasket openings, plate stack, and bypass strategy. If one passage is blocked or one insert is missing, oil temperature can rise even though the cooler appears to bolt on correctly.

Oil temperature and oil pressure should be interpreted together because restriction, viscosity, and bypass behavior can change both readings.

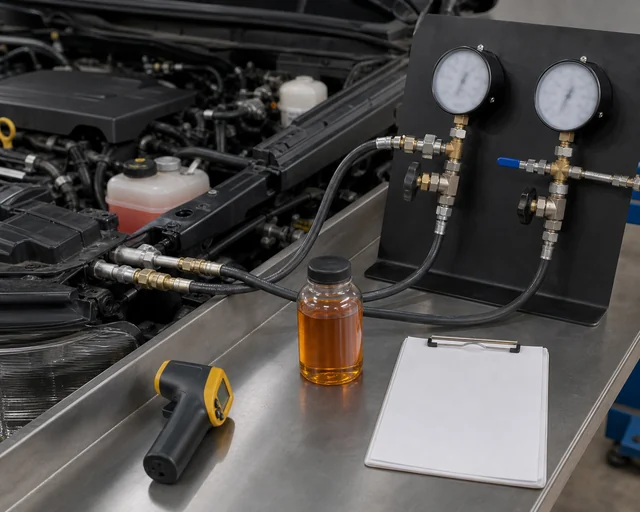

Oil Temperature and Oil Pressure Must Be Read Together

Oil temperature alone can mislead. Oil pressure helps show whether the system is also dealing with viscosity change, restriction, leakage, or bypass behavior. A 15W-40 oil, a 5W-30 oil, and a low-viscosity oil specified for a modern engine can show different pressure behavior at the same temperature. Hot oil usually becomes thinner, so pressure may drop as temperature rises. If temperature rises and pressure also behaves abnormally, the repair team should look beyond the gauge and inspect oil grade, pump condition, filter condition, cooler restriction, and bypass paths.

When the old cooler is suspected of restriction, downstream pressure readings are especially useful. If a replacement cooler changes the pressure pattern, the buyer should review port size, internal passage design, flow direction, and sealing arrangement. A cooler that lowers temperature but creates poor pressure behavior is not a good solution. The repair target is stable lubrication and heat control together.

Airflow blockage can raise oil temperature even when the oil cooler core itself is not leaking or internally restricted.

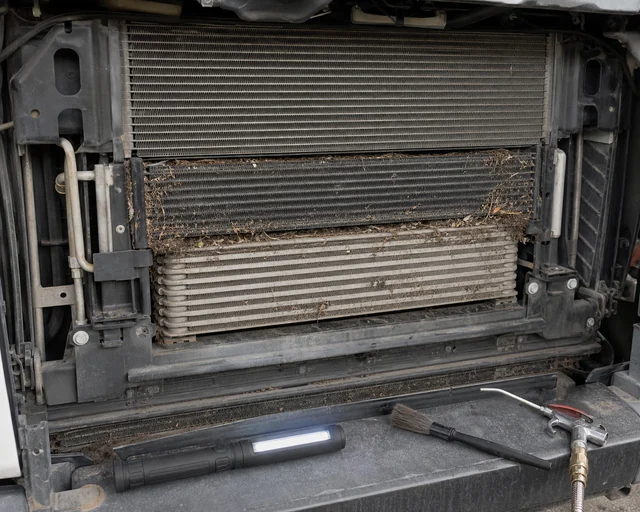

Cooling Stack Airflow Problems

The oil cooler may be healthy, but the surrounding cooling stack may not be. On many vehicles and machines, the oil cooler works near the radiator or in the same airflow path. If the radiator face is blocked by dirt, leaves, insects, mud, or bent fins, the air reaching the oil cooler may be hotter or weaker than expected. If the fan is weak, the shroud is damaged, or airflow is recirculating inside the engine bay, heat rejection drops.

This is why the oil cooler should not be judged alone. Inspect the radiator face, fan, shroud, grille, debris screen, air seals, and any cooler mounted in front of or behind the radiator. A blocked stack can make several temperatures rise at the same time. Cleaning the stack may restore performance without replacing the oil cooler.

When elevated oil temperature appears together with engine overheating, the complete Automotive Radiator system should be evaluated because weak heat rejection on the coolant side can raise the temperature of every nearby heat exchanger. If the symptom is worse at idle, in traffic, or during slow job-site operation, the Radiator Fan, shroud, and airflow path deserve the same attention as the oil cooler itself.

Oil Cooler Pressure Drop and Flow Restriction

An oil cooler can be clean outside and still restrict flow inside. Pressure drop becomes important when internal passages are narrow, blocked, or mismatched to the application. A replacement cooler with smaller ports, longer internal paths, or a different plate design may increase resistance. The result can be higher oil temperature, pressure warnings, bypass operation, or poor lubrication at downstream points.

The article Oil Cooler Pressure Drop explains this issue in more detail, but the practical check is straightforward: compare the old and new cooler by port diameter, flow direction, core design, bypass feature, sealing style, and application requirement. If the high-temperature complaint appeared only after a replacement cooler was installed, pressure drop and flow layout should be reviewed before blaming the engine.

Buyers should ask whether the cooler is for engine oil, transmission oil, or another oil circuit. Flow requirements and pressure limits are not the same across all oil coolers. Elecdura's Oil Cooler category can support sourcing, but the circuit type must be stated clearly for accurate matching.

Fleet and Heavy-Duty Examples

A delivery truck may show normal coolant temperature in traffic but gradually rising oil temperature during long loaded routes. The radiator may look clean from the front, but debris between stack layers reduces airflow. Cleaning and sealing the airflow path may solve the complaint. In this case, replacing the oil cooler first would not address the root cause.

A second vehicle may develop high oil temperature after an engine repair. The old cooler had been contaminated with bearing material, and the replacement chosen by outer dimensions used smaller oil passages. Coolant temperature remains controlled, but oil temperature rises under load. Here, the repair file should review cooler specification, contamination history, and pressure drop.

A third case is cross-contamination. The vehicle arrives with oil in coolant or coolant in oil. The repair team should pressure-test the suspected cooler and related housing rather than assuming the failure is a head gasket. A failed oil cooler plate or seal can create a serious complaint with a different repair path.

Sourcing Decisions for Oil Cooler Replacement

For importers and distributors, oil cooler sourcing should begin with the old-part reference and application data. Useful fields include vehicle model, engine, year, oil circuit type, cooler housing design, gasket or seal type, port size, core size, flow direction, bypass feature, and failure evidence. If the issue is temperature, include the operating condition and temperature trend. If the issue is contamination, include photos of oil, coolant, and the failed cooler when available.

Do not approve a replacement only because the bolt holes match. A cooler that installs but changes oil flow can create a new complaint after the repair, especially when the replacement changes plate count, gasket openings, cooler depth, or built-in flow-control features.

Packaging and receiving checks are also important. Oil cooler sealing surfaces, brackets, ports, and fins can be damaged in transport. Receiving photos help separate shipment damage from product defects and protect the after-sales process.

Quotation Package for Oil Temperature Complaints

A strong quotation request should connect the oil-temperature symptom with the actual engine and cooler design. Send the old oil cooler number, engine model, production year, market region, oil grade, oil temperature trend, coolant temperature behavior, oil pressure behavior, service history, contamination evidence, and photos that show the cooler body, housing, sealing faces, and gasket style. If flow direction or bypass function is marked on the old assembly, include those photos because they are more important than exterior shape alone.

Buyer Checklist

• Confirm where oil temperature was measured and under what condition.

• Record coolant temperature, oil pressure, load, ambient temperature, and fan behavior.

• Inspect radiator face, fan airflow, shroud, debris screen, and stack blockage.

• Check for external oil cooler leaks, gasket leaks, and housing leaks.

• Check for oil/coolant cross-contamination in water-cooled oil cooler designs.

• Compare old and new cooler port diameter, flow direction, bypass feature, and sealing style.

• Review service history for sludge, bearing debris, sealant, or previous engine failure.

• Send old-part photos, dimensions, application details, and failure evidence before ordering.

• Retest oil temperature under the same condition that created the complaint.

Replacement Decision Table

Final Recommendation

Normal engine oil temperature should be judged by trend, load, measurement point, and system context. When oil temperature rises abnormally, do not assume the oil cooler is bad, but do not ignore it either. Compare coolant behavior, airflow, radiator condition, fan operation, oil pressure, contamination evidence, and the cooler's flow path. If the oil cooler is restricted, leaking, cross-contaminated, or mismatched after replacement, it can be the real problem even when the rest of the engine looks normal.

Elecdura can support oil cooler sourcing for importers, distributors, repair networks, and fleet buyers. Send the old part number, photos, dimensions, oil circuit type, measurement data, service history, and failure evidence so the replacement can be checked against the real oil-temperature complaint instead of only the vehicle name.
