Oil cooler pressure drop matters because an oil cooler must remove heat without restricting oil flow beyond what the engine, transmission, or hydraulic circuit can tolerate. A larger core can improve heat rejection, but it can also add restriction if the internal passages are too narrow, too long, or poorly routed. A port that is too small, angled sharply, mismatched to the hose, or rough inside can create localized turbulence and pressure loss. For B2B buyers, the right oil cooler is not simply the biggest core that fits the space. It is the cooler that balances heat transfer, flow rate, viscosity, pressure drop, port layout, and installation durability.
This article explains why core size and port layout matter when selecting an oil cooler for aftermarket replacement, fleet maintenance, or distributor stocking. It focuses on practical inspection and sourcing evidence: oil viscosity, cold-start behavior, bypass valve strategy, tube design, port diameter, thread or flange type, hose routing, pressure-test records, and acceptance criteria. The goal is to help buyers avoid coolers that fit physically but create hidden flow restriction, slow warm-up issues, poor thermal performance, or repeat warranty complaints.
Oil cooler pressure drop is affected by core depth, internal passage design, port diameter, fitting choice, and hose routing.
Factor | How it affects pressure drop | Buyer check |
|---|---|---|
Core passage size | Narrow or long passages increase flow resistance | Request core type, tube layout, and flow-path information when available |
Core thickness and row count | More surface area can improve cooling but may add internal restriction | Compare heat load and flow requirement, not only outer size |
Port diameter | Undersized ports create a bottleneck before oil reaches the core | Measure inlet/outlet diameter and thread or flange specification |
Port angle and hose routing | Sharp bends and stressed hoses increase localized pressure loss | Check installed photos, elbow position, and hose bend radius |
Oil viscosity | Cold or high-viscosity oil flows more slowly and raises pressure differential | Evaluate cold-start condition, oil grade, and operating temperature |
Contamination or sludge | Internal deposits reduce passage area and can force bypass operation | Inspect old oil, service history, and failure debris |
A good oil cooler selection starts with the circuit requirement. An engine oil cooler, transmission oil cooler, and hydraulic oil cooler may all look similar as heat exchangers, but their flow rates, pressure limits, viscosity ranges, and failure consequences are different. Use the correct category and operating data before comparing dimensions.
Core size affects heat rejection, oil volume, flow path, mounting fit, and pressure drop. A larger face area can expose more oil to cooling airflow. A thicker core can add surface area. More rows can increase heat transfer. However, these benefits only matter if the oil can move through the cooler at the required rate without excessive restriction.
Pressure drop increases when oil must pass through narrow passages, long internal paths, tight turns, or partially blocked tubes. A cooler with a large outside dimension can still restrict flow if the internal design is not matched to the circuit. Conversely, a smaller but well-designed cooler may perform better when the port size, tube layout, and flow path are appropriate for the oil flow and operating temperature.
For B2B sourcing, outer dimensions are necessary but not sufficient. Buyers should request core height, width, thickness, tank or header design, port size, mounting layout, and the intended application. If the cooler is used in a high-load engine, construction machine, agricultural vehicle, or hydraulic system, the supplier should understand the heat load and flow demand before recommending a substitute.

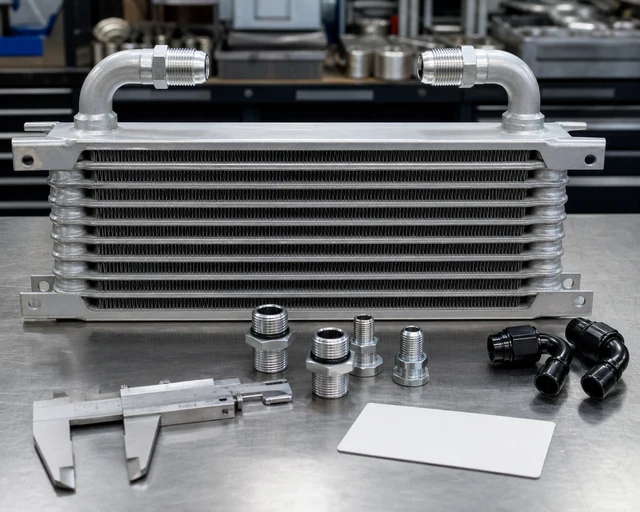

Ports are often where an apparently correct oil cooler becomes a problem. If the inlet or outlet diameter is smaller than the original, the port becomes a bottleneck. If the thread, flange, O-ring seat, or sealing face differs, the installer may adapt the hose in a way that creates restriction or leakage. If the port angle points in the wrong direction, the hose may be forced into a sharp bend, reducing effective flow and increasing stress on the connection.
Port layout should be checked in the installed position, not only on a bench. A straight port may be ideal in one vehicle and impossible in another. A 90-degree elbow may save space but can add localized resistance if the internal passage is abrupt or the hose routing is tight. A flange port may handle flow and sealing well, but only if the bolt spacing, gasket face, and pipe alignment match the original system.
For wholesale buyers, port photos should include front, side, thread detail, sealing surface, and orientation relative to brackets. Measurements should include inlet diameter, outlet diameter, thread type or flange size, center-to-center spacing, and port projection. These details reduce the risk of a replacement that installs with hose stress or requires unplanned adapters.

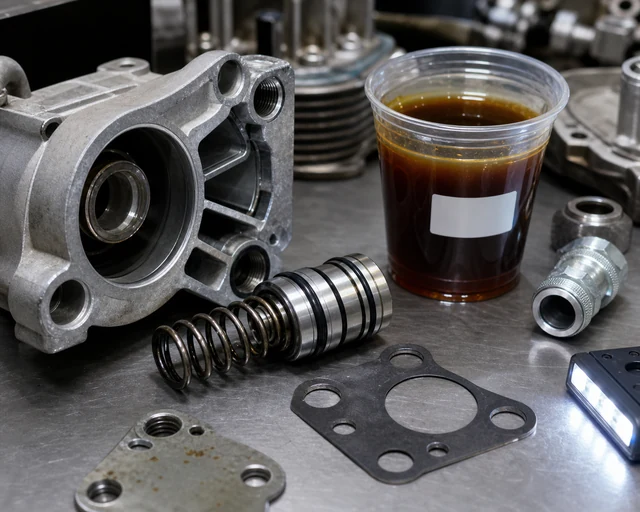

Bypass valve behavior and oil viscosity matter because cold-start flow can expose restrictions that are not obvious in a catalog photo.
Many oil circuits rely on a bypass strategy to protect flow when oil is cold, thick, or restricted. The bypass may be built into the engine, filter housing, cooler housing, adapter block, or another part of the circuit. The purpose is to prevent oil starvation when resistance is temporarily high. This protection is useful, but it also means a cooler with excessive pressure drop may cause more oil to bypass the cooler than intended.
If oil bypasses the cooler too often, the system may show acceptable oil pressure while oil temperature remains high under load. The driver or technician may not notice the problem until towing, climbing, long idle, high ambient temperature, or heavy hydraulic work exposes the heat load. A cooler that triggers frequent bypass operation may look like a cooling problem, a pump problem, or an engine wear problem, depending on where the pressure is measured.
Buyers should ask how the replacement interacts with the original bypass design. If the old cooler had an integrated bypass, temperature-controlled plate, or specific flow direction, the replacement must match that function. If the bypass is external, the cooler still needs to support the required flow so the bypass does not become a constant path during normal operation.
Oil viscosity changes with temperature. Cold oil is thicker and creates higher resistance through the cooler, hoses, and fittings. A cooler that performs well at operating temperature may show a larger pressure differential during cold start. This is why cold-climate fleets, construction equipment, and vehicles with long idle cycles need careful selection rather than a simple size match.
Cold-start pressure behavior should be evaluated with the correct oil grade and service environment. If the vehicle operates in winter conditions, a cooler with narrow passages, small ports, and tight hose routing can create excessive restriction until the oil warms. That restriction may trigger bypass operation or delay proper cooling flow. If the vehicle operates in hot climates with high-load duty, the cooler also needs enough heat-transfer capacity at operating temperature.
For B2B quotes, include oil type or viscosity grade when relevant, ambient temperature range, duty cycle, and the old cooler's failure mode. This information helps the supplier avoid recommending a cooler that matches the mounting points but not the real operating condition.
Oil cooler pressure drop can create problems that do not look like cooler problems at first. The system may show delayed lubrication, high oil temperature, bearing complaints, low pressure at a downstream point, filter bypass operation, hose swelling, seal stress, or repeat leakage. If the cooler is partially blocked by sludge or debris, the problem may appear only when flow demand rises.
A restricted cooler can also mislead diagnosis. The pump may be healthy, the oil grade may be correct, and the filter may be new, yet the downstream circuit still receives less flow than expected. If the technician replaces the wrong part first, the repair becomes more expensive and the buyer may blame the new component when the root cause was pressure loss through the cooler or its fittings.
For fleet maintenance, oil analysis and service history are useful clues. Sludge, overheated oil, bearing material, failed seals, or repeated filter issues should trigger closer cooler inspection. If the cooler cannot be cleaned and verified, replacement may be safer than reinstalling a restricted heat exchanger into a repaired system.

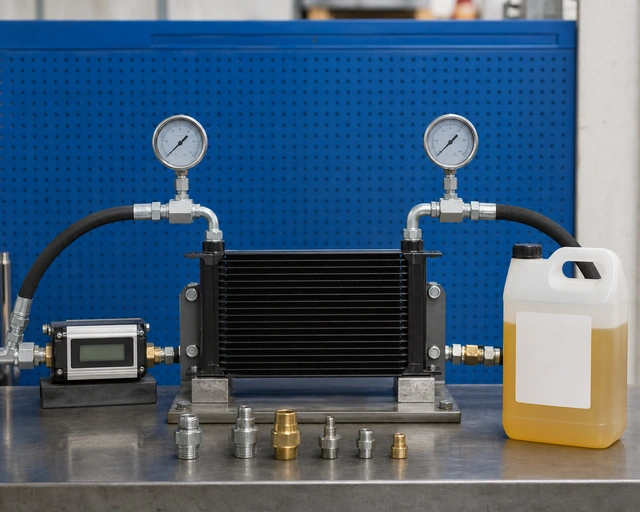

Bench testing with inlet and outlet readings helps buyers set acceptance criteria before bulk orders or repeat replacement programs.
Pressure-drop testing is different from a simple leak test. A leak test asks whether the cooler holds pressure. A pressure-drop or flow test asks how much resistance the cooler creates at a given flow and oil condition. The most accurate tests require controlled equipment, specified flow rate, oil or test-fluid condition, and measurement at the inlet and outlet. Not every repair shop has this equipment, but the concept still matters for procurement.
When formal flow data is not available, buyers can still collect useful evidence: oil pressure readings before and after repair, oil temperature trend, cold-start behavior, hose condition, filter condition, and photos of internal contamination when visible. For engineered or high-value applications, request supplier data or test records where possible. Acceptance should be based on the application requirement, not only whether the cooler is new.
A good purchasing file records OE number, dimensions, port layout, sealing type, flow direction, bypass function, pressure or flow evidence, and the reason for replacement. This file helps distributors defend the match and helps fleets standardize future orders.
The cleanest pressure-drop measurement compares pressure before and after the oil cooler at a known flow and temperature. In an engineered test environment, the test may use controlled oil temperature, specified viscosity, a target flow rate, calibrated gauges, and a defined allowable pressure difference. This is the strongest evidence, but many repair shops do not have a full flow bench. Even then, the principle can guide diagnosis.
In the field, technicians can compare oil pressure behavior before and after repair, observe oil temperature under the same load, inspect filter condition, check whether bypass operation is suspected, and look for hose swelling or abnormal noise. If a replacement cooler produces worse temperature or pressure behavior than the old confirmed specification, the buyer should stop and review the core design, port size, hose routing, and installed direction. A cooler should not be accepted only because it does not leak.
For fleets, use consistent test conditions. Compare cold start, warm idle, road load, heavy load, and high ambient operation where relevant. A reading taken at cold idle cannot be compared directly with a reading taken after a loaded road test. Recording oil grade, ambient temperature, engine speed, load, and measurement point makes the data useful for sourcing and warranty review.
Bulk oil cooler orders should not depend only on sample appearance. Before a distributor commits to repeated stocking, the sample should be compared with the original for dimensions, port geometry, sealing surfaces, bracket layout, flow direction, bypass features, and installed hose clearance. If the customer can provide operating data, review oil temperature and pressure behavior after installation on a real application.
Acceptance criteria can be simple but must be specific. The part should install without hose stress. Ports should match the required diameter and sealing style. Brackets should not force the cooler against surrounding parts. The circuit should reach normal oil temperature control under expected load. There should be no new downstream pressure warning, abnormal bypass behavior, or repeat leakage. For high-value engines or equipment, sample approval should include a written comparison record before the order becomes a stocking item.
Engine oil coolers and hydraulic oil coolers both control oil temperature, but the sourcing logic is not identical. Engine oil coolers are tied closely to lubrication, bearing protection, filter bypass behavior, and engine thermal management. Hydraulic oil coolers are tied to pump flow, actuator duty cycle, reservoir temperature, pressure spikes, and long operating hours. A cooler that is acceptable in one category may not be suitable in the other.
This distinction matters when using internal references. Elecdura's Oil Cooler category is the broad starting point. Buyers working on hydraulic circuits should compare requirements through Hydraulic Oil Cooler or Excavator Oil Cooler. If the issue is sizing a hydraulic circuit, Hydraulic Oil Cooler Sizing Mistakes is more relevant than an engine-oil pressure-drop article. The correct link depends on the oil circuit, not only the word "cooler."
OE number, casting number, or old-part reference.
Oil circuit type: engine oil, transmission oil, hydraulic oil, or other lubricating system.
Core height, width, thickness, row count, and overall dimensions.
Inlet and outlet diameter, thread type, flange size, O-ring seat, and sealing face.
Port angle, port offset, hose routing, and available installation clearance.
Flow direction marking and whether the cooler has internal baffles.
Bypass or temperature-control features, if present in the original assembly.
Oil viscosity, ambient temperature range, duty cycle, and heat-load condition.
Failure evidence: sludge, debris, restriction, leakage, overheating, or pressure concern.
Packaging needs for fins, ports, brackets, and sealing faces.
Evidence found | Likely decision | Risk if ignored |
|---|---|---|
Cooler is leaking externally but flow path is otherwise known | Replace with same specification and inspect fittings | Repeat leakage or wrong sealing interface |
Oil temperature remains high under load after other checks | Review core capacity, airflow, and pressure drop | Overheated oil, viscosity breakdown, and component wear |
Low downstream pressure or suspected restriction | Check cooler passages, hoses, ports, and bypass behavior | Lubrication risk or unnecessary pump replacement |
Heavy sludge, bearing debris, or metal contamination | Replace or require verified cleaning and flow assessment | New system components may be damaged by old contamination |
Replacement has smaller ports or different hose angle | Stop and confirm before installation | Pressure drop, hose stress, leakage, or poor fitment |
A distributor receives a request for an oil cooler that matches the outer dimensions and mounting holes of the old unit. The new part installs easily, but the fleet later reports higher oil temperature and occasional downstream pressure warnings during heavy load. A review shows that the replacement had slightly smaller ports and a different internal passage layout. The cooler fit the bracket, but it did not match the flow requirement.
A better order file would have included inlet and outlet diameter, flow direction, port thread, oil circuit type, engine or machine application, oil grade, duty condition, and whether the original cooler used a bypass feature. With those details, the supplier could have checked more than the footprint. This is the difference between physical fitment and functional fitment.
Oil coolers are vulnerable at the fins, ports, brackets, and sealing faces. Shipping damage can create leaks or alignment issues before the part is ever installed. Buyers should check carton condition, port protection, bracket straightness, fin damage, sealing surfaces, and whether protective caps are present. If the cooler uses threaded or flanged ports, the sealing area must be clean and undamaged.
Receiving inspection is especially important for wholesale orders. A bent bracket may force hose misalignment. A damaged port may create leakage. Crushed fins may reduce heat rejection. Documenting receiving condition protects the buyer and supplier if a claim appears later.
Oil cooler pressure drop should be evaluated as a functional requirement, not a minor engineering detail. Core size, internal passage design, port diameter, port angle, hose routing, oil viscosity, bypass behavior, and contamination all affect whether the cooler can remove heat without restricting flow. A replacement that looks correct from the outside can still cause hidden pressure and temperature problems if these details are ignored.
Elecdura can support importers, distributors, repair networks, and fleet buyers with oil cooler sourcing, photo comparison, specification review, packaging discussion, and repeat-order planning. Send the old part reference, dimensions, port measurements, oil circuit type, failure evidence, application details, and target quantity so the replacement can be checked for both physical fitment and flow suitability.
