A 12- or 24-volt electric A/C compressor normally draws substantial current from a low-voltage electrical system and is often selected for parking coolers, sleeper cabs, small mobile equipment, auxiliary HVAC or other limited-capacity applications. A high-voltage compressor is usually integrated into a hybrid, battery-electric or fuel-cell vehicle thermal system, uses an inverter-driven brushless motor and may cool the cabin, battery, power electronics or several circuits.
Voltage class changes the power supply, conductor size, protection, control, safety and likely duty cycle, but it does not establish interchangeability. Two compressors with the same nominal voltage can differ in displacement, speed range, refrigerant, lubricant, controller, CAN or LIN messages, mounting, ports, cooling strategy and validated operating envelope. Begin with the vehicle or system specification, then verify the complete assembly. Buyers can use Elecdura's electric A/C compressor range only as a sourcing route after those fields agree.

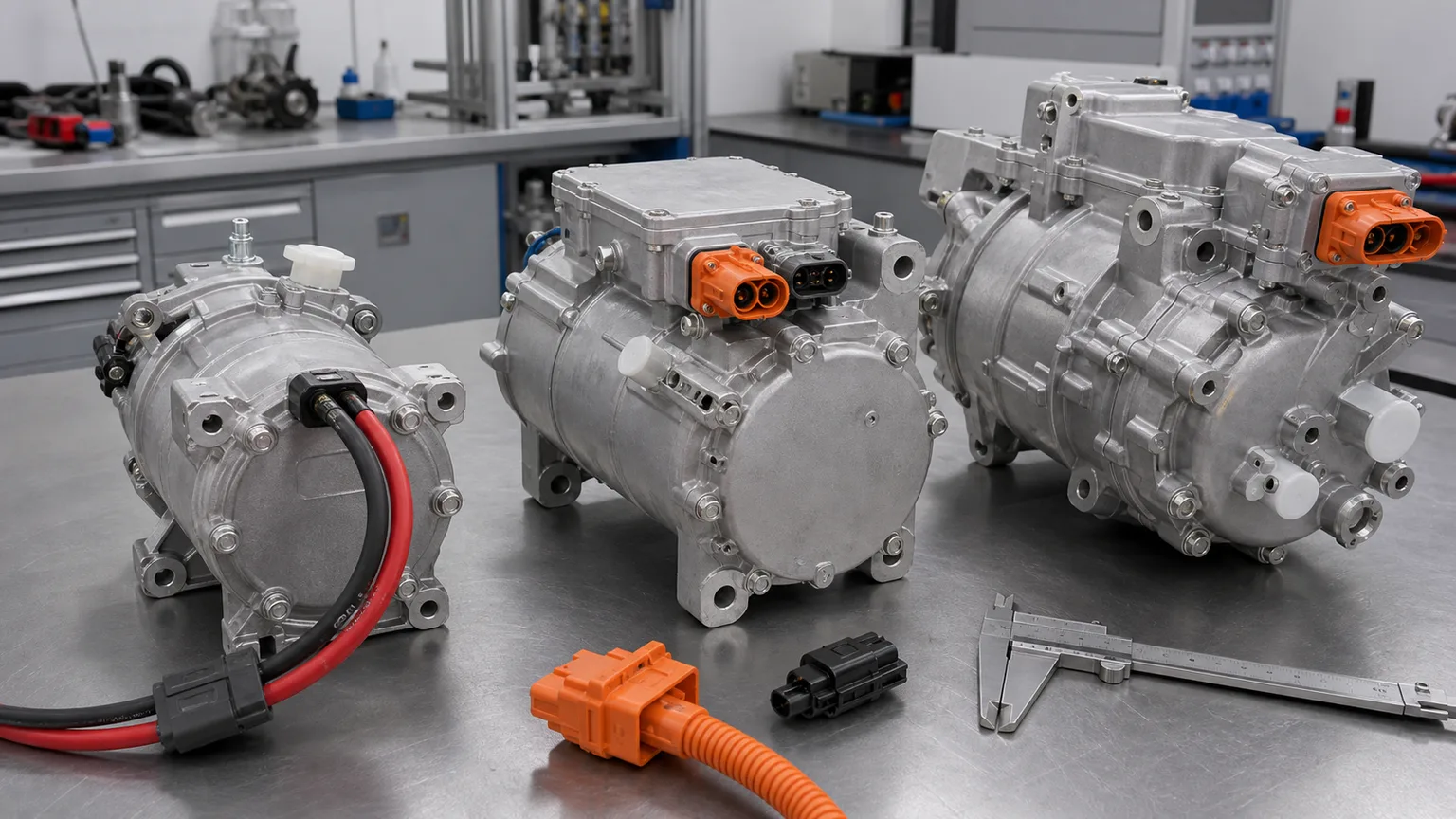

A voltage label identifies one electrical boundary; the compressor architecture, interfaces and approved operating map determine the real application.
Decision field | 12/24 V electric compressor | High-voltage electric compressor | Buyer verification |
|---|---|---|---|
Typical application | Parking/sleeper HVAC, auxiliary cab cooling, compact mobile equipment, niche conversions | Hybrid/EV cabin and integrated battery/powertrain thermal management | Approved vehicle or system duty |
Power stage | Low-voltage DC motor/controller; high current for delivered power | HV DC input with integrated or matched inverter driving a brushless motor | Nominal and operating-voltage range, polarity, transient limits |
Control | May use enable, speed command, PWM, CAN or proprietary control | Often vehicle-network command with HV interlock, diagnostics and thermal coordination | Connector pinout, protocol, messages and software compatibility |
Safety | Arc, short-circuit, heat and high-current hazards still apply | Qualified HV procedure, shutdown, lockout and absence-of-voltage verification required | Applicable regulations and OEM service information |
Lubricant | Product-specific; some named 24 V units use specified PAG products | Often requires highly insulating application-specific oil | Exact compressor and vehicle oil specification |
Interchange rule | Never substitute on voltage alone | Match every controlled field and validation requirement | |
Low-voltage electric compressors allow cooling when an engine-driven belt compressor is unavailable or the engine is stopped. Common projects include truck sleeper or parking air conditioning, agricultural and construction cabs, material-handling equipment, specialty vehicles, marine or stationary cabins and auxiliary cooling loops. The exact product must still be approved for its environment, refrigerant circuit and operating duty.
Sanden's current electric-compressor brochure includes a named 24 V model for niche applications alongside high-voltage models. Its published voltage range, displacement, speed, cooling performance, communication and oil information belong to that particular product. They demonstrate that a credible low-voltage specification is multidimensional; they are not a generic specification for any compressor advertised as “24 V.”
Electrical input power is the product of voltage and current before losses. Delivering kilowatts at 12 or 24 V therefore requires much more current than delivering similar electrical power from a high-voltage bus. The installation may need short heavy conductors, low-resistance terminations, suitable contactors or switching, coordinated fusing, controlled inrush and a charging system that can support continuous operation.
Do not size a cable from a marketing wattage divided by nominal voltage alone. Use the compressor maker's maximum continuous current, transient/inrush behavior, allowed voltage drop, conductor temperature rating, routing, ambient temperature, bundling, connector rating and protective-device requirements. Validate the alternator, DC/DC converter or battery under worst-case idle and heat-soak conditions.
A 12 V motor/controller can be destroyed by a 24 V supply; a 24 V compressor may not start, may overheat or may produce inadequate output on 12 V. Nominal labels also hide operating ranges. A unit designed around a defined 24 V system may tolerate a published window that covers charging conditions, but only its data sheet establishes that window.
Confirm polarity, ground strategy, continuous and peak current, connector keying, enable logic, control-signal levels, communication and protective behavior. Never infer voltage from wire color or connector appearance. Verify whether the compressor has internal undervoltage, overvoltage, overcurrent, temperature and stall protection and how each fault is reported.
A high-voltage compressor typically combines a scroll mechanism, hermetic brushless motor and inverter. The inverter converts vehicle HV DC into controlled multi-phase motor power and varies speed to meet thermal demand. MAHLE and DENSO technical material describe this architecture and its ability to provide cooling without the combustion engine running.
The compressor may participate in a heat-pump circuit and battery-conditioning strategy. The vehicle controller can limit speed according to battery state, refrigerant pressure, evaporator temperature, motor/inverter temperature, charging state or noise targets. A mechanically similar compressor with incompatible software or network messages may never run correctly.

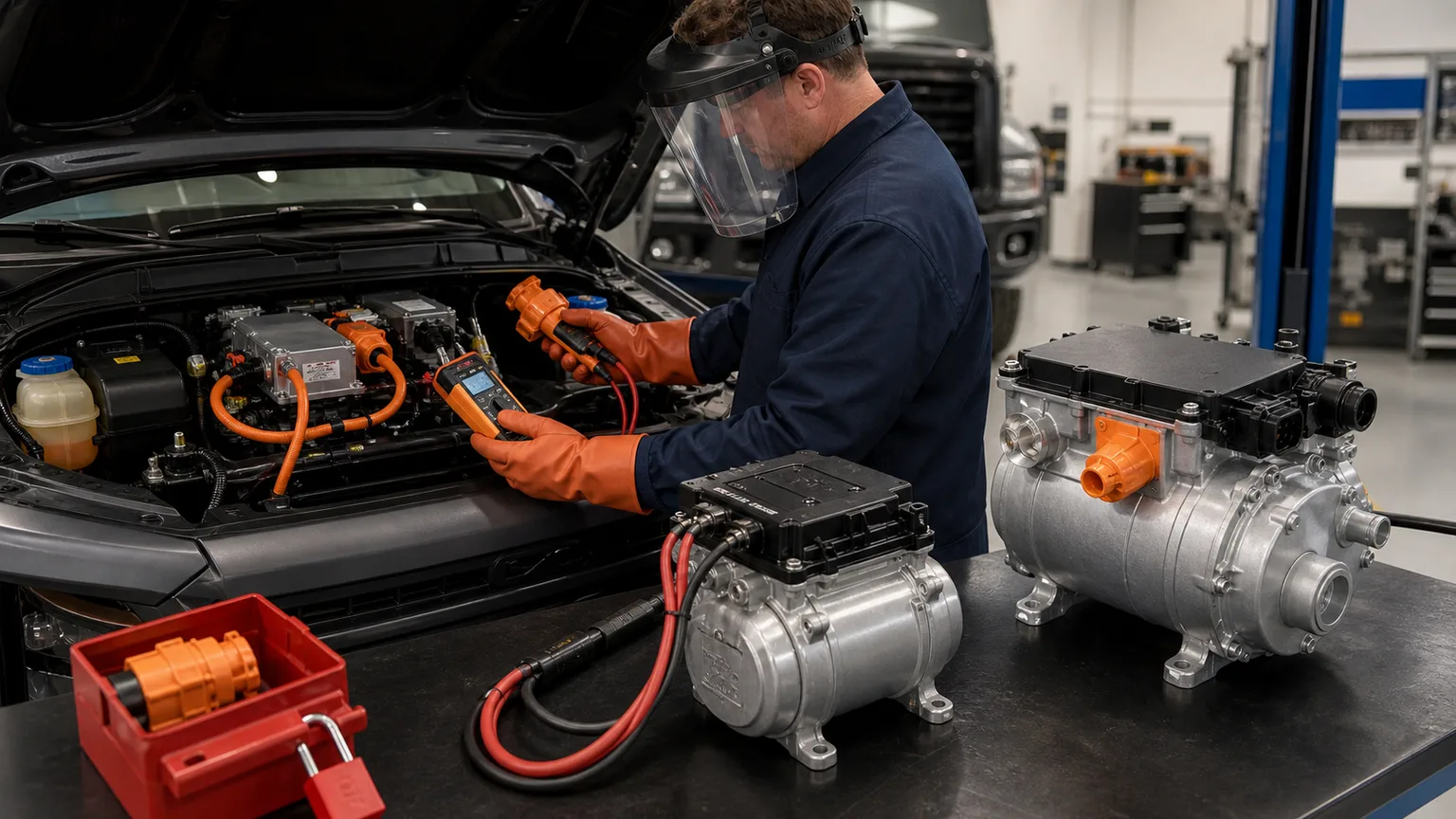

Only qualified and authorized personnel may disconnect or test a high-voltage compressor. The exact vehicle procedure controls shutdown, service disconnect, capacitor wait time, lockout/tagout, PPE, test points and live-dead-live verification. The orange connector is a warning, not a complete procedure.
Do not energize a removed HV compressor from an improvised supply, probe its power terminals casually or apply a megohmmeter through integrated inverter electronics. Component insulation tests, when authorized, require specified isolation, instrument, voltage, polarity, duration and pass limit. Conventional low-voltage compressor installation practices do not transfer to an HV circuit.
Low-voltage systems demand high-current wiring discipline; HV systems add controlled de-energization, interlock and qualified-personnel requirements.
Many electric compressors have a power connector and a separate low-voltage control connector. On an HV unit, the power connector carries hazardous DC while the control connector may carry wake, interlock, CAN, LIN or other signals. On a 24 V unit, separate heavy supply studs or pins may sit beside a small command connector.
Match both connector bodies and the electrical definition behind them. A plug that physically fits can have different pin assignments or network termination. Request the approved connector drawing, mating-part numbers, terminal and seal specifications, crimp requirements, pinout, shielding or twisted-pair requirement and harness validation plan.
“CAN controlled” does not mean plug-and-play. Arbitration identifiers, byte order, scaling, rolling counters, checksums, wake/sleep behavior, command rate, diagnostic messages and fault states can differ. LIN has its own schedule and node configuration. PWM frequency, duty interpretation and electrical level can also vary.
Obtain an interface-control document or a validated controller/harness supplied for the exact compressor. Define safe behavior for lost communication, sensor failure, overpressure, low refrigerant flow, overtemperature and stalled rotor. A bench demonstration that makes the motor turn is not proof that the compressor will coordinate safely with the complete thermal system.
Displacement per revolution is useful, but output depends on speed, suction/discharge conditions, superheat, subcooling, refrigerant, motor/inverter efficiency and control limits. Compare published maps at the same test points rather than comparing one peak kW number from different conditions.
For a new system, the thermal engineer must calculate cabin and component loads across ambient temperature, solar load, occupancy, battery charging, vehicle speed and condenser airflow. Confirm pull-down time, continuous capacity, COP or power consumption, low-speed control, sound, vibration and protection under the approved refrigerant charge.
Record refrigerant, suction and discharge fitting type, size, sealing method, port clocking and allowed hose loads. R134a and R1234yf compatibility cannot be inferred from an electric drive label. Hose fittings, service equipment, labels and regulatory requirements must follow the designed refrigerant circuit.
Port locations affect hose routing, oil return, vibration and clearance. Confirm whether the compressor requires a particular mounting attitude or allowable angle. A compact unit that fits the space may still have unacceptable hose bends, service access or liquid-return risk.
DENSO states that ND-oil 11 is a highly insulating POE lubricant for its applicable electric scroll compressors because the refrigerant/oil mixture contacts the motor. It warns that the wrong oil can reduce insulation and damage the electric motor. That evidence does not establish ND-oil 11, POE or any single oil as universal.
Sanden publishes a named PAG oil for one low-voltage electric model, which reinforces the same rule: electric does not automatically mean one oil chemistry. Use the exact compressor and vehicle specification for product, viscosity, quantity and balancing procedure. Control service equipment, dye and injector contamination; a shared machine can transfer incompatible oil.
Compare footprint, bolt pattern, isolators, mass, center of gravity, allowable orientation and bracket stiffness. The mounting system must tolerate road or off-highway vibration without imposing housing distortion or refrigerant-pipe fatigue. Verify ingress protection at connectors and vents and the allowed dust, splash, salt, mud, wash and immersion exposure.
Temperature ratings must cover underhood heat soak, winter start, continuous motor/inverter heat and refrigerant cooling availability. Request validation for vibration, thermal cycling, corrosion, EMC, electrical transients and endurance appropriate to the application. A passenger-car compressor is not automatically qualified for a mining cab or marine deck.
A compressor cannot be selected independently from heat rejection. A low-voltage parking cooler may be limited by roof-condenser size, fan airflow and available battery energy; a high-voltage vehicle may reduce compressor speed when condenser airflow, coolant temperature or battery power is constrained. Overspecifying compressor displacement does not solve an undersized condenser or blocked airflow and can increase cycling, noise, current or discharge pressure.
Define condenser approach temperature, airflow across the installed core, fan control, recirculation risk and vehicle-speed benefit. For liquid-cooled inverter or integrated thermal systems, also document the coolant circuit, pump flow, heat-exchanger capacity and allowable temperatures. Validate the full system at hot soak, idle, low battery state and charging conditions rather than accepting a component-only capacity claim.
For a 12/24 V sleeper or auxiliary system, calculate usable battery energy after reserve limits, compressor and fan input, conversion losses, duty cycle and ambient load. A catalogue peak cooling figure is not the same as average electrical consumption or overnight runtime. The battery-management or low-voltage cutoff must preserve starting and safety functions.
For an EV, compressor power competes with propulsion, cabin heating, battery conditioning and charging losses. The vehicle energy-management strategy may intentionally reduce cooling. Buyers should request operating maps and control priorities instead of promising a fixed runtime or range impact from one laboratory point.
The harness drawing should define conductor material and gauge, fuse or breaker, contactor, precharge where applicable, service disconnect, ground or return path, shielding, strain relief, abrasion protection and connector sealing. Coordinate short-circuit protection with the power source and cable withstand so the protective device clears a fault before the harness overheats.
Serviceability matters: technicians need accessible disconnects, unambiguous labels, protected test points and replacement terminals. Low voltage does not make unfused battery conductors safe, and high voltage requires additional interlock and access control. Include harness and controller part numbers in the approved bill of materials so a replacement compressor is not installed with an improvised cable.
RFQ group | Required fields | Evidence to request |
|---|---|---|
Application | Vehicle/equipment, duty, ambient, cabin/component load, annual hours | Approved application or jointly validated design |
Electrical | Nominal/operating voltage, continuous/peak current, inrush, polarity, protection | Data sheet, connector drawing, transient/EMC test |
Control | CAN/LIN/PWM/analog interface, diagnostics, fail-safe behavior | Interface-control document and validation tool |
Thermal | Refrigerant, capacity map, speed range, operating envelope, oil | Performance curves and approved lubricant specification |
Mechanical | Mount, orientation, ports, envelope, mass, hose loads | Controlled drawing and sample inspection report |
Quality | Factory, change control, EOL tests, traceability, warranty | Audit records, test plan, serial/batch data and claim process |

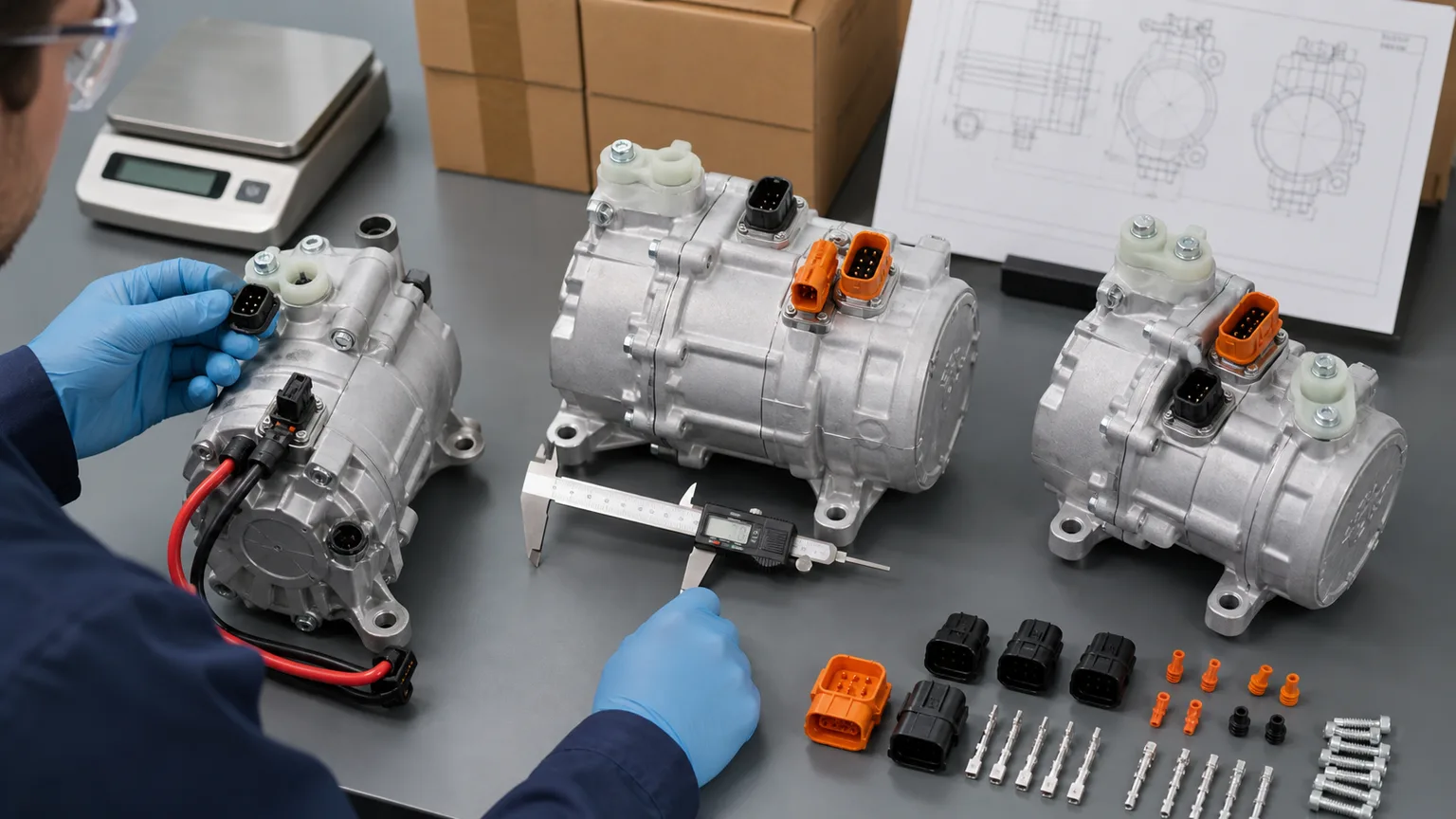

Inspect the label, drawing revision, connectors, terminals, seals, ports, shipping caps, mount and oil/charge information. Weigh and measure the sample, retain packaging and photograph serial or batch identity. Confirm insulation and HV interlock features only by approved methods.
Integrate the unit with production-intent wiring, controller, condenser, evaporator, expansion device and refrigerant charge. Test cold start, heat soak, pull-down, steady load, voltage extremes, communication loss, restart, fault recovery, vibration and noise. A short unloaded spin test cannot validate refrigeration performance or vehicle safety.
Receiving and sample validation compare the complete electrical, communication, mechanical and refrigerant identity—not just the voltage printed on the label.
Create a golden-sample record with photos, mass, dimensions, connector keying, port caps, label fields, firmware/hardware revision where available and packaging. Inspect every shipment for identity, damage, corrosion, contamination and unapproved changes. Keep ports capped until installation.
Require supplier notification before changes to factory, motor, inverter, power semiconductor, winding, scroll set, bearing, oil, connector, firmware, test method or sub-supplier. A silent control-board or software change can break a validated vehicle integration even when the casting and external label look unchanged.
Wrong voltage range: no start, protection trip, overheating or immediate electronic damage.
Undersized low-voltage wiring: voltage drop, connector heat, resets and reduced capacity.
Wrong network protocol: compressor remains asleep, runs incorrectly or sets communication DTCs.
Wrong oil: lubrication failure, loss of HV insulation or system contamination.
Wrong refrigerant or charge basis: poor capacity, pressure faults or thermal damage.
Wrong ports/mount: hose stress, leaks, vibration, clearance or oil-return problems.
Unmatched thermal map: acceptable bench behavior but inadequate cabin or battery cooling.
Not as a direct substitution. It requires a different power source, protection, wiring, control integration and system validation and may not deliver the required thermal duty.
Orange commonly marks HV circuits, but appearance does not define voltage range, pinout, protocol or compatibility. Use the controlled specification.
No. Use the exact compressor/vehicle oil specification. Some applicable HV compressors use insulating POE/PVE products, while named low-voltage designs may specify another oil.
No. It may require communication, cooling, refrigerant/oil circulation and safety interlocks. Improvised energization can damage the unit or injure the operator.
Regulatory and manufacturer classifications vary. Treat the exact operating range, safety rules and system architecture as controlling rather than forcing every product into a simple label.
Request the controlled product data sheet and interface drawing for the exact part, then compare it with the vehicle/system requirements and validation plan.
Use 12/24 V electric compressors where a validated low-voltage system, duty cycle and charging source support the required cooling. Use HV compressors only within qualified hybrid/EV thermal architectures that control power, communication, oil insulation and vehicle safety. Neither category is inherently the universal upgrade.
For a repeat-volume project, send Elecdura the application, voltage and current envelope, thermal duty, refrigerant/oil, control interface, connectors, mounts, ports, validation plan and annual demand through the electric-compressor project contact page. Compare suppliers on complete integration evidence, EOL testing, change control and warranty support—not on voltage and price alone.
