Quick answer: UV dye is useful when the A/C system has circulated dye and the shop needs visible leak evidence. Electronic leak detection is useful for small refrigerant leaks around condenser seams, service ports, and line joints. Nitrogen pressure testing is stronger when the system has been recovered and the technician needs to locate a leak without venting refrigerant. Vacuum decay is useful after repair, but it should not be the only condenser leak test because some condenser leaks appear only under positive pressure, heat, or vibration.
An A/C condenser should be replaced when the leak is in the condenser core, header seam, tube joint, damaged lower row, integrated drier area, or pressure switch port that cannot be sealed reliably. It should not be replaced only because the A/C system is low on charge. A wrong leak diagnosis creates unnecessary parts cost, repeat refrigerant loss, and warranty disputes for distributors and repair networks.
Method | Best Use | What It Proves | Limitation |
|---|---|---|---|
UV dye inspection | Visible oil and dye traces after the system has operated | Leak history and likely leak path | Dye can travel with airflow or old oil residue |
Electronic leak detector | Small refrigerant leaks at seams, fittings, ports, and corners | Repeatable refrigerant signal at a location | False alarms can come from vapors or poor technique |
Nitrogen pressure test | Positive pressure leak confirmation after refrigerant recovery | Pressure loss and exact leak point when paired with bubbles or detector | Requires safe pressure limit and trained service practice |
Vacuum decay | Final seal check before charging after repair | Gross leak or poor sealing after assembly | May miss leaks that open only under positive pressure |
Condenser leaks often leave oil traces because refrigerant oil travels with escaping refrigerant. Look for oily stains on the lower rows, corner plates, tube to header joints, service port area, line block, integrated receiver drier cap, pressure switch port, and damaged fin sections. A stone puncture may show as a dark point surrounded by dust and oil. A corrosion leak may appear along the bottom edge where moisture and road salt collect.
Visible evidence is useful, but it is not enough by itself. Oil can move from a line fitting and spread across the condenser face. A previous repair may leave old dye or oil near a leak that has already been fixed. Airflow can push residue sideways. Clean the suspected area, run the system if it still contains charge, and recheck the exact point before condemning the condenser. For warranty evidence, photograph the old residue and the cleaned repeat leak point separately.

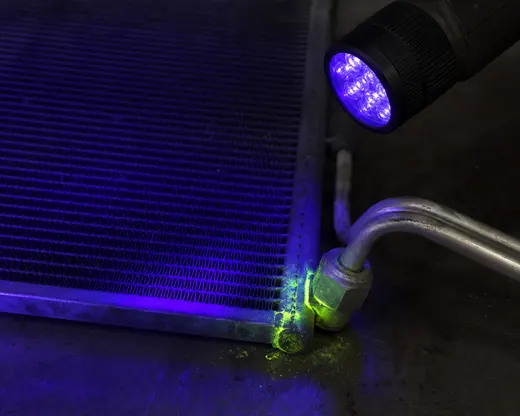

UV dye works best when the system has circulated long enough for dye and oil to reach the leak. Under UV light, dye can show a small leak at the condenser core, header seam, or line connection. It is especially useful for slow leaks that do not empty the system immediately. For repair networks, dye photos are easy to attach to a claim file and help the parts team understand why a condenser was ordered.
UV dye is strongest when the brightest trace identifies the actual condenser leak point, not only old residue.
The weakness is source control. Dye shows where oil has been, not always where the leak began. If a condenser sits behind a grille and the vehicle has strong airflow, dye may spread across several rows. If the leak is at a fitting above the condenser, dye may drip onto the core and make the condenser look guilty. A good dye inspection includes cleaning, rechecking, and confirming whether the brightest dye point is actually on the condenser body or on a connection.
An electronic refrigerant leak detector can find leaks too small to show obvious bubbles. The probe should move slowly around condenser seams, lower corners, service ports, line blocks, pressure switch ports, and the drier area. Fast sweeping across the entire front end is a poor test because the probe may miss a small leak or pick up vapors from another source. Turn off strong airflow when possible and repeat the pass after the first alarm.
A single alarm is not strong evidence. A repeatable alarm at the same point is much better. Solvents, washer fluid, oil vapors, and contaminated shop air can trigger false readings. If the detector reacts around the whole front end, clean the area and narrow the test. If it reacts exactly at a tube joint or header seam several times, the condenser replacement decision becomes more defensible.
Vacuum decay and pressure decay answer different questions. Vacuum decay checks whether the assembled system can hold vacuum before charging. It is useful after the condenser, seals, drier, or line fittings have been replaced. If vacuum falls quickly, the system has a gross leak or assembly problem. The limitation is that a condenser may seal under vacuum and leak under pressure. Aluminum tubes, header joints, and seals can behave differently when pushed outward by pressure and heat.

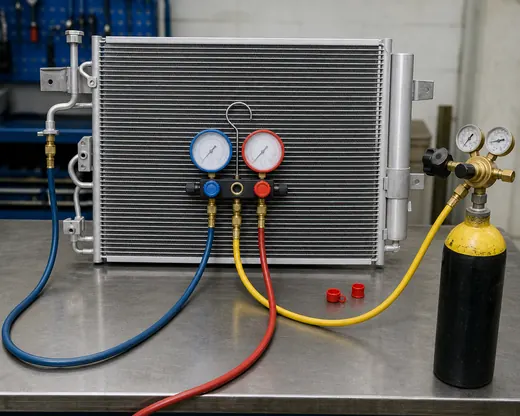

Positive pressure testing with dry nitrogen is stronger for locating condenser leaks after refrigerant recovery. The system is pressurized within safe service limits, then suspected areas are checked with leak solution, an electronic method approved for the gas setup, or an ultrasonic method. Bubbles at a condenser seam, corner, line block, or drier cap provide clear evidence. A slow pressure drop with no visible bubbles means the test area should be narrowed, not that the condenser should be guessed.
Nitrogen pressure testing helps confirm leaks under positive pressure before a condenser is condemned.
Dry nitrogen does not add moisture and does not release refrigerant. That makes it useful for professional leak confirmation. It can reveal a condenser leak that appears only when the system is under operating style pressure. It also helps separate a core leak from a port seal, line O-ring, or loose fitting. For a repair network, nitrogen test notes are stronger than a customer complaint that says the A/C became warm again after a few weeks.
The test must be controlled. Do not exceed safe pressure limits for the vehicle and service equipment. Do not use oxygen. Record starting pressure, time, ambient condition, pressure change, and exact leak evidence. For B2B claims, a note such as nitrogen pressure dropped and bubbles formed at lower right condenser header is much stronger than condenser leaking written without detail.

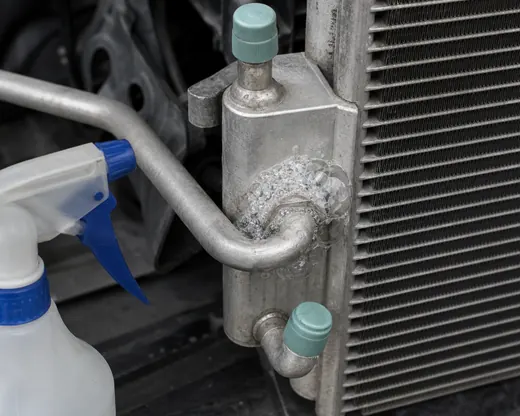

Bubble evidence is useful because it shows the leak point a buyer, installer, and supplier can all review.
Replace the condenser when the leak is in the core, tube, header seam, cracked line block, integrated drier body, pressure switch boss, or corrosion damaged lower section. Modern microchannel and parallel flow condensers are thin aluminum heat exchangers. They are usually not practical to weld or patch for reliable long term service. A patch may seal one visible point while leaving poor heat rejection, corrosion, or another weak section nearby.
Replacement is also likely after severe compressor failure when debris has entered the condenser. Parallel flow condensers can trap particles in small passages. Even if the issue began as a compressor failure rather than a condenser leak, the condenser may become part of the repair decision because trapped debris can damage the new compressor. This is why leak testing and contamination assessment should be documented separately.
Do not replace the condenser if the evidence points to a service port, line O-ring, hose crimp, pressure switch seal, or old dye residue from a previous repair. A condenser can be wet because oil ran across it from another component. A condenser can also look damaged because fins are bent while the refrigerant tubes remain sealed. In that case, cleaning, airflow restoration, seal replacement, or fitting repair may solve the issue without replacing the condenser core.
For shops and distributors, this distinction matters because condenser returns are often caused by weak diagnosis. If a customer orders a condenser but the real leak is at a line connection, the new part will not fix the A/C system. Ask for exact leak point photos before approving the order when the vehicle has repeated refrigerant loss.
Many modern condensers use microchannel or parallel flow designs. These cores reject heat efficiently, but they are not forgiving when damaged or contaminated. A tiny puncture can be difficult to see until pressure testing. Internal debris can lodge in small passages. Corrosion at the lower rows can spread beyond the first visible leak. Because the tubes are thin, field repair is rarely as reliable as replacement.
Buyers should confirm whether the replacement condenser includes an integrated receiver drier, desiccant cartridge, pressure switch port, foam seals, brackets, and correct line connection angles. A condenser that looks close in the front photo can still fail to install if the port block is rotated, the drier cap is different, or the brackets are mispositioned. Request old part photos and close ups before buying in volume.
Collision and stone damage create a different leak pattern from age related corrosion. A stone puncture is usually localized. The technician may see one oily point in the fin field or one damaged tube row behind the grille. Collision damage can bend brackets, twist the condenser frame, pull on line fittings, or crack the header near a mounting point. If only the visible fin area is inspected, the real leak may be missed at the line block or side plate.
For B2B buyers, the sourcing question changes when the vehicle has front end impact history. The replacement condenser must match not only core size but also bracket position, line connection angle, drier placement, and foam sealing layout. A condenser that fits a normal vehicle may not solve the repair if the support panel or line routing was also damaged. Ask the repair customer whether the leak followed a collision, road debris impact, grille damage, or previous front end service. That context helps decide whether the quote should include only a condenser or whether extra photos are needed before shipping.
Many condensers include a receiver drier, desiccant cartridge, or service cap. Leak testing around this area requires careful inspection because the leak may be at the cap seal, the drier tube, the pressure switch boss, or the condenser body itself. If the drier cap seal is leaking and the condenser body is sound, the repair decision may differ by design and parts availability. If the integrated drier tube is damaged or corroded, the whole condenser assembly is often replaced.
Moisture exposure also affects the replacement decision. If the system has been open for a long time, the drier may no longer protect the compressor and expansion device properly. A condenser with an integrated drier may be the correct replacement even when the visible leak is small, because the assembly restores both sealing and moisture control. Buyers should ask whether the drier is included, serviceable, capped, and protected during shipping. For private label or bulk orders, the carton label should make the drier configuration clear so warehouses do not mix similar looking condenser variants.
False leak conclusions often come from testing the wrong condition. A vehicle may arrive with low refrigerant after months of slow loss, but the first visible oily area may not be the current leak. Old dye, spilled compressor oil, or residue from a previous hose repair can remain on the condenser. Cleaning the area and repeating the test under controlled conditions is more reliable than ordering from the first stain.
Another false conclusion happens when the condenser is blamed for poor cooling without leak evidence. A blocked fin face, weak airflow, overcharge, air in the system, or expansion control issue can create poor performance while the condenser still holds pressure. Leak testing should answer a narrow question: is refrigerant escaping from this condenser or its immediate connections? Heat rejection diagnosis is related, but it is a different test. Keeping those questions separate improves technical credibility and reduces wrong part returns.
A condenser can be damaged before installation if it is handled poorly. Thin tubes, exposed fins, side plates, drier caps, and line connection faces need protection. A bulk buyer should check whether the condenser arrives with port caps, corner protection, inner support, moisture protection, and a label that clearly identifies the reference. Bent fins alone do not always mean a leak, but crushed tubes, cracked line blocks, or missing caps are serious claim risks.
Warranty handling should also separate shipping damage, installation damage, and actual condenser leakage. If a customer reports a leak immediately after installation, ask for package photos, pre installation photos, leak point evidence, nitrogen test notes, and whether new seals were used at the line connections. If a condenser leaks after months of use, request photos that show corrosion, impact damage, or seam leakage. This documentation protects the buyer and the supplier from arguing over a vague statement such as condenser failed.
Evidence | Why It Matters | Good Example |
|---|---|---|
Leak point photo | Separates core leak from fitting or seal leak | Close up of bubbles at lower condenser header |
Pressure test note | Shows repeatable leak evidence | Nitrogen hold result with time and pressure drop |
Old part label or OE number | Confirms correct application and port layout | OE number plus vehicle model and engine |
Front and rear photos | Checks brackets, drier, and line connections | Full condenser photo plus port close ups |
Failure context | Determines whether contamination repair is needed | Leak only, collision damage, corrosion, or compressor debris |
Elecdura can support aftermarket buyers that need A/C condenser replacement options after the leak point is confirmed. Send the OE number, vehicle application, condenser photos, leak evidence, drier configuration, pressure switch port details, bracket photos, and target quantity. If the leak diagnosis also shows severe compressor contamination, the buyer can evaluate the compressor repair scope separately, but the condenser inquiry should remain focused on condenser construction and fitment.
For distributors, a clean condenser inquiry reduces wrong shipments. It also makes warranty discussion easier. A claim backed by UV dye, nitrogen bubbles, and photos of the exact leak point is stronger than a claim that only says the system lost refrigerant. A buyer building a condenser program should keep those evidence standards in the quotation and claim process.
No. Vacuum decay is useful after repair, but it can miss leaks that open only under positive pressure, heat, or vibration. Use pressure side confirmation when the condenser is suspected.
Replace it when the leak is in the core, header seam, tube joint, cracked block, integrated drier body, or corroded lower row. Modern microchannel condensers are rarely good candidates for reliable field patching.
Send OE number, old condenser photos, leak point evidence, drier and pressure switch details, bracket photos, vehicle application, target quantity, and whether the failure is leak, corrosion, collision damage, or compressor contamination.
