Condenser Fan Relay Voltage Drop: Loaded Contact and Control-Circuit Tests

A condenser fan relay can click, close, and still deliver too little voltage to the motor. Oxidized contacts, weak terminal grip, socket heat, an undersized repair, or excessive motor current can turn a small resistance into substantial heat under load. The result may be slow fan speed, high A/C pressure at idle, intermittent operation after heat soak, or a relay that repeatedly fails.

Condenser fan relay voltage drop must be measured while current flows. An unloaded continuity test cannot represent contact performance. Elecdura's condenser fan assemblies use different motor loads and control arrangements, so the circuit diagram and application specification must guide every test.

Separate the Relay into Two Circuits

A correct coil command does not prove good contacts. Good contacts do not prove adequate power at their input. Measure each boundary so a supply or ground loss is not assigned to the relay.

Confirm When the Relay Should Be Energized

Use command data and physical pressure

Record A/C request, high-side pressure, coolant temperature, fan request, relay command, and actual fan operation. A relay that is not commanded may be responding correctly to low demand. A relay continuously commanded may reflect real pressure, temperature, or failsafe logic.

The fan command and high-side pressure guide explains how input, command, output, airflow, and pressure response should align.

Do not force unsafe pressure to obtain a command

Use scan-tool bidirectional control where supported or a service-approved simulation. Never block airflow or overcharge the system to make the relay turn on.

Check for failsafe operation

A missing pressure or coolant input can command high fan output. Compare gauge pressure with the A/C pressure switch or sensor data and inspect related codes before condemning relay control.

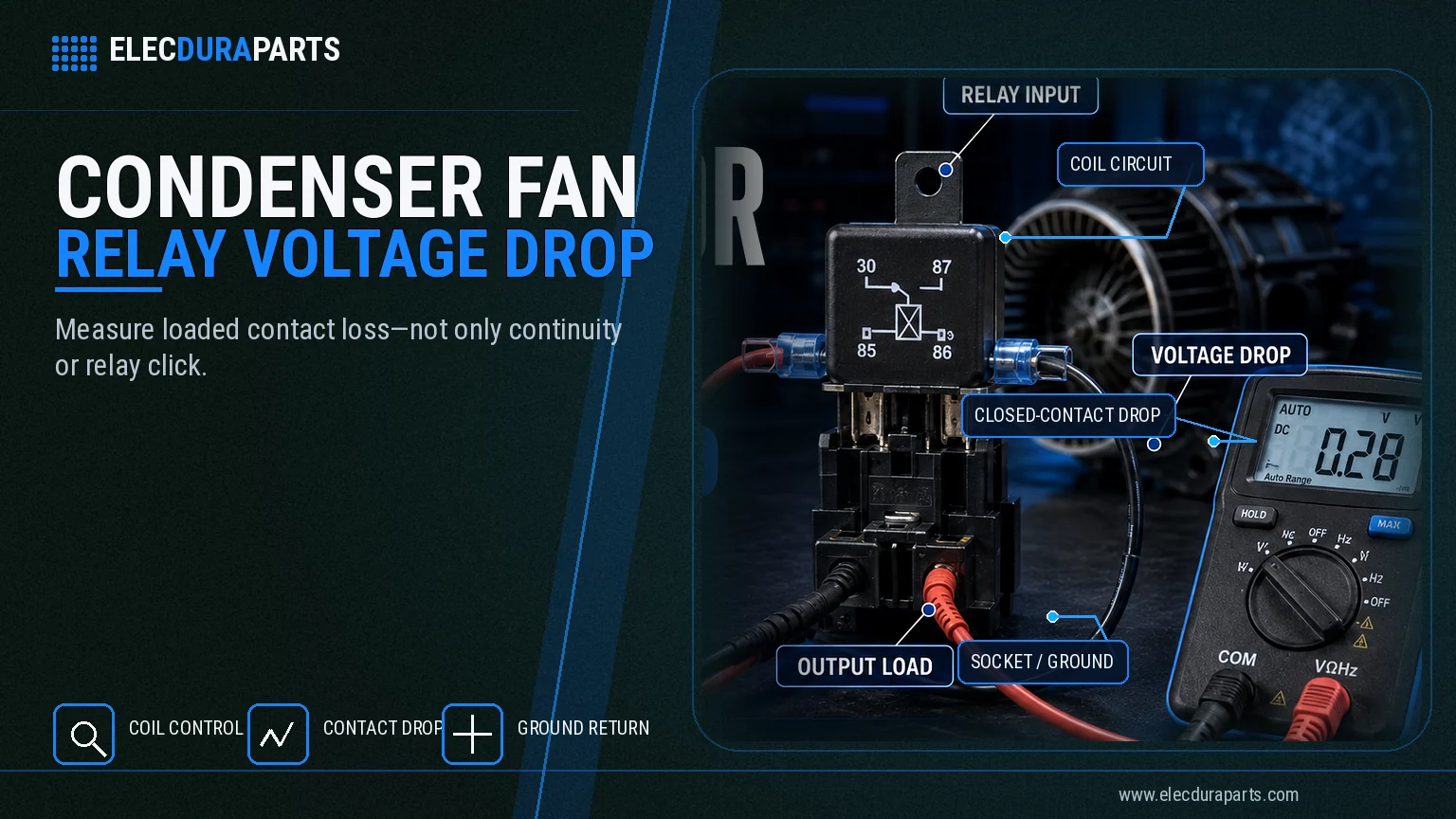

Measure Voltage Drop Across Closed Contacts

Place the meter directly across the relay path

With the fan commanded on, place one lead on the contact input and the other on the contact output using approved breakout access. The reading is voltage lost inside the relay and its immediate terminal interfaces. Use min/max capture for intermittent spikes.

Measure at the metal, not only the wire

A reading from two distant wires can combine relay, socket, splice, and conductor loss. Narrow the test progressively: bus to relay input, input terminal to output terminal, output terminal to motor connector, and motor ground to battery return.

Interpret loss with current

Voltage drop becomes meaningful with measured circuit current. The same resistance produces more loss and heat as current increases. Record system voltage, fan speed, motor current, ambient temperature, and run time.

Use the method in Elecdura's radiator fan voltage-drop test, but apply the condenser-fan circuit limits and connector locations.

Evaluate the Coil Circuit

Measure voltage across the coil

Do not assume that battery voltage on one coil terminal means the coil is energized. Measure across both coil terminals while command is active. Ground-side-controlled and power-side-controlled circuits require different interpretations.

Check coil current and resistance safely

With power removed and the relay isolated, resistance can reveal an open or shorted coil. Compare with verified data and temperature. During operation, current confirms that the control path carries load.

Suppression components affect polarity

A relay with an internal diode must be installed with correct coil polarity. Substituting a resistor-suppressed or unsuppressed relay can alter voltage spikes and module protection even if terminal numbers appear identical.

Trace an unexpected command

If the coil remains energized when fan request is zero, inspect module output, short-to-ground or power, shared relay control, and wiring. The continuous fan diagnostic route separates valid demand, failsafe, and output faults.

Inspect Relay Socket and Terminal Tension

Heat often begins at the terminal interface

A loose female terminal reduces contact area and generates localized heat. Inspect discoloration, melted cavities, plating loss, backing-out, stiff insulation, and previous repairs. Compare terminal drag with the correct test blade.

Do not spread the terminal during probing

Oversized probes create a fault. Use breakout adapters or terminal tools of the correct thickness. Verify the secondary lock and retention with a controlled pull test.

Cut back heat-damaged conductor

If insulation is hard or copper is dark, strip progressively until strands are clean and flexible. Match conductor size, insulation rating, terminal family, crimp tooling, and seal. A new relay cannot repair oxidized wire.

Loaded connector principles also apply to a fan control module, but electronic command circuits require high-impedance probing and must not be loaded like motor power contacts.

Use Heat as Supporting Evidence

Run the fan long enough to stabilize

Intermittent contact resistance may appear only after thermal expansion. Monitor voltage drop and current from cold start through stable temperature. Recheck after shutdown and hot restart.

Compare similar locations

Use a thermocouple or carefully controlled infrared comparison at relay body, socket terminals, fuse, motor connector, and ground. Emissivity, airflow, and reflective metal affect infrared readings.

Temperature supports electrical measurements

A warm relay can be normal under sustained load. A temperature hotspot aligned with elevated voltage drop and discoloration is stronger evidence. Do not replace a relay based on surface temperature alone.

Check Motor Load Before Installing Another Relay

Measure current at stable voltage

A dragging bearing, blade contact, winding fault, incorrect motor, or blocked rotation can increase current and overheat otherwise acceptable contacts. Measure current, delivered motor voltage, speed, and mechanical condition together.

The fan motor current-draw guide helps distinguish electrical loss from mechanical load. A radiator or condenser fan motor must be judged against the exact application specification.

Inspect blade and shroud

Confirm free rotation, direction, tip clearance, balance, and absence of debris. A distorted cooling fan shroud assembly can create contact and excessive load.

Low speed can increase pressure demand

Relay loss may slow the fan, causing high-side pressure to rise and keeping the command active longer. This feedback can make a contact fault appear as continuous control demand.

Diagnose Multi-Relay Speed Circuits

Build a relay-state table

Identify which relays are energized for low, medium, and high speed. Series-parallel systems can route current through different contacts in each state. One resistive contact may affect only one speed.

Measure each motor branch

Total current can hide one open or overloaded motor. Measure branch current, voltage, speed, and direction. Do not swap motors without confirming position-specific rotation and blade geometry.

Capture Relay Performance During Inrush

Startup current stresses contacts differently

A stationary fan motor can draw substantially more current during acceleration than after reaching speed. Contacts that appear acceptable at stable current may arc, bounce, or lose excessive voltage during inrush. Capture contact input voltage, output voltage, motor current, and fan speed from the instant the command begins.

Use adequate sampling and probes

A slow multimeter may display only an average and miss a short drop. Use min/max capture or an oscilloscope with a current clamp and properly rated differential measurement. Keep test leads secured away from blades, belts, heat, and sharp edges.

Separate normal battery sag from relay loss

System voltage may dip when the motor starts. Measure relay contact input and output on the same event. If both fall together, investigate supply capacity and upstream wiring. If input remains stable while output collapses, the relay or its terminal interfaces are losing voltage.

Observe contact bounce

Rapid output interruptions during pickup can create arcing, heat, motor hesitation, and electrical noise. Confirm coil voltage is stable so weak coil command is not mistaken for damaged contacts. Compare a known-good exact relay under the same motor load.

Test Under Real Thermal and Pressure Demand

Use representative fan run time

A thirty-second test may not heat a marginal contact enough to fail. Operate the fan through the actual duty cycle while monitoring relay drop, socket temperature, current, speed, and high-side pressure. Stop if any electrical or refrigerant limit becomes unsafe.

Compare low and high A/C load

At low ambient load, a weak fan circuit can appear adequate. Under higher condenser demand, reduced fan speed allows pressure to rise and extends relay on-time. Record the relationship among compressor command, pressure, fan command, delivered motor voltage, and speed.

Do not create load by restricting airflow

Blocking the condenser can produce unsafe pressure and does not represent a controlled test. Use environmental conditions, a specified test cell, or bidirectional fan command according to service procedures. Protect the automotive AC compressor and refrigerant circuit throughout diagnosis.

Locate Loss in Fuse and Distribution Hardware

Measure across the fuse element and terminals

A fuse can remain intact while blade oxidation, loose holder tension, or heat at the bus connection creates resistance. Measure voltage directly across the fuse under fan load. Then separate element loss from each terminal interface.

Inspect junction blocks for shared heat damage

High-current fan circuits may share a power stud or bus with other loads. Look for discoloration, softened plastic, loose fasteners, water intrusion, and previous accessory connections. Compare voltage at the battery, distribution input, fuse input, and relay input during the same event.

Respect service limits on bolted connections

Use specified torque and support conductors to prevent rotation. Overtightening can damage studs or bus plates, while undertightening increases resistance. Disconnect power according to the safe procedure before physical inspection.

Verify the Ground Path in Sections

Measure motor ground to battery return

With the fan loaded, measure voltage between the motor ground terminal and the specified battery or chassis reference. An excessive reading indicates loss somewhere in the return path, not necessarily at the visible ground bolt.

Narrow the ground-side boundary

Measure motor terminal to harness connector, connector to splice, splice to ground eyelet, and eyelet to cleaned body reference. A painted, corroded, loose, or cracked ground interface may become resistive only after heating.

Electronic modules may switch the return

Do not add a bypass ground to a module-controlled motor unless the circuit diagram and test procedure allow it. A direct ground can command uncontrolled operation or damage the output stage.

Post-Repair Load Verification

Repeat cold start and heat soak

Measure coil command, contact drop, feed loss, ground loss, current, speed, and pressure from the first start through stable temperature. Recheck after shutdown and hot restart.

Inspect the repair physically

Confirm full relay seating, secondary locks, strain relief, conductor routing, socket retention, cover sealing, and clearance from heat sources. Look for odor, discoloration, or terminal movement.

Confirm every fan stage

Test low, medium, high, series, parallel, or variable operation as applicable. One repaired relay path may leave another resistive stage unresolved.

Document the final drop and current values with system voltage and temperature. These records establish a repeatable baseline for future warranty analysis and incoming product validation.

Relay Substitution Rules

Terminal layout is not enough

Match coil voltage, resistance, suppression, contact form, continuous and inrush rating, terminal width, material, temperature rating, and environmental sealing. A relay that plugs in can overload the module or overheat under fan inrush.

Use substitution only as a controlled comparison

A known-good exact relay can help isolate a fault, but measure voltage drop and current afterward. If the replacement becomes hot or develops loss, the socket or motor load remains unresolved.

Never bypass protection for normal operation

A jumper can power the fan for a brief approved output test but removes control and circuit protection if misused. Use a fused lead rated for expected current and never leave it installed.

Replacement Matching

• Vehicle, model year, market, engine/powertrain, and HVAC option

• OE relay, fan, shroud, and module numbers

• Relay terminal map, contact form, coil polarity, and suppression

• Continuous and inrush current rating, system voltage, and temperature class

• Socket terminal size, keying, seal, conductor gauge, and cavity condition

• Fan motor count, speed architecture, control type, current, and rotation

Elecdura's aftermarket replacement program evaluates relay, socket, motor load, and assembly geometry together. Replacing only the cheapest visible part can repeat a thermal failure.

Wholesale Quality Validation

Relay electrical tests

Verify coil resistance and current, pickup and dropout behavior, contact voltage drop at rated load, inrush capability, temperature rise, insulation, suppression polarity, and repeated cycling. Record cold and hot results.

Socket and pigtail tests

Check terminal material, plating, crimp height, pull strength, cavity retention, mating force, conductor size, seal position, and loaded temperature. Use a controlled mating relay.

Packaging protects terminals and traceability

Prevent blade-terminal bending, contamination, moisture, and variant mixing. Label coil suppression and contact ratings clearly. Keep batch records tied to test results.

For wholesale fan-control orders, approve a golden relay and mating socket under the intended fan load. On-highway and off-highway applications require different duty, sealing, vibration, and contamination validation.

Common Errors

Testing continuity without load

A resistive contact can pass a low-current meter test. Measure voltage loss while the fan draws current.

Replacing a hot relay without measuring motor current

Excessive motor load or a loose socket can destroy the new relay. Test the complete current path.

Assuming a click proves coil voltage is correct

A weak coil voltage may close contacts inconsistently. Measure across the coil and monitor command through heat soak.

Ignoring the ground side

Feed-side voltage can be correct while ground loss reduces motor voltage. Measure both sides under load.

Using a visually similar relay

Different suppression, rating, or terminal function can damage the controller or overheat the circuit.

FAQ

How much voltage drop is acceptable across a fan relay?

Use the vehicle or relay specification. There is no universal limit for every current and terminal design. Compare measured loss, current, temperature, and known-good data.

Can a relay click and still be bad?

Yes. The coil can move the armature while burned contacts create resistance or fail intermittently.

Why does the relay fail only when hot?

Thermal expansion can worsen contact or terminal resistance, and coil behavior can change. Capture voltage drop, coil voltage, and current during the hot failure.

Can high motor current melt the relay socket?

Yes. Bearing drag, blade contact, winding faults, or wrong motor configuration can raise load. Loose socket terminals can also generate heat at normal current.

Should the relay and socket be replaced together?

Replace both when relay blades or socket terminals are heat-damaged, pitted, loose, or distorted. A sound socket does not require automatic replacement.

What should a buyer submit?

Send the OE numbers, application, relay and socket photos, terminal diagram, coil suppression, contact rating, wire gauge, measured voltage drop and current, fan configuration, quantity, and validation needs through Elecdura's technical matching contact.

Prove the Loss Under Real Load

A condenser fan relay diagnosis succeeds when coil command, contact input, contact output, socket condition, motor current, speed, and airflow are measured during the same operating event. The relay is only one boundary in a high-current path.

After repair, repeat every fan stage from cold through heat soak, measure contact and ground voltage drop, confirm current and speed, and verify that high-side pressure responds. A passing unloaded relay test cannot replace this end-to-end proof.
