EV and hybrid A/C compressor oil mistakes are high-risk because the oil helps protect both the compressor and the high-voltage electrical system. In many belt-driven A/C systems, PAG oil is a normal compressor lubricant. In many electric compressor systems, POE or another manufacturer-specified insulating oil is required because the compressor motor is inside the refrigerant circuit. If PAG oil, universal oil, moisture, leak-stop material, or dirty recovered oil enters the wrong system, the result can be insulation faults, compressor shutdown, repeat failure, contaminated service equipment, and serious safety exposure for the technician.
This article is written for repair networks, EV service shops, parts distributors, importers, and warranty teams that handle electric A/C compressors. It explains why POE, PAG, and PVE oil decisions must be tied to the vehicle's service data, how contamination enters the system, what evidence a supplier needs before quoting a replacement compressor, and when related parts such as the condenser, receiver drier, expansion valve, hoses, and seals need to be inspected. The goal is to prevent a new compressor from being blamed for a failure that was caused by the repair environment.

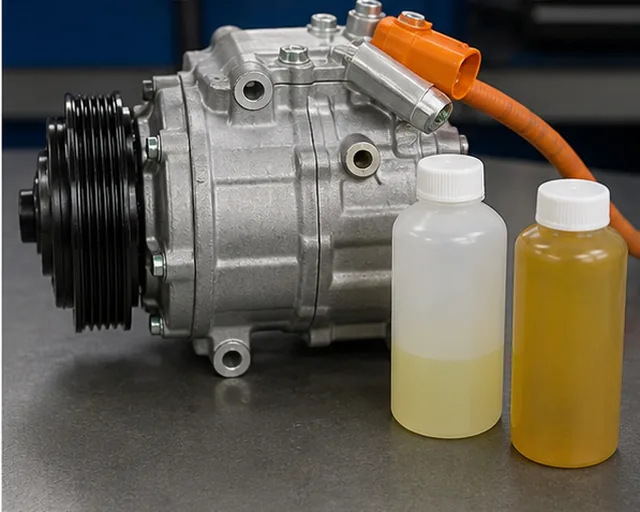

EV electric AC compressor oil selection bench showing high voltage connector and separate oil bottles.
Do not choose EV compressor oil by habit, viscosity alone, bottle colour, or "universal A/C oil" claims. Check the vehicle service information, compressor label, under-hood A/C label, or OE part data. Many electric compressors require POE oil, and some systems specify PVE or another exact oil. Standard PAG oil that is safe in many belt-driven compressors may not have the insulation properties required for a high-voltage electric compressor. If the shop used shared recovery equipment, a shared oil injector, an unknown top-up bottle, or a hose set previously used with PAG oil, treat contamination as a real possibility.
For buyers, the practical rule is simple: do not approve an electric compressor warranty claim or quote a repeat replacement until the oil type, refrigerant type, system cleanliness, service equipment, and related parts have been checked. A new compressor may fail quickly if the condenser contains debris, the drier is saturated, the system was left open to moisture, or PAG oil entered the loop during recharge. The part number matters, but the repair process matters just as much.
A belt-driven compressor is mechanically driven from the engine through a pulley and clutch or variable displacement mechanism. The refrigerant oil lubricates the compressor and circulates with refrigerant, but the electric motor is not submerged inside a high-voltage refrigerant-oil environment. An electric compressor is different. The motor and inverter-related components may be integrated with the compressor body, and the compressor is powered by the hybrid or EV high-voltage system. The oil must support lubrication while maintaining electrical insulation where the design requires it.
This is why the wrong oil can create more than a noisy compressor. It can reduce insulation resistance between high-voltage components and the compressor housing. The vehicle may set an isolation or ground-fault code, disable the compressor, limit high-voltage operation, or create a dangerous service condition. A repair shop that treats all A/C compressor oil as interchangeable may install the correct part but still create a failed repair. A distributor that sells the compressor without warning customers about oil and tool contamination may face warranty disputes that are not caused by a defective compressor.
POE stands for polyol ester. It is commonly used in many electric compressor systems because it can provide the dielectric performance required by high-voltage compressor designs. PAG stands for polyalkylene glycol. PAG oils are widely used in many conventional belt-driven mobile A/C systems, but standard PAG is not automatically safe for electric compressors. PVE, polyvinyl ether, is also specified in some hybrid and EV systems. The correct answer is not "EV equals POE" in every case. The correct answer is always the manufacturer-specified oil for that vehicle and compressor.
Oil also has viscosity, additive, and refrigerant-compatibility requirements. A POE oil suitable for one electric compressor should not be assumed correct for every electric compressor. R134a and R1234yf applications can have different service instructions. Some compressors are prefilled with oil; some replacements require oil balancing based on what was removed from the old system. A serious supplier should ask for the OE number, compressor label, refrigerant type, vehicle model, and application data before giving confident oil guidance.

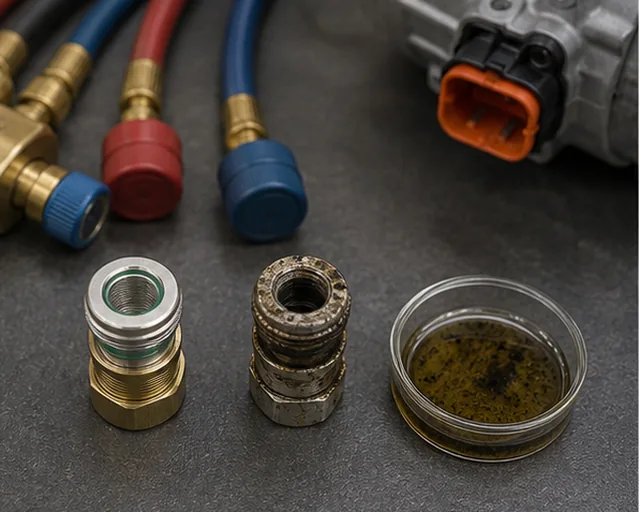

Contaminated AC service fittings and residue check before replacing an EV compressor.
PAG contamination often enters through service habits, not through the new compressor. A recovery, recycle, and recharge machine used on belt-driven vehicles may retain oil in hoses or internal circuits. A manifold gauge set, oil injector, quick coupler, or service hose can carry residue from a previous job. A technician may use a generic oil bottle because the viscosity looks close. A shop may store oil containers with poor labels or open caps. A small amount of the wrong oil can be enough to reduce insulation performance in a sensitive system.
The contamination route matters for warranty. If a distributor receives a failed electric compressor and only asks whether the part number matched, the root cause may be missed. Ask whether the shop used a dedicated EV A/C machine, a hose-flushing process approved for hybrid/EV work, a separate oil reservoir, or separate tools for insulating oils. Ask whether the old system was opened for a long time, whether the receiver drier or accumulator was replaced when required, and whether the system was evacuated properly before charge. These details often decide whether the next compressor survives.
The first mistake is using standard PAG oil in a compressor that requires POE or PVE. The second is using "universal" oil without verifying the vehicle. The third is adding oil by estimate without checking the amount already inside the replacement compressor or remaining in the system. The fourth is failing to flush or replace contaminated components after a mechanical compressor failure. The fifth is connecting service equipment that may contain old oil, leak-stop material, moisture, or debris.
These mistakes do not always produce the same symptom. Some vehicles may set an insulation resistance or isolation fault. Some may shut down the compressor. Some may cool poorly because oil circulation is wrong. Some may run for a short time and then fail after heat, moisture, and vibration make the contamination problem worse. If the buyer treats every repeat failure as a defective part, the same customer may receive a second compressor and repeat the same process. That is expensive and bad for trust.
A high-voltage warning after A/C service is a major sign that the repair needs review. So is a compressor that refuses to start after installation, a vehicle that sets isolation or ground-fault diagnostic trouble codes, poor cooling immediately after recharge, abnormal compressor noise, black or dirty oil, milky oil, visible metal particles, or residue around joints that suggests leak-stop use. A shop may also notice that a service machine flags contaminated refrigerant, abnormal pressure behaviour, or poor vacuum hold.
No single symptom proves the oil was wrong, but these clues should change the parts conversation. The buyer should ask for diagnostic trouble codes, insulation resistance test results where available, refrigerant recovery notes, oil appearance photos, and a record of which equipment was used. If the removed compressor contains burned oil or metallic debris, the condenser and lines may also be contaminated. If the oil looks milky, moisture or mixed oil may be involved. If leak-stop is present, the recovery machine itself may be at risk.
Many hybrid and EV service procedures require dedicated equipment or a machine that can prevent oil cross-contamination. The reason is practical: a shop cannot guarantee a clean insulating-oil service if the machine still contains PAG residue from a conventional vehicle. Some procedures use dedicated machines for POE or PVE systems. Others allow dual-oil recovery machines with an automatic hose flush feature, an approved hose-flushing process, and separate oil reservoirs. The correct setup depends on the vehicle manufacturer, refrigerant, and shop equipment.
For distributors and repair networks, this creates a policy issue. If the network sells electric compressors to workshops, the invoice, product page, or installation note should make the risk visible. A short warning is useful: verify the oil type, use dedicated or approved service equipment, do not mix PAG with POE/PVE systems, and follow the vehicle service data. This is not legal decoration. It prevents the supplier from being blamed for contamination introduced during recharge.
If the system contains the wrong oil, metal debris, moisture, or leak-stop material, replacing only the electric compressor may not repair the vehicle. The A/C condenser may retain debris, especially in parallel-flow designs that are difficult to flush thoroughly. The receiver drier or accumulator may be saturated or contaminated. The expansion valve or orifice tube may be restricted. Hoses may contain residue. Seals and O-rings may need replacement if the system has been opened or if the oil chemistry is unknown.
The correct repair scope should follow the vehicle service information and the actual failure evidence. A clean electrical control issue is different from a mechanical failure that sent debris through the system. A compressor replaced after collision damage is different from a compressor replaced after a long refrigerant leak. If the buyer cannot see the old compressor, oil condition, system pressure, or contamination evidence, the safest quotation should include questions before it includes a final parts list.
Oil discipline does not replace part matching. Electric compressors vary by voltage class, inverter/control design, connector style, mounting points, refrigerant, oil specification, hose port location, and communication protocol. Two compressors can look similar but belong to different vehicle platforms. A replacement compressor should be matched by OE number, compressor label, vehicle application, production date, refrigerant, connector photos, and physical port layout.
For distributors, this means the RFQ should include more than "EV A/C compressor." Ask for the old compressor label, connector photo, high-voltage plug shape, low-voltage control connector, port photos, bracket layout, vehicle identification details, and any diagnostic code. Buyers sourcing through wholesale A/C compressor channels should also confirm whether the compressor is supplied prefilled, what oil is inside, whether shipping plugs are intact, and what installation notes are included.
Using the correct oil type is not enough if the oil amount is wrong. Too little oil can damage the compressor. Too much oil can reduce cooling performance and affect heat transfer. Replacement procedures often require oil balancing based on what was drained from the removed part, what was flushed, and what components were replaced. Some new compressors ship with a specified amount of oil inside; others require adjustment. The buyer and repair network should not assume that every compressor can be installed directly without checking the service data.
For warranty control, record the oil amount decision. If the system was flushed, note which components were flushed and which were replaced. If the condenser or drier was replaced, record that too. If the compressor was prefilled, check whether the prefill amount matches the vehicle requirement. These steps make a claim easier to evaluate and help separate a part defect from an installation problem.
Moisture is another reason EV compressor oil service needs discipline. Both the refrigerant circuit and the oil can be affected by moisture exposure. POE oils are hygroscopic, meaning they can absorb moisture. Moisture can react with oil additives, reduce lubrication quality, form acids, and load the receiver drier or accumulator. If a system is left open while waiting for parts, the drier may lose capacity before the new compressor is installed.
For repair networks, this means the parts plan should be ready before opening the system. Cap lines quickly, keep compressor plugs in place until installation, store oil containers sealed, and replace the receiver drier or accumulator when the procedure requires it. For importers and distributors, shipping plugs and packaging matter. A compressor that arrives with loose caps or damaged plugs should be treated as a receiving concern because moisture exposure can affect the repair.
A strong electric compressor warranty process asks for evidence without sounding adversarial. Request the old part label, new part label, vehicle application, diagnostic codes, oil type used, oil amount, refrigerant type, service-machine details, vacuum and charge record, photos of removed oil if available, and related parts replaced. If the compressor failed immediately after service, ask whether the vehicle set an insulation code before or after installation. If it failed later, ask about pressure readings, cooling performance, and any signs of debris or leak-stop material.
This process protects both sides. If the compressor is defective, the supplier should handle the claim quickly. If the failure came from PAG contamination, incorrect oil amount, dirty condenser, moisture, or wrong application, the evidence helps prevent the same mistake from happening again. The goal is not to reject claims. The goal is to turn claims into reliable repair decisions.
Situation | Risk | Best Buyer Action |
|---|---|---|
Vehicle has an electric high-voltage compressor | Wrong oil may reduce insulation resistance | Check OE service data and compressor label before selecting oil |
Shop uses a machine shared with PAG systems | Residual oil may contaminate the EV system | Use dedicated EV equipment or approved hose-flush and separate oil process |
Compressor failed with black oil or metal debris | New compressor may be damaged by remaining contamination | Inspect condenser, drier, expansion valve, hoses, and flush or replace as required |
System was open for a long time | Moisture may saturate drier and affect oil condition | Cap lines, replace moisture-control parts when required, and evacuate correctly |
Replacement compressor is prefilled | Total system oil amount may be wrong | Follow oil balancing procedure and record the amount used |
Customer requests warranty after repeat failure | Root cause may be contamination or installation process | Collect diagnostic codes, oil type, equipment record, photos, and related parts list |
Vehicle make, model, year, engine or drive type, and production date where available.
Old compressor OE number, label photo, connector photos, mounting view, and hose port photos.
Refrigerant type, oil specification, and whether the compressor is electric, belt-driven, or hybrid-specific.
Diagnostic trouble codes, insulation resistance results if available, and the symptom after A/C service.
Recovered oil appearance: clear, black, milky, layered, metallic, or contaminated with leak-stop material.
Service equipment used: dedicated EV machine, approved hose-flush process, separate oil reservoir, or unknown equipment.
Related parts replaced or inspected, including condenser, receiver drier, accumulator, expansion valve, hoses, O-rings, and filters.
Packaging condition, shipping plugs, carton labels, and compressor batch code for warehouse traceability.
Elecdura can help buyers source electric A/C compressors and related air conditioning parts when the order includes enough technical evidence. For EV and hybrid applications, Elecdura's role is to help compare compressor labels, connector photos, OE references, refrigerant and oil information, and related repair scope before recommending a replacement. This helps importers, distributors, and repair supply chains reduce the risk of sending the correct part into an unsafe or contaminated system.
If you are quoting an EV or hybrid A/C compressor, send the compressor label, old-part photos, vehicle application, refrigerant type, oil specification, service history, and any diagnostic codes. A clean quote should confirm not only the compressor number, but also the oil and contamination risks that decide whether the repair will survive after installation.
