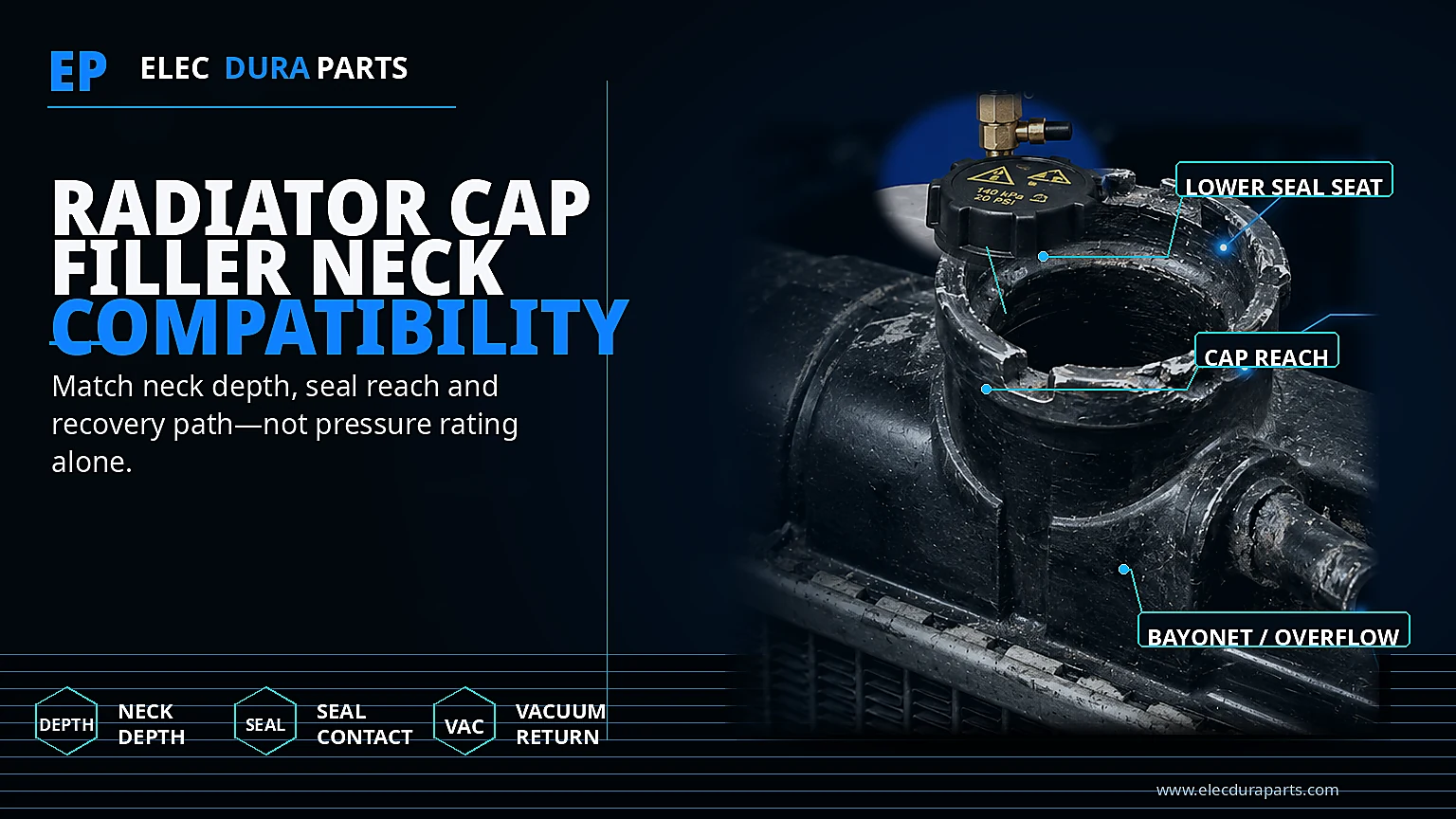

Radiator Cap and Filler Neck Compatibility

A radiator cap can twist onto a filler neck and still be incompatible. The cap's lower pressure seal may not reach the neck's lower seat, the upper recovery seal may miss the rim, the bayonet ears may compress the spring too much or too little, or the vacuum valve may not communicate with the recovery path. A new cap with the correct printed pressure rating can therefore leak, vent early, fail to return coolant, or overstress the neck.

Radiator cap filler neck compatibility depends on geometry and cooling-system architecture, not only nominal diameter and pressure. Matching requires neck depth, lower-seat diameter, upper-rim diameter, bayonet ramp and stop position, cap reach, gasket dimensions, spring compression, pressure setting, vacuum-return valve, overflow nipple, and whether the system uses a non-pressurized recovery bottle or pressurized expansion tank.

This page focuses on selection and fit. Functional pressure testing belongs in Elecdura's radiator cap pressure-test guide; overheating, coolant loss, and hose collapse still require complete-system diagnosis.

Quick Answer: Why Can a Cap Fit but Not Seal?

The bayonet ears secure the cap at the top, but the pressure seal works at a lower seat inside the neck. If cap reach is too short, the lower gasket never contacts that seat. If reach is too long or the neck ramp over-compresses the spring, the cap may be difficult to close, distort a gasket, change valve calibration, or damage a plastic neck. The upper gasket must also seal the rim so coolant can move to and return from the recovery bottle.

Understand the Two Sealing Levels

Lower pressure seal

The lower gasket seals against a machined or molded seat below the filler opening. System pressure acts below this seal. The spring-loaded pressure valve opens according to cap design and application specification, allowing coolant or vapor toward the overflow/recovery path. Dirt, corrosion, casting flash, a bent seat, wrong depth, or a cut gasket prevents controlled sealing.

Upper recovery seal

The upper gasket seals the filler-neck rim. During heat-up, discharged coolant should travel through the overflow nipple and hose. During cool-down, system vacuum opens the cap's vacuum valve and draws coolant back from a suitable recovery bottle. If the upper rim leaks, the radiator may draw air instead of coolant even though the lower pressure valve tests correctly.

Vacuum-return valve

The small center valve allows reverse flow when coolant contracts. It must move and seal according to design. A sticking valve can contribute to hose collapse or prevent recovery. A hose without adequate reinforcement can also collapse independently, so use the radiator hose collapse diagnosis before attributing every cool-down symptom to the cap.

Pressure and vacuum are separate functions

A cap can regulate positive pressure yet fail vacuum return, or pass a vacuum movement check while venting below specification. Both valves and both sealing surfaces matter.

Common Filler Neck Architectures

Deep-neck bayonet cap

The lower seat lies farther below the rim and requires a longer-reach cap. A shallow cap may lock onto the same apparent opening but leave the lower gasket suspended above the seat.

Shallow-neck bayonet cap

The lower seat is closer to the rim. Installing a deep-reach cap can over-compress the spring or gasket. Similar top diameter does not guarantee interchangeability.

Threaded expansion-tank cap

Many pressurized reservoirs use threaded caps with integrated pressure and vacuum functions. Thread pitch, start, stop height, gasket face, internal standpipe, pressure rating, and tank material must match. A bayonet radiator-cap measurement procedure cannot be transferred directly.

Remote filler or surge tank

The highest fill and pressure-control point may be separate from the radiator. The radiator can have no cap, a service plug, or a non-pressure closure. Map the actual engine cooling system before ordering a cap from the radiator's appearance.

Measurements Needed for Cap-to-Neck Matching

Use stable reference surfaces

Measure from the functional sealing rim and seat, not from decorative tabs, deformed edges, corrosion deposits, or an uneven plastic molding seam. Clean only enough to reveal geometry without removing material.

Measure the old cap without trusting it

The installed cap provides useful architecture clues but may already be wrong. Record its reach, gaskets, ears, markings, pressure unit, and vacuum valve, then compare with the vehicle or radiator specification rather than copying it automatically.

Account for gasket compression

Uninstalled dimensions do not equal working reach. Gaskets compress, springs preload, and bayonet ramps pull the cap downward. Use drawings, a cap/neck gauge, approved adapters, or a validated sample when tolerance is critical. Do not apply marker, clay, adhesive, or foreign material that can enter the cooling system unless an approved inspection procedure specifies it.

Step-by-Step Compatibility Check

1. Identify the cooling architecture

Determine whether the pressure cap is on the radiator, remote filler, or pressurized expansion tank. Identify the recovery bottle, overflow hose, venting, degas line, and highest fill point. A non-pressurized bottle and a pressurized expansion tank require different cap behavior.

2. Record application and OE data

Capture vehicle or machine make, model, year or serial range, engine, market, cooling-package code, radiator OE number, filler-neck or tank number, and cap OE/markings. Market and engine variants can use different ratings and necks within the same model.

3. Inspect the neck before measuring

Check the rim, lower seat, bayonet ears, ramps, overflow nipple, solder/braze joints, plastic welds, and surrounding tank. Look for corrosion, mineral deposits, cracks, distortion, missing material, previous bending, or an adapter ring. A compatible cap cannot seal a damaged neck.

4. Inspect the cap architecture

Examine lower and upper gaskets, spring, pressure valve, vacuum valve, center rivet, ears/lugs, depth, markings, and material. Replace a cap with cut, swollen, hardened, or missing rubber; corrosion; binding valves; damaged ears; or loose construction.

5. Measure neck depth and seal diameter

Use suitable calipers, depth gauge, or dedicated fixture. Avoid scratching the seat. Take multiple readings around the rim to identify tilt or distortion. Record method and uncertainty rather than rounding to a convenient catalog value.

6. Compare bayonet engagement

With the system completely cold, confirm that the cap ears align, pass the entry slots, follow both ramps, and stop evenly without excessive force. A cap that catches only one ear or sits tilted is not acceptable. Do not bend ears or grind ramps to make it fit.

7. Confirm lower and upper seal contact

Use the approved dimensional or fixture method. The lower gasket must reach and overlap the lower seat; the upper gasket must cover the rim. A tester adapter that reproduces only one level cannot validate the other.

8. Verify approved pressure and vacuum rating

Read the unit carefully. A marking may be kPa, bar, psi, or a manufacturer code. Use the application specification, not a generic upgrade. Increasing pressure transfers more stress to radiator tanks, heater core, hoses, water-pump seals, thermostat housing, and joints.

9. Bench-test with the correct adapter

After geometry is confirmed, test pressure opening, regulation, reseating, retention, and vacuum function using a calibrated tester and correct adapter. If adapter depth differs from the vehicle neck, the result is not representative.

10. Validate on the vehicle through heat-up and cool-down

Monitor pressure behavior, residue, hose shape, radiator level, recovery-bottle level, and coolant return over a full controlled cycle. Stop for overheating, leakage, rapid pressure rise, or unsafe conditions. A cap can fit geometrically yet reveal a system fault unrelated to the cap.

Wrong-Cap Symptom Patterns

Coolant residue around the filler neck

Possible causes include short reach, wrong gasket diameter, damaged rim/seat, loose bayonet engagement, overfilled system, genuine overheating, combustion pressure, or a blocked overflow path. Inspect contact geometry before replacing another cap.

Radiator low, recovery bottle remains full

The upper rim seal may leak air, the vacuum valve may stick, the recovery hose/nipple may leak, or the bottle path may be blocked. A cap that only seals the lower seat can vent coolant outward but fail to draw it back.

Upper hose collapses after cool-down

The vacuum valve or return path may be restricted, the bottle may not vent as intended, or the hose may lack vacuum resistance. Check architecture rather than installing a lower-pressure cap as a guess.

Cap is difficult to lock

Wrong reach, bayonet geometry, oversized gasket, damaged ramps, corrosion, or neck distortion can create excessive force. Do not use tools to close a cap; doing so can crack plastic or alter calibration.

Cap turns but feels loose

Ear/ramp wear, shallow reach, wrong lug geometry, or a bent neck can reduce compression. A loose top fit does not prove the lower seal is absent, but it demands measurement.

Common Matching Errors

Matching only by printed pressure

Two caps with the same rating can use different reach, diameter, ears, gaskets, vacuum valves, and recovery architecture.

Matching only by top diameter

The visible cover can be identical while the functional lower seal and spring stack differ.

Assuming harder-to-close means better sealing

Excessive force may indicate over-compression or interference and can damage the neck or gasket.

Using the wrong tester adapter

An adapter can make a short cap appear to seal by contacting the gasket at a different depth. Reproduce the actual neck.

Ignoring filler-neck damage

A new cap cannot correct a bent metal rim, cracked plastic neck, corroded lower seat, detached nipple, or distorted bayonet ramp.

Installing a higher pressure as an upgrade

Higher pressure changes system stress and boiling margin but does not improve radiator airflow, coolant flow, or heat-transfer capacity.

When the Cap Is Not the Main Fault

If pressure rises rapidly from cold start, coolant bubbles repeatedly, or coolant is expelled with a compatible cap, investigate combustion gas, air pockets, thermostat, pump, restriction, and engine load. If temperature rises mainly at idle, verify the radiator cooling fan, shroud, and control system. A cap is a pressure-control component, not a cure for insufficient airflow.

If the radiator inlet and outlet behavior is abnormal, use the radiator temperature-difference guide and controlled radiator infrared scan rather than reading vented coolant as proof of a blocked core.

Repair or Replacement Decision

Replace the cap

Replace for wrong architecture/rating, damaged or hardened gaskets, weak or sticking valves, corrosion, damaged ears, loose construction, or repeatable failure under the correct adapter and method. Do not stretch springs, bend ears, stack gaskets, or add sealant.

Repair or replace the neck/tank/radiator

A filler neck with cracked plastic, severe corrosion, bent seat/rim, damaged bayonet ramps, detached overflow nipple, or leaking joint requires an approved repair or component replacement. Whether the neck is serviced separately depends on radiator construction and manufacturer procedure.

Correct the recovery circuit

Replace leaking hoses, damaged nipples, incorrect bottles, blocked vents, or failed pressure-tank components when proven. Keep hose routing, internal standpipes, and bottle height consistent with the design.

Wholesale Matching Information

For a replacement cap, filler neck, radiator, or expansion tank, provide application, engine, market, cooling-package code, OE numbers, cap markings with unit, neck type, pressure and vacuum specification, recovery architecture, and clear photographs. Include the following dimensions:

• Neck rim ID/OD and lower-seat depth

• Lower-seat contact diameter and width

• Bayonet slot, ear, ramp, and stop geometry

• Overflow nipple diameter, direction, and hose size

• Cap upper/lower gasket diameter and working reach

• Thread diameter/pitch/stop height for expansion-tank caps

• Radiator or tank material, mounting, and surrounding clearance

If the radiator is also required, include core width/height/thickness, tanks, ports, integrated oil coolers, drain, sensor bosses, shroud mounts, and fan clearance. Review the broader engine cooling component range only after defining the exact service boundary.

For the bare heat exchanger, compare the verified application with Elecdura's radiator category. Distributor programs that require production, packaging, and catalog support can use the wholesale radiator page; neither page replaces cap-to-neck measurements.

Quality-Control Checklist for Batch Orders

Approve a cap and neck combination as a system. Incoming inspection should verify OE traceability, material, dimensions, gasket compound/condition, spring and valve assembly, markings, corrosion protection, bayonet or thread geometry, overflow path, packaging, and batch identification. Use calibrated go/no-go or dimensional fixtures for reach and contact geometry where volume justifies them.

Functional sampling should use an adapter that reproduces the approved neck. Record pressure opening/regulation/reseat, retention, vacuum return, installed engagement, and leak behavior. For plastic tanks or necks, packaging must prevent distortion; a geometrically correct component can become incompatible after transport damage.

Buyers sourcing related radiators or fan modules can review Elecdura's radiator fan assemblies and wholesale cooling fans, but cap approval remains tied to neck and circuit architecture.

For passenger cars, trucks, vans, and other road vehicles, the on-highway cooling application page provides the broader use context. Buyers consolidating several thermal categories can also review the Elecdura cooling-system supply overview after every component boundary has been defined separately.

When uncertain measurements remain, use the contact page to send the cap, neck, ruler/depth-gauge photographs, and application data before sample approval.

FAQ

Will any cap with the same pressure rating fit?

No

Reach, seal diameter, bayonet/thread geometry, vacuum valve, upper recovery seal, and neck architecture can differ.

How do I know whether I need a deep or shallow cap?

Measure from the neck rim to the lower pressure seat

Compare that functional depth with the cap's working lower-gasket reach and installed compression using approved data or fixtures.

Why does a new cap leak immediately?

Check geometry before calibration

The lower seal may not reach, the gasket diameter may be wrong, the neck may be damaged, or the bayonet may hold the cap unevenly. Overheating can also force a correct cap to vent.

Can I bend the cap ears for a tighter fit?

No

Bending changes compression unpredictably and can damage the neck. Identify the correct cap or repair the damaged neck.

What should be sent for a radiator cap or filler-neck quote?

Send application, OE data, architecture, dimensions, and test evidence

Include cap and neck photos, markings/units, rim and seat dimensions, bayonet/thread geometry, recovery path, approved pressure/vacuum values, quantity, and sample requirements.
