Replace the charge air cooler after turbo failure when there is metal debris, broken turbo wheel material, heavy oil pooling, internal blockage, confirmed leakage, or any doubt that contamination can be fully removed. Cleaning may be acceptable when the turbo failure created only light oil carryover and the CAC passes inspection and pressure testing. The decision should not be based on habit. It should be based on what failed inside the turbo, what entered the charge-air path, whether the cooler can be cleaned completely, and how much warranty risk the fleet or repair network is willing to accept.
This matters because the charge air cooler sits downstream of the turbo outlet. If a turbo fails and sends oil, carbon, or metal fragments into the intake-air path, the CAC can become a trap. Some residue can be washed out. Some particles can remain lodged inside narrow tubes and passages. If those particles later move into the replacement turbo or engine intake, the buyer may face a second turbo failure, engine damage, smoke complaints, or a warranty dispute that is much more expensive than the CAC itself.
After turbo failure, oil inside the charge air cooler can become a repeat-failure risk if the cooler is not inspected, cleaned, or replaced correctly.
The clean, inspect, or replace decision should consider oil quantity, debris evidence, pressure test result, fleet downtime, and new turbo protection.
Turbo failure evidence | CAC decision | Reason |
|---|---|---|
Light oil film only, no metal debris, no heavy pooling | Clean, dry, inspect, and pressure test | Oil carryover may be removable if the core is not damaged or blocked |
Broken turbo wheel, metal shavings, or unknown internal debris | Replace the CAC | Particles can lodge inside tubes and later damage the replacement turbo or engine |
Heavy oil pooling inside the CAC | Replace or professionally evaluate before reuse | Large oil volume can be difficult to remove and may create smoke or runaway risk |
Pressure-test leak at tank, seam, tube joint, or core face | Replace the CAC | A leaking CAC cannot reliably support boost after the turbo repair |
External impact damage or mounting stress | Replace and correct the mounting cause | The new turbo repair should not be paired with a structurally weak cooler |
For fleet and B2B buyers, the safest rule is simple: if the old turbo failed mechanically and sent hard debris downstream, do not rely on basic flushing as proof that the CAC is safe. If the failure was only oil seal leakage and the cooler is otherwise sound, cleaning plus pressure testing may be a reasonable decision when the shop can document the result.
The turbocharger pushes pressurized intake air into the charge air cooler. When a turbo fails, the material that leaves the turbo outlet can travel into the CAC before reaching the engine. The cooler's internal tubes and fins are designed for heat exchange, not easy debris removal. Narrow passages, turns, and low points can hold oil, broken wheel material, carbon deposits, and small metal particles.
A driver may bring the truck in for smoke, low power, shaft noise, oil loss, or boost failure. Once the turbo is removed, the repair team should inspect the outlet side and downstream piping. If the turbo wheel is damaged, blades are missing, or there is visible metallic residue, the CAC becomes a risk item. Replacing only the turbo may get the truck moving, but it may leave the new unit exposed to leftover contamination.
For distributors and repair networks, this is where warranty disputes often start. A customer may say the replacement turbo failed early. The supplier may ask whether the CAC and intake pipes were cleaned or replaced. If the answer is unclear, the claim becomes difficult to defend. A documented CAC decision protects the repair file.
Metal debris changes the decision. A cooler that may be washable for oil contamination can become too risky when hard fragments are trapped inside.

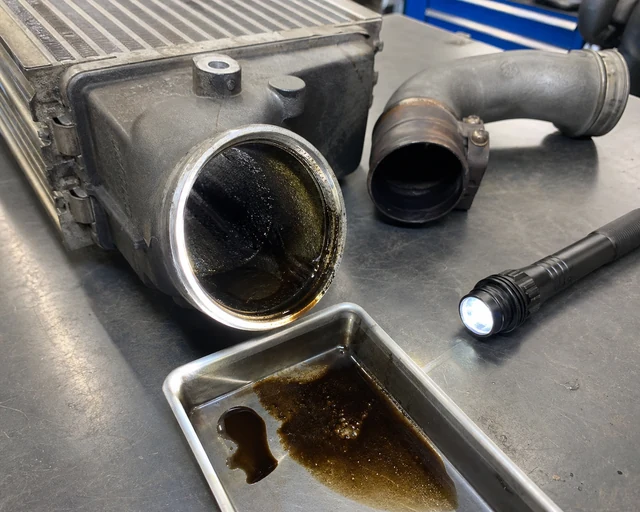

Oil contamination and metal debris should not be treated the same. Oil carryover can happen when turbo seals fail, when crankcase ventilation sends mist into the intake stream, or when the engine has operated with an intake-side problem for a long time. Light oil film may be cleaned if the cooler is structurally sound and the shop can remove residue, dry the core, and verify airflow and pressure integrity.

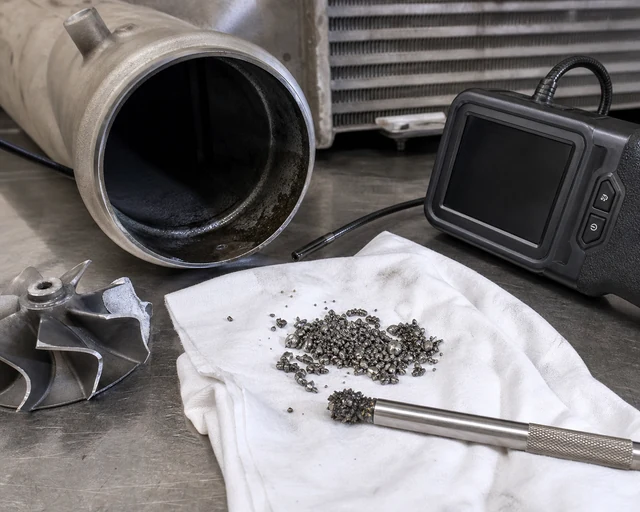

Metal debris is different. Broken turbo wheel fragments, fine shavings, and hard particles can lodge inside the CAC. The largest pieces may be removed from pipes, but smaller particles can remain in tube passages or low spots. A quick rinse does not prove the cooler is clean. Even a cooler that looks acceptable from the outside may still contain debris that can move later under vibration and airflow.
The decision becomes stricter when the turbo failed catastrophically. Missing wheel pieces, damaged blades, broken shaft, or grinding marks are strong reasons to replace the CAC. The cost of a charge air cooler is usually small compared with a second turbo, engine repair, vehicle downtime, and warranty conflict. For fleet buyers, the risk calculation often favors replacement when hard debris is confirmed.

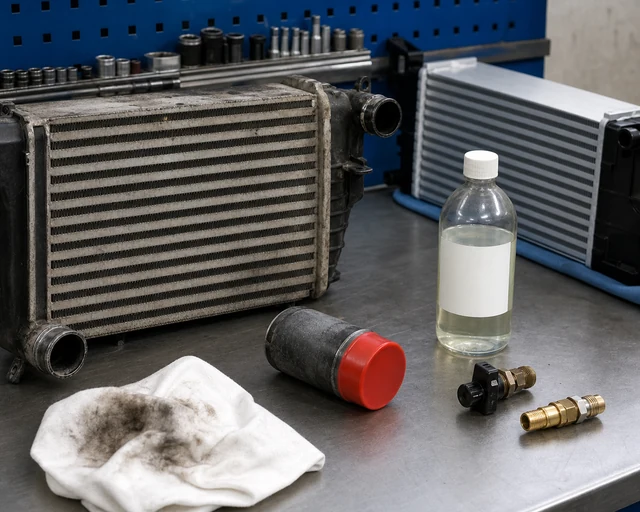

Cleaning can remove oil film and loose residue, but it has limits. A charge air cooler is not easy to inspect internally. Its passages are long, narrow, and arranged for heat transfer. A solvent flush may move some contamination but not prove that every passage is clean. Aggressive cleaning can also leave liquid residue, loosen debris without removing it, or damage the core if the process is not controlled.
A cleaner decision should include three questions. First, what type of contamination entered the cooler? Second, can the shop prove that the contamination was removed? Third, what happens if the proof is wrong? If the answer involves hard debris, uncertain cleaning, and high repair cost after failure, replacement is the safer business decision.
When cleaning is chosen, the shop should document the method, drain result, drying process, visual inspection, and pressure test. The CAC should be completely dry before installation. Any remaining fluid or loose residue can create smoke, poor performance, or renewed contamination. For warranty files, "cleaned CAC" should be supported by evidence, not just a line on an invoice.
The new turbo is most vulnerable when the intake path has not been cleaned and checked. Debris left in the CAC or pipes can move downstream after the repair. Oil residue can contribute to smoke complaints. Loose particles can damage the new turbo wheel, enter the engine intake, or create an early failure that is blamed on the replacement part.
Secondary failure is expensive because it multiplies labor and trust problems. The truck returns to the shop. The fleet loses the vehicle again. The distributor must review the claim. The supplier must decide whether the part failed or the installation environment caused the failure. If the CAC decision was undocumented, every party has less evidence.
For a fleet program, it is useful to classify turbo failures by contamination risk. Minor oil seepage may allow cleaning and test. Major shaft failure, broken wheel material, or unknown debris should push the repair toward CAC replacement. This classification can be added to repair standards so technicians and buyers make consistent decisions across locations.
Pressure testing does not prove that every internal passage is free from debris, but it does confirm whether the CAC can hold air after cleaning or replacement. The typical setup seals the inlet and outlet, applies regulated air pressure, monitors pressure decay, and uses a bubble solution around tank seams, tube-to-header joints, necks, welds, core face, and mounting-stressed areas.
Many shop checks use a moderate range such as 15 to 30 psi, but the correct pressure should follow the vehicle or component procedure. The test record should include pressure, hold time, visible leak points, photos, and whether the cooler was tested on the vehicle or on the bench. If the cooler leaks after cleaning, it should be replaced. If it holds pressure but debris risk remains high, the buyer still needs to consider replacement based on contamination, not pressure alone.
For distributors, pressure-test evidence is especially useful when a customer requests warranty support. A clear test report shows whether the failure was a CAC leak, a boot or clamp issue, mounting stress, shipping damage, or contamination after turbo failure. That distinction prevents a good replacement part from being blamed for an unresolved system problem.
Specification field | Why it matters after turbo failure | Evidence to collect |
|---|---|---|
OE number or old part reference | Starts the correct cross-reference | Label, stamping, old packaging, or catalog number |
Core dimensions | Controls cooling capacity and front-stack fit | Core height, width, thickness, and total size |
Inlet and outlet diameter | Prevents boot leakage and pipe mismatch | Caliper measurement and neck photos |
Port angle and offset | Prevents pipe stress after installation | Side photos and installed-position photos |
Mounting bracket locations | Prevents vibration and rubbing that can crack the new cooler | Bracket spacing, hole size, and mounting ear photos |
Tank construction | Helps compare crimped, welded, plastic, and aluminum versions | Tank seam photos and material notes |
Operating pressure and duty | Shows whether the application needs a heavy-duty specification | Truck route, load, climate, engine data, and service condition |
This checklist matters because turbo failure repair often happens under time pressure. The truck is already down, and the buyer wants the correct part quickly. Sending only the truck model can lead to a visually similar but incorrect cooler. Sending measurements, photos, and contamination evidence gives the supplier a better chance to confirm the right replacement.
A complete repair file should include the turbo failure description, photos of the old turbo, condition of the outlet pipe, oil amount found in the CAC, visible debris, cleaning decision, pressure-test result, and final replacement decision. If the CAC is reused, document why reuse was acceptable. If it is replaced, document the evidence that made replacement necessary.
For fleets, this documentation helps control policy. A truck with minor oil carryover may follow one path. A truck with broken turbo wheel material follows another. The buyer can compare repairs across branches and reduce arguments about whether a technician over-replaced or under-replaced parts.
For distributors, documentation supports after-sales communication. If a customer later reports another turbo issue, the record shows whether the charge-air path was addressed. If there is no record, the conversation becomes subjective. B2B buyers should treat CAC documentation as part of turbo repair quality, not an optional note.
Send the old CAC reference, vehicle application, engine, production year, and market region.
Attach photos of the old cooler from front, rear, both sides, necks, brackets, and tank seams.
Measure core height, core width, thickness, overall size, inlet diameter, outlet diameter, and bracket spacing.
State the turbo failure mode: oil leakage, shaft failure, broken wheel, debris, smoke, or low boost.
Describe contamination level: light film, pooled oil, visible particles, or unknown internal debris.
Include pressure-test result if the old cooler was tested.
Confirm package protection for fins, corners, inlet/outlet necks, and brackets.
Confirm target quantity, delivery urgency, private-label needs, and repeat-order plan.
Packaging is more important than many buyers expect. Charge air coolers can be damaged by crushed cartons, exposed necks, weak corner protection, or poor pallet stacking. If the replacement arrives with bent fins or a distorted neck, the repair may be delayed after the truck has already been opened. For wholesale shipments, carton strength and neck protection should be part of the quotation conversation.
Evidence after turbo failure | Recommended action | B2B reason |
|---|---|---|
Light oil film, no debris, CAC holds pressure | Clean, dry, document, and reuse if policy allows | Controls cost while keeping evidence for warranty |
Metal particles or broken wheel material found downstream | Replace CAC and clean pipes | Reduces secondary turbo and engine damage risk |
Heavy oil pooled in lower CAC tank | Replace or require professional evaluation before reuse | Residual oil can create smoke, performance issues, and claim disputes |
CAC fails pressure test after cleaning | Replace CAC | The cooler cannot support the repaired boost system |
Mounting damage, rubbing, cracked brackets, or distorted necks | Replace CAC and correct installation cause | Prevents repeat leakage and fitment stress |
Elecdura's Charge Air Cooler category is the primary reference when replacement is required after turbo failure. For buyers comparing terminology and adjacent fitment, Turbo Intercooler can help clarify application language. If the buyer needs testing evidence before confirming the order, Charge Air Cooler Pressure Test explains the pressure-test record that should be collected. For front-stack repair programs that include other heat exchangers, Oil Cooler may be relevant when the truck's cooling package is being serviced at the same time.
For a quotation, send old-part references, photos, measurements, turbo failure evidence, contamination notes, pressure-test result, vehicle application, target quantity, and packaging requirements. Elecdura can compare the replacement against the actual truck and repair condition before order confirmation.
A repair network should not leave the CAC decision to memory or mood. A written policy makes the decision easier for technicians, parts counters, and fleet managers. One practical policy is to separate turbo failures into three levels. Level one is light oil film with no wheel damage, no visible particles, and a CAC that passes pressure testing. This may allow cleaning and reuse if the shop records the cleaning and test result. Level two is heavy oil contamination, uncertain failure history, or a truck that must return to severe service quickly. This should trigger manager review because the cost of a second failure may be higher than the cost of the CAC. Level three is broken turbo wheel material, metal particles, internal blockage, or confirmed CAC leakage. This should normally require CAC replacement.
This policy also helps distributors handle mixed customer expectations. Some customers want the lowest immediate repair cost. Others want the lowest downtime risk. By showing the evidence level, the distributor can explain why one truck was cleaned and another truck received a new CAC. The conversation becomes a technical risk decision rather than an argument about whether the shop is selling unnecessary parts.
Before the repaired truck starts, the intake-air path should be treated as part of the turbo job. Check the turbo outlet pipe, CAC inlet, CAC outlet, boots, clamps, intake pipe, and mounting supports. Make sure all loose residue has been removed from accessible pipes. Replace swollen or oil-softened boots. Confirm clamp seating and bead-roll condition. Verify that the CAC is dry if it was cleaned. A wet or contaminated cooler can create smoke and poor first-start impressions even when the turbo itself is new.
After installation, the first road test should look for boost response, smoke, abnormal whistle, oil seepage, and boot movement under load. A short idle test does not prove the CAC decision was correct. The original complaint usually appeared under boost, so the verification should include a controlled load condition where safe and practical. Recording this final test protects the repair file and gives the buyer confidence that the replacement turbo is not being exposed to the same unresolved problem.
After turbo failure, a charge air cooler should be replaced when hard debris, broken turbo material, heavy oil pooling, internal blockage, pressure-test leakage, or structural damage makes reuse risky. Cleaning may be acceptable for light oil contamination when the shop can clean, dry, inspect, and pressure-test the cooler with documentation. The decision should be stricter when the truck is part of a fleet, the replacement turbo is expensive, or the cost of a second downtime event is high.
The safest B2B workflow is to document the turbo failure mode, inspect the charge-air path, classify contamination, decide whether cleaning can be proven, pressure-test the CAC, and match any replacement by dimensions, inlet/outlet layout, bracket position, tank design, and application data. This approach protects the repair outcome and gives importers, distributors, repair networks, and fleet buyers a defensible basis for sourcing and warranty communication.
